LILYGO T3-S3 ESP32-S3 LoRa WiFi Bluetooth Module 0.96 OLED Display 4MB Flash 2MB PSRAM Long Range Communication

5.01 rating
AI Summary
Motherboard & Development Board for everyday users

The LILYGO T3-S3 ESP32-S3 LoRa WiFi Bluetooth Module 0.96 OLED Display 4MB Flash 2MB PSRAM Long Range Communication by LILYGO is a mid-range motherboard & development board designed for everyday users.

✓ wireless convenience
₹3,014-31%
MRP:₹4,549Save ₹1,535
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

31% Off — you save ₹1,535 on this product!

Price: ₹3,014

Total: ₹3,014
Buying tip: A quality investment for dependable performance and premium build quality.
Estimated delivery: 4 Aug – 18 Aug
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience
Share:
SKU: bg-2042102Category: Motherboard & Development Board

About This Product

The LILYGO T3-S3 ESP32-S3 LoRa WiFi Bluetooth Module 0.96 OLED Display 4MB Flash 2MB PSRAM Long Range Communication by LILYGO is a mid-range motherboard & development board designed for everyday users. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:
MCU: ESP32S3FH4R2
Flash: 4MB
PSRAM: 2MB
Wireless Protocol: Wi-Fi + Bluetooth 5.0
Onboard Functions: Reset + Boot Button, TF Card Support, USB/3.7V LiPo Battery Power Support, Battery Switch

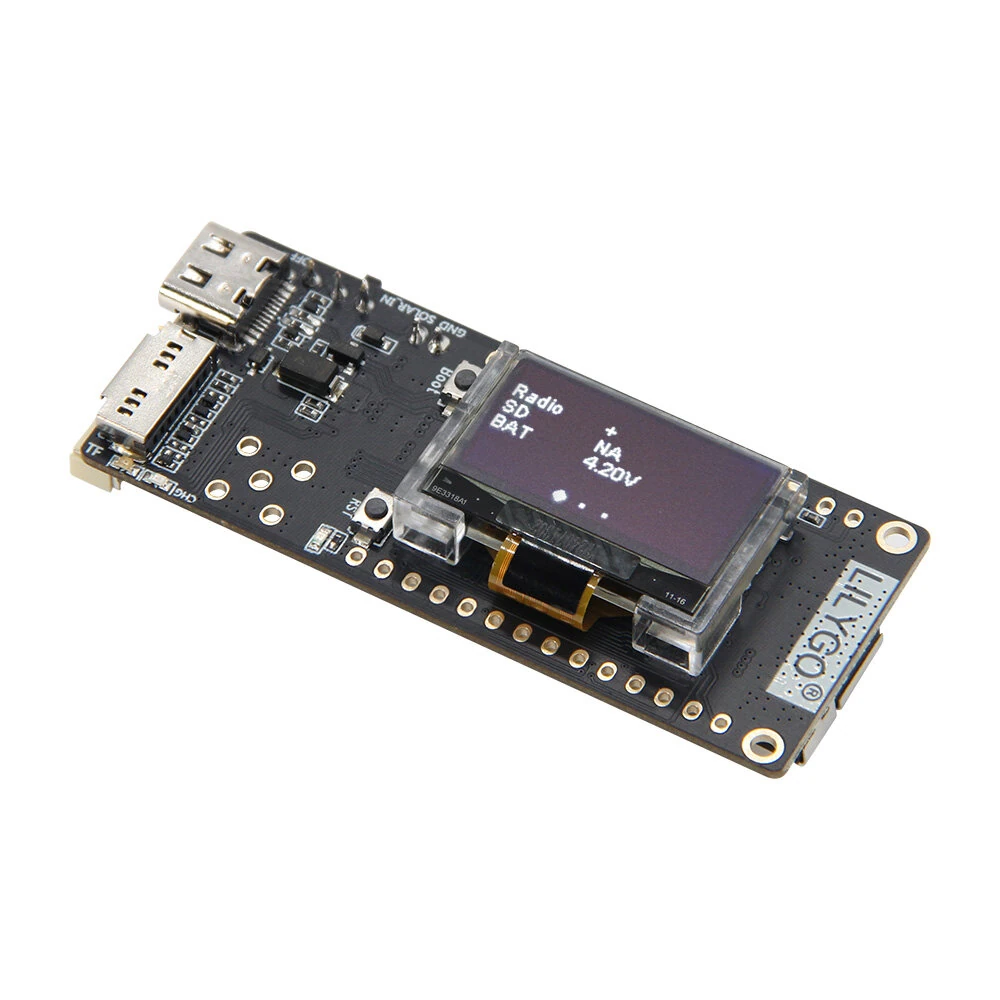

Display: 0.96-inch SSD1306 Driver I2C OLED
Resolution: 128x64
I2C interface: SDA - IO18, SCL - IO17

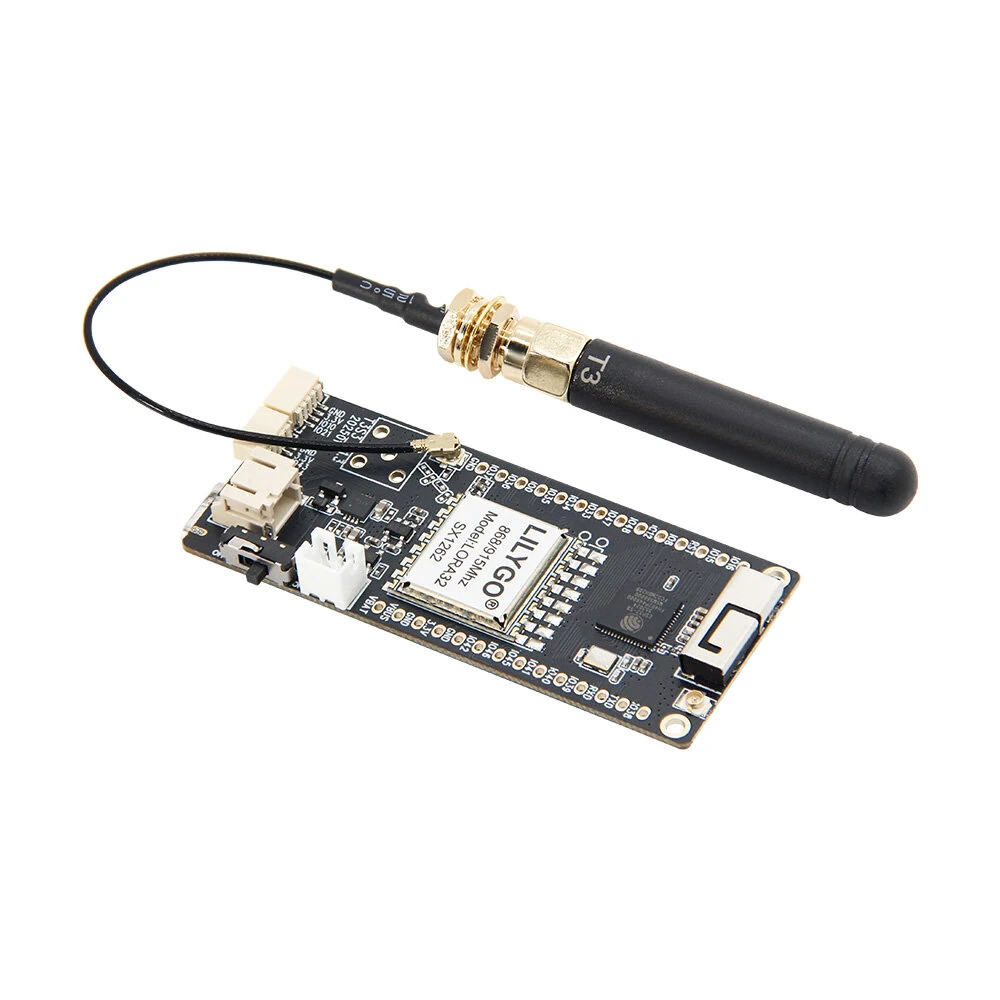

Low Power LoRa Transceiver:
SX1280: 2.4GHz, TX Power +13dBm
SX1276: 868/915MHz, TX Power +17dBm
SX1262: 433/868/915MHz, TX Power +22dBm
Connect Pins: TX, RX, SCLK, MISO, MOSIs, CS, DIO.

Features:
1. Advanced ESP32-S3 Chip
Equipped with the ESP32S3FH4R2 chipset, offering high performance for IoT applications with built-in Wi-Fi and Bluetooth 5.0. It ensures seamless internet and device connectivity.

2. Integrated LoRa Transceiver
Supports SX1280, SX1276, and SX1262 modules for long-range communication in different frequency bands, allowing flexible applications in 433 MHz, 868 MHz, 915 MHz, and 2.4GHz transmission.

3. High-Resolution OLED Display
Features a 0.96-inch SSD1306 I2C OLED screen with 128x64 resolution, providing clear visuals for monitoring data, program outputs, or debugging.

4. Flexible Power Options
Designed with compatibility for USB or 3.7V LiPo battery power input, ensuring versatile powering choices suitable for various scenarios.

5. Compact and Functional Design
Includes reset/boot button and TF card slot for storage expansion, packed into a compact form factor ideal for prototyping, development, and portable IoT projects.

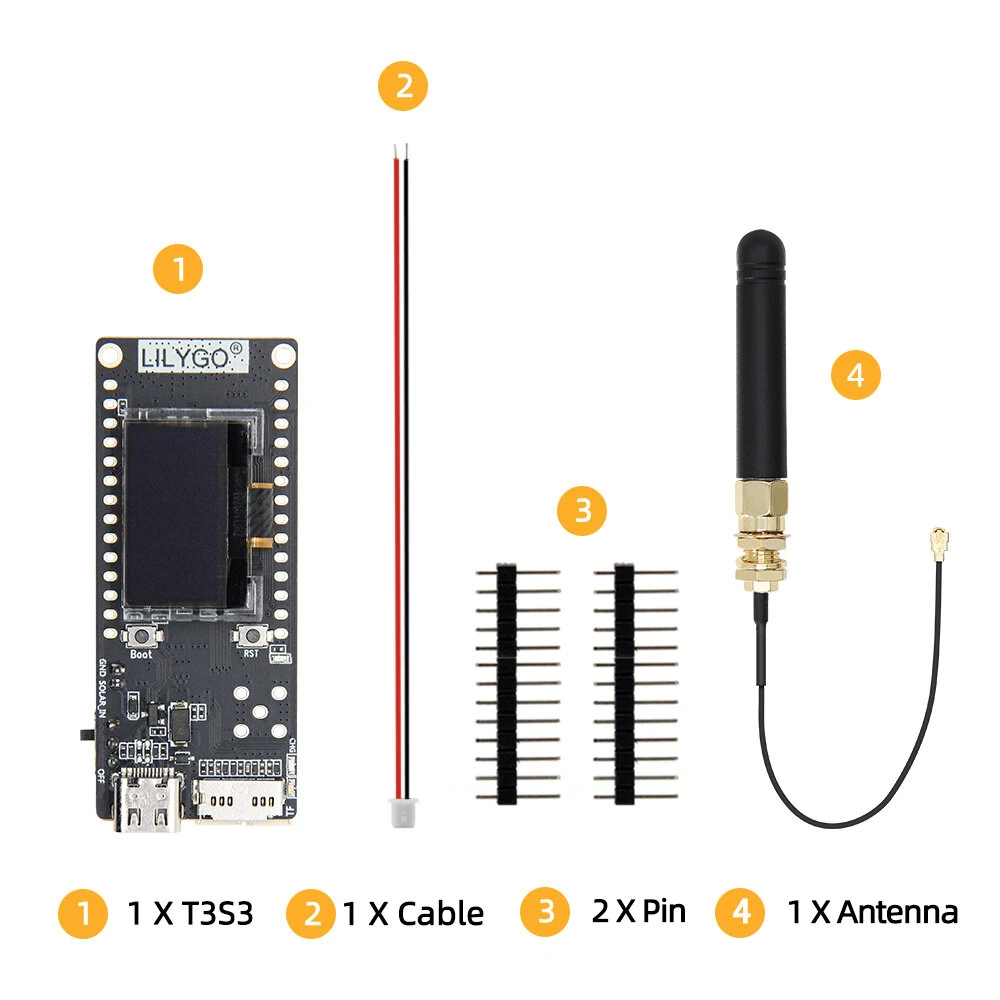

Package Included:
1 x T3-S3 Development Board
1 x Power Cable
2 x Pin Headers
1 x Antenna



Product Safety Information
Product Safety Information
Manufacturer
Shenzhen Yuner Yipu Trading Co., Ltd
Address
East 1087, Building 4, SEG Science and Technology Park, No. 3012 Huaqiang North Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong, CN
European agent
VISHTEC ltd
Email
compliance@vish-tec.com
Address
3 rd floor office 5, Plovdiv 2 Liuben Karavelov bul, 4002 Bulgaria
UK agent
CET Product Service Ltd.
Email
info@cetproduct.com
Address
Beacon House Stokenchurch Business Park, Ibstone Rd, Stokenchurch, High Wycombe, Buckinghamshire, UK

Setup Guide

1
Identify the pins
Locate VCC (power), GND (ground), and data pins (SDA/SCL for I2C, MOSI/MISO for SPI, or TX/RX for UART). Refer to the pinout diagram on the product page.
2
Wire to your microcontroller
Connect VCC to 3.3V or 5V (check the module spec), GND to GND, and data pins to the appropriate GPIO pins on your Arduino or Raspberry Pi.
3
Install libraries
In Arduino IDE, go to Sketch → Include Library → Manage Libraries and search for the sensor library. Install the recommended version.
4
Upload example sketch
Open File → Examples → [library name] → Basic Example. Upload to your board and open Serial Monitor to view output.
5
Calibrate if needed
Some sensors (temperature, humidity, distance) may need a short warm-up period or calibration. Run the calibration sketch if provided.
