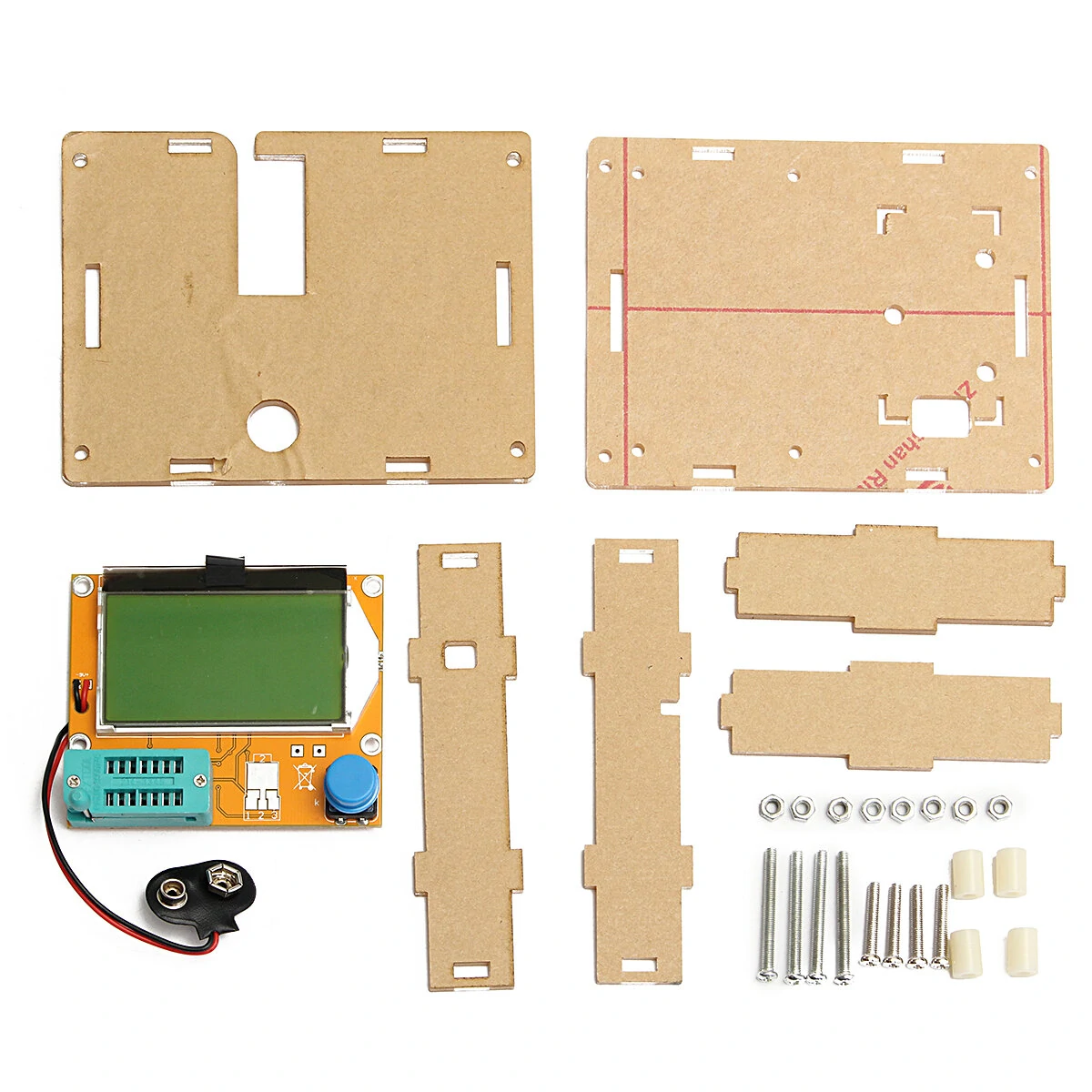

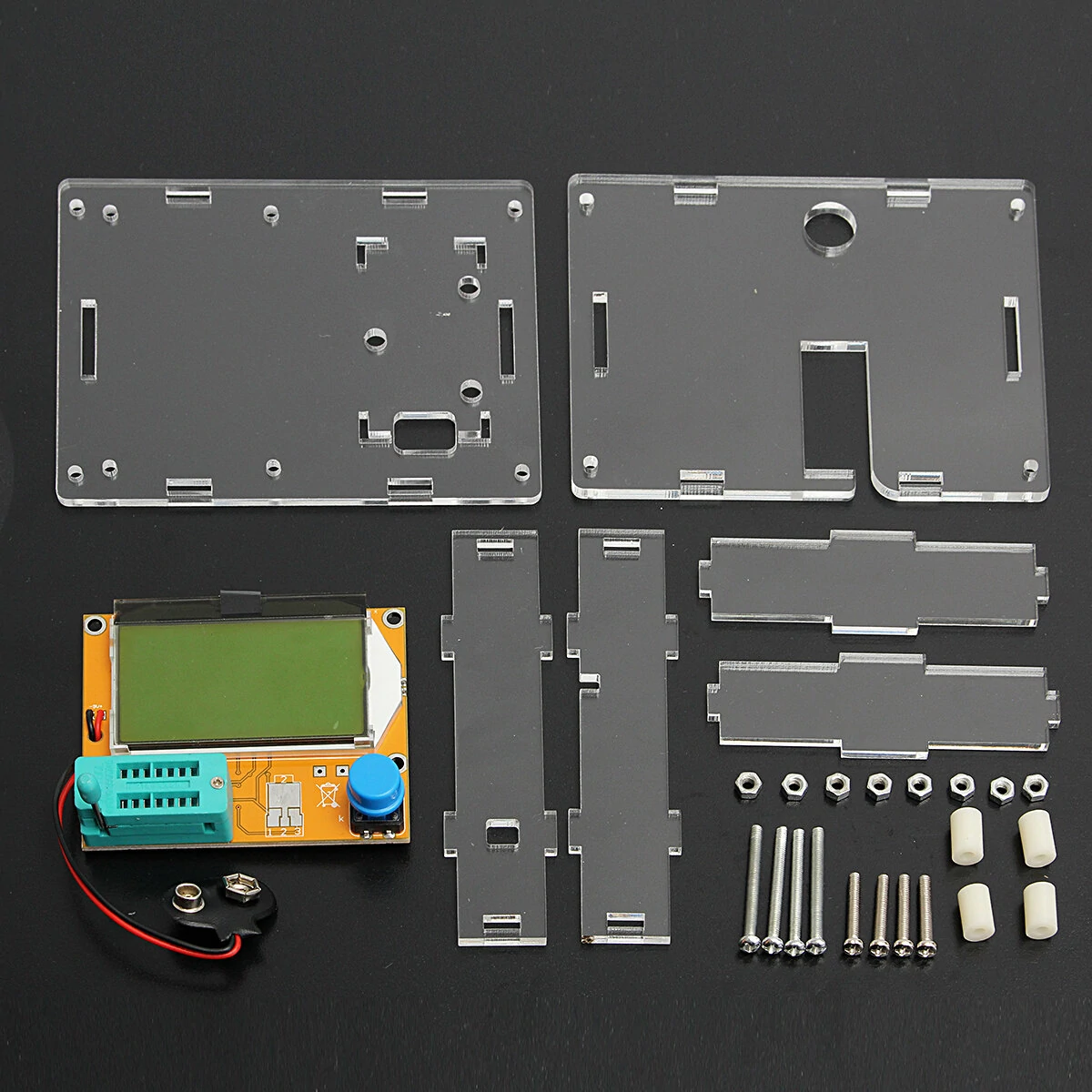

Geekcreit® LCR-T4 Mega328 Transistor Tester Diode Triode Capacitance ESR Meter With Shell
₹1,368-56%
MRP:₹3,108Save ₹1,740
Free Shipping💵 COD Available
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
56% Off — you save ₹1,740 on this product!
Total: ₹1,368
Specifications:
Resistor: 0.1ω-50Mω
Capacitor: 25pF-100000uF
Inductance: 0.01mH - 20H
Working power: DC-9V
Standby current: 0.02uA
Operating current: 25mA
Material: Metal+Plastic
Size: about 11.1cm/4.37"x2.6cm / 1.02"x8.5cm/3.34"
[Conversion: 1cm=0.3937 inch, 1inch=2.54 cm]
Description:
1. Add boot voltage detection function 2. Automatic detection of NPN and PNP transistors, N -channel and P-channel MOSFET, diodes (including dual diode), thyristors, transistors, resistors and capacitors and other components 3. Automatic test out the pin element and displayed on the LCD 4. Can be detected to determine the transistor emitter forward bias voltage of the transistor, MOSFET protection diode and the amplification factor of the base 5. Measure the gate threshold voltage and gate capacitance of the MOSFET 6. 1602 lcd display uses LCD (12864 LCD with backlight) 7. High test speed, valid component test: 2 seconds (except in the larger capacitor of large capacitance measurement also takes a long time, the measured time of one minute is normal) 8. One button operation, power-on test, get a key 9. Power consumption off mode: less than 20 nA of 10. Auto power off function to avoid unnecessary waste, saving battery power, improved battery life
Note:
Battery is not included.
Package included:
1 x LCR-T4 Transistor Tester
Description:
1. Add boot voltage detection function 2. Automatic detection of NPN and PNP transistors, N -channel and P-channel MOSFET, diodes (including dual diode), thyristors, transistors, resistors and capacitors and other components 3. Automatic test out the pin element and displayed on the LCD 4. Can be detected to determine the transistor emitter forward bias voltage of the transistor, MOSFET protection diode and the amplification factor of the base 5. Measure the gate threshold voltage and gate capacitance of the MOSFET 6. 1602 lcd display uses LCD (12864 LCD with backlight) 7. High test speed, valid component test: 2 seconds (except in the larger capacitor of large capacitance measurement also takes a long time, the measured time of one minute is normal) 8. One button operation, power-on test, get a key 9. Power consumption off mode: less than 20 nA of 10. Auto power off function to avoid unnecessary waste, saving battery power, improved battery life
Note:
Battery is not included.
Package included:
1 x LCR-T4 Transistor Tester
