Name: Geekcreit® 40pcs FR-4 2.54mm Double Side Prototype PCB Printed Circuit Board
Brand: Geekcreit
SKU: bg-995732
Price: 2000 INR
Availability: InStock
Rating: 5.0 (4415 reviews)

Question 1

Is the price of 34.60 for only one? or all of them?

Accepted Answer

The advertised price is for 10 pieces of each size, making a total of 40 pieces.

Question 2

Are the holes connected like a veroboard, and if so, which way?

Accepted Answer

No they are not connected like that. Each hole has a small pad of solder on it, but they are not connected to each other. You can either connect them with solder, or a small wire between the needed components.

Question 3

What size are the holes?  1mm?  0.8mm?  or?

Accepted Answer

Specification:Total 40pcs, each size 10pcsGrid : 0.1 (2.54mm)Thickness : 1.6mm(5pcs)Hole diameter : about 1mmThe diameter of 4 large positioning holes: 4mm

Question 4

What is the diameter of the four standoff holes on the PCBs? What kind of standoff will fit in there?

Accepted Answer

The diameter of 4 large positioning holes: 4mm

Question 5

what is the use of the flat silver upper and down the pcb.i thought that this pcb’s like the breadboard but when I tested it with the multimeter it wasn’t the use i was thinking so what’s it use????

Accepted Answer

Well,you can use those as an edge connector for example but you can also use those to solder one pcb at a 90 degree angle on top of another like an L shape. Use one pcb as base plate with
                                                                                                                    bus bars and then solder a few at 90 angle like so I_I_I_I just to give you an idea, hope it helps.
                                                            ...
                                                            see more
                                                            see less

Question 6

How do these line up with Arduino boards. 5 cm looks like is wouldn't quite span both pin rows of an UNO for example.

Accepted Answer

Theseboards do not line up with the Arduino UNO or the other bigger boards, these are best suited for use with the Arduino Nano or the Mini. The boards are pretty handy if you're regularly doing prototyping and you don't
                                                                                                                    want it on a breadboard but more permanent.However, these boards are made up of through hole via's there's no separation between the two sides, personally I think the single sided proto boards are easier to work with because you don't have to think about spacing or think in layers which you're forced to with these boards.
                                                            ...
                                                            see more
                                                            see less

Question 7

What is the recommended method for making solder connections between components mounted on these boards?

Accepted Answer

I just use wires to join the points together, its a bir messy but easier and cheaper than using solder

Question 8

How many boards come and what sizes are they?

Accepted Answer

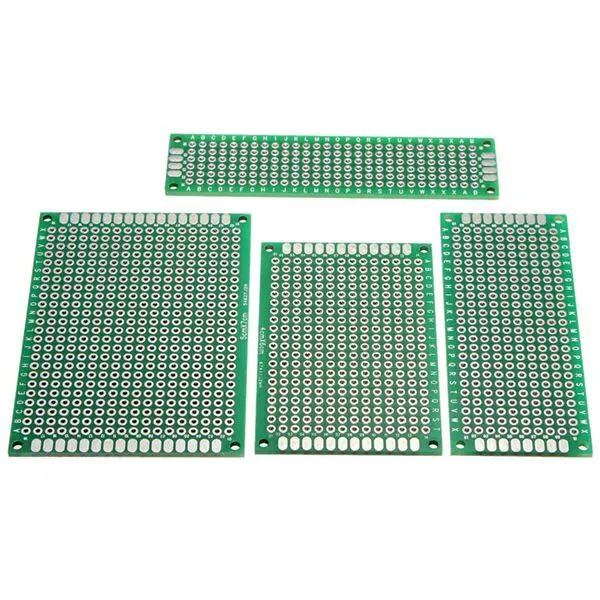

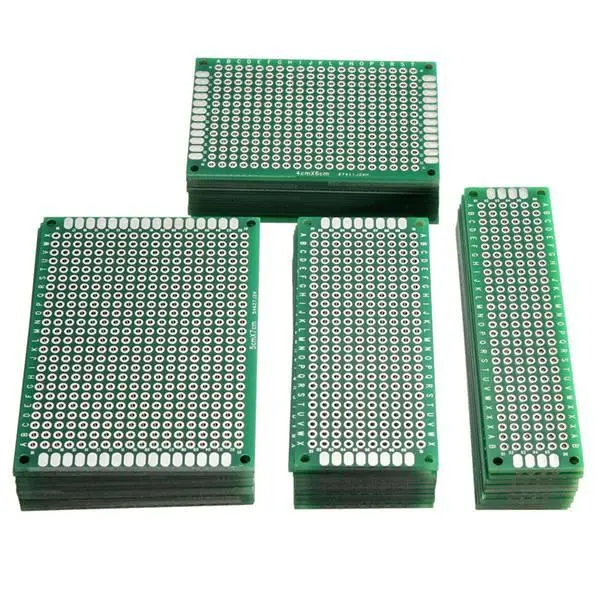

There are 10 of each size. 4 different sizes.- 50 x 70 mm,- 40 x 60 mm,- 30 x 70 mm,- 20 x 80mm

Question 9

what are they buying circuit boards for

Accepted Answer

To solder various electronic components on them.

Question 10

how can I select different sizes? the pictures show different ones but the list only has one option to buy,thanks.

Accepted Answer

This comes as a complete set, with 10 pieces in each size, for a total of 40 pieces.
