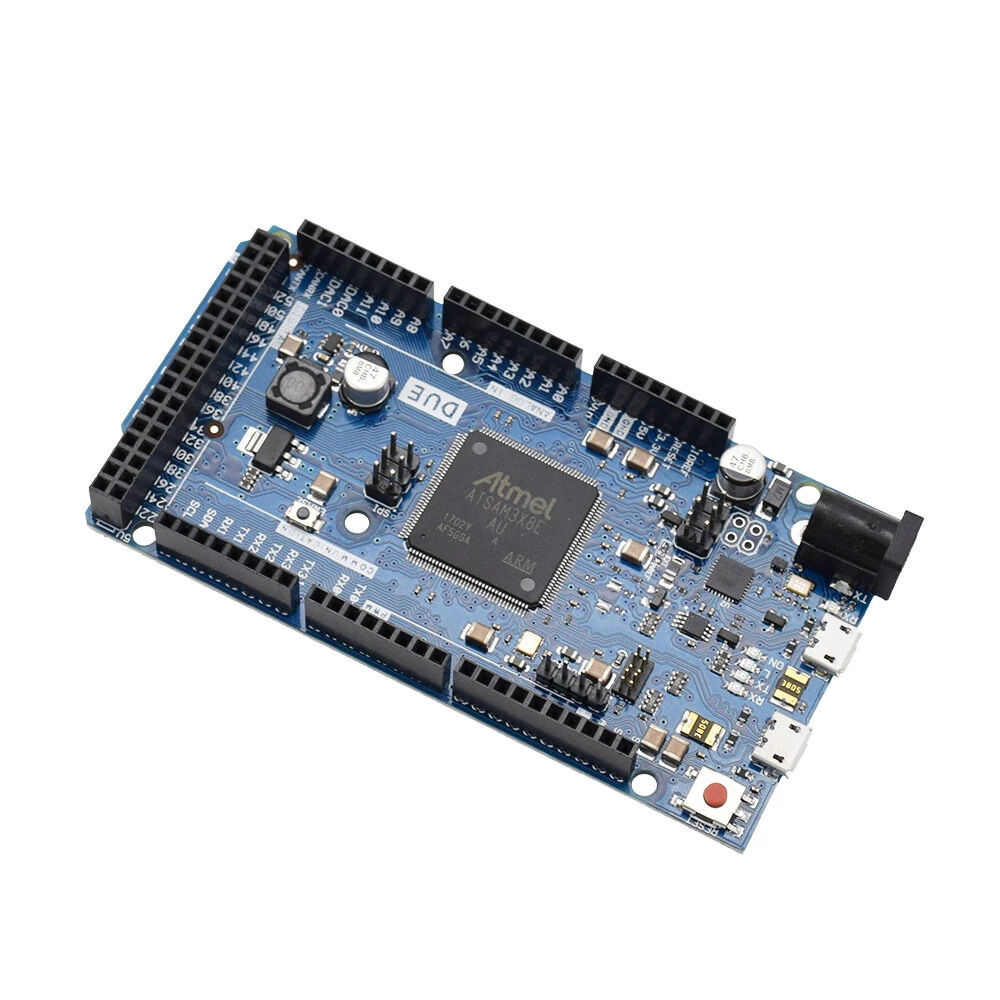

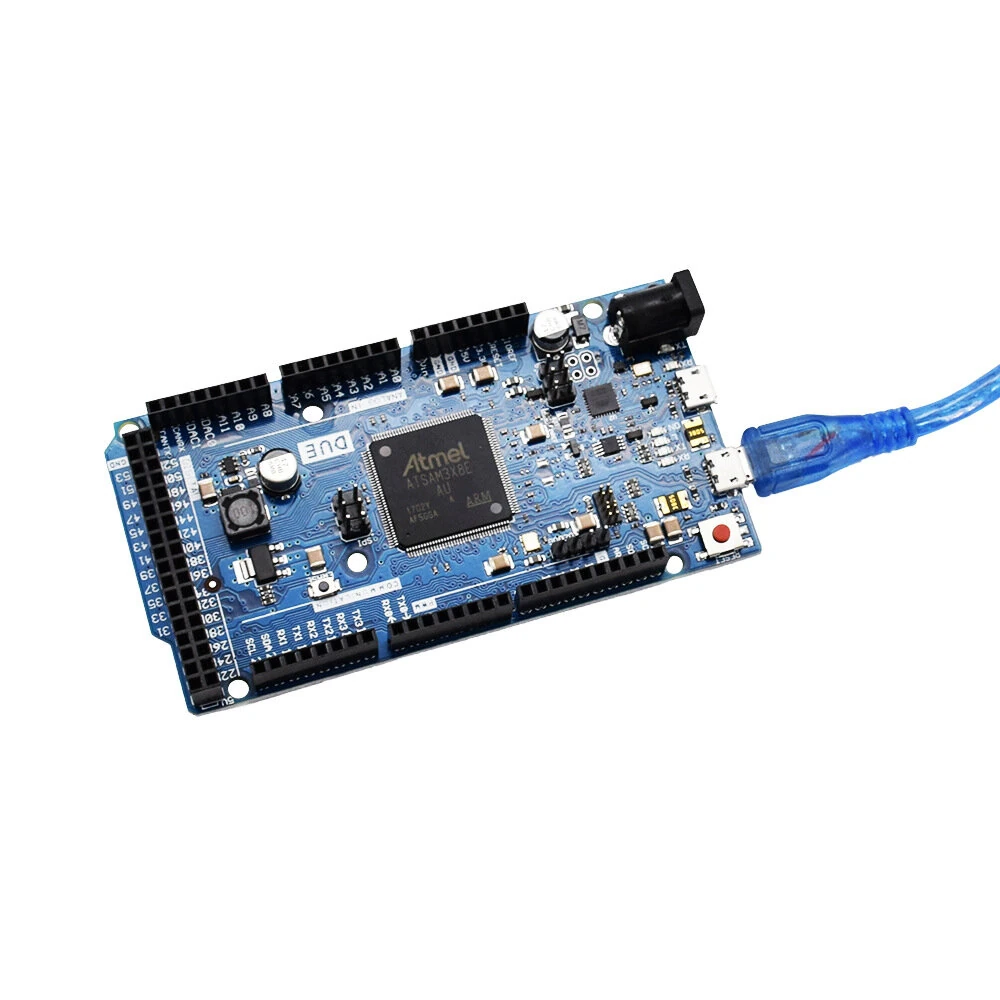

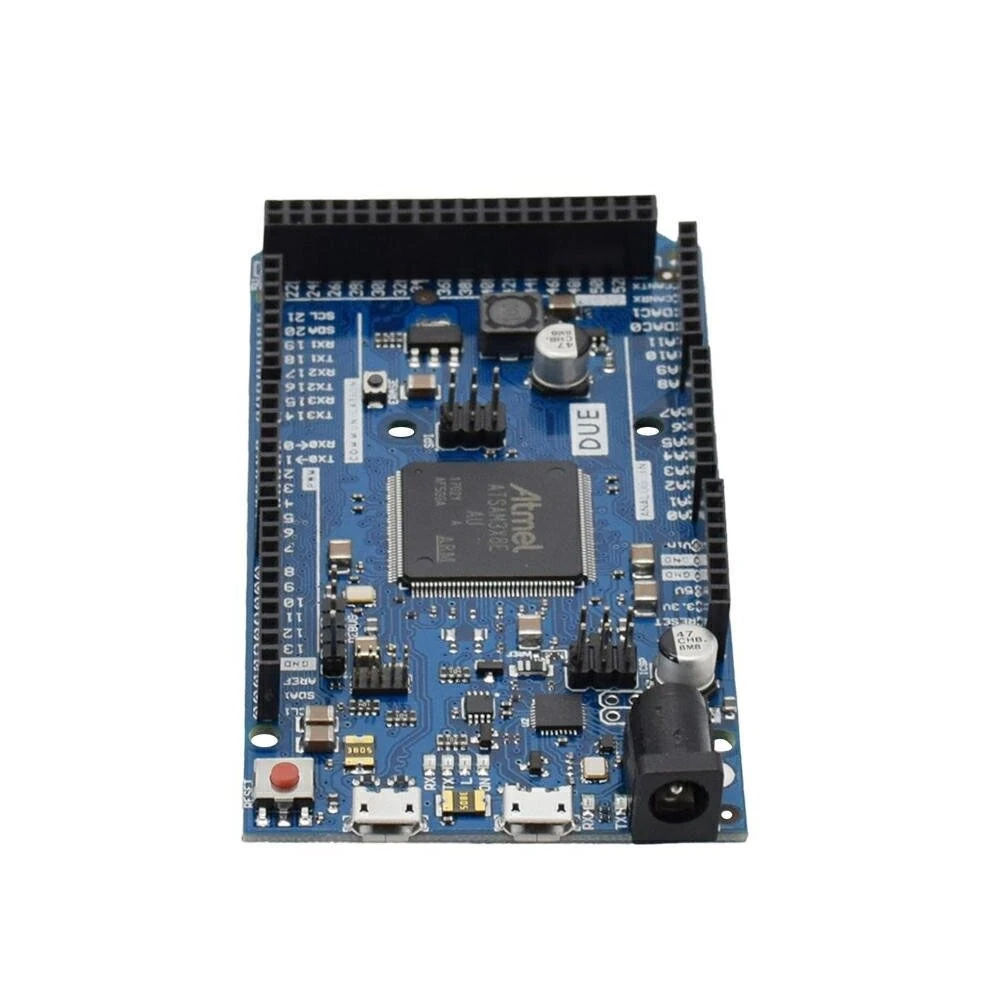

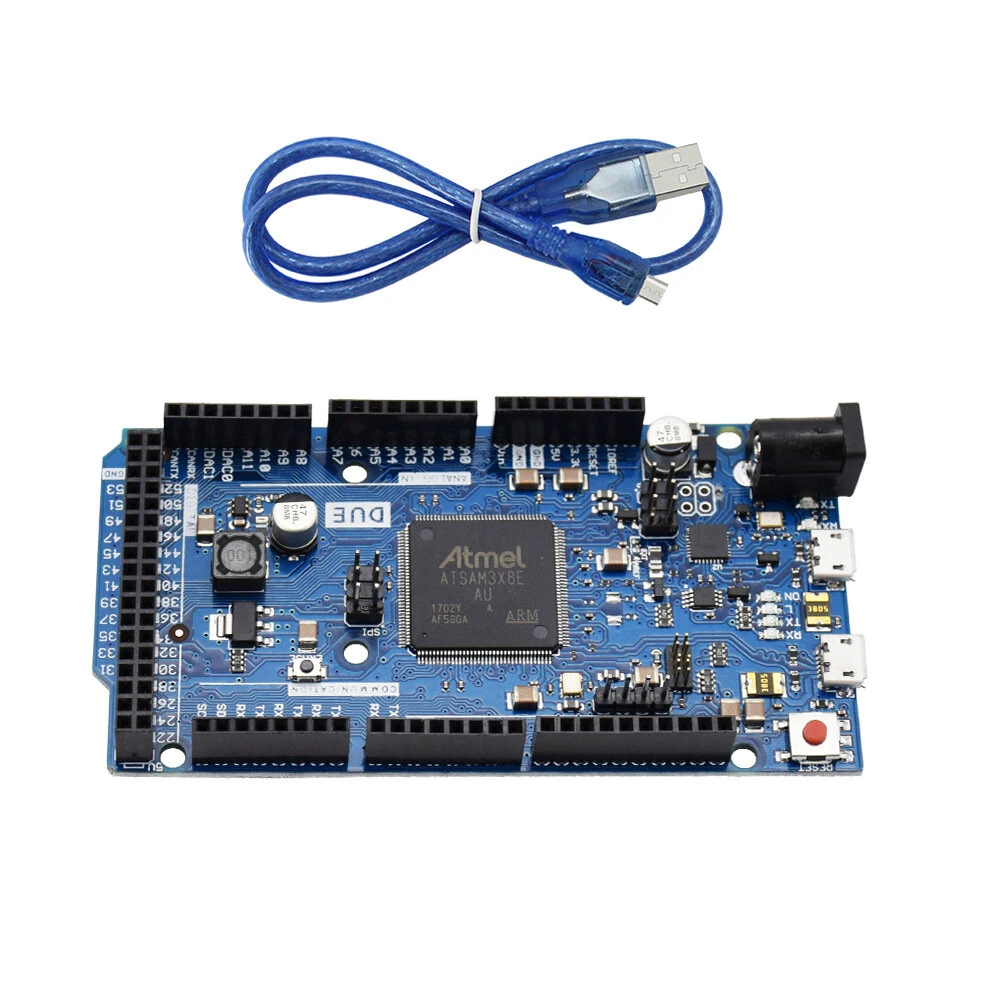

DUE R3 Development Board SAM3X8E32-bit ARM Learning Master Module Main Control Board with USB Cable forArduino

Description: 1) Since the board operates at 3.3 V, the maximum voltage that can be applied to the I/O pins is 3.3 V. Supplying higher voltages (e.g. 5 V) to the I/O pins may damage the board. 2) Advantages of the ARM core: Using a 32-bit ARM core is more powerful than the other Iduino cores previously used with the 8 AVR. The main differences are: - One clock of 32 bits can process 32 bits of data. - CPU clock frequency is 84 MHz - 96 KB SRAM - 512 KB of flash memory - A DMA controller to relieve the CPU of a large number of calculations. Specifications: - Microcontroller: SAM3X8E - Operating voltage: 3.3 V - Input voltage (recommended): 7 - 12 V 7 - 12 V - Input Voltage (Limit): 6 - 16 V 6 - 16 V - 54 digital I/O pins (12 of which provide PWM outputs) - Analogue input pin 12 - Analogue output pin 2 (DAC) - Total DC output current for all I/O lines: 130 mA - DC current at 3.3 V pin 800 mA - DC current at 5 V pin 800 mA - Flash memory 512 KB, all for user applications - SRAM: 96 KB (two banks: 64 KB and 32 KB) - Clock speed: 84 MHz

Package includes:

1 x DUE R3 Development Board
