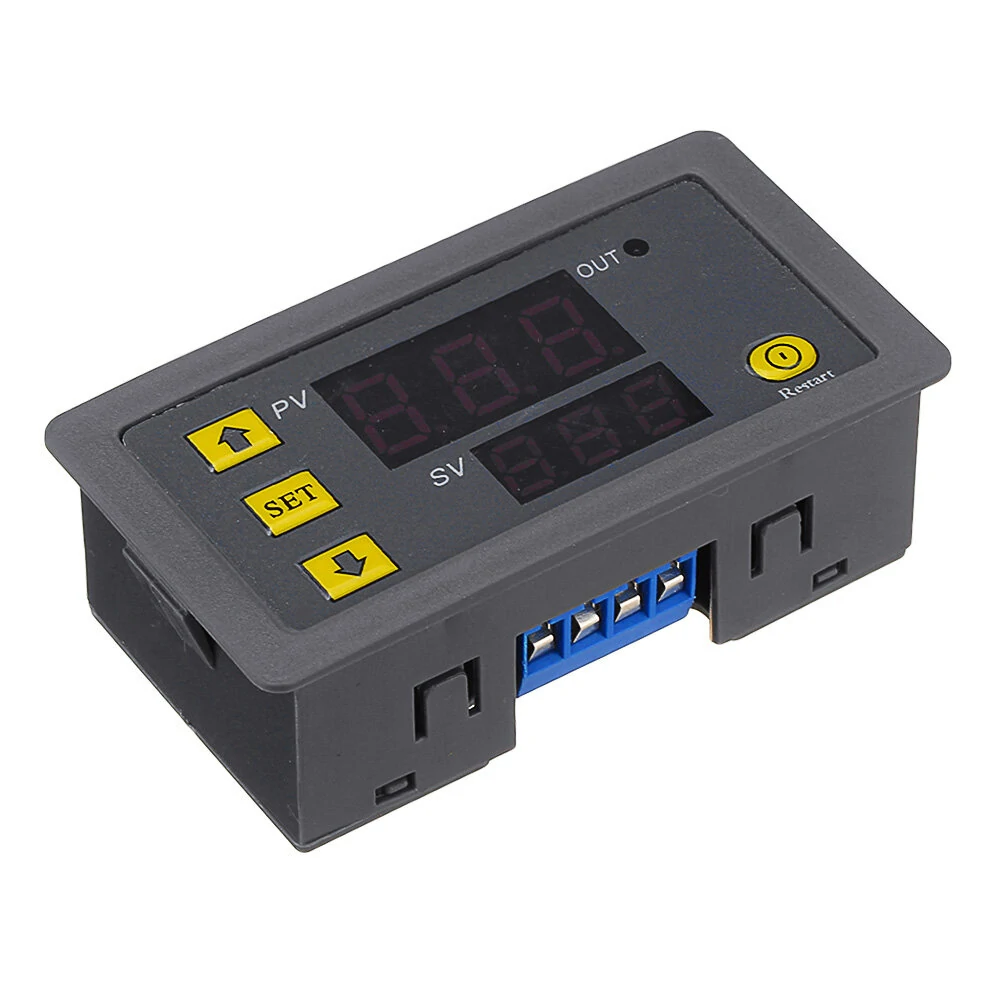

Name: DC12V / AC110V-220V Digital Display Time Relay Automation Delay Timer Control Switch Relay Module
Brand: Geekcreit
SKU: 1416341
Price: 1240 INR
Availability: InStock
Rating: 5.0 (234 reviews)

Question 1

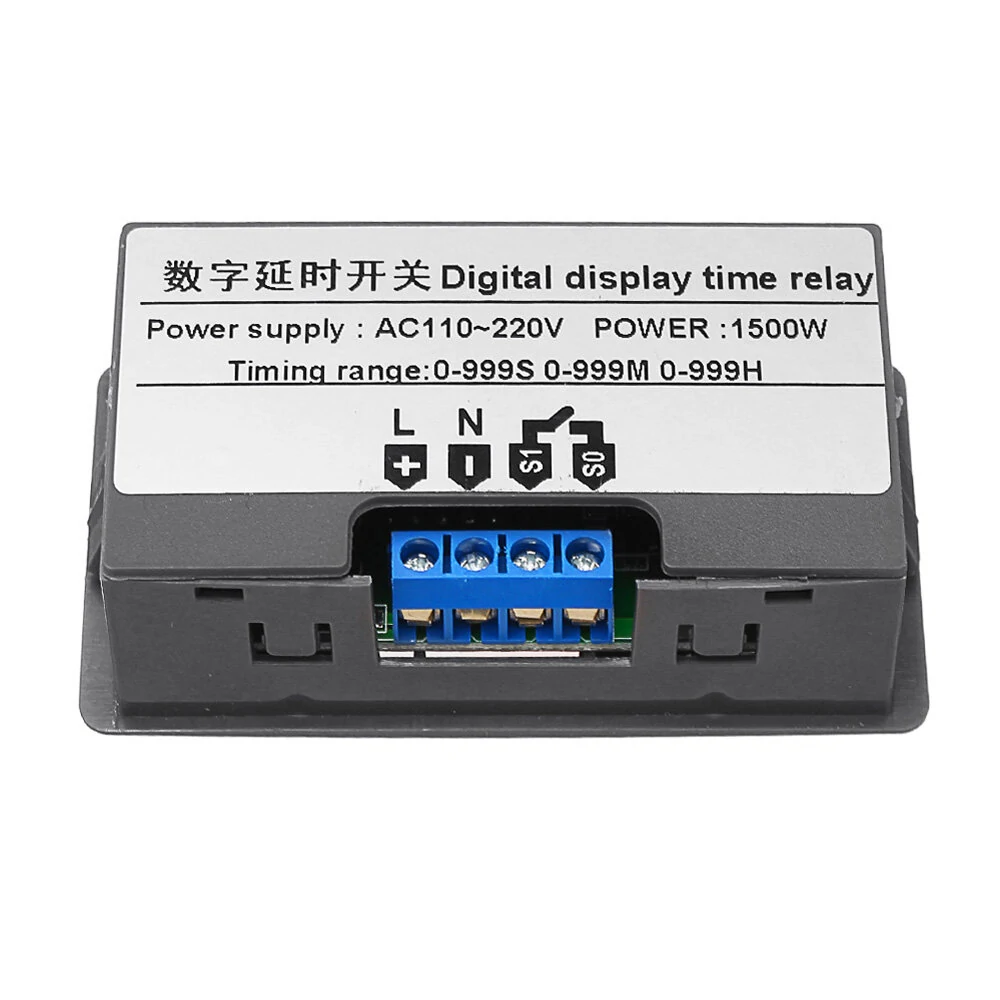

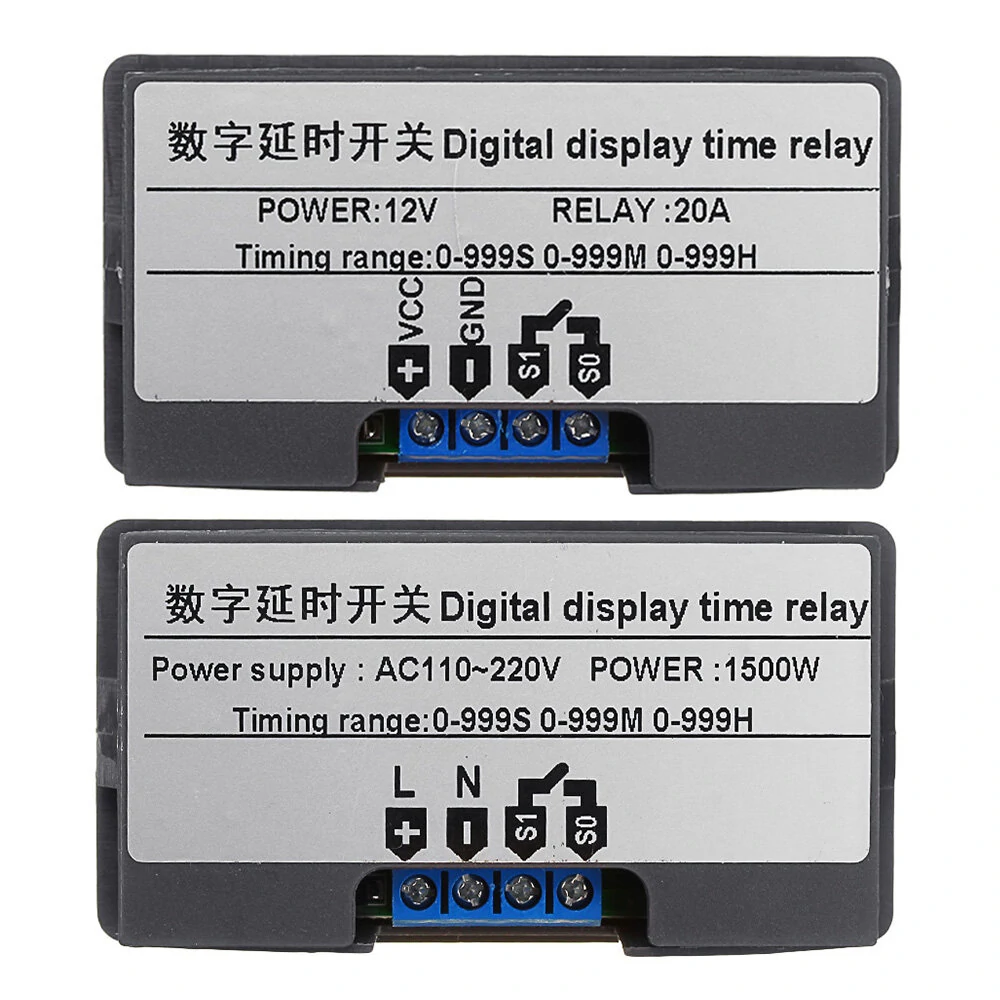

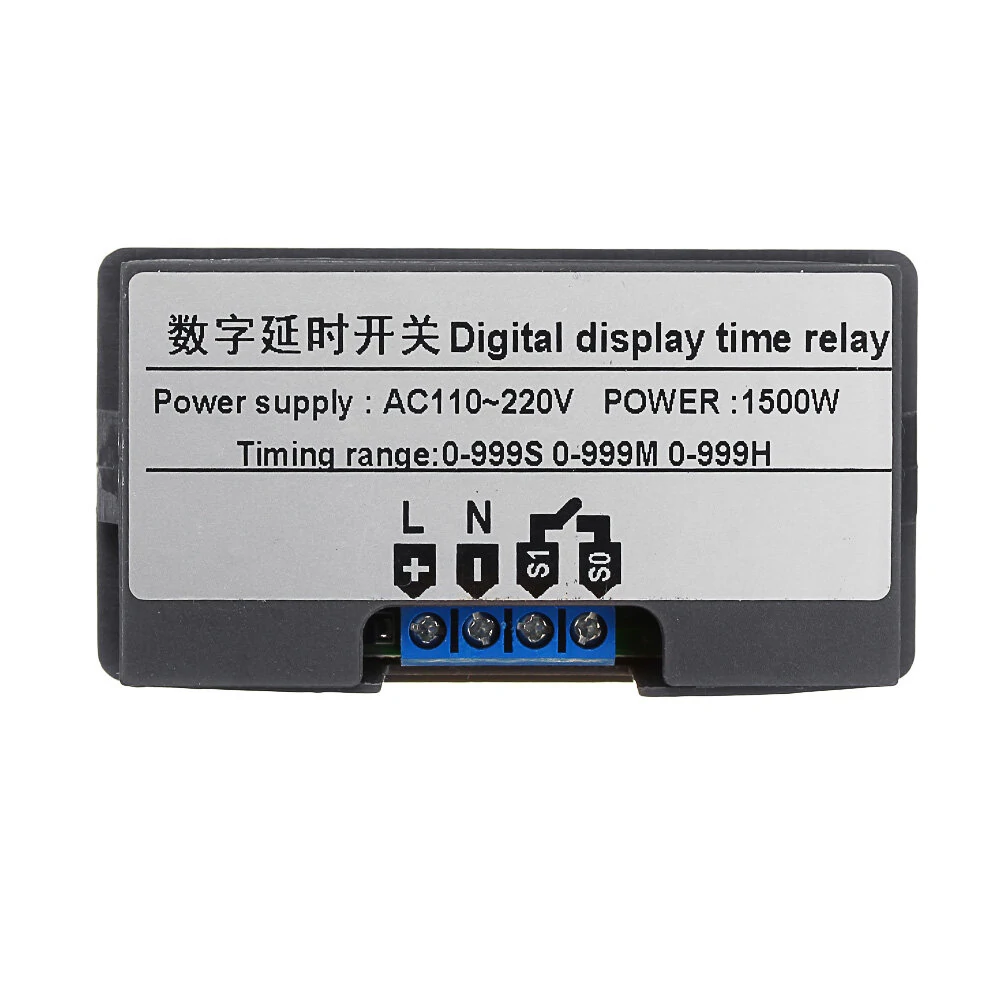

Please clarify supply voltage. Is it 12v suppl or 110/230v supply? My doubt is not about load, it's about input voltage supply.

Accepted Answer

POSSO USAR NA CHOCADEIRA PARA CONTROLAR O MOTOR DE ROLAGEM DE OVOS.🤔👍👍I CAN USE IN THE HATCHER TO CONTROL THE EGG SCREW MOTOR.

Question 2

I want to use this as a cycle time for a machine can it tell me in Seconds the timing of a machine. Not RPM. How many seconds for machine to start another cycle.

Accepted Answer

Idon't believe there is such a feature for your application.

Question 3

Can I set a timer that turns on daily for 1 min automatically?

Accepted Answer

Nosuch feature in the product.

Question 4

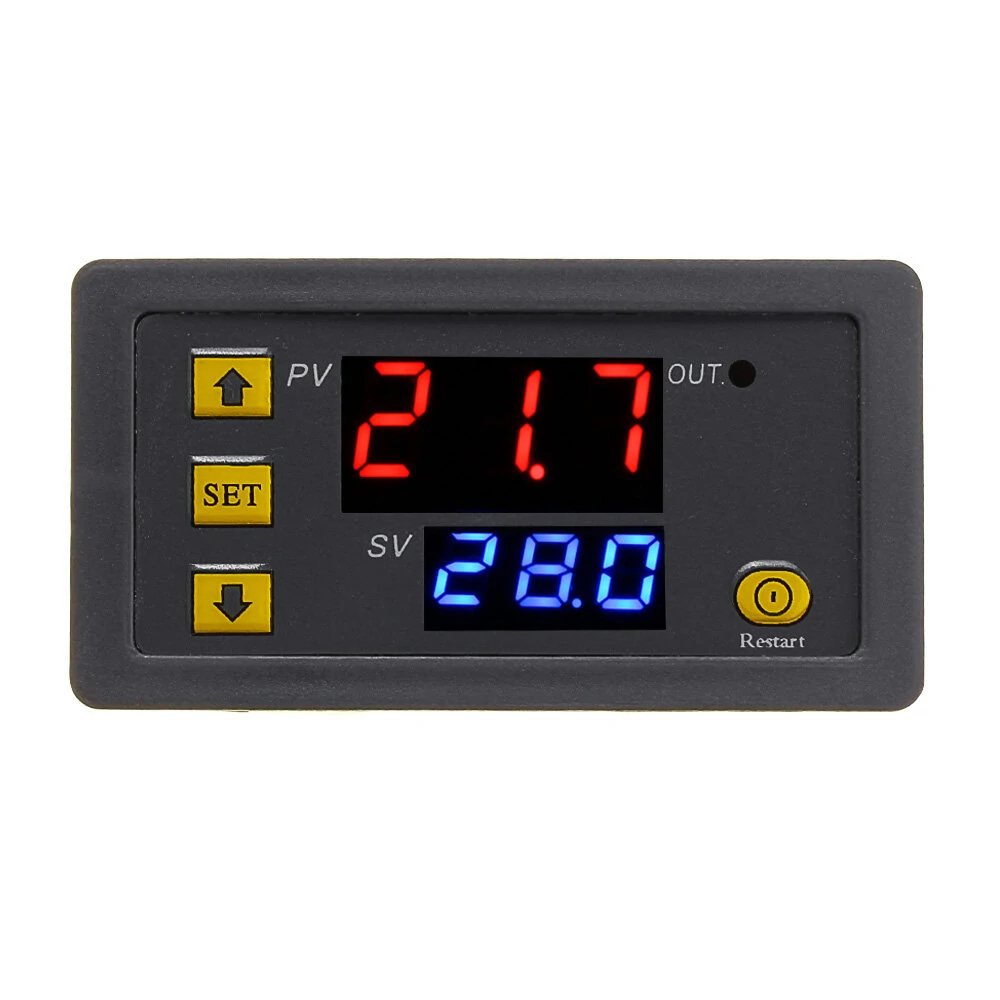

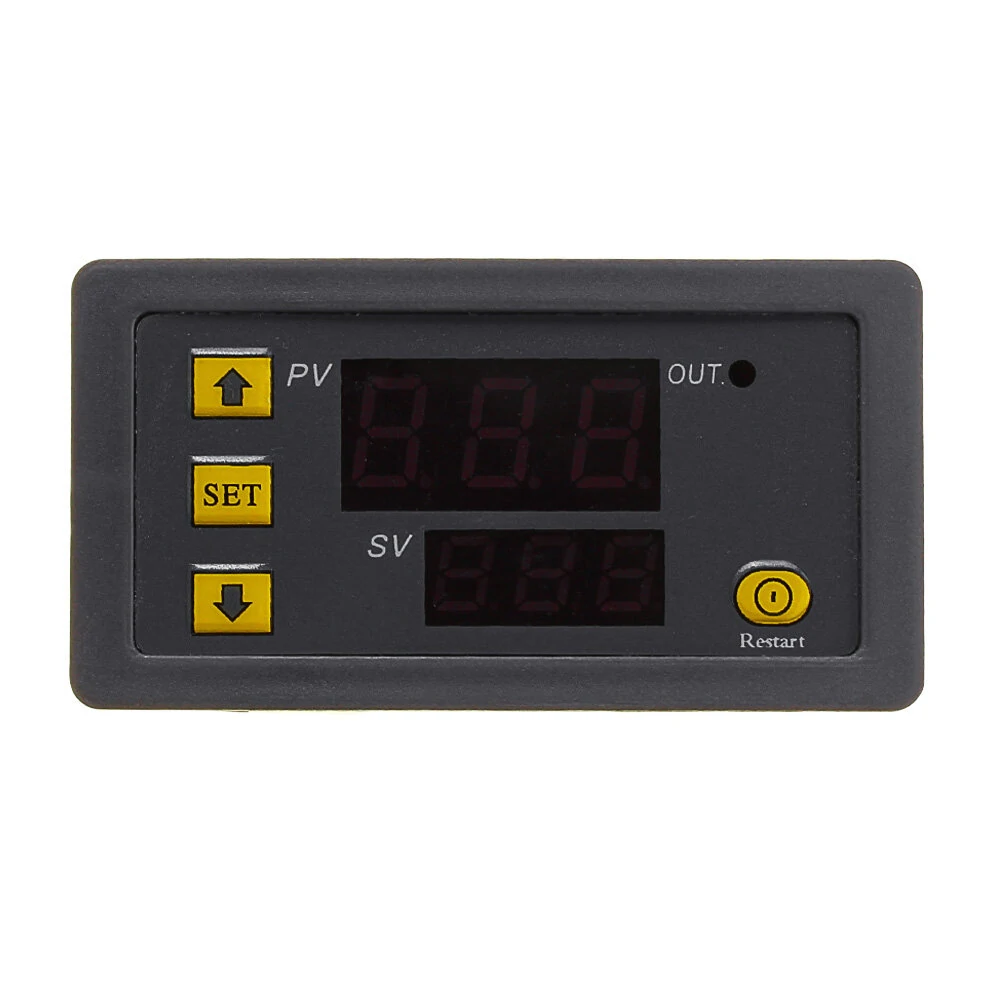

what is pv and  sv -? ??  on front panel??

Accepted Answer

pv indicates the count down time, sv displays the count down time setting

Question 5

what is the output voltage of this product

Accepted Answer

There is no output voltage.  The output is simply a switch that is controlled by an internal relay that closes when the upper timer times out, and the lower timer starts. When the lower timer times out the switch
                                                                                                                    opens, and the upper timer starts, again.  Etc., until input 12 VDC is cut.
                                                            ...
                                                            see more
                                                            see less

Question 6

Are the settings retained in non volatile memory when removing supply voltage?

Accepted Answer

YES

Question 7

will this run an on/off cycle infinitely?

Accepted Answer

yes, but you should set it properly

Question 8

Sir i want to work a motor 3 minute with 1 hower intervals can I use this product

Accepted Answer

yes this timer can be set up to to be used as you require.

Question 9

Can the device do only a countdown timer? Example if I set it for 5 minutes and turn it on, it will stay on for 5 minutes and off. After that it willNot turn on again. And later I can press again and on it for 5 minutes and it will off after 5 minutes and won’t on until I manually turn it on. Can the device do this ?

Accepted Answer

T1 = Red Colour;T2 = Blue Color;P0--0: Timing time mode : 0---999s.P0--1: Timing time mode : 0---999min.P0--2: Timing time mode : 0---999h.P1--0: The relay will connect after you delay the T1 time .So,  for what do you want, you
                                                                                                                    have to choose P0-1 in order to be into the minutes range.After that, you have to choose P1-0 so the relay will connect after the delay time.Notice that only for theese settings[ P0-1 ;  P1-0 ] the time T2 – the bottom one, Blue colour – has no relevance. It can be set the same as T1 just only to show what did you set for T1.After you did these settings [ P0-1 ;  P1-0 ] get out of here and do the next.Set T1 = 5  and thats it.As I mentioned above you can set T2 = 5 but this setting has no relevance.As soon as you finish to set up the device the count down starts.The time is memorized and you can start the count down again just by pressing Restart Button (  the bottom right hand corner) So the device can do this.
                                                            ...
                                                            see more
                                                            see less

Question 10

After setting t1 and t2 with supply voltage connected, and then disconnected, does the timing program run automatically when supply voltage is restored, or must the button be pressed?

Accepted Answer

is performed automatically when the voltage is restored
