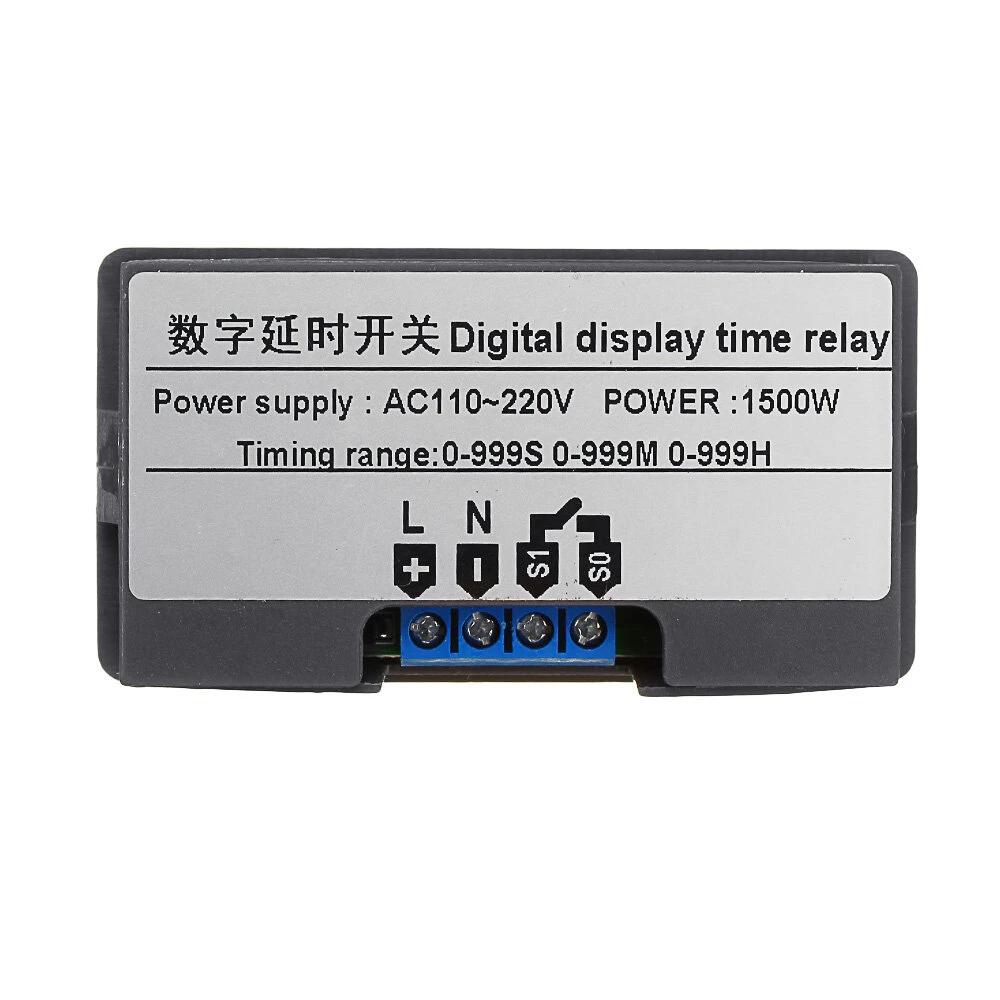

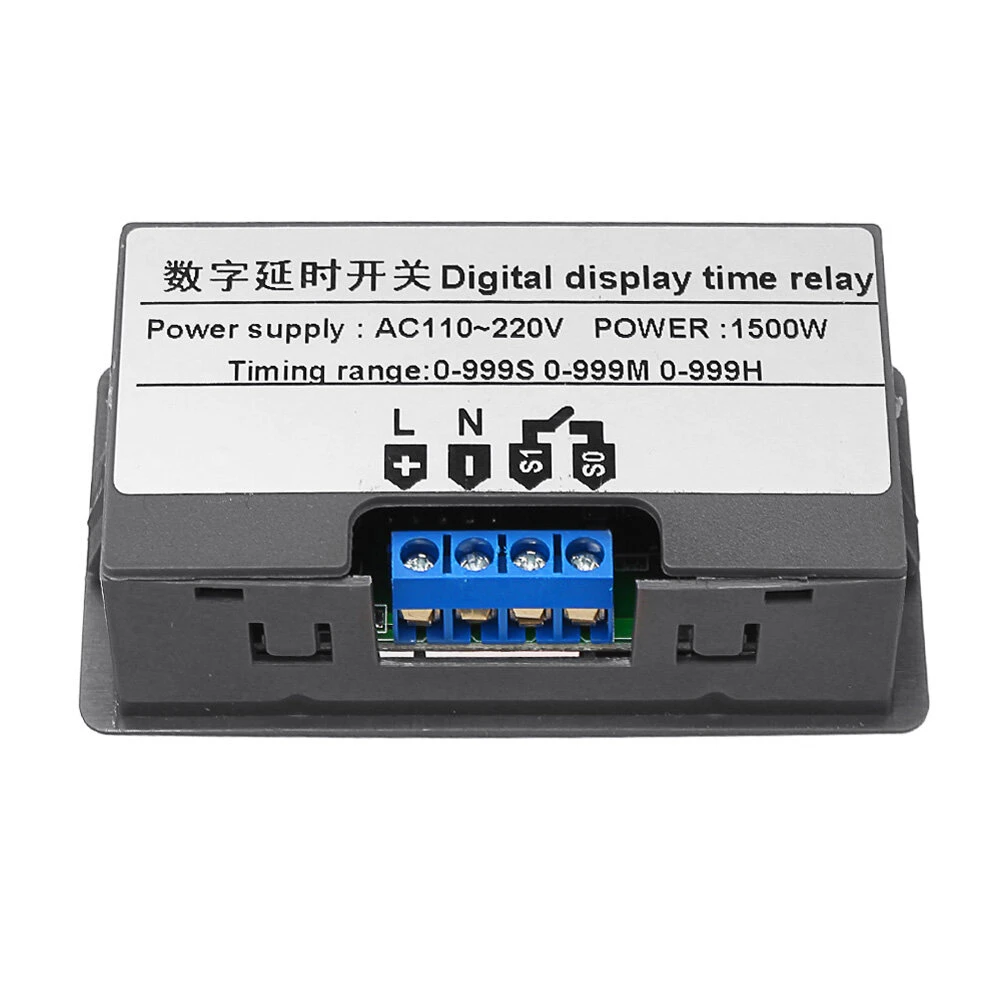

There is a port connection prompt on the back.

Is this a timer switch?

Yes. You can set the time that must elapse before the contact closes and the duration of the closure, even in a cyclical way.

Hello.. Can I start a 220v motor every 2 minutes for 5 seconds? Or every 4 minutes for 10 seconds;

Please contact us for more information.

AC110V-220V Digital Display Time Relay Automation Delay Timer Control Switch Relay Module — image 1

Hover to zoom

1 / 11 · Click to enlarge

Geekcreit

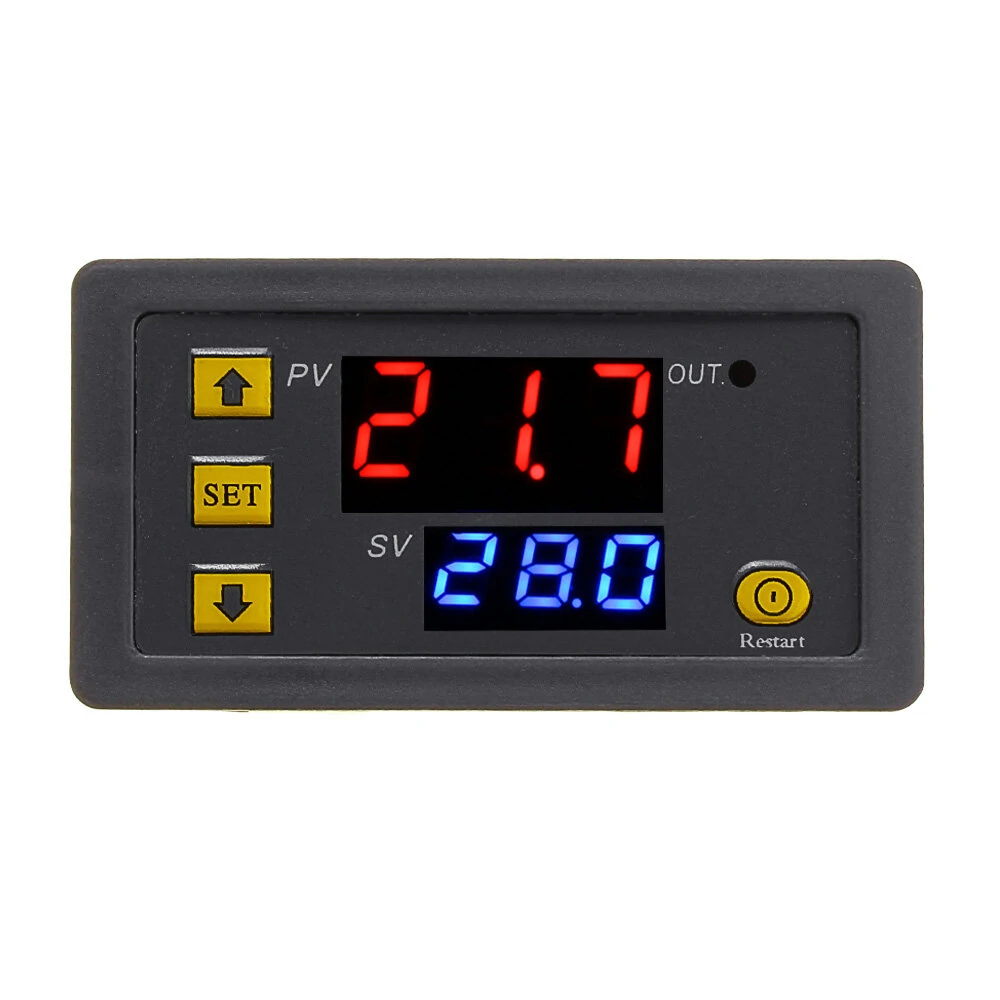

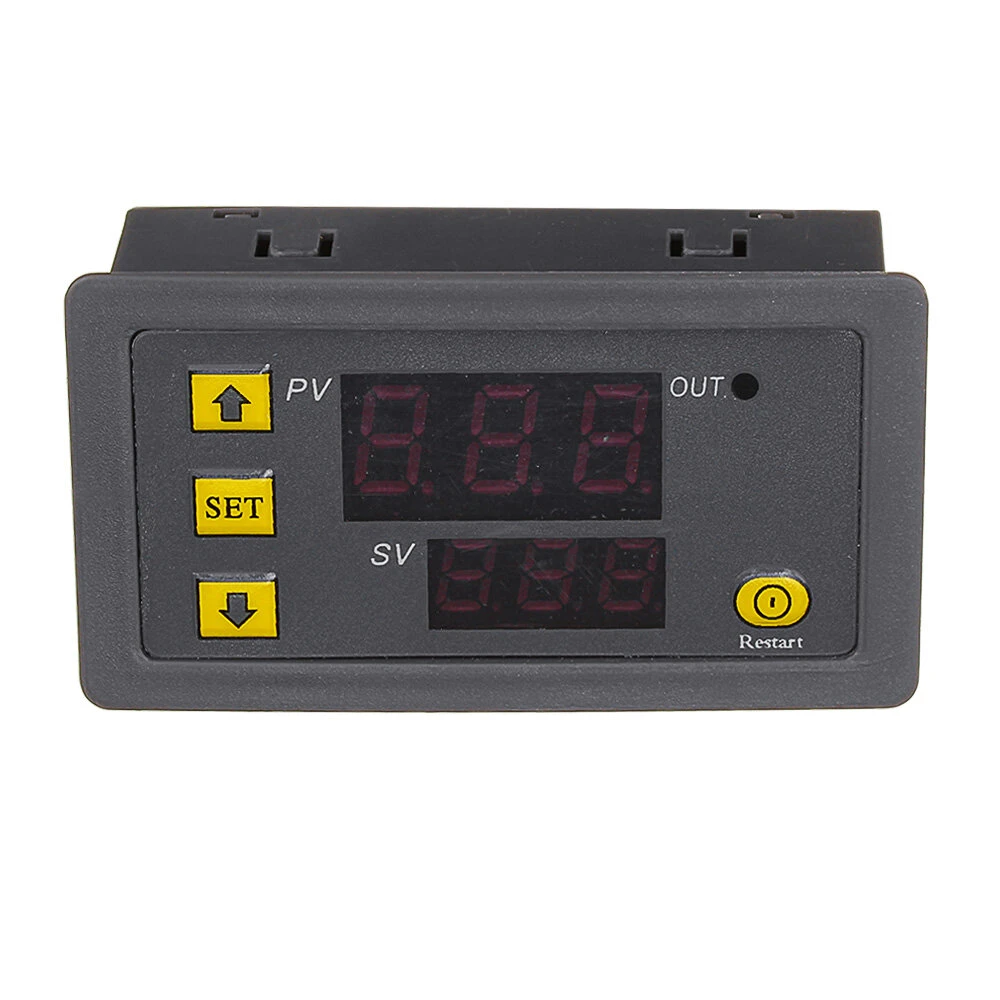

AC110V-220V Digital Display Time Relay Automation Delay Timer Control Switch Relay Module

Name: AC110V-220V Digital Display Time Relay Automation Delay Timer Control Switch Relay Module
Brand: Geekcreit
SKU: bg-1747479
Price: 2000 INR
Availability: InStock
Rating: 5.0 (76 reviews)

5.076 ratings

AI Summary

Relay Module for everyday users

The AC110V-220V Digital Display Time Relay Automation Delay Timer Control Switch Relay Module by Geekcreit is a mid-range relay module designed for everyday users. Customers praise its great value for money and compact and portable. 100% of buyers rate it 4★ or above.

✓ great value for money✓ compact and portable✓ accurate and reliable

₹2,000

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

Quantity

Total: ₹2,000

Buying tip: A well-rounded choice at a fair price. Recommended for most buyers.

Estimated delivery: 4 Aug – 18 Aug

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Electronics projectsArduino / Raspberry Pi buildsPrototyping

SKU: bg-1747479Category: Relay Module

About This Product

The AC110V-220V Digital Display Time Relay Automation Delay Timer Control Switch Relay Module by Geekcreit is a mid-range relay module designed for everyday users. Customers highlight its great value for money and compact and portable.

Customer Verdict

100% of buyers rated this product 4 stars or above. The most appreciated qualities are: great value for money, compact and portable, accurate and reliable.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:

Timing range: 0-999s 0-999m 0-999h

Supply voltage: AC110V-220V

Relay:20A

Working current:10A(max)

Power:500W(max)

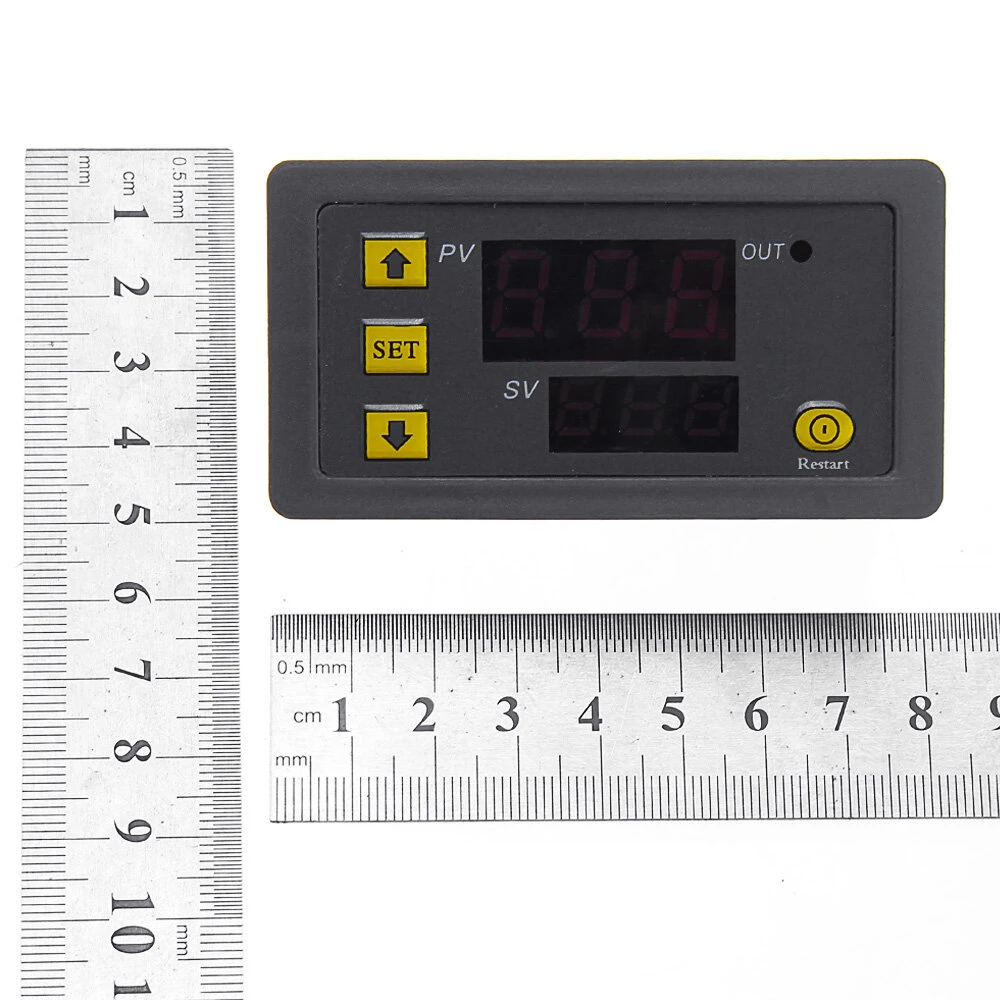

Size :79*26*43mm

Hole size:72*40mm

Instructions:

Please pay attention for your first use. You need wait 6s after your setting data, the module will save the date you have set after 6s.

Short press button SET: If you start the time setting mode , Nixie tube will blink. You could adjust the time T1 and T2 by button+ and button-. Please wait 5s after your setting date, the module will save the date you have set after 5s .

Long press button SET: if you start the parameter setting mode. There are two group parameter for your choice : P0 and P1. You could switch P0 or P1 by short press SET. Under the parameter P0 and P1,you could set the timing mode by the button+ and button-.

P0--0: Timing time mode : 0---999s.

P0--1: Timing time mode : 0---999min.

P0--2: Timing time mode : 0---999h.

P1--0: The relay will connect after you delay the T1 time .

P1--1: The relay will disconnect after you delay the T1 time.

P1--2: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time , it finish.

P1--3: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time , it finish.

P1--4: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time , it is cyclic.

P1--5: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time , it cyclic.

Example: A customer needs 10 seconds to start up and 20 seconds off. Setup is as follows:

T1 set time 10, T2 set time 20

P0 -- 0 (T1 time range is seconds)

P1--5 (timer work mode)

Package Included:

1 x Digital Display Time Relay

Setup Guide

Identify the pins

Locate VCC (power), GND (ground), and data pins (SDA/SCL for I2C, MOSI/MISO for SPI, or TX/RX for UART). Refer to the pinout diagram on the product page.

Wire to your microcontroller

Connect VCC to 3.3V or 5V (check the module spec), GND to GND, and data pins to the appropriate GPIO pins on your Arduino or Raspberry Pi.

Install libraries

In Arduino IDE, go to Sketch → Include Library → Manage Libraries and search for the sensor library. Install the recommended version.

Upload example sketch

Open File → Examples → [library name] → Basic Example. Upload to your board and open Serial Monitor to view output.

Calibrate if needed

Some sensors (temperature, humidity, distance) may need a short warm-up period or calibration. Run the calibration sketch if provided.
