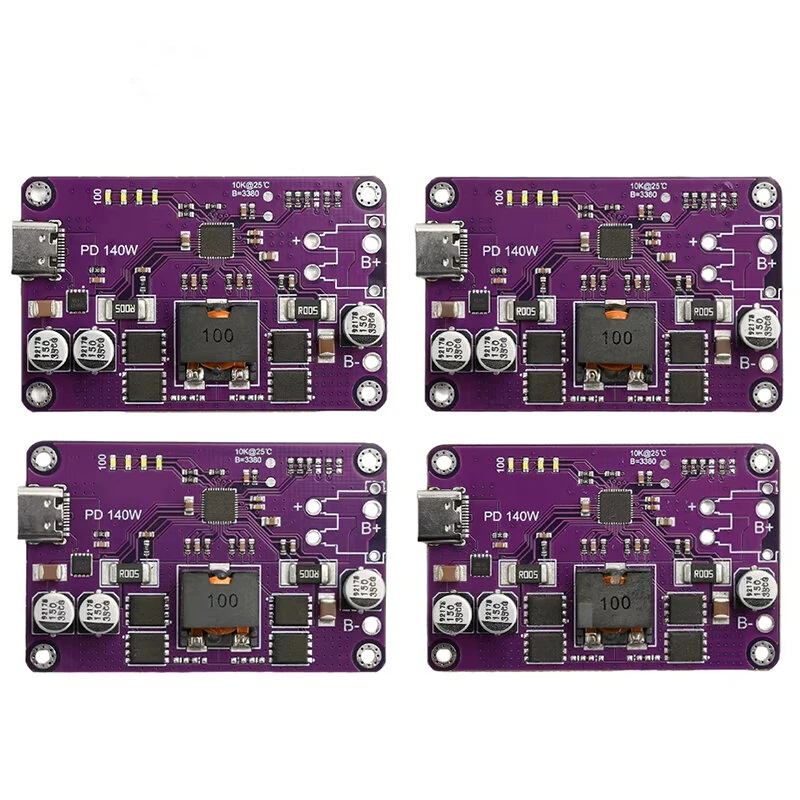

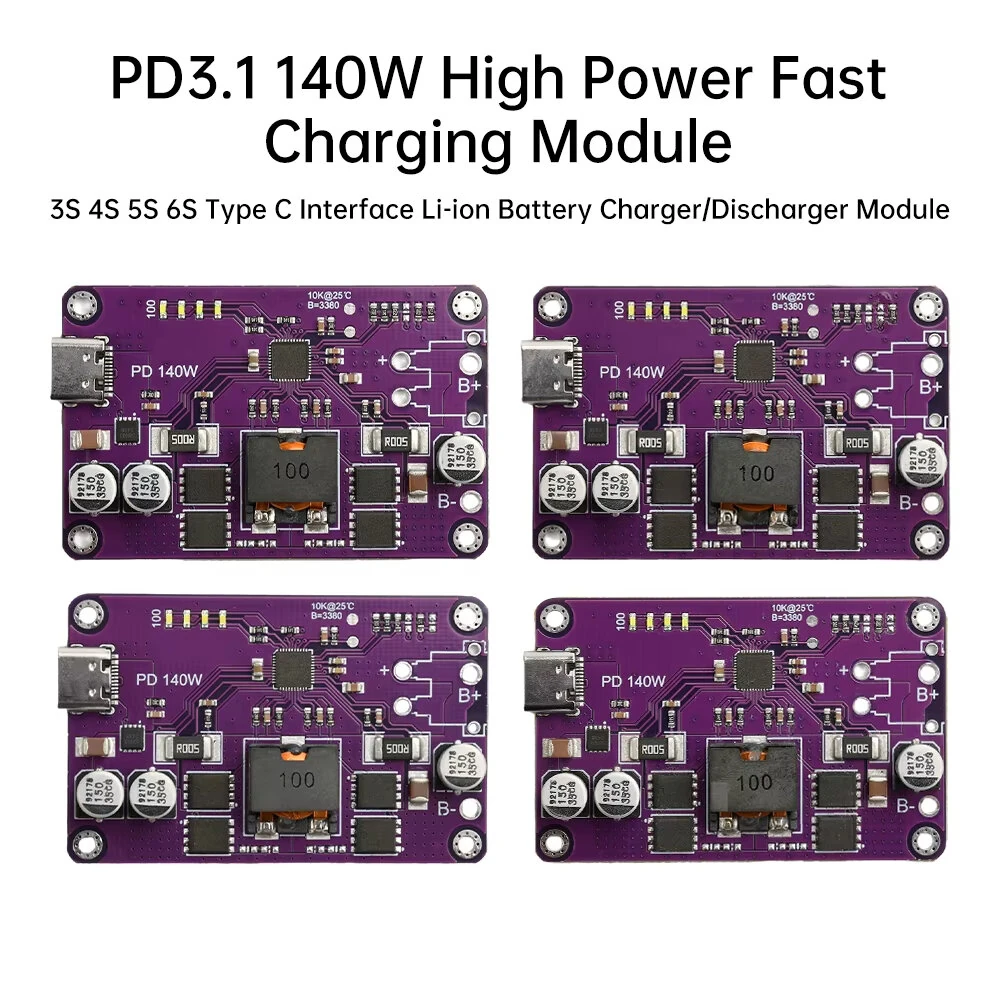

Type-C 3S 4S 5S 6S PD3.1 140W High Power Fast Charger Module Li-ion Battery Charger/Discharger Module for FCP AFC SCP QC2.0/3.0

Specifications:
Socket Type: XT30PW-M
For ordinary 3A current protocol: 5V3A, 9V3A, 12V3A, 15V3A, 20V3A, PPS 3.3~21V 3A.
For 5A current protocol: 5V3A, 9V3A, 12V3A, 15V3A, 20V5A, PPS 3.3~21V 3A
Extension cord protocol (support PD3.1): 5V3A, 9V3A, 12V3A, 15V3A, 20V5A, PPS3.3~21V 3A28V 5A
Fast charging specification:
Integrated FCP input/output fast charging protocol
Integrated AFC input/output fast charging protocol
Integrated SCP input/output fast charging protocol
Integrated PD3.1 input/output fast charging protocol
Integrated QC2.0/QC3.0/QC3.0+ input/output fast charging protocols

Features:
1. Supports PD3.1 protocol, provides up to 140W fast charging power
2. Compact and lightweight, easy to carry, suitable for outdoor and mobile use
3. Equipped with high efficiency Type-C interface, supports two-way fast charging and data transmission.
4. Supports high-current charging and discharging to meet the needs of high-performance devices.
5. Automatically recognizes the battery status and dynamically adjusts the charging current to ensure safety and speed.

Package include:
1x Charge and Discharge Module

Notes:

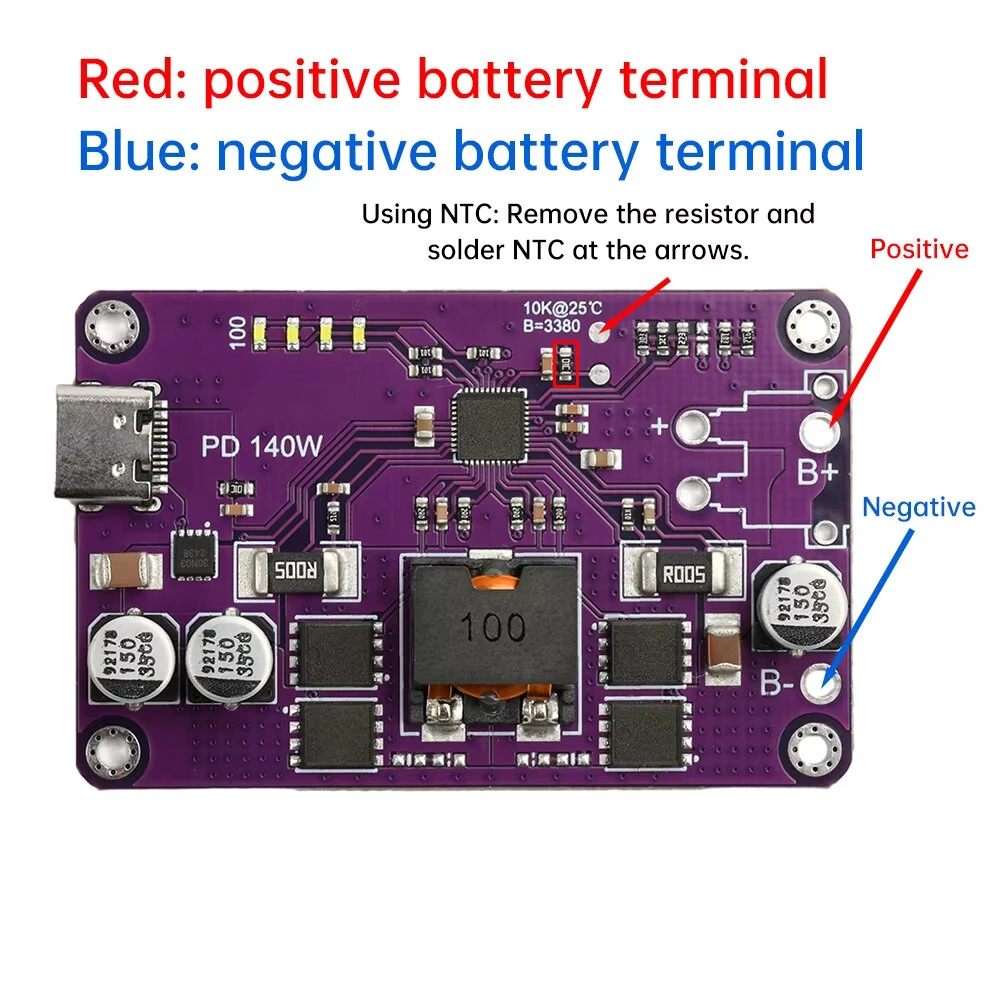

1. After connecting the battery with normal voltage, the indicator light is on, TYPE-C can output power without activation.

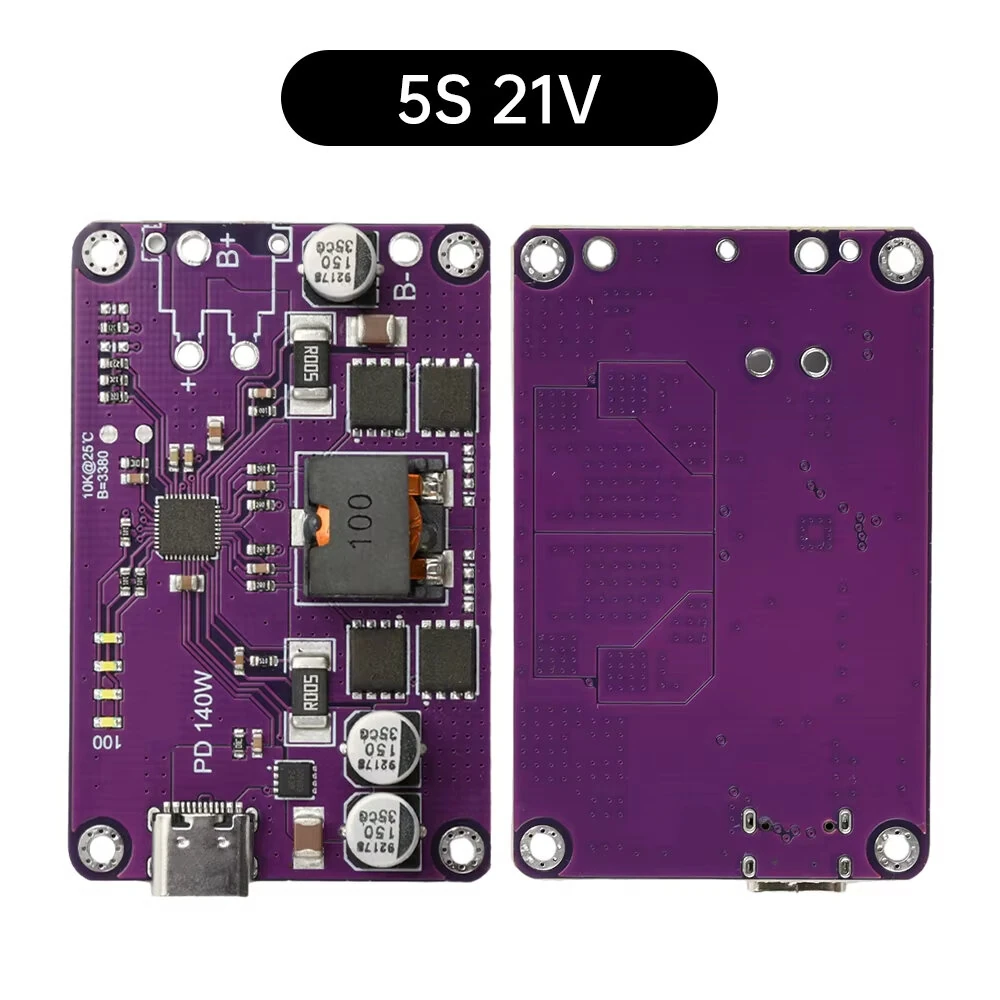

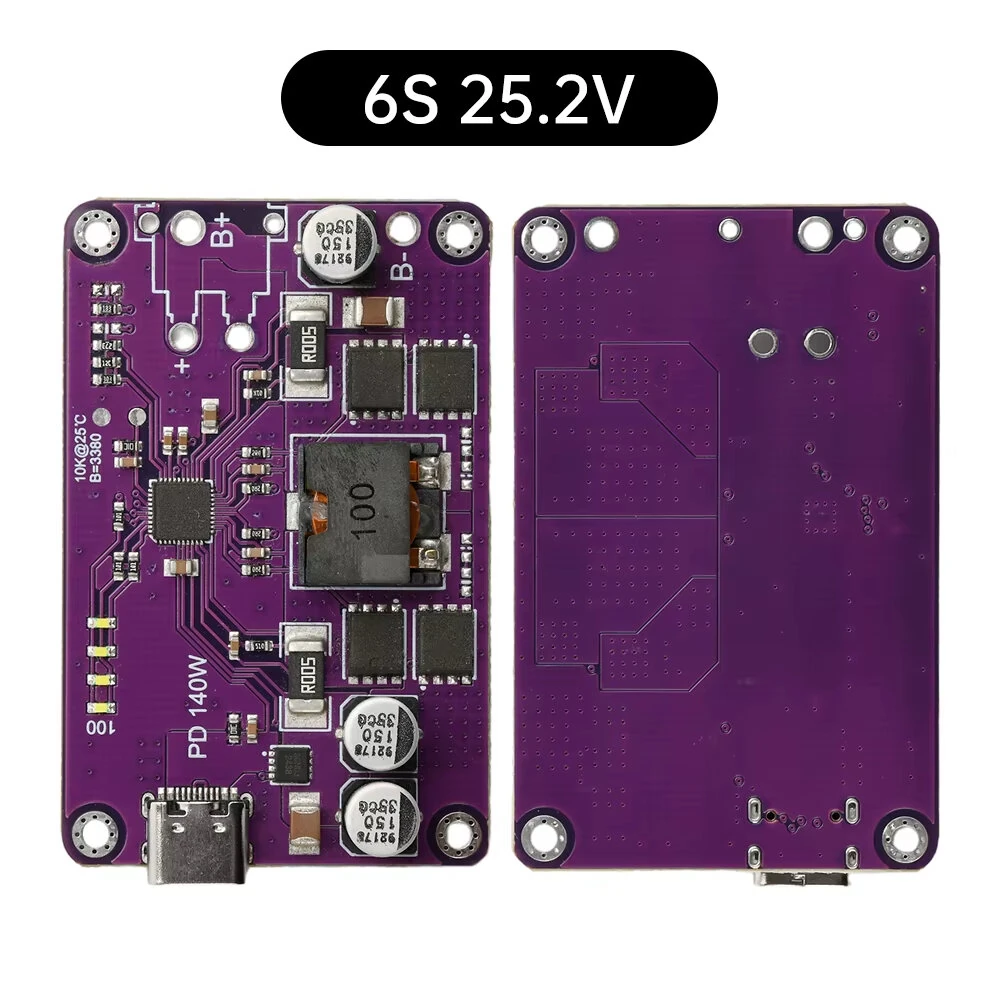

2. Checking method after receiving: connect the TYPE-C connector to the charger without connecting the battery.Measure the voltage on the battery pad after 3 seconds; for 3S, it should be 12.6V; for 4S, it should be 16.8V; for 5S, it should be 21V; for 6S, it should be 25.2V. If the voltage is normal, then you can solder the battery and use it. Before soldering the wires, please disconnect the power supply from the TYPE-C port.

3. Instructions for charging the battery with this module: It automatically recognizes the maximum power of the power supply of the C port and charges the battery with the maximum power of 140W. The current at the battery end is self-adaptive.
4. About the output performance of the TYPE-C interface: When the output is 20V5A (mainly used for charging laptop or DJI lithium batteries), it is recommended to use 4S and above lithium batteries. Using 3S may cause significant temperature rise due to the high current at the battery end. If you need 140W output, considering the current problem at the battery side, make sure to use it with 6S lithium battery.
