Sipeed NanoKVM PiKVM Mini Remote Control Server 1080P 60fps RISC-V USB OLED Display Development Board

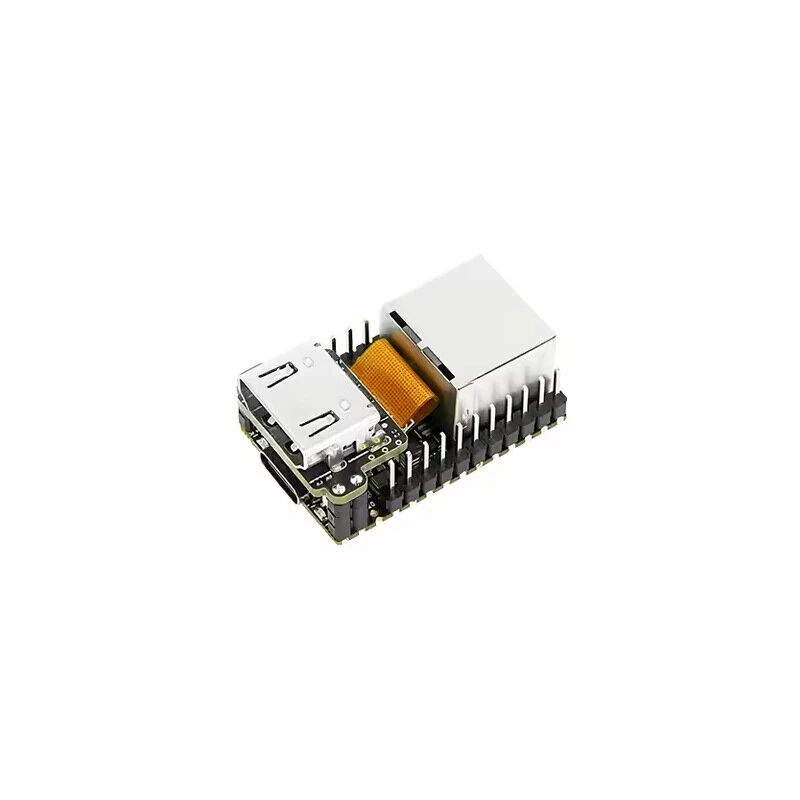

Product: NanoKVM (Lite) / NanoKVM (Full)

Unit: LicheeRV Nano (RISCV)

Resolution: 1080P @ 60fps

Video Encoding: MJPEG, H264 (developing)

Video Delay: 100 ~ 160ms

UEFI/BIOS: Supported

Simulate USB keyboard and mouse (Virtual HID): Supported

Emulating USB storage (Virtual CD-ROM): Supported

IPMI: Supported

Wake-on-LAN: Supported

ATX power control: None (Lite) / USB interface IO control board (Full)

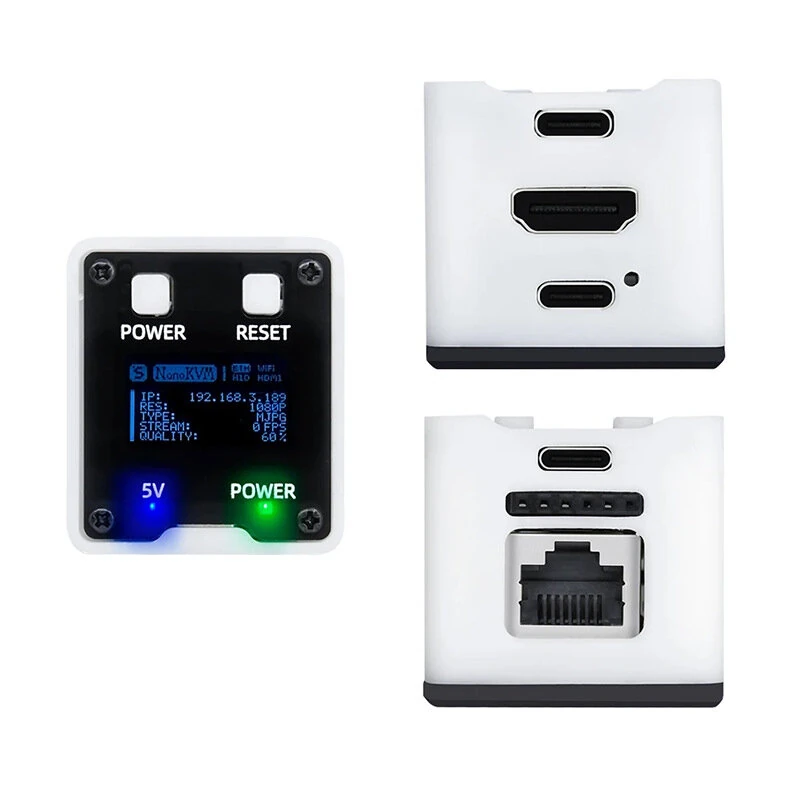

OLED display: None (Lite) / 128x64 0.96" white (Full)

External serial port: 2 channels

TF card: None (Lite) / Yes, ready to use (Full)

Expansion accessories: None (Lite) / WiFi or PoE (Full)

Power consumption: 0.2A@5V

Power input: PC USB power supply

Heat dissipation: Silent and fanless

Size: 23x37x15mm ~1/30 PiKVM V4 volume (Lite) / 40x36x36mm ~1/7 PiKVM volume (Full)

Features:

1. Ultra-Compact Design:

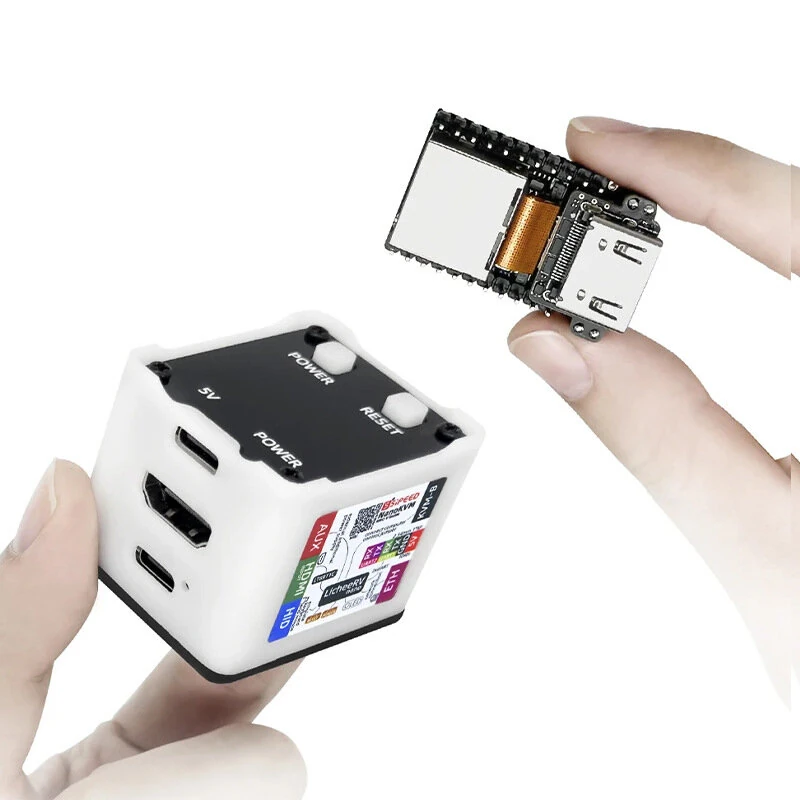

Measuring just 23x37x15mm (Lite) and 40x36x36mm (Full), the NanoKVM series is impressively small, making it ideal for setups with limited space.

2. High-Definition Remote Access:

The NanoKVM supports 1080P resolution at 60fps, ensuring clear and smooth remote image transmission and control.

3. User-Friendly Emulation:

Effortlessly simulate USB keyboard and mouse via Virtual HID and CD-ROM functionalities, facilitating seamless remote operations.

4. Enhanced Connectivity:

The Full version includes WiFi or PoE capabilities and an OLED display for crucial system information, expanding its versatility.

5. Power Efficiency:

Consuming only 0.2A@5V, the NanoKVM delivers robust performance while maintaining low energy consumption, suitable for continuous use.

Package Included:

1 x NanoKVM Lite Unit

or

1 x NanoKVM FULL Shell Kit
