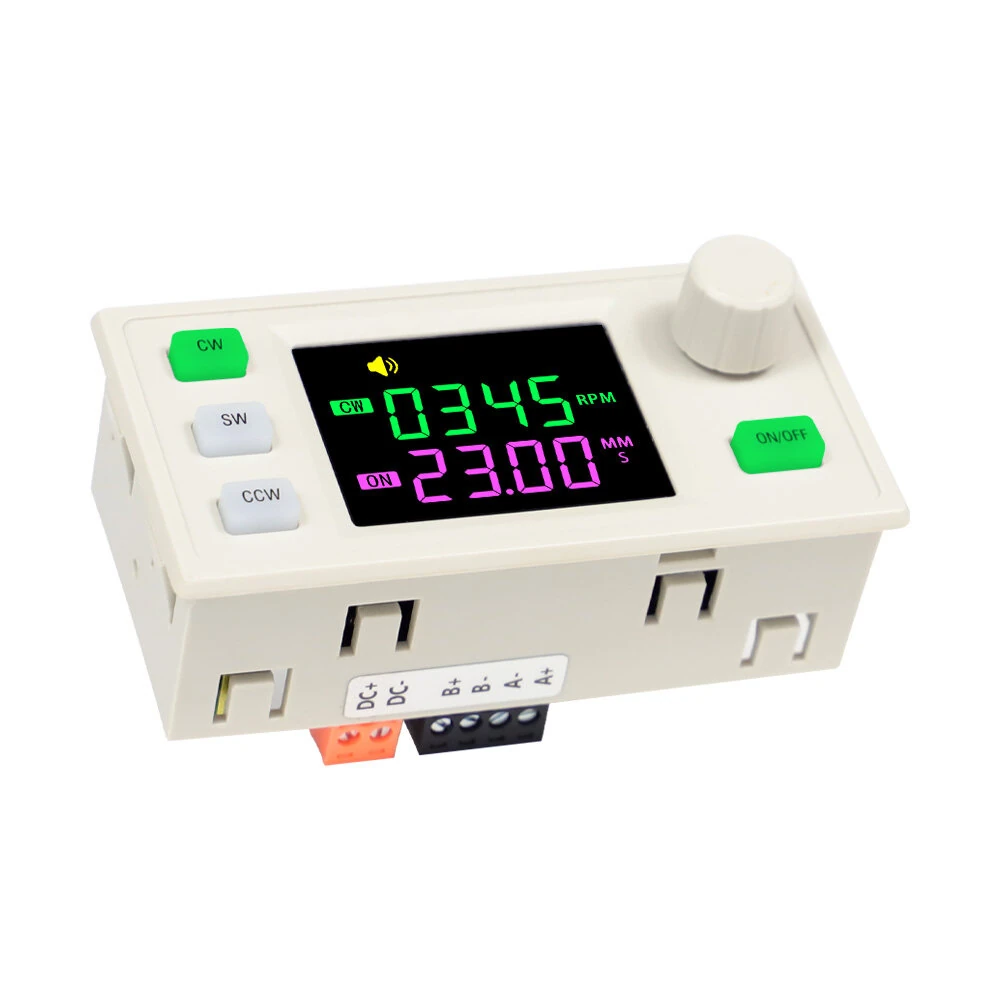

Sinilink XY-SMD4 Stepper Motor Controller 10V-30V 4A Single Axis TTL Serial High Precision Microstepping for 42 57 Stepper Motors Forward and Reverse Control Driver Angle Speed PLC Serial Communication

Name: Sinilink XY-SMD4 Stepper Motor Controller 10V-30V 4A Single Axis TTL Serial High Precision Microstepping for 42 57 Stepper Motors Forward and Reverse Control Driver Angle Speed PLC Serial Communication
Brand: Sinilink
SKU: bg-2042099
Price: 2087 INR
Availability: InStock

AI Summary

Power Supply Module for everyday users

The Sinilink XY-SMD4 Stepper Motor Controller 10V-30V 4A Single Axis TTL Serial High Precision Microstepping for 42 57 Stepper Motors Forward and Reverse Control Driver Angle Speed PLC Serial Communication by Sinilink is a mid-range power supply module designed for everyday users.

₹2,087-34%

MRP:₹3,149Save ₹1,062

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

34% Off — you save ₹1,062 on this product!

Color: White

White

Quantity

Total: ₹2,087

Buying tip: A well-rounded choice at a fair price. Recommended for most buyers.

Estimated delivery: 4 Aug – 18 Aug

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Electronics projectsArduino / Raspberry Pi buildsPrototyping

SKU: bg-2042099Category: Power Supply Module

About This Product

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:

Product Brand: Sinilink

Product Name: Stepper Motor Integrated Drive and Controller

Model Number: XY-SMD4

Applicable Motor Type: 42, 57 Stepper Motor

Control Axes: Single-axis

Motor Signal: Common Cathode

Power Supply Range: DC 10V~30V

Driving Capacity: 4A

Acceleration/Deceleration Control: YES

Reverse Connection Protection: YES

Over-Temperature Protection: YES

Active Cooling: YES (Fan starts above 55°C, stops below 50°C)

Communication Interface: TTL Serial (Standard MODBUS Protocol)

Main System Functions: Auto, Manual, Setup, Serial Control

Pulse Frequency Range: 100Hz~80000Hz

Speed Class Range: 0-1000

Forward Travel: 9999.999mm

Reverse Travel: 9999.999mm

Cycle Operation Count: 1-9999, Infinite Loop

CW Delay Time: 0.000~9999.000s

CCW Delay Time: 0.000~9999.000s

Microstepping Range: 1-32 Microsteps

Operating Temperature: -5°C~60°C (Non-condensing)

Product Size: 864145mm

Product Weight: 90g (including packaging: 110g)

Features:

1. Wide Compatibility: Compatible with 42 and 57 stepper motors, ensuring flexible integration with diverse motor types for applications requiring precision.

2. Comprehensive Protection Mechanisms: Built-in reverse connection and over-temperature protection safeguards the device from damage and ensure operational stability.

3. Flexible Control Options: Offers multiple system functions, including auto, manual, setup, and serial control, meeting diverse application requirements with ease.

4. Efficient Cooling Design: Integrated active cooling system automatically activates with high temperatures to maintain optimal performance and extend product longevity.

5. Compact and Lightweight Design: A portable and space-saving form factor (864145mm) and light weight of 90g make this device perfect for tight installation areas.

Package Included:

1 x Stepper Motor Integrated Drive and Controller
