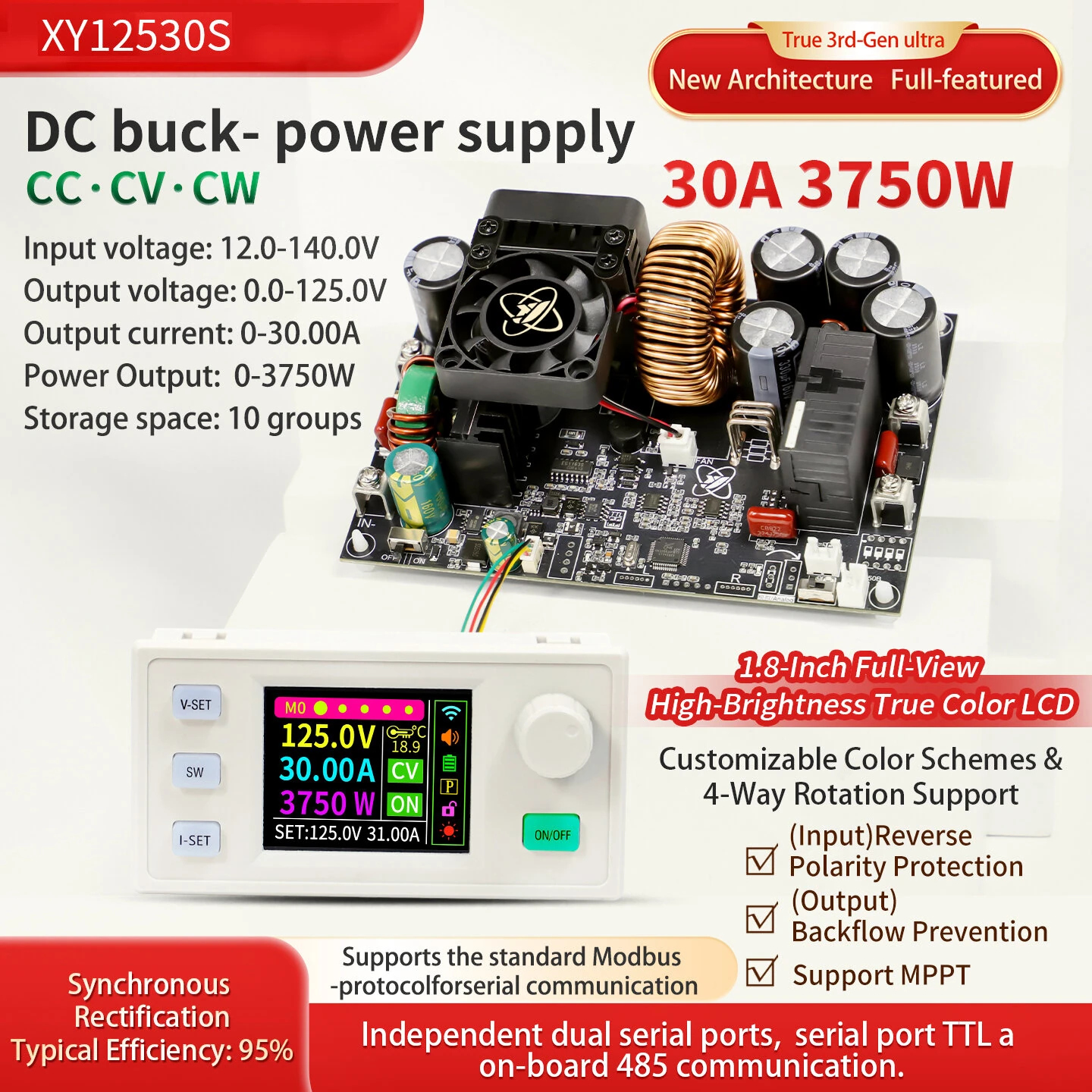

Sinilink XY12530S DC Buck Power Supply Adjustable Module 3750W 125V 30A High Precision Efficient MPPT Solar Charging True Color LCD Display Reliable Voltage Current Control

AI Summary
Power Supply Module for premium buyers

The Sinilink XY12530S DC Buck Power Supply Adjustable Module 3750W 125V 30A High Precision Efficient MPPT Solar Charging True Color LCD Display Reliable Voltage Current Control by Sinilink is a premium power supply module designed for premium buyers.

₹5,091-26%
MRP:₹9,099Save ₹4,008
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

26% Off — you save ₹4,008 on this product!

Price: ₹5,091

Total: ₹5,091
Buying tip: A quality investment for dependable performance and premium build quality.
Estimated delivery: 4 Aug – 18 Aug
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Electronics projectsArduino / Raspberry Pi buildsPrototyping
Share:
SKU: bg-2045003Category: Power Supply Module

About This Product

The Sinilink XY12530S DC Buck Power Supply Adjustable Module 3750W 125V 30A High Precision Efficient MPPT Solar Charging True Color LCD Display Reliable Voltage Current Control by Sinilink is a premium power supply module designed for premium buyers. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:
Model: XY12530S
Input Voltage: 12.00~140.0V
Output Voltage: 0~125.0V
Output Current: 0~30.00A
Power Output: 3750W
Accuracy of Voltage: ±0.5% +1 word
Accuracy of Current: ±0.5% +3 word
Voltage Resolution: 0.01V
Current Resolution: 0.01A
Storage Data Group: 10 groups
Output Ripple Typical Value: vpp-200mv
Screen Size: 1.8-Inch Full-View High-Brightness True Color LCD
Conversion Efficiency: About 95%
MPPT Function: Supports MPPT solar charging
Protection Mechanisms: Anti-reverse, output reverse current protection, input under-voltage, over-voltage, over-current, over-power, over-temperature, over-capacity, over-energy, external over-temperature

Features:
1. High Precision Control: This module offers voltage and current resolutions up to 0.01V and 0.01A, ensuring precise output settings for demanding applications.
2. Large Power Range: With a maximum output of 3750W, 125V, and 30A, it is perfect for handling high-power requirements while maintaining performance.
3. Advanced MPPT Solar Charging Capability: Supports maximum power points tracking (MPPT) to optimize solar charging, ensuring efficient energy conversion.
4. Superior User Interface: Equipped with a 1.8-inch high-brightness color LCD display, enabling clear and detailed visual monitoring for seamless operation.
5. Comprehensive Protection: Built-in safety features including anti-reverse connection, over-voltage, over-current, and temperature safeguards ensure reliability and safe usage.

Package Included:
1 x DC Buck-Power Supply Module XY12530S
