OWON OEL1500 OEL3000 Series Programmable DC Electronic Load 5kHz Dynamic Testing Ripple Test Battery Capacity Testing RS232 USB SCPI Protocol 0-30A 0-150V 150W 300W (Optional)

23+ bought in past month

AI Summary

Power Supply for premium buyers

The OWON OEL1500 OEL3000 Series Programmable DC Electronic Load 5kHz Dynamic Testing Ripple Test Battery Capacity Testing RS232 USB SCPI Protocol 0-30A 0-150V 150W 300W (Optional) by OWON is a premium power supply designed for premium buyers.

₹22,857

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

Model: OEL1515-V

Price: ₹22,857

Quantity

Total: ₹22,857

Buying tip: A top-tier option — the best features and quality available in this category.

Estimated delivery: 24 Aug – 7 Sept

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience

Share:

SKU: bg-2047449Category: Power Supply

About This Product

The OWON OEL1500 OEL3000 Series Programmable DC Electronic Load 5kHz Dynamic Testing Ripple Test Battery Capacity Testing RS232 USB SCPI Protocol 0-30A 0-150V 150W 300W (Optional) by OWON is a premium power supply designed for premium buyers. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:

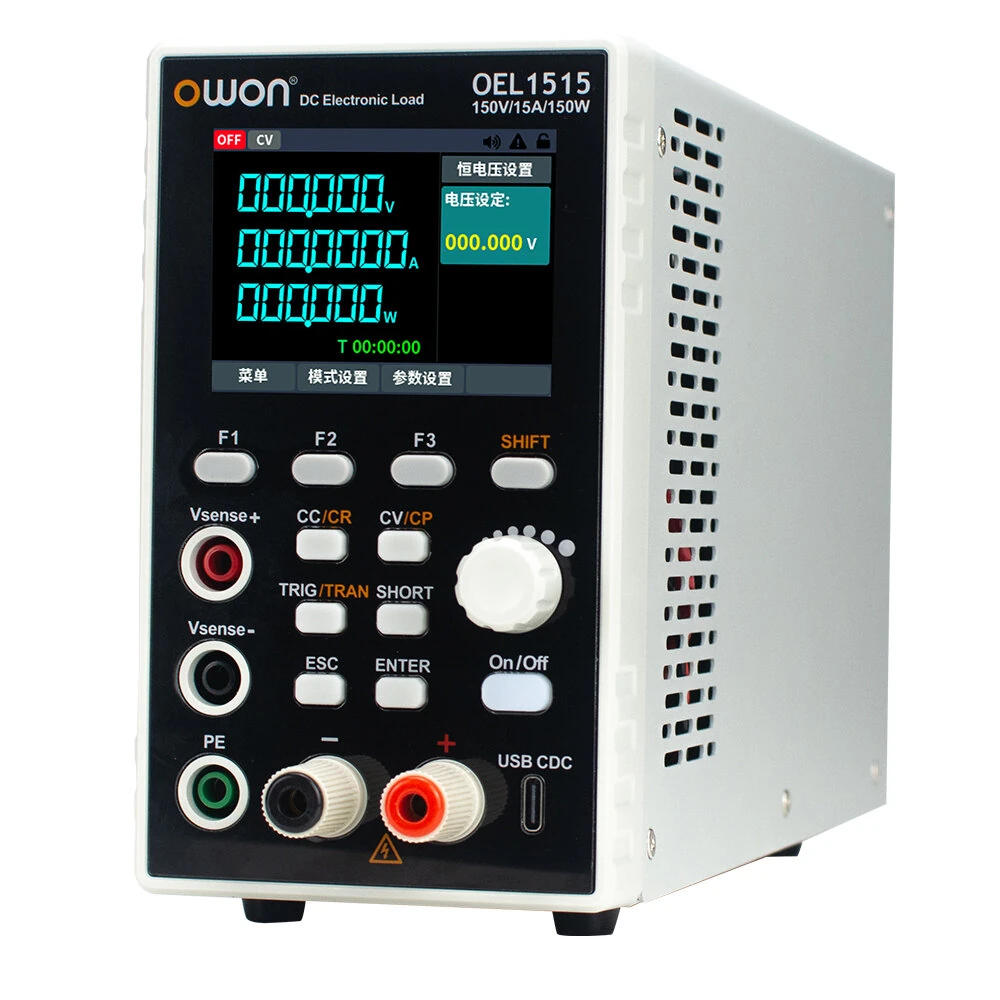

Model: OEL1515

Voltage Range: 0–150V

Current Range: 0–15A

Power Ratings: 150W

Minimum Operating Voltage: 0.8V@15A

Interface Support: RS232, RS485, USB; SCPI Protocol

Model: OEL1520

Voltage Range: 0–150V

Current Range: 0–20A

Power Ratings: 300W

Minimum Operating Voltage: 0.9V@20A

Interface Support: RS232, RS485, USB; SCPI Protocol

Model: OEL1530

Voltage Range: 0–150V

Current Range: 0–30A

Power Ratings: 300W

Minimum Operating Voltage: 1.1V@30A

Interface Support: RS232, RS485, USB; SCPI Protocol

Model: OEL3015

Voltage Range: 0–300V

Current Range: 0–15A

Power Ratings: 150W

Minimum Operating Voltage: 0.8V@15A

Interface Support: RS232, RS485, USB; SCPI Protocol

Model: OEL3020

Voltage Range: 0–300V

Current Range: 0–20A

Power Ratings: 300W

Minimum Operating Voltage: 0.9V@20A

Interface Support: RS232, RS485, USB; SCPI Protocol

Model: OEL3030

Voltage Range: 0–300V

Current Range: 0–30A

Power Ratings: 300W

Minimum Operating Voltage: 1.1V@30A

Interface Support: RS232, RS485, USB; SCPI Protocol

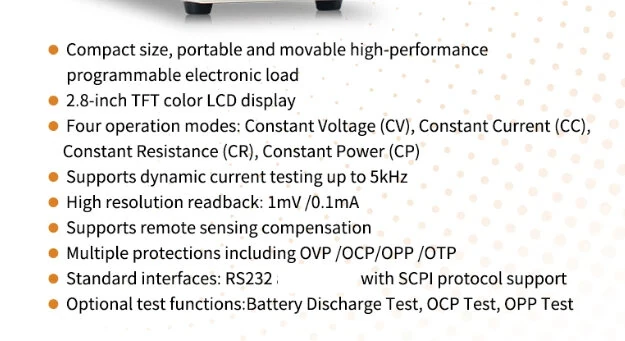

Features:

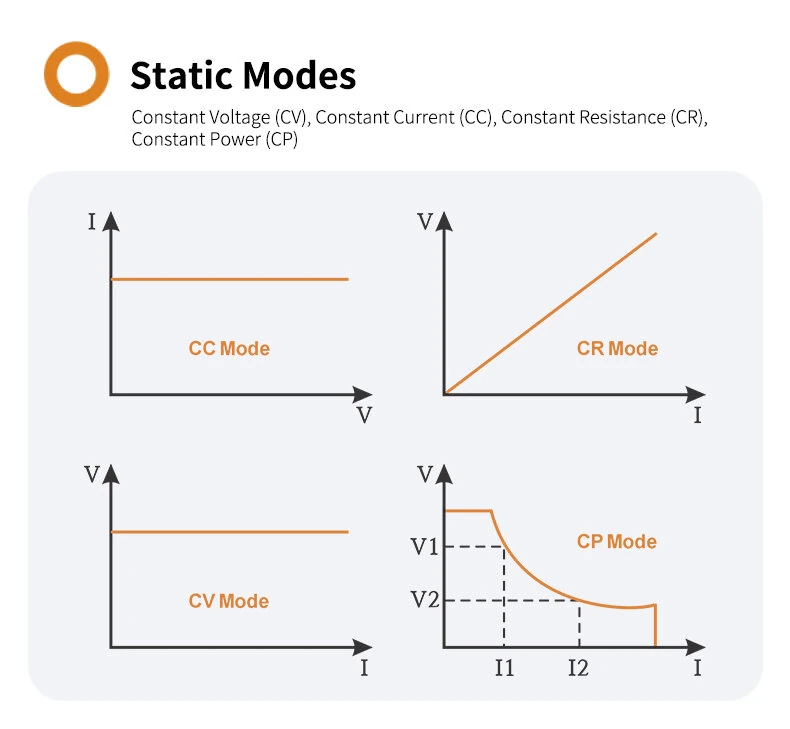

1.Four Operational Modes: Constant Voltage (CV), Constant Current (CC), Constant Resistance (CR), and Constant Power (CP) enable testing flexibility.

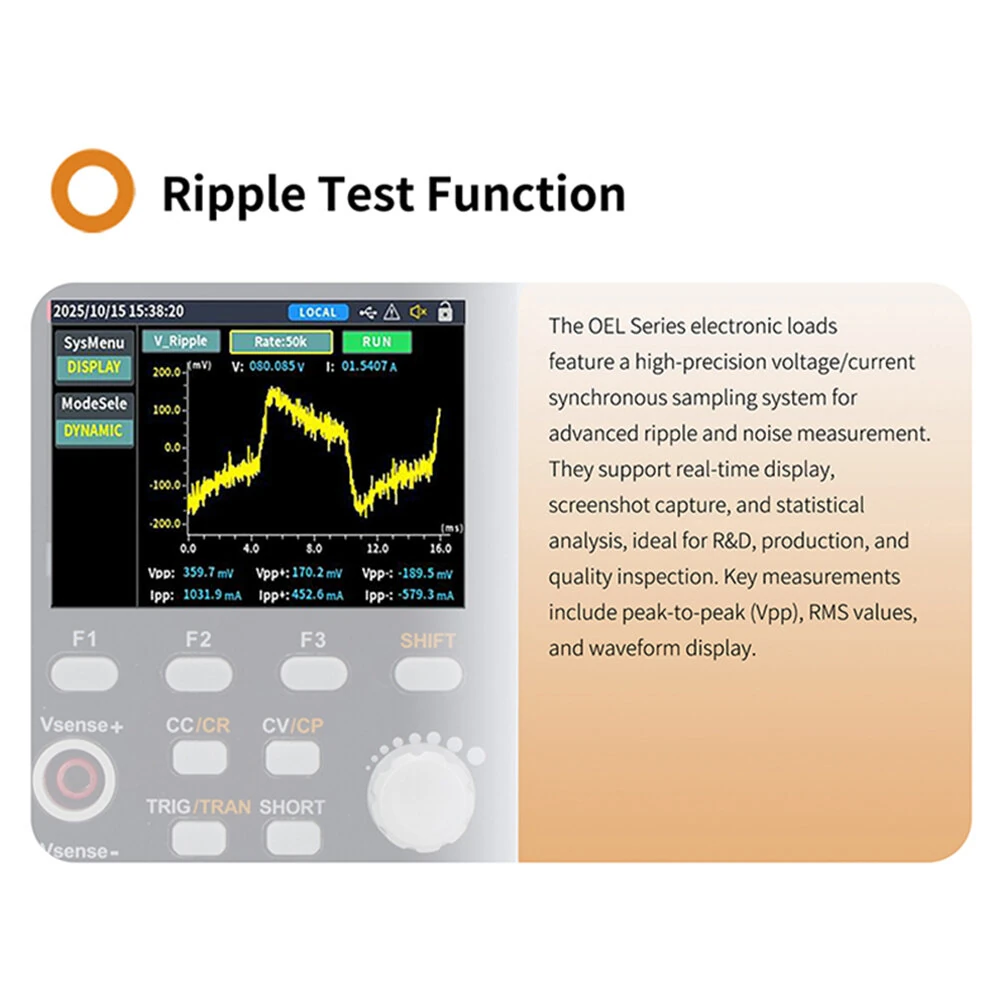

2.Advanced Ripple Test Functionality: High-precision voltage/current sampling permits synchronous noise analysis with displays for peak-to-peak and RMS values.

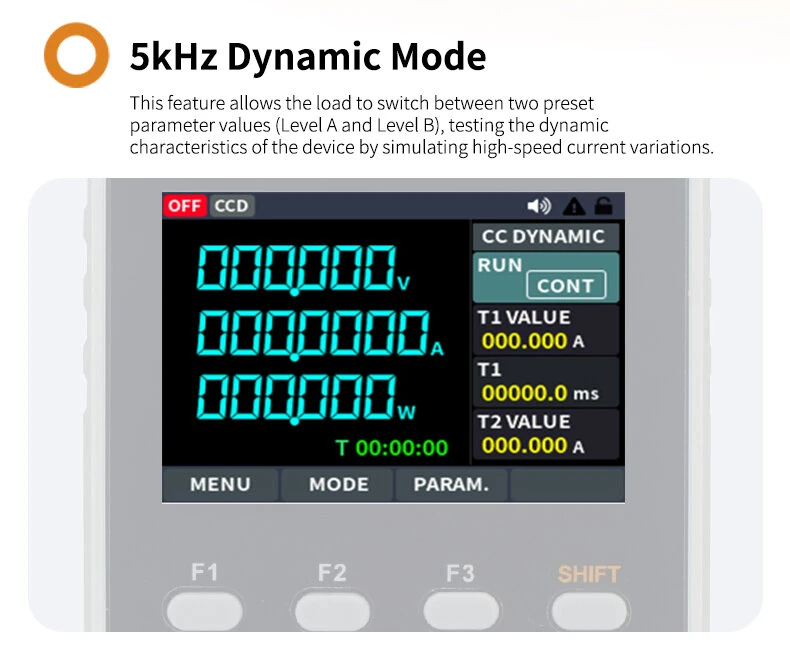

3.Dynamic Testing: Supports up to 5kHz current testing for detailed evaluation of transient response behavior.

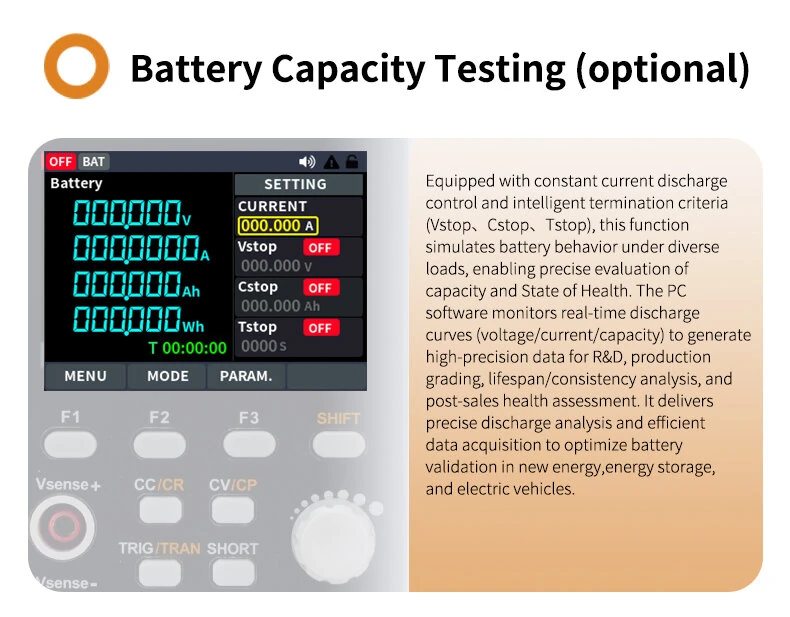

4.Optional Battery Capacity Testing: Provides precise discharge analysis and health evaluations for battery R&D and optimization.

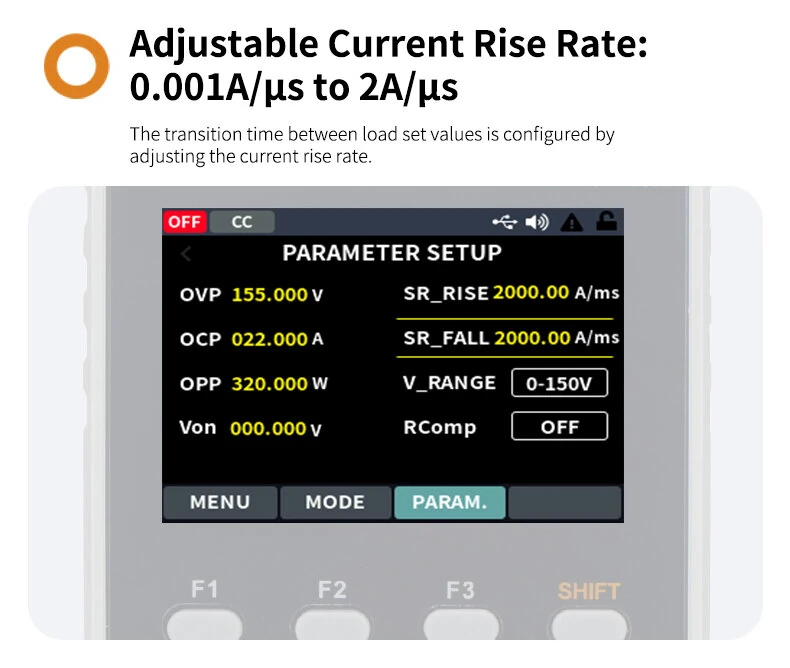

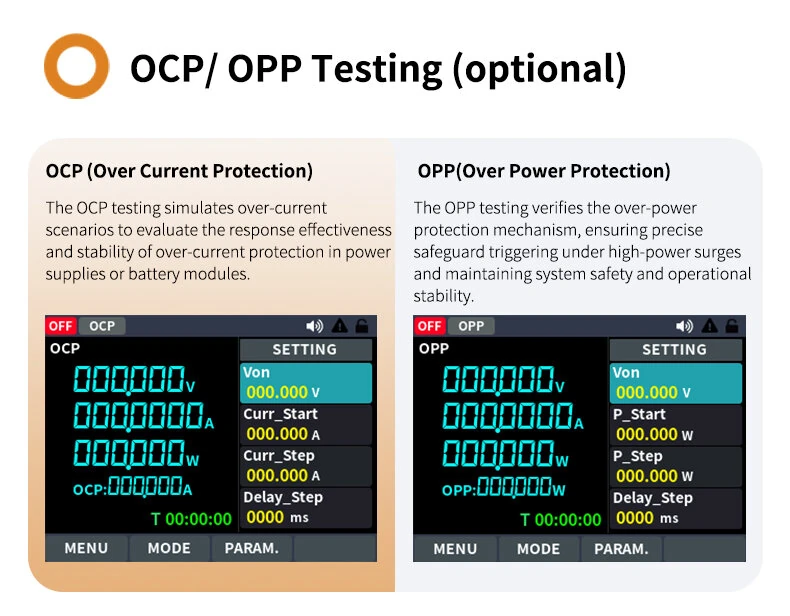

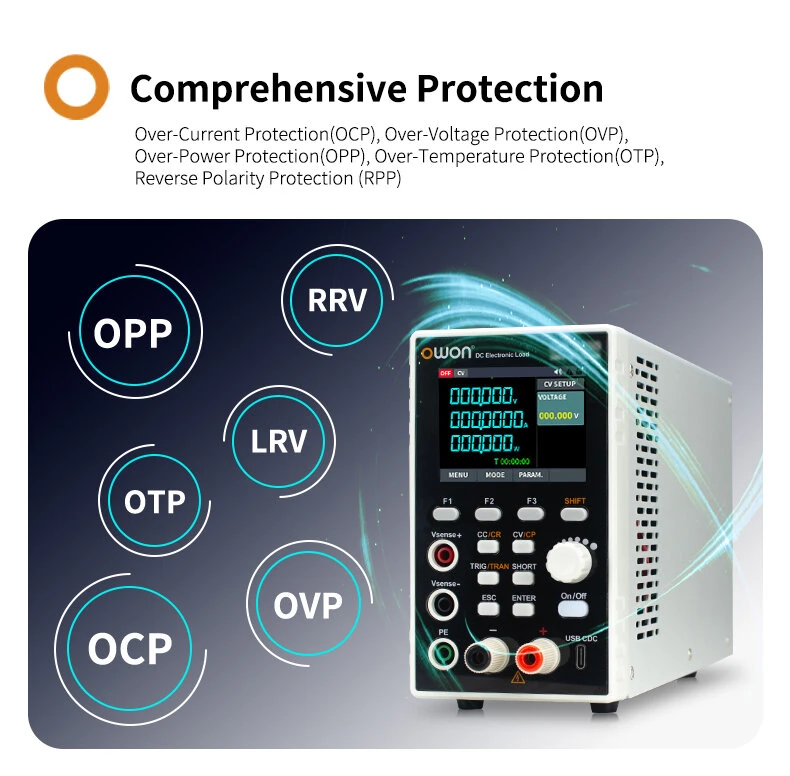

5.Enhanced Safeguards: Includes OVP, OCP, OPP, and OTP to ensure excellent protection during operation.

Package Included:

1 x Main Unit

1 x Power Cord

1 x Fuse

1 x User Manual
