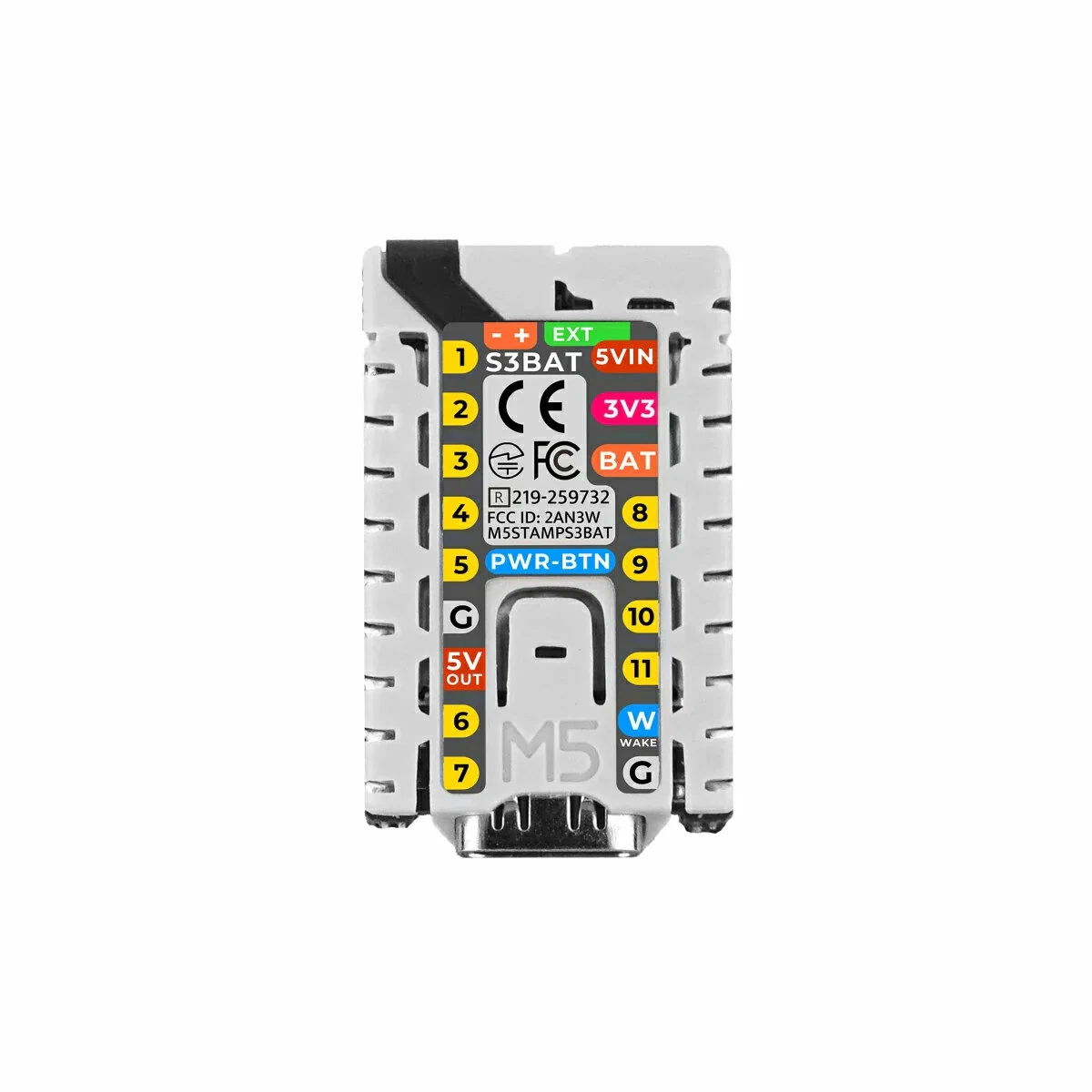

M5Stack M5StampS3 BAT Module ESP32-S3-PICO-1-N8R8 8MB Flash PSRAM 2.4GHz Wi-Fi Battery Power RGB LED with 2.54 Header Pin

SoC: ESP32-S3-PICO-1-N8R8 @ Dual-core Xtensa LX7 processor, frequency up to 240MHz

Flash: 8MB

PSRAM: 8MB

Wi-Fi: 2.4 GHz Wi-Fi

Input Power: 3.7V Battery / USB Type-C / DC 5V

RGB LED: 1x WS2812

Battery Interface: SH1.0

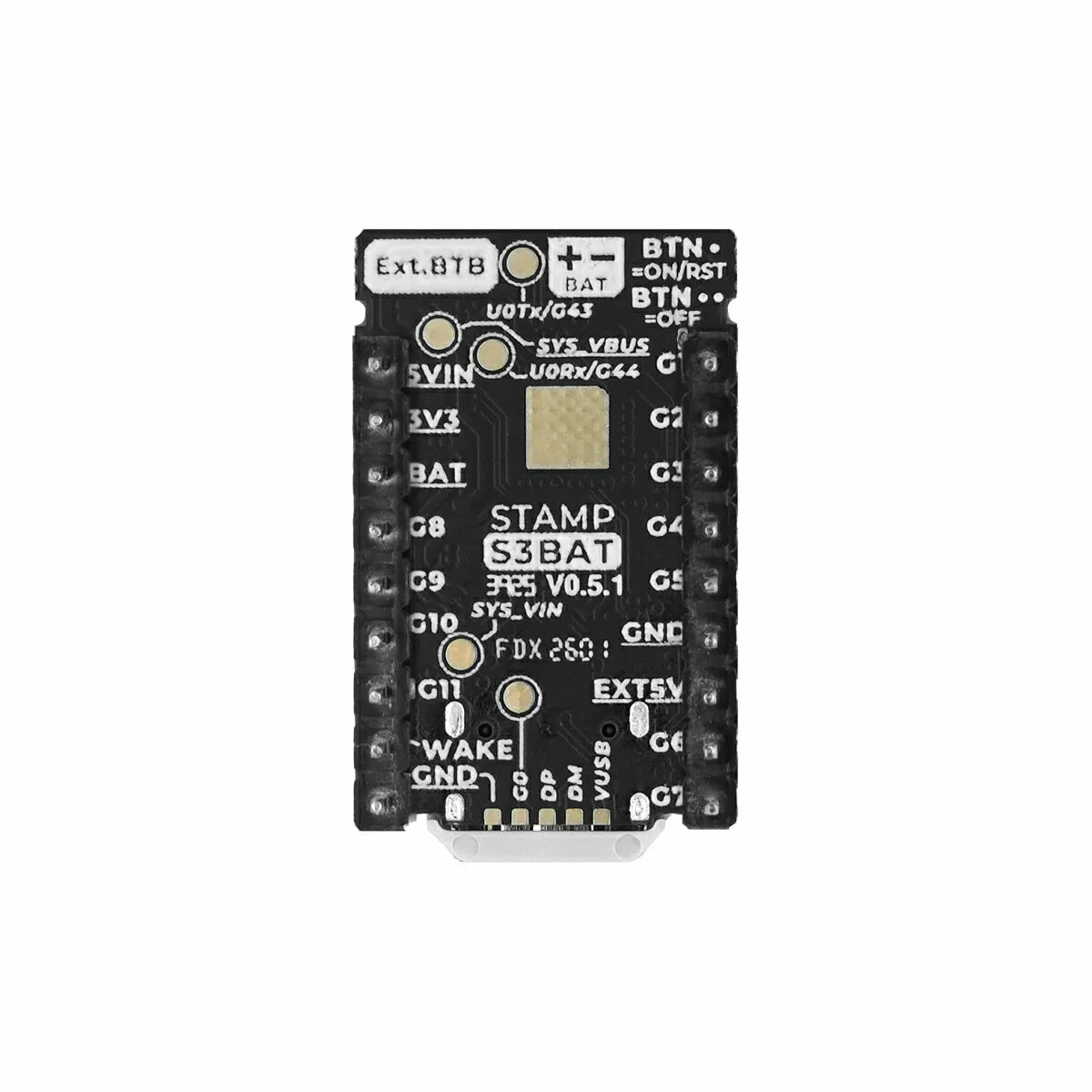

Pad GPIO Leads: 11x GPIO (G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11) + 1x Wake-up IO (PY_G4_WAKE)

BTB Interface GPIO Leads: 19x GPIO (G40/G38/G12/G13/G14/G15/G16/G18/G21/G46/G45/G41/G43/G42/G39/G17/G44/G47/G48)

BTB Socket: BTB0.408-24PLBDR-M4I, 12*2P-FPC Direct Insertion - Black, 0.4mm pitch

Antenna Socket: IPEX-4

Battery Connector: SH1.0-2P

Antenna Type: FPC Antenna

Operating Temp: 0 ~ 40°C

Power Consumption: Sleep Mode: 4.2V@13.43uA, Standby Mode: 4.2V@955.36uA, Light Load Mode: 4.2V@26.83mA, Full Load Mode: 4.2V@27.49mA

Product Size: 29.8 x 18.0 x 12.0mm

Product Weight: 4.5g

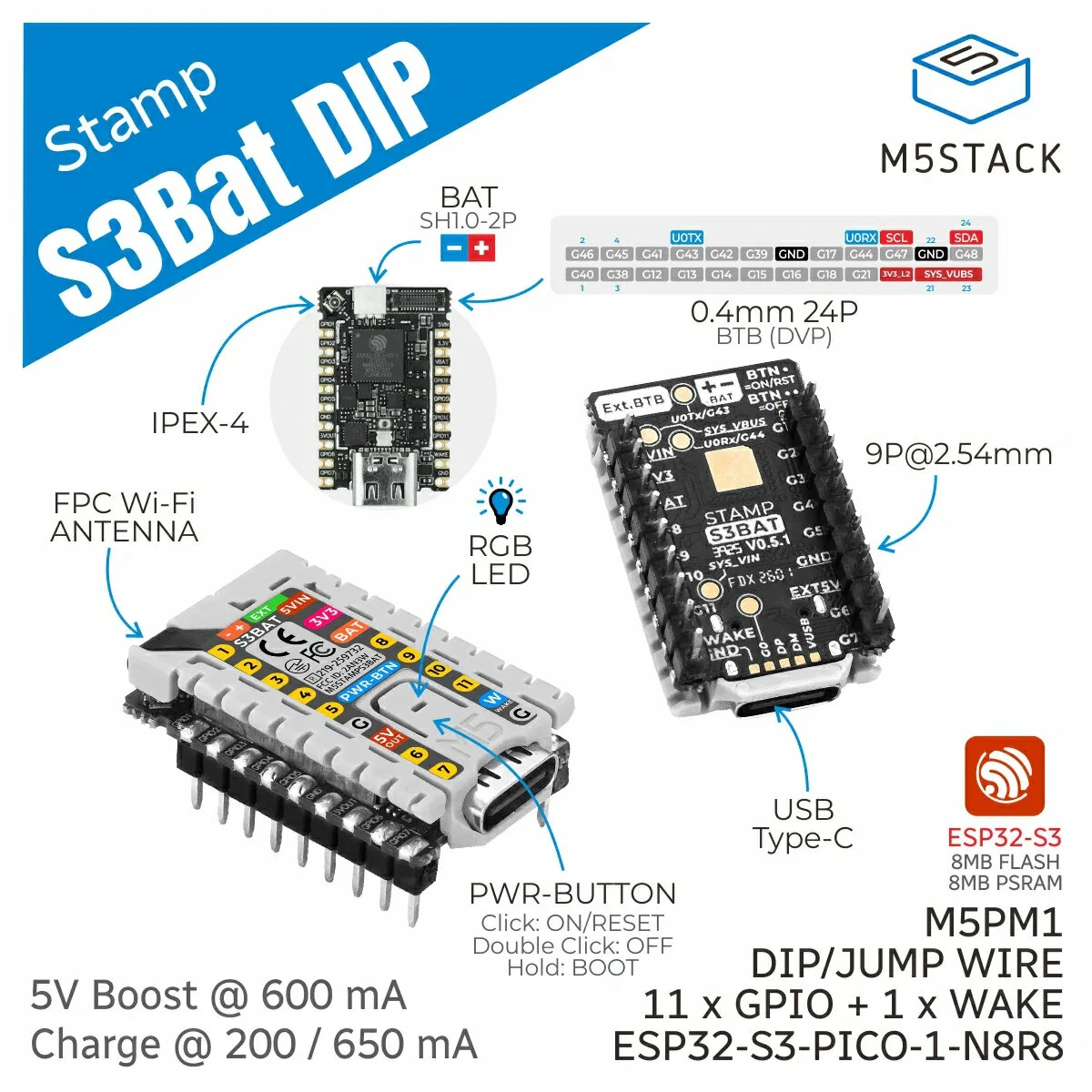

Introduction: Stamp-S3Bat DIP is an embedded core module with integrated power management. It features the ESP32-S3-PICO-1-N8R8 main controller, supporting 2.4GHz Wi-Fi with built-in 8MB Flash and 8MB PSRAM. The module leads out 11 GPIOs and 1 wake-up IO, equipped with a 24P BTB connector (supporting DVP interface). An onboard battery power interface is provided for connecting an external 3.7V lithium battery. It integrates the M5MP1 multi-stage power control design, supporting power input/output control, lithium battery charging control, and status detection for input voltage and battery voltage. It also supports external low-power wake-up; after the main controller enters low-power sleep mode, the power can be woken up via the external wake-up IO. Featuring a programmable RGB LED, the Stamp-S3Bat DIP version comes with pre-soldered 2.54mm standard pitch headers, allowing integration into applications via PCB insertion, breadboard connection, or Dupont cables to help developers quickly build IoT applications.

1. Integrated ESP32-S3-PICO-1-N8R8 main controller with dual-core Xtensa LX7 processor, supporting 2.4GHz Wi-Fi, 8MB Flash, and 8MB PSRAM.

2. Built-in M5PM1 low-power power management supports power input/output control, lithium battery charging control, and status monitoring for input voltage and battery voltage.

3. Provides 11 GPIO leads and 1 wake-up IO, plus a 24P BTB connector supporting DVP interface for expanded connectivity.

4. Supports 3.7V lithium battery power, USB Type-C, and DC 5V input, with onboard battery interface for external battery connection.

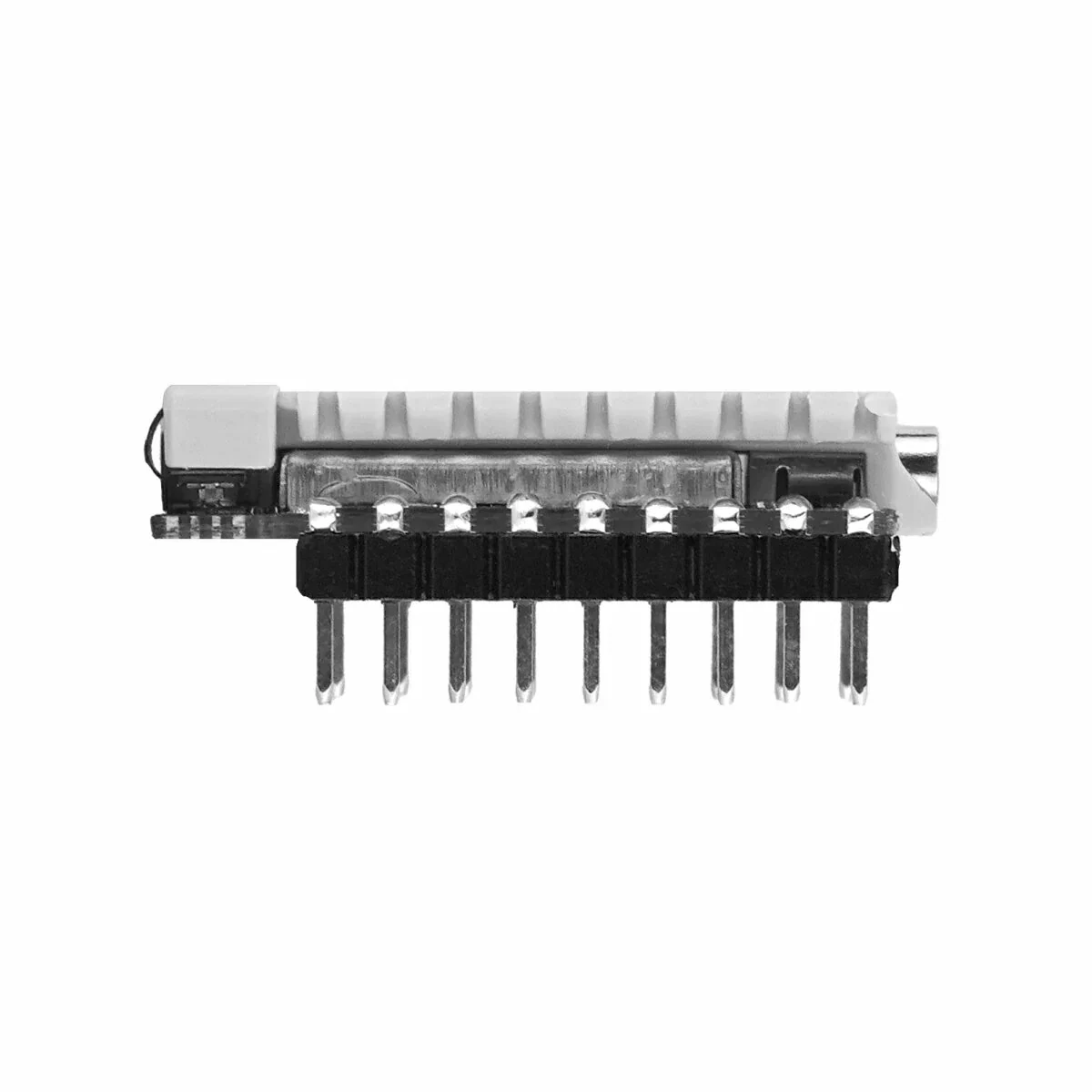

5. DIP version with pre-soldered 2.54mm standard pitch headers and 1x WS2812 RGB LED for easy PCB insertion, breadboard connection, or Dupont cable use.

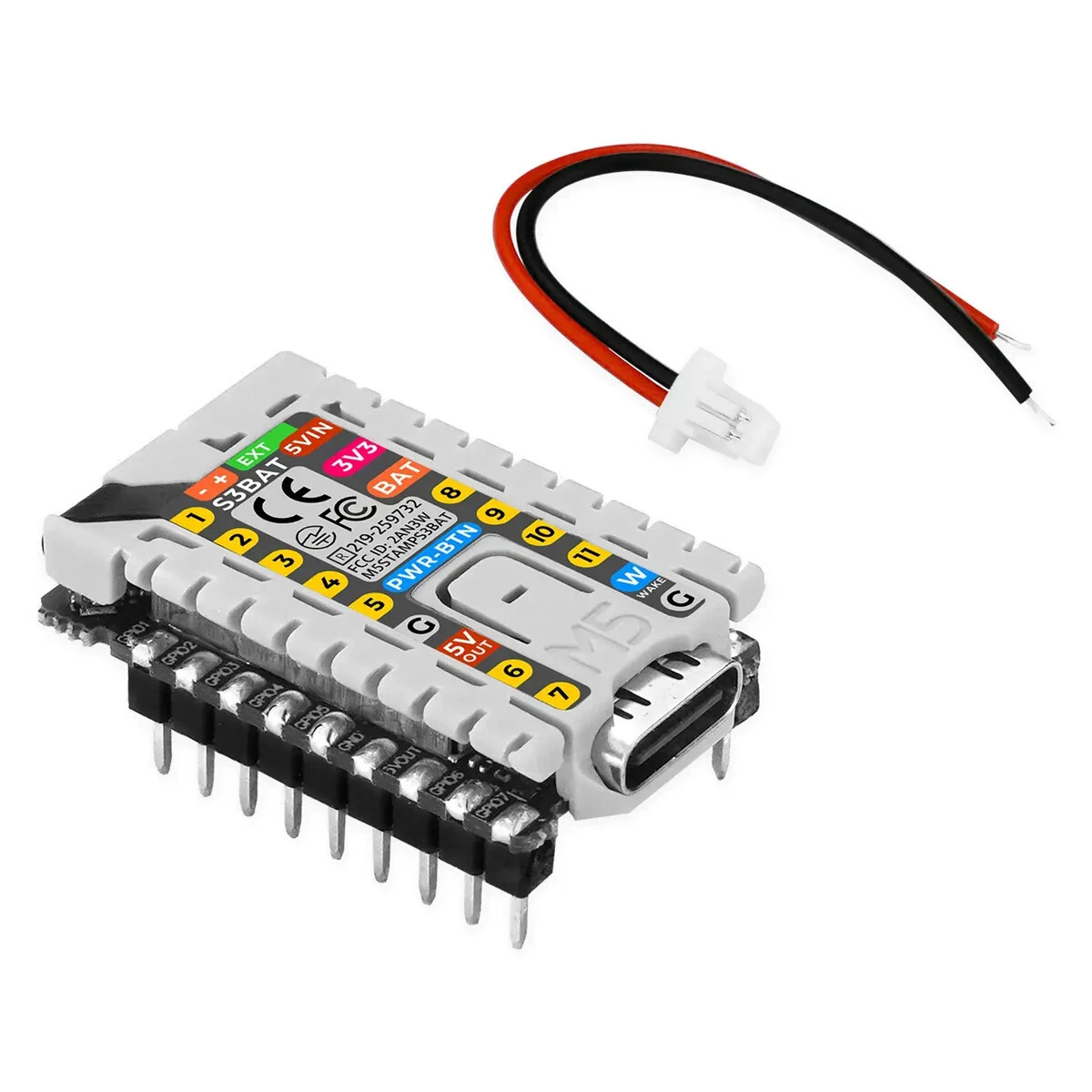

1 x Stamp-S3Bat DIP

1 x SH1.0 battery connection cable
