M5Stack CoreS3 SE ESP32-S3 Xtensa LX7 Smart Touch Controller 2 Inch IPS High Performance WIFI IoT Development Module
The M5Stack CoreS3 SE ESP32-S3 Xtensa LX7 Smart Touch Controller 2 Inch IPS High Performance WIFI IoT Development Module by M5Stack is a premium product designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
30% Off — you save ₹2,566 on this product!
Type: K128-SE
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The M5Stack CoreS3 SE ESP32-S3 Xtensa LX7 Smart Touch Controller 2 Inch IPS High Performance WIFI IoT Development Module by M5Stack is a premium designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

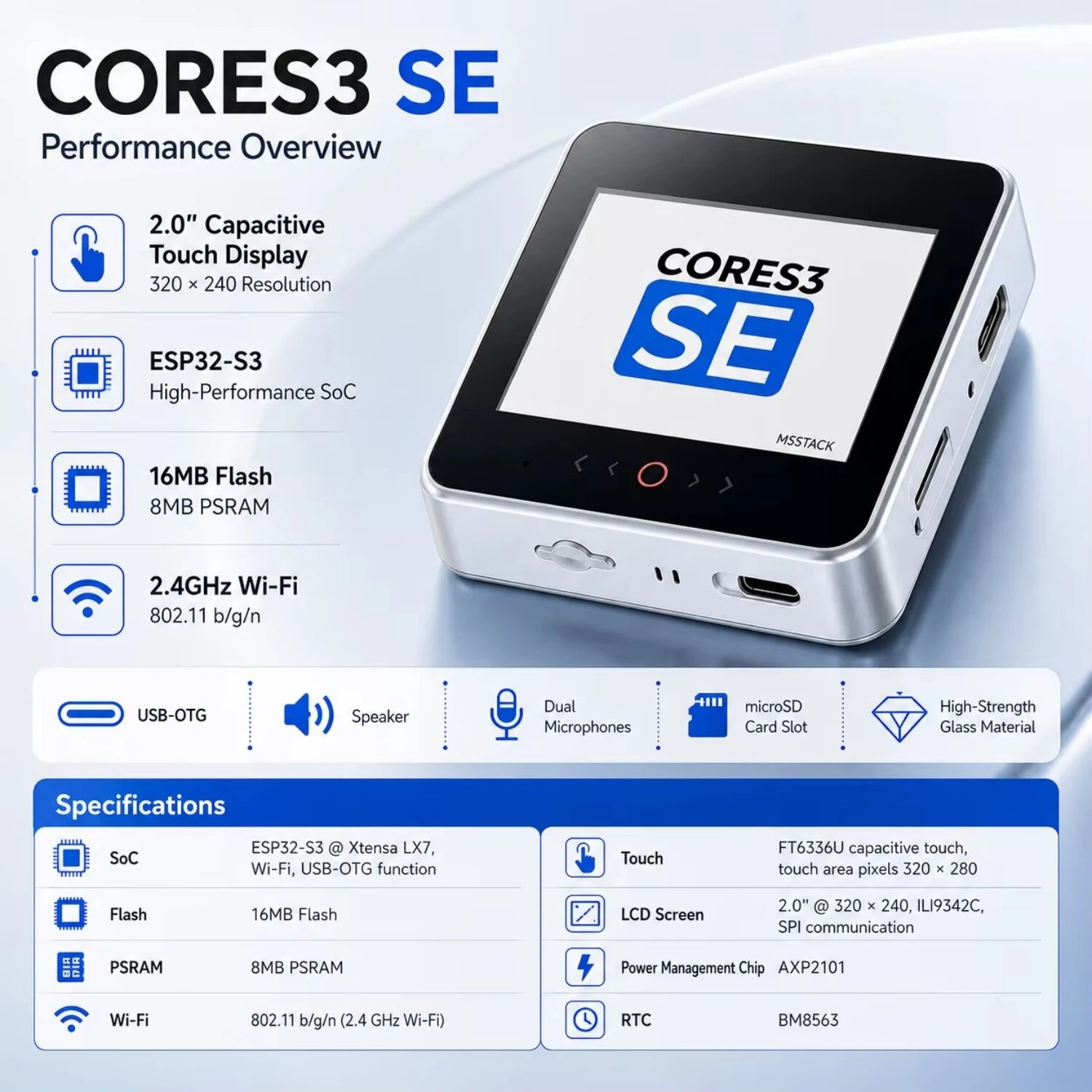

Specification:
Brand: M5Stack
Model: K128
Product Name: CoreS3 SE ESP32-S3 Smart Touch Controller
SoC: ESP32-S3 @ Xtensa LX7, Wi‑Fi, USB‑OTG function
Flash: 16MB Flash
PSRAM: 8MB PSRAM
Display: 2.0" IPS LCD, 320 × 240, ILI9342C, SPI interface
Touch Panel: FT6336U capacitive touch, touch area 320 × 280 px
Wi‑Fi: 2.4GHz 802.11 b/g/n
Speaker: 1W @ 9028, built‑in
Audio: 16‑bit I2S amplifier AW88298, ES7210 audio decoding chip, dual‑microphone input
Power Management IC: AXP2101
RTC: BM8563
BUS Pins: G0/G1/G2/G5/G6/G7/G8/G9/G10/G11/G12/G13/G14/G17/G18/G35/G36/G37/G43/G44
Lithium Battery Charging Current: 5V / 198mA
Grove Output Max Current (1200mAh battery): DC 4.2V / 940mA
Grove Output Max Current (USB powered): DC 5V / 680mA
Operating Temperature: 0 – 40°C
Power Consumption:
Battery powered: Standby DC 4.2V / 104.64µA, Operating DC 4.2V / 109.67mA
USB powered: Operating DC 5V / 166.27mA
Product Size: 54.0 × 54.0 × 15.5mm
Product Weight: 38.2g
Package Size: 133.0 × 93.5 × 25.5mm
Package Weight: 54.5g

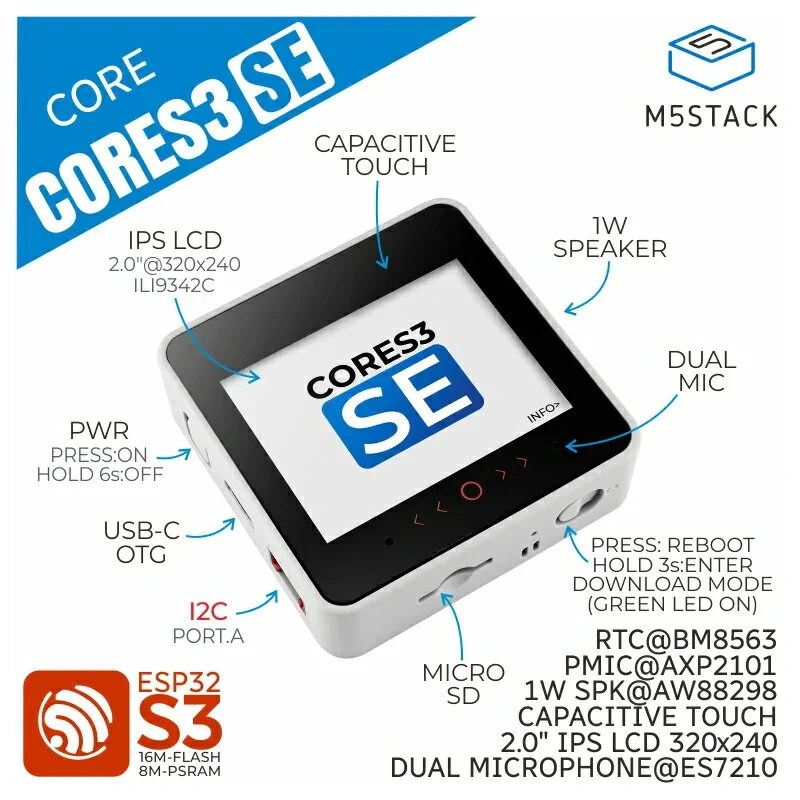

Introduction:
CoreS3-SE is a lightweight version of the third-generation CoreS3 host in the M5Stack development kit series. Its main controller adopts the ESP32-S3 solution, with a dual-core Xtensa LX7 processor, running at 240 MHz, featuring built-in (2.4G) Wi-Fi, onboard 16MB Flash and 8MB PSRAM. Programs can be downloaded via the USB Type-C interface, supporting OTG and CDC functionality for convenient connection of USB devices and firmware flashing. The front is equipped with a 2.0-inch capacitive touch IPS screen with a high-strength glass panel.
The power supply section uses an AXP2101 power management chip along with 4-way power flow control circuits, with an overall low-power design.
Onboard microSD card slot. Onboard BM8563 RTC chip provides accurate timing and sleep-timer wake-up functionality.
Audio output uses a high-fidelity 16-bit I2S amplifier chip AW88298, with a built-in 1W speaker. Audio input uses the ES7210 audio decoder chip + dual microphone inputs.
Independent power button and reset (RST) button are located on the side of the device. With a built-in delay circuit, holding the reset button enters download mode.
This product is suitable for IoT development, various DIY project development, smart home control systems, and industrial automation control systems.
Features:
1. Compact 2.0" capacitive touch LCD: Clear 320 × 240 IPS screen with touch support for intuitive operation in a small 54 × 54mm body.
2. High‑performance ESP32‑S3 controller: Dual‑core Xtensa LX7 with 16MB Flash and 8MB PSRAM, suitable for IoT control, HMI, and edge applications.
3. Built‑in Wi‑Fi and USB‑C OTG: 2.4GHz Wi‑Fi (802.11 b/g/n) and USB‑C for programming, data transfer and USB‑OTG expansion.
4. Rich audio system: Integrated 1W speaker, dual microphones, 16‑bit I2S amplifier and audio decoding chip for voice interaction and audio playback.
5. Real‑time clock & power management: Onboard BM8563 RTC and AXP2101 PMU for timekeeping, battery charging and stable power control.

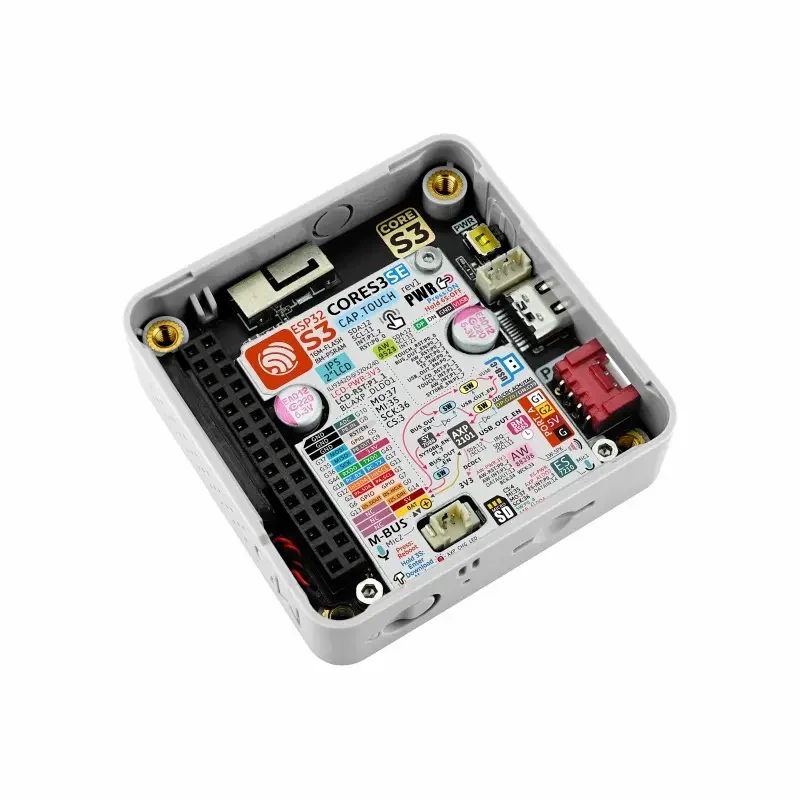

6. Expandable interface design: Grove/BUS pins and microSD card slot (shown in images) for sensor connection, data logging and project expansion.
Package Includes:
1 x M5Stack K128 CoreS3 SE ESP32-S3 Smart Touch Controller
