M5Stack ATOM Lite Programmable Controller ESP32-PICO-D4 Dual Core RGB LED WiFi ESP32 IoT Development Kit

SoC: ESP32-PICO-D4, 240 MHz dual-core processor, 600 DMIPS, 520 KB SRAM, Wi-Fi

Flash: 4 MB

Input Voltage: 5V at 500mA

Host Interface: Type-C x 1, GROVE (I2C+I/O+UART) x 1

PIN Interface: G19, G21, G22, G23, G25, G33

RGB LED: SK6812 3535 x 1

IR: IR transmitter

Button: Customizable button x 1

Antenna: 2.4G 3D antenna Operating Temp: 0 ~ 40°C Case Material: Plastic (PC) + ABS Product Size: 24.0 x 24.0 x 9.5mm Product Weight: 5.5g

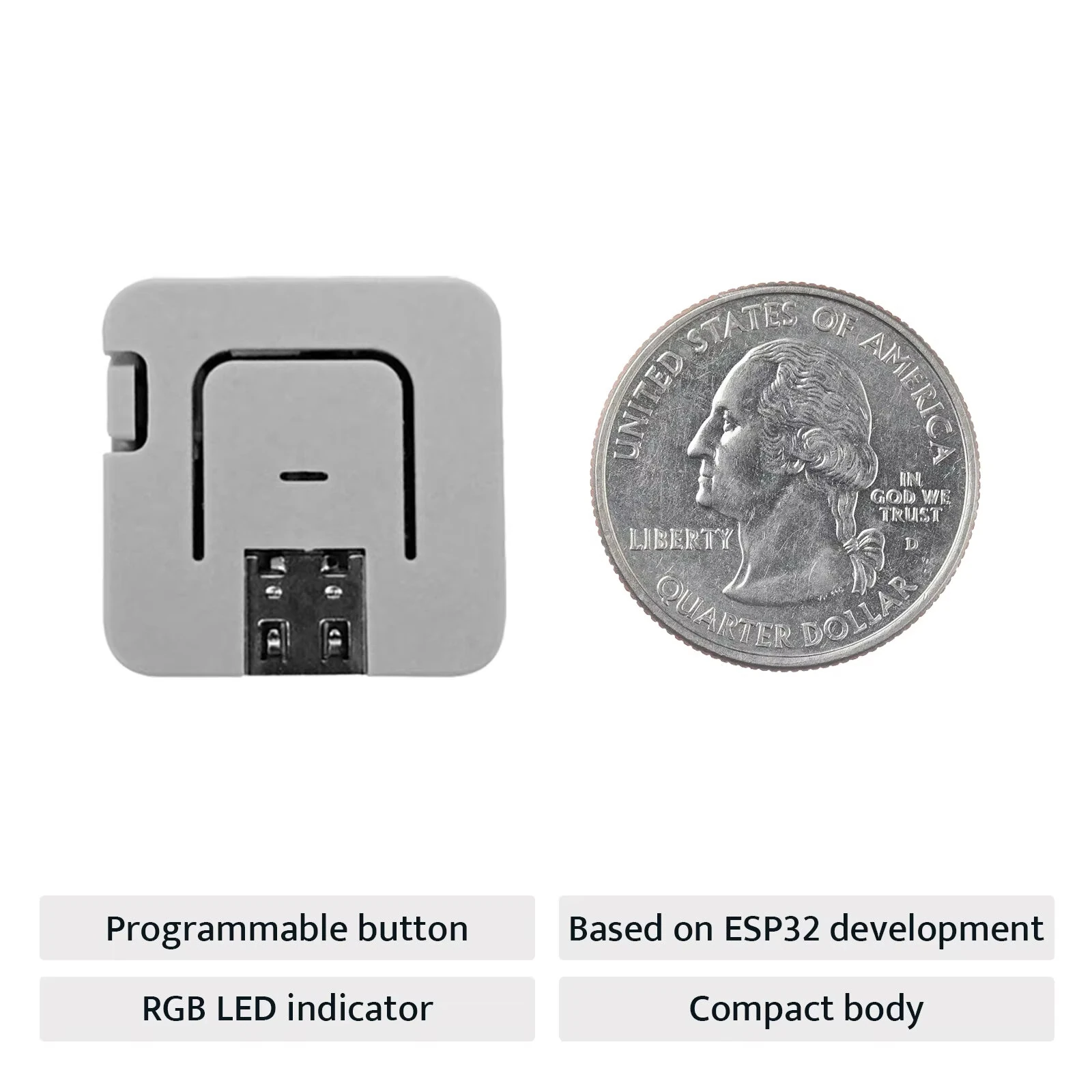

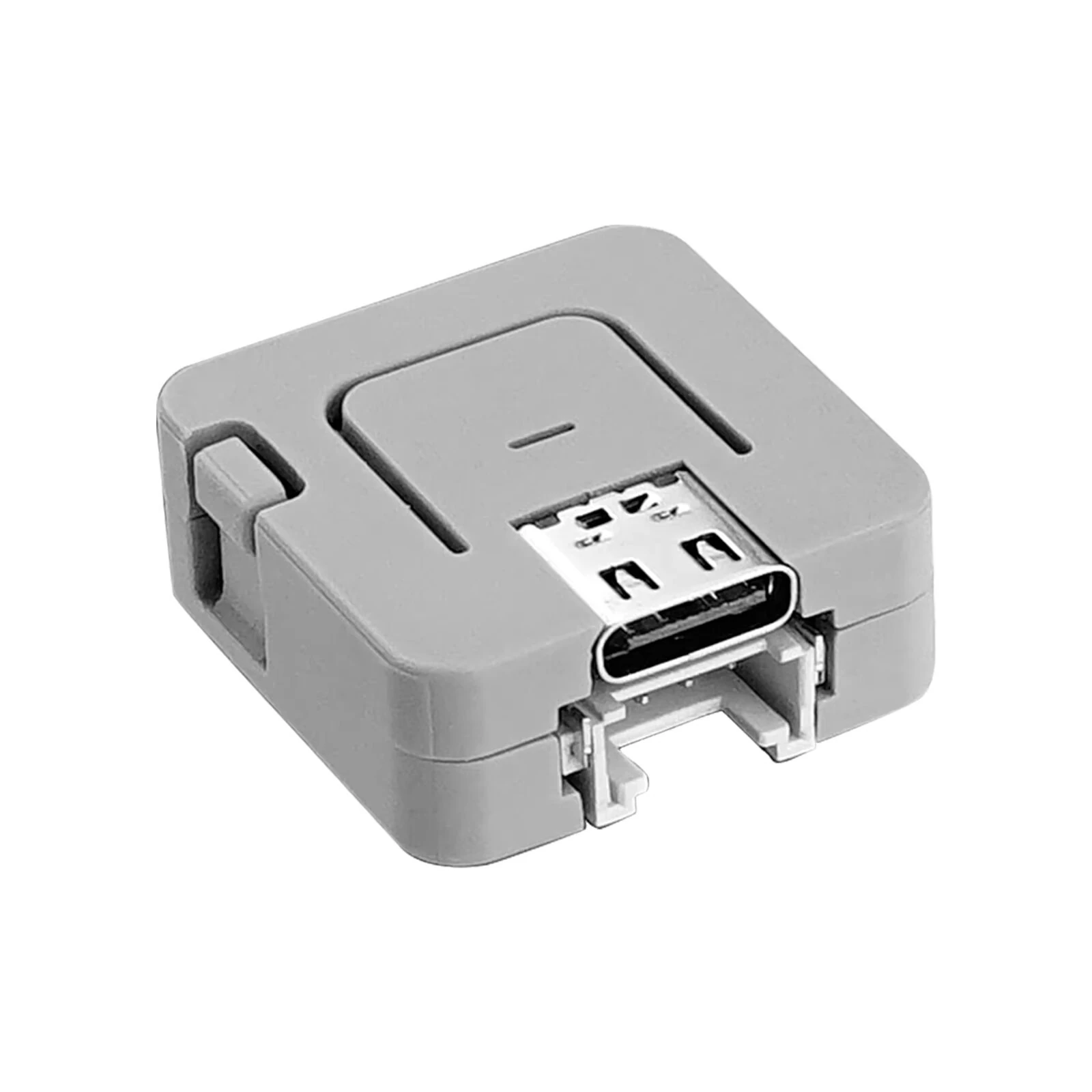

Atom-Lite is a very compact development board in the M5Stack development kit series, with a size of only 24.0 x 24.0 mm, providing more GPIO for user customization, making it very suitable for embedded smart hardware development. The main controller uses the ESP32-PICO-D4 solution, integrates a Wi-Fi module, has a built-in 3D antenna, and features 4 MB of SPI flash, providing Infra-Red, RGB Led, button, and GROVE/HY2.0 interfaces. The onboard USB Type-C interface allows for quick program upload and download, and there is an M2 screw hole on the back for fixing.

1. Compact and lightweight design ensures effortless integration for IoT applications.

2. Customizable button offers flexible control for various projects and functions.

3. Type-C connectivity speeds up programming and charging processes.

4. Multi-functional host interface supports GROVE for versatile hardware connections.

5. Built-in RGB LED allows display feedback and status indication in projects.

1 x ATOM Lite
