Hi-Link HLK-LD2450 24GHz Motion Target Tracking Radar Sensor Module Distance Angle Measurement for Smart hotel/Home/LED

Specifications:
Frequency: 24G-24.25GHz
Sweep Bandwidth: 250MHz (Compliant with CE/FCC certification standards)
Modulation Mode: FMCW
Operating Voltage: 5V (Typical)
Dimensions: 15 x 40mm
Detect Angle:
Azimuth: ±60°
Elevation: ±35°
Detect Range: Maximum sensing distance of 8m
Distance Resolution: 0.75m
Distance Accuracy: 0.15m
Angle Accuracy: 2°~ 20°
Data Refresh Rate: 10Hz
Operating Temperature: -40°C to +85°C
Data Format: Serial ASCII output
Package Type: Default 1.5mm X 4Pin female seat

Features:
1. Accurate Real-Time Motion Tracking:
The Hi-Link HLK-LD2450 24GHz radar module excels in real-time tracking of moving targets within its detect area, providing precise distance, angle, and speed information through a serial port output.
2. Wide Detect Range and High Resolution:
With a detect range of up to 8 meters and a resolution of 0.75 meters, this radar sensor is designed for comprehensive coverage in homes, offices, and hotels. It offers an azimuth angle coverage of ±60° and an elevation angle of ±35°, ensuring thorough monitoring of the designated area.
3. High Precision and Refresh Rate:
The module boasts a distance accuracy of 0.15 meters and an angular precision ranging from 2° to 20°, coupled with a refresh rate of 10Hz. These attributes guarantee reliable and swift data acquisition, essential for dynamic environments where continuous monitoring is important.
4. Robust and Versatile Design:
Operating within a temperature range of -40°C to +85°C, the HLK-LD2450 radar module is built to withstand various environmental conditions. Its compact dimensions (15 x 40mm) and default 1.5mm X 4Pin female packaging make it adaptable to diverse installation requirements in both residential and commercial settings.
5. Industry-Standard Compliance:
The module's 24GHz frequency and 250MHz sweep bandwidth comply with CE/FCC certification.

Package Include:
【HLK-LD2450 Module】:

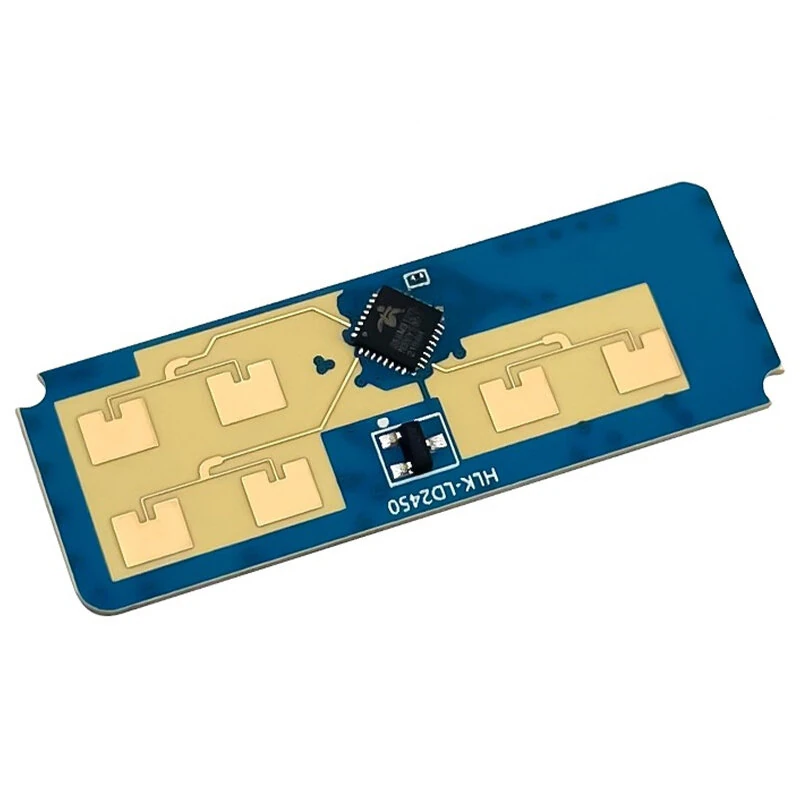

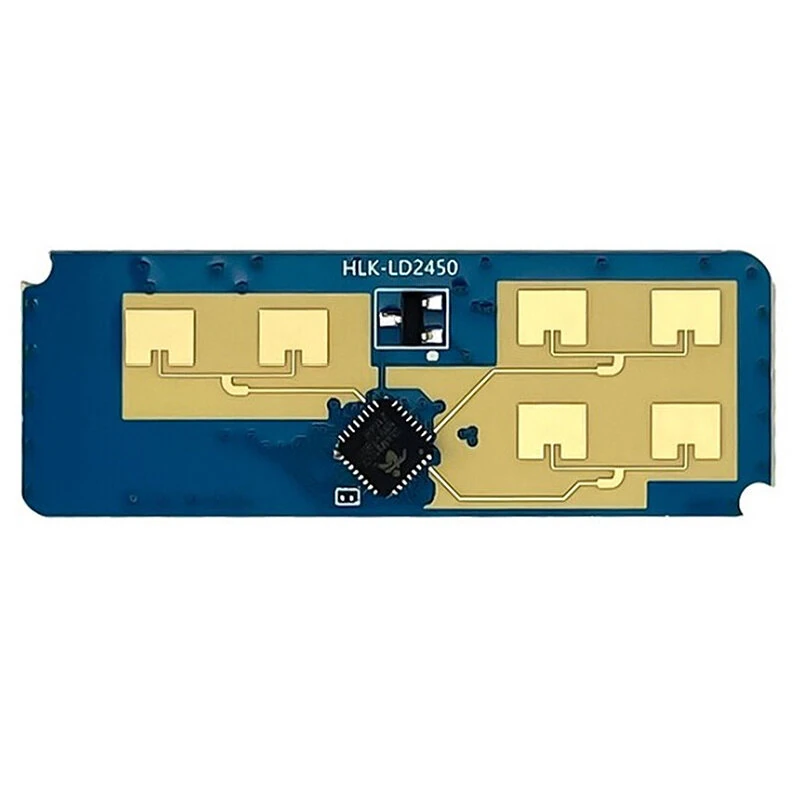

1x LD2450 Module Board

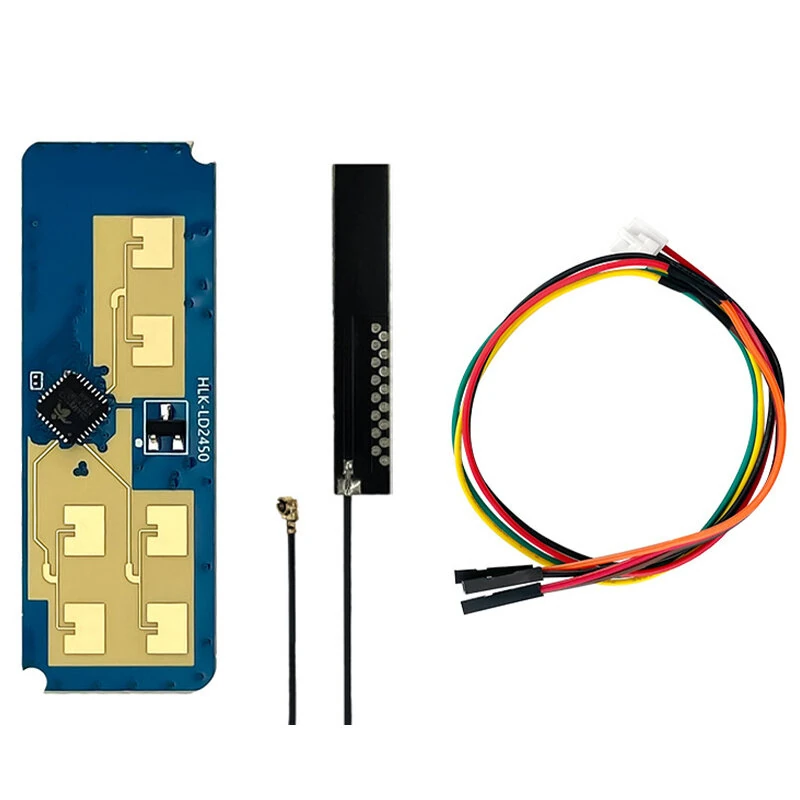

【HLK-LD2450 testkitA】:
1x LD2450 Module Board
1x 2.4G PCB Antenna
1x 1.5mm 4pin Wire

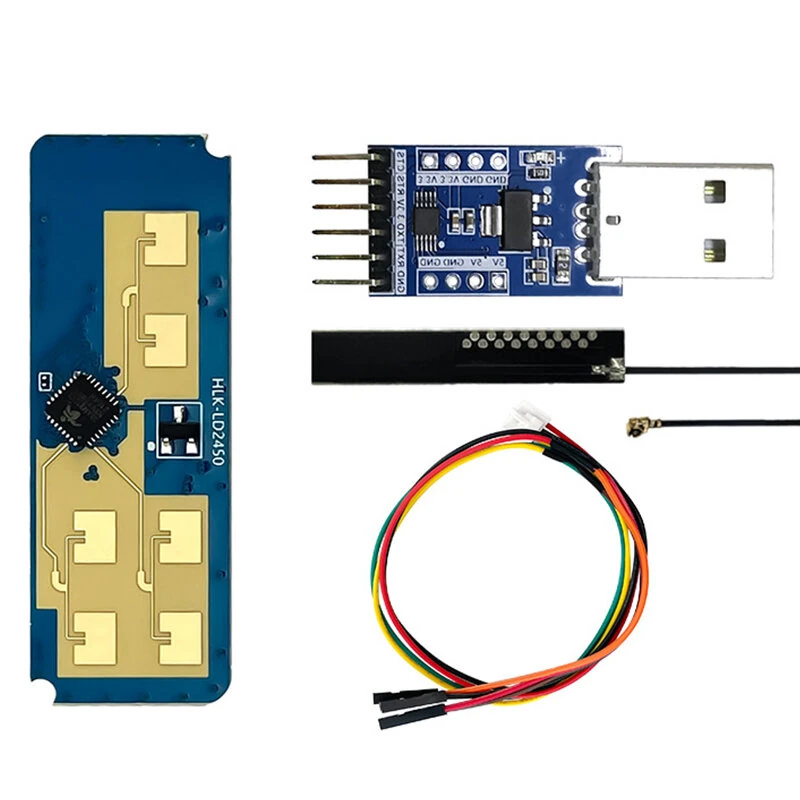

【HLK-LD2450 testkitB】:
1x LD2450 Module Board
1x 2.4G PCB Antenna
1x 1.5mm 4pin Wire
1x CH340 Serial Board
