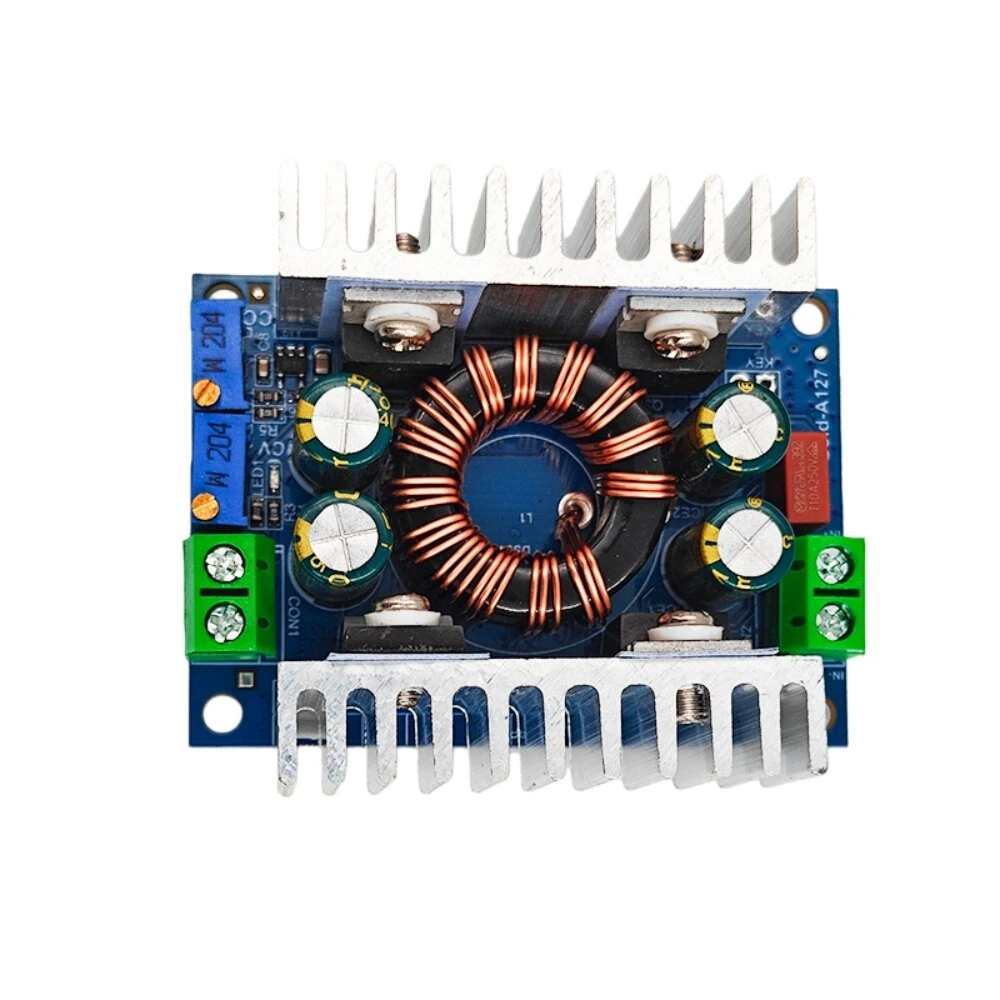

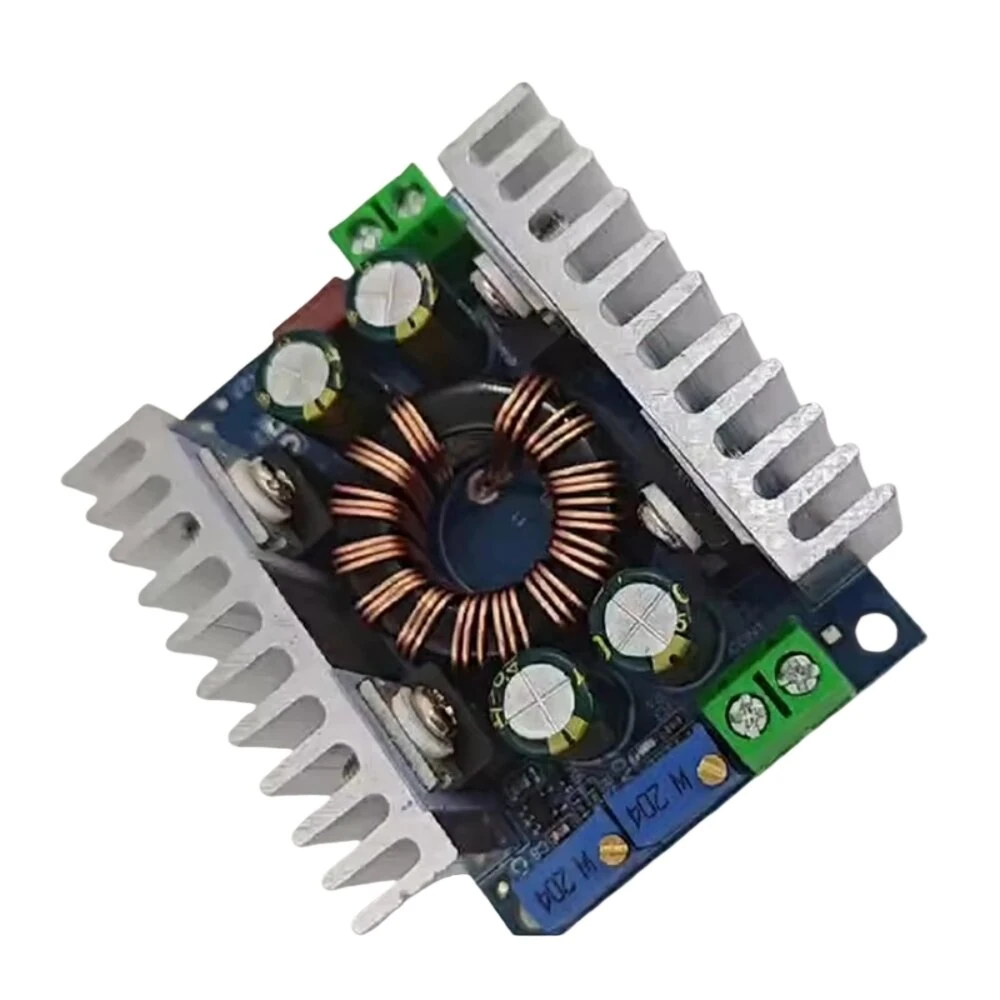

DC-DC8A Solar Voltage Converter 150kHz Adjustable Step-down Constant Voltage Current Power Supply Boost/Buck Voltage Regulator Module
The DC-DC8A Solar Voltage Converter 150kHz Adjustable Step-down Constant Voltage Current Power Supply Boost/Buck Voltage Regulator Module by Pricio is a mid-range power supply module designed for everyday users. It features Input Voltage: DC5-30V and Input Current: 8A (MAX) Peak 10A (6A or less for long-term operation).
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Color: Blue
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Quick Specs
Ideal For
About This Product
The DC-DC8A Solar Voltage Converter 150kHz Adjustable Step-down Constant Voltage Current Power Supply Boost/Buck Voltage Regulator Module by Pricio is a mid-range power supply module designed for everyday users. It delivers reliable performance at an accessible price.
Key Specifications
- Input Voltage: DC5-30V — works with standard household power
- Input Current: 8A (MAX) Peak 10A (6A or less for long-term operation)
- Quasi-Operating Current: 4mA (may vary depending on operating voltage) — works with standard household power

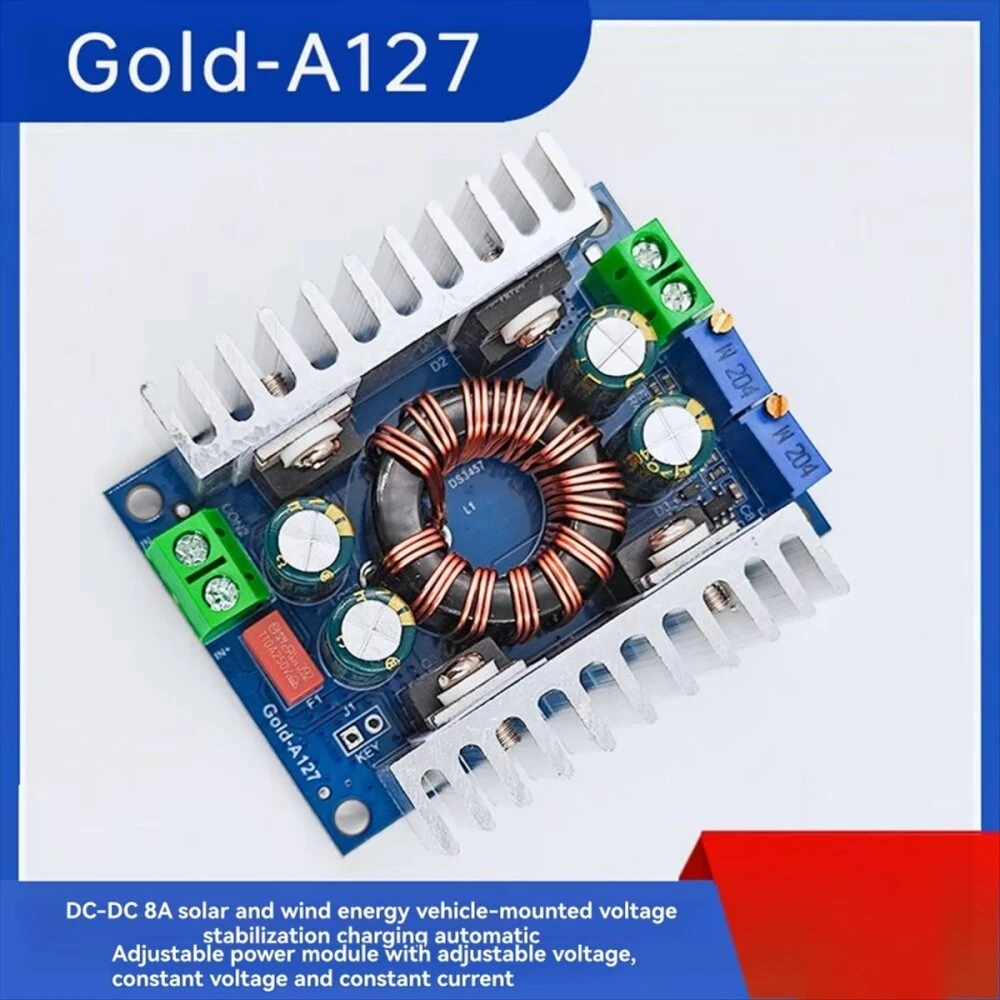

- Product Model: Gold-A127
- Output Voltage: 1.25-30V continuously adjustable — works with standard household power
- Output Current: 10A (MAX) (5A or less for long-term natural cooling; derating for high voltage output) — works with standard household power
- Output Constant Current Range: 0.2-10A — reliable connection even at a distance
- Operating Temperature: -40~+85 degrees Celsius
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification:
Features:

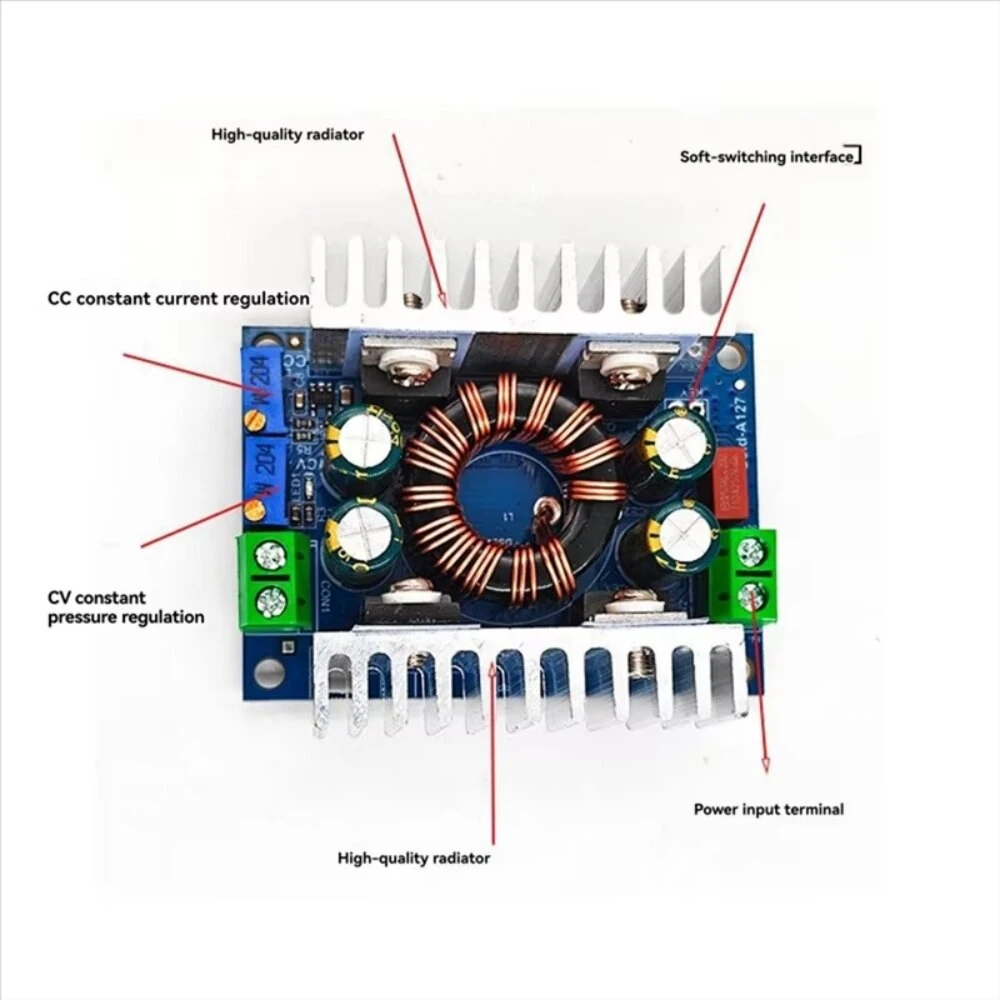

1. Adjustable constant voltage (CV) and constant current (CC) regulation for versatile performance.
2. Overcurrent, overtemperature, and short circuit protection ensures device safety.
3. High-quality radiators for effective heat dissipation.
3. Terminal block for easy wiring (input and output).
5. Soft-switching interface enhances operational stability.
6. Compact design suitable for various applications, such as solar and energy vehicle-mounted stabilization.
Package Includes:
1 x Buck regulator module
