This doesn't come with any schematics. On the input side there are markings for VCC, In and GND but there's no indication as to whether a high level or low level turns the relay on. It's worse on the output side. There, there are just three cryptic markings which I am unable to decipher. The minimal written documentation on the site doesn't clarify things.

It'sa changeover relay, so you could say both high and low turn the relay on, depending what On means to you. IN terms of energising the relay coil, in accordance with normal practice, the In line is active LOW. On the output side, the centre terminal is common and BESTEP side is normally open.

WHAT IS THE RANGE OF Vcc voltage

my experience is that more than 5V is required on Vcc to make the relay pull in. Not very satisfactory in my opinion.

Hey, will a Raspberry Pi (that has a 3.3V output) be able to control a 240VAC device with this?

sorry,I didn't use it with Raspberry Pi, so not sure for that

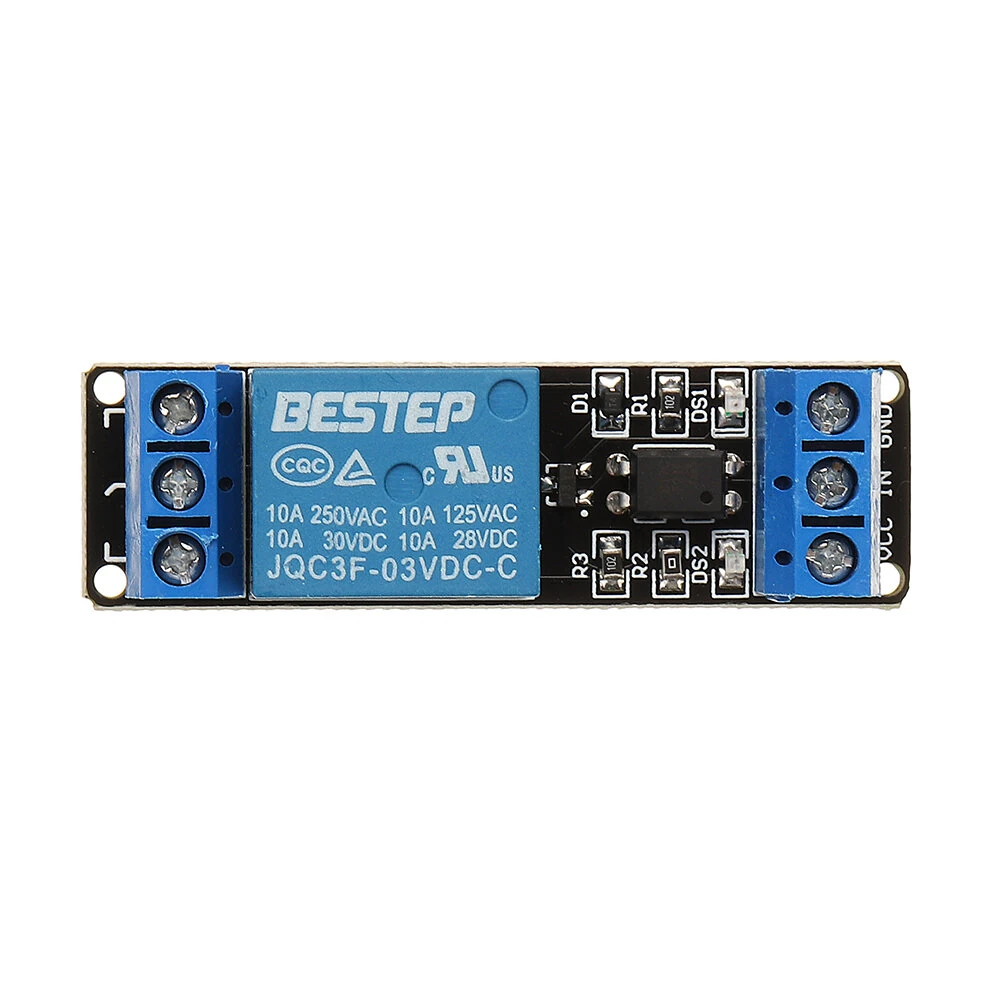

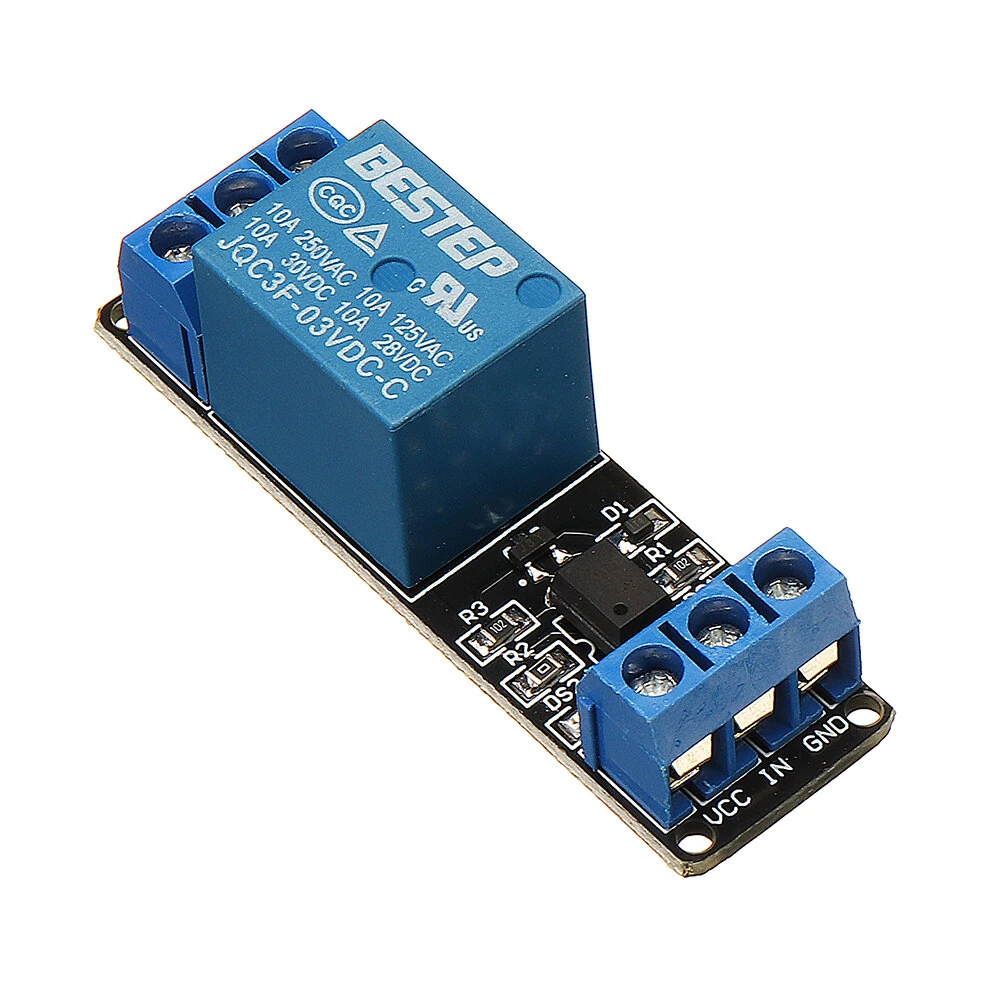

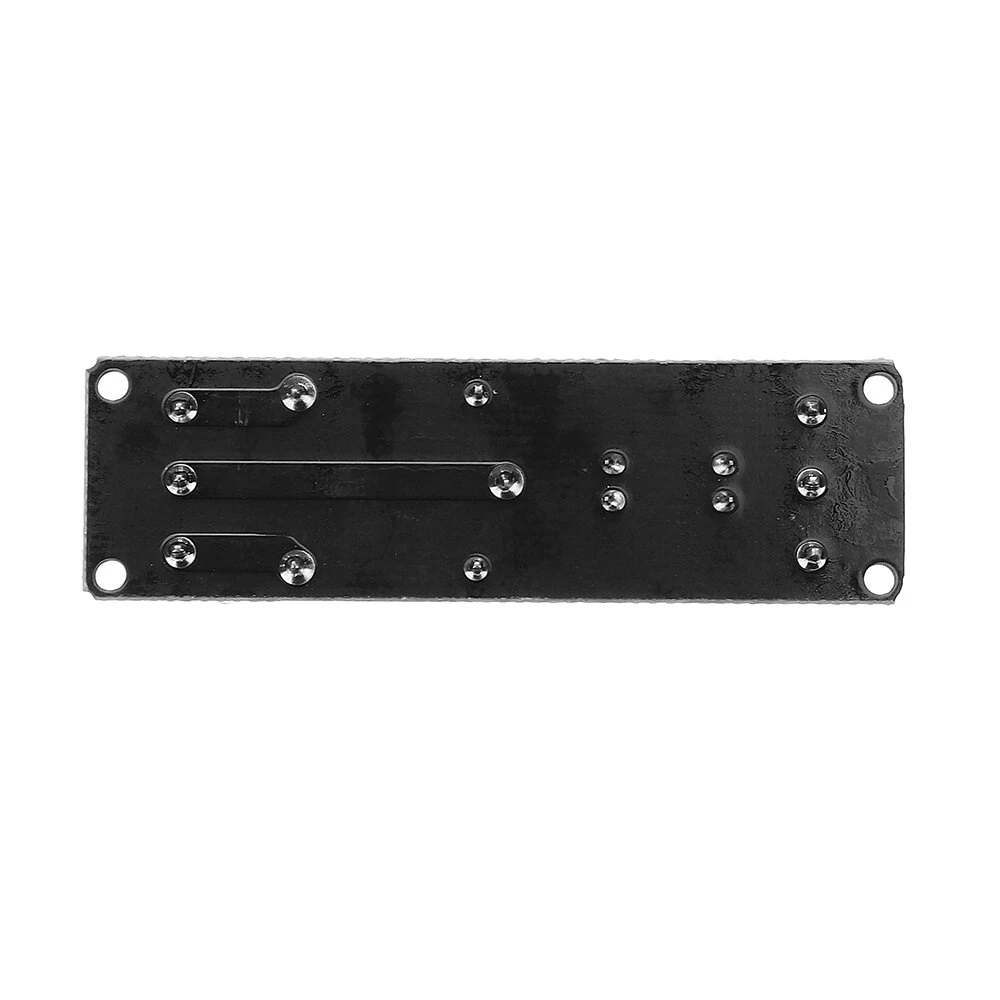

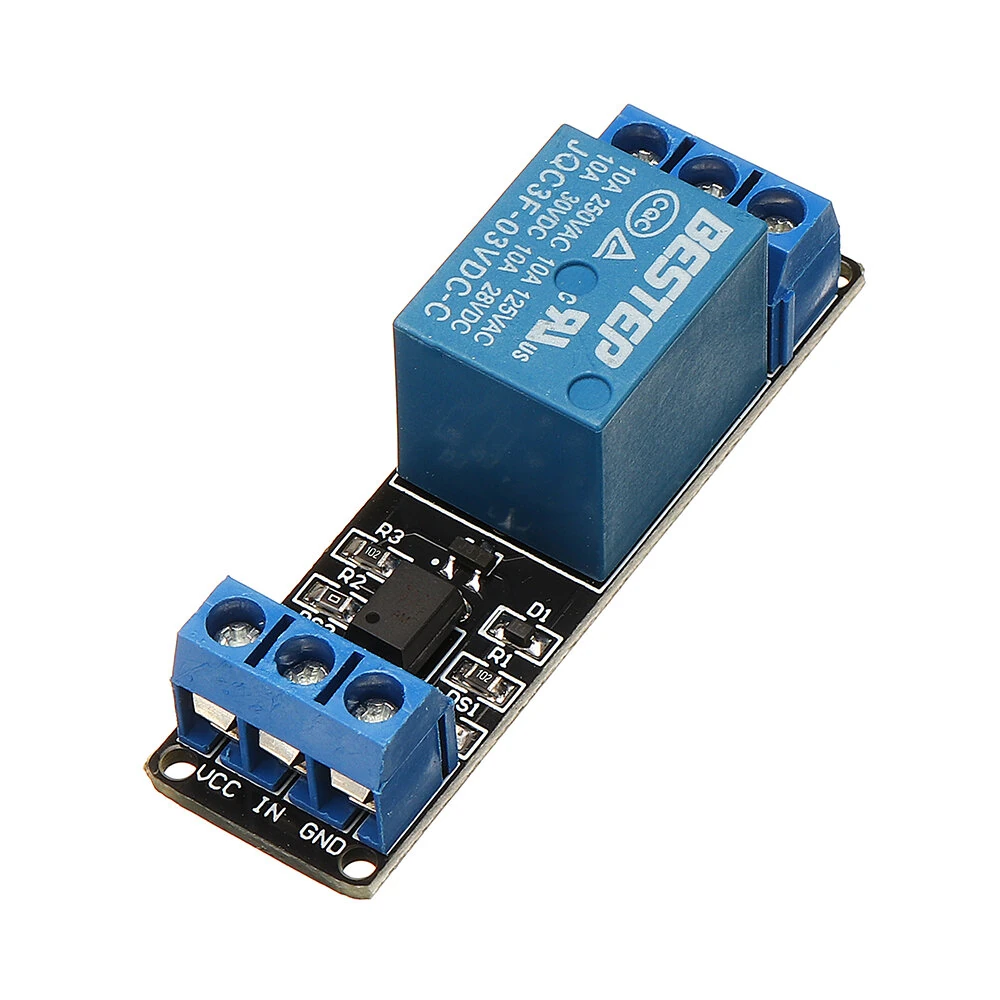

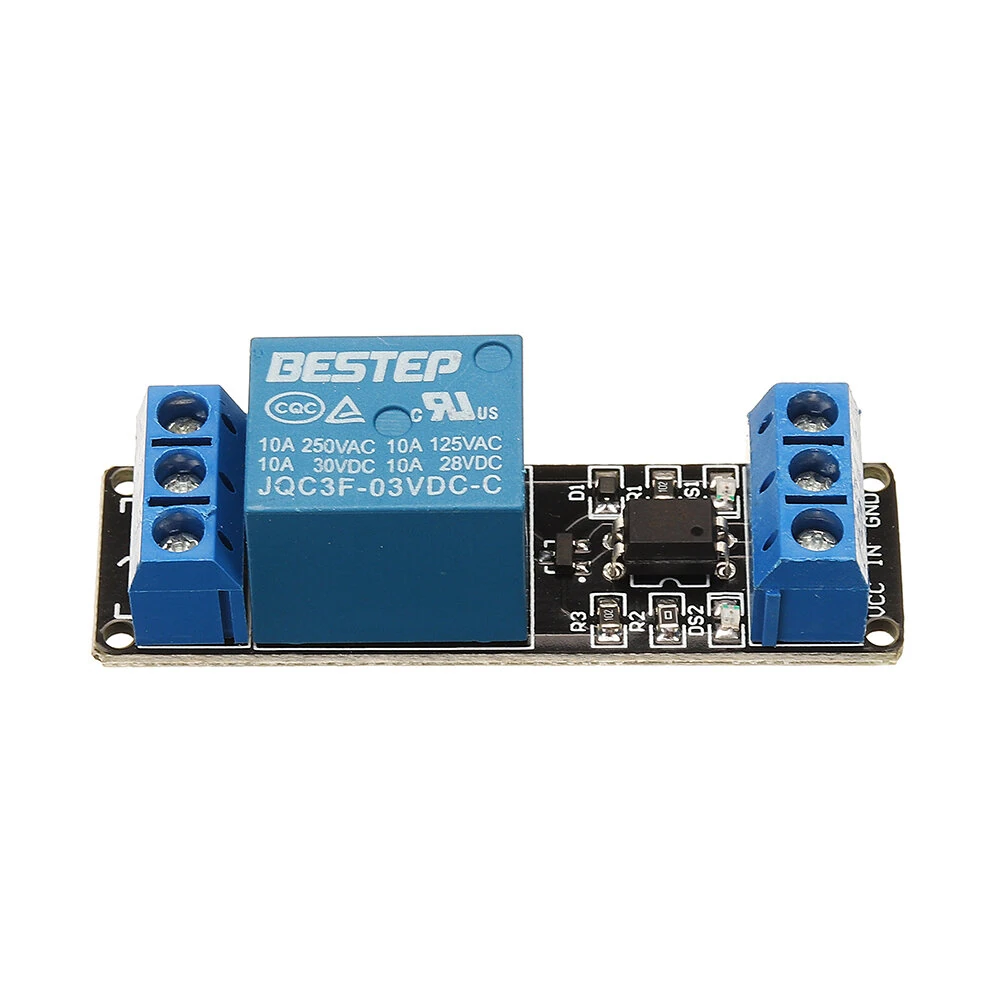

BESTEP 1 Channel 3.3V Low Level Trigger Relay Module Optocoupler Isolation Terminal — image 1

Hover to zoom

1 / 10 · Click to enlarge

BESTEP

BESTEP 1 Channel 3.3V Low Level Trigger Relay Module Optocoupler Isolation Terminal

Name: BESTEP 1 Channel 3.3V Low Level Trigger Relay Module Optocoupler Isolation Terminal
Brand: BESTEP
SKU: bg-1355736
Price: 2000 INR
Availability: InStock
Rating: 5.0 (81 reviews)

5.081 ratings
