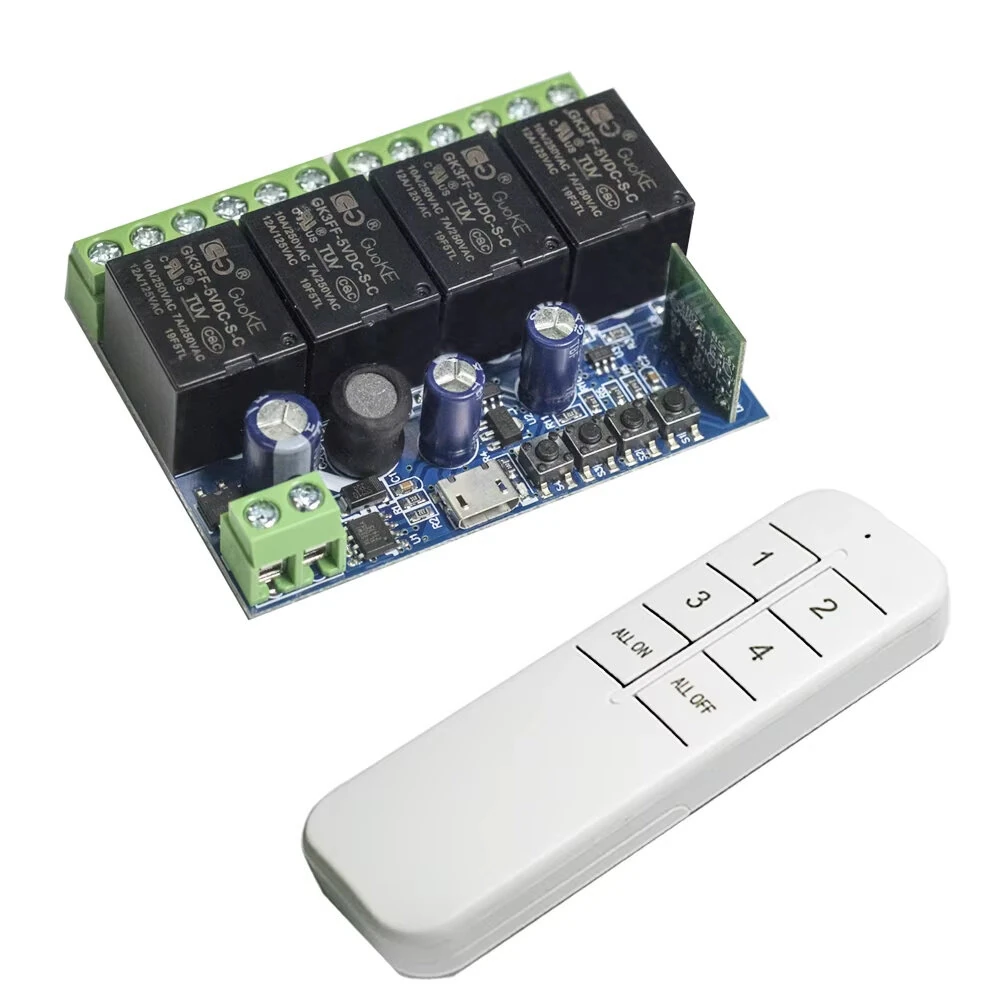

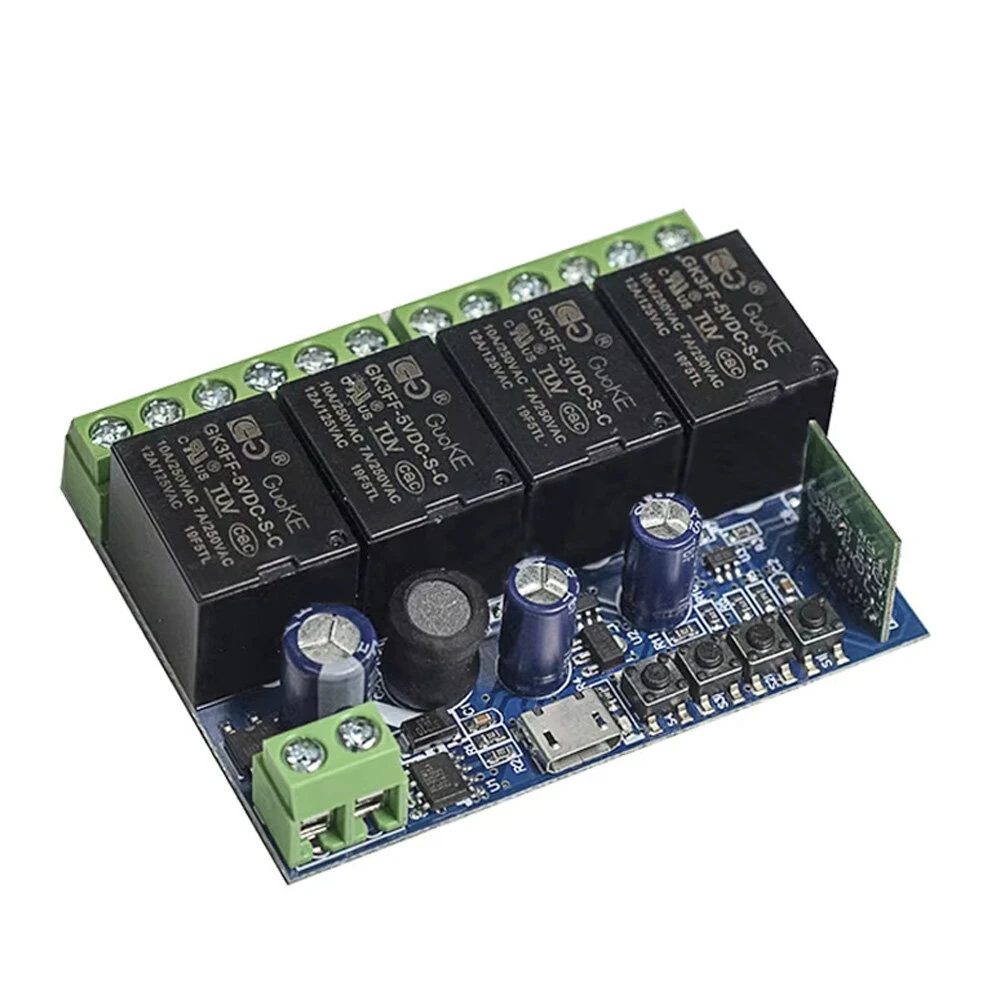

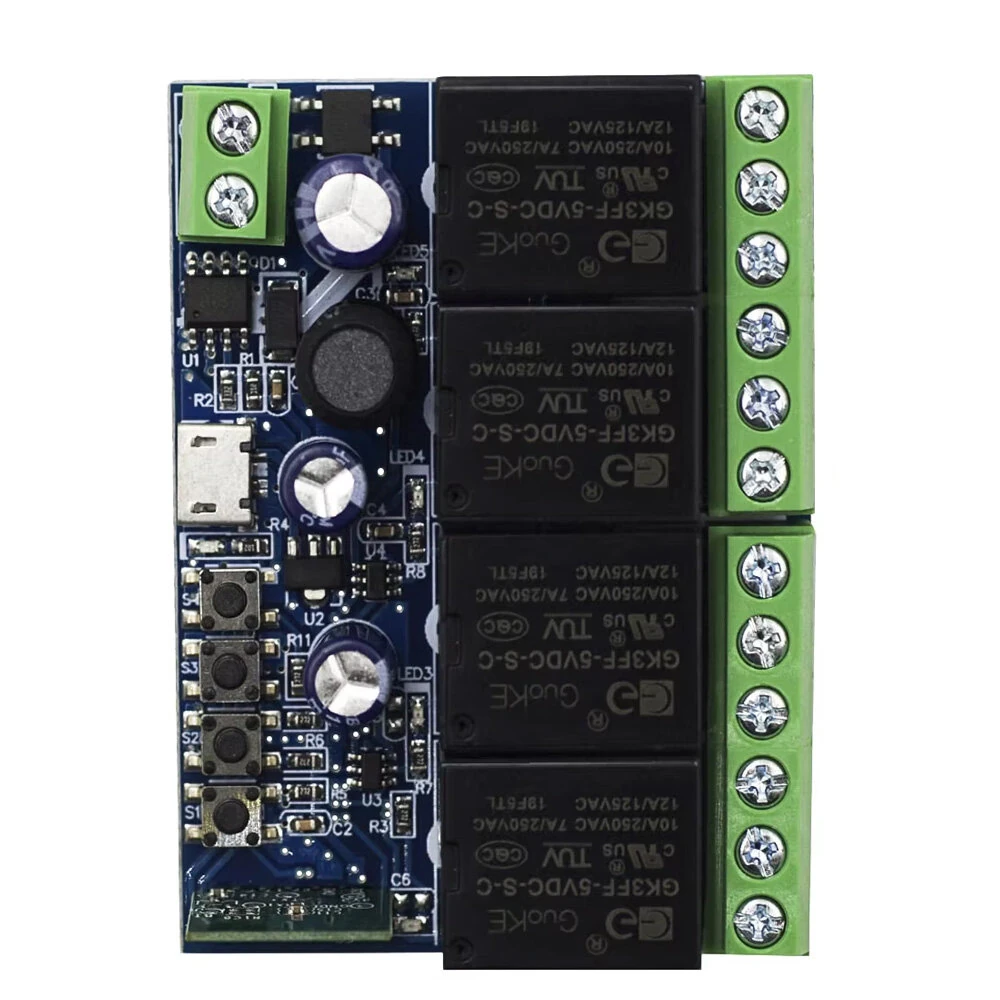

Smart Wifi Switch Relay Module eWeLink APP Remote Control DC5V DC12V Wireless Delay Self-Lock Smart Home Automation Relay

Main Chip: WiFi Module

Working Voltage: DC 5V/7-32V

Board Power Consumption: Less than 1W

Quiescent Current: 80mA

Rated Switching Current: 10A

Switching Voltage: Within 250V

Relay Life: More than 1,000,000 operations

Electrical Insulation Resistance: 100MΩ

Electric Shock Withstand Voltage: 1000V

Maximum Relay Pull-in Time: 15ms

Maximum Relay Release Time: 5ms

Working Temperature: -40°C to +70°C

Working Humidity: 40% to 80% RH

Features：

1.Multiple Operating Modes: This module supports three working modes: momentary (inching), self-locking, and interlock. Users can easily switch between these modes using the setting button on the module, providing versatile control options for various applications.

2.Seamless Mobile App Integration: The module is designed to work seamlessly with the eWeLink app, available on both Android and iOS. The app allows remote control of connected devices, offering additional functionalities like timing schedules, device sharing, and group management.

3.Voice Control Compatibility: Compatible with Amazon Echo, Echo Dot, Amazon Tap, and Google Home, the module supports voice commands for hands-free control of your devices. You can effortlessly turn devices on or off using simple voice commands.

4.High-Quality Relay Performance: Featuring a robust 10A relay, this module offers reliable switching with over 1,000,000 life cycles. It also supports a wide operating voltage range (DC 5V/7-32V) and maintains high performance even in extreme environmental conditions.

5.IFTTT Integration: The module supports IFTTT (If This Then That), enabling customized automation workflows. By connecting to the eWeLink Smart Home service in the IFTTT app, users can create a variety of automated tasks that interact with other smart devices in their home.

Package Included：

1 x Remote control

or

1 x Smart Wifi Switch Relay Module
