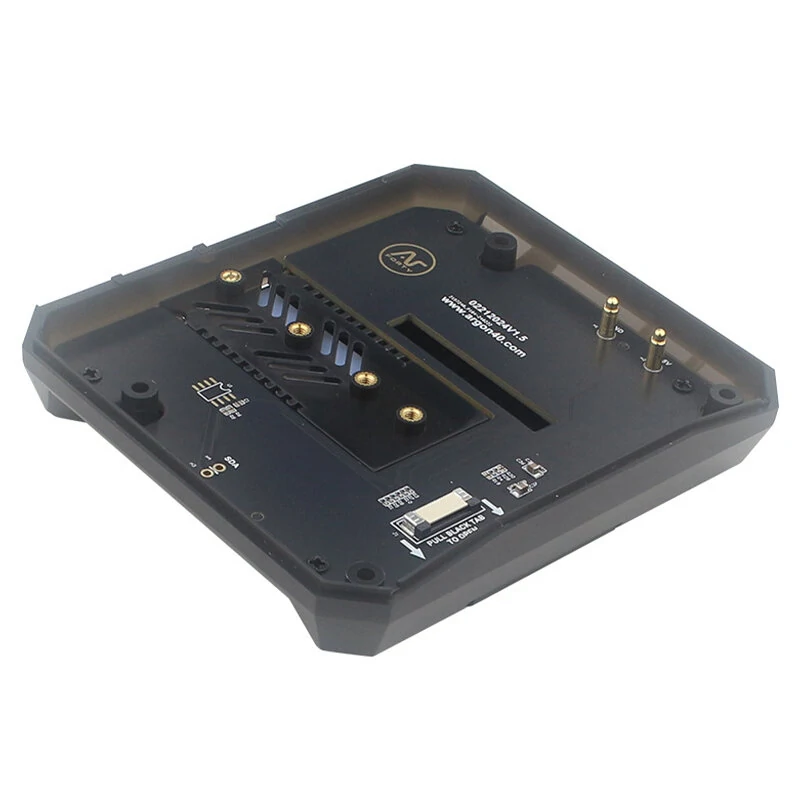

Argon One V3 M.2 NVME PCIE Case Expansion Board Bottom Board Aluminum Shell for Raspberry Pi5 PWM Fan Programmable

Description:

1. With NVME expansion board based on ArgonONEV3 to support NVMEM.2 driver to start Raspberry Pi 5.
2. Strengthen the heat dissipation management, and install the radiator unique to the M.2 driver on the M.2 NVME. The built-in radiator and blower type PWM programmable 30mm fan can provide better heat dissipation function for CPU.
3. By connecting the M.2 NVME drive through the PCIE slot on Raspberry Pi 5, you can enjoy faster and higher storage access.
4. Argon ONE V3M.2 is compatible with various sizes of M.2 NME (2230, 2242, 2260, 2280). The maximum size of M-Key is 2280.
5. Better communication and power management through the RP2040 chip of Raspberry Pi and Raspberry Pi 5. The chip controls the characteristics and functions of Argon ONE V3, such as Fan speed, power management status (for example, after power failure, just set the jumper lead in the shell, which can be started manually or automatically) allows you to use Argon ONE in a suitable way.
6. The power button on the back can perform the following operations by installing open source scripts, allowing safe shutdown, restart and forced shutdown.
7. Cable management is still exquisite, and two standard HD ports are neatly placed on the back, allowing Raspberry Pi 5 uses two monitors at the same time.
8. There are corresponding colored GPI0 pin ports under the smooth magnetic cover.
9. The built-in infrared receiver makes it easy to use Argon ONE V3 with Argon IR remote controller together, which means that the protective case can become a better media player!

Note:

1. Need to install by yourself.

2. Use this expansion board with the regular edition can upgrade to the M.2 version.
