30A 12V 24V DC Motor Controller Relay Board Forward Reverse Control Limit Start Stop Switch for Garage Door Crane Elevator

5.05 ratings
AI Summary
Relay Module for everyday users

The 30A 12V 24V DC Motor Controller Relay Board Forward Reverse Control Limit Start Stop Switch for Garage Door Crane Elevator by Pricio is a mid-range relay module designed for everyday users. 100% of buyers rate it 4★ or above.

₹2,000
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

Price: ₹2,000

Total: ₹2,000
Buying tip: A well-rounded choice at a fair price. Recommended for most buyers.
Estimated delivery: 4 Aug18 Aug
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Electronics projectsArduino / Raspberry Pi buildsPrototyping
Share:
SKU: bg-1970602Category: Relay Module

About This Product

The 30A 12V 24V DC Motor Controller Relay Board Forward Reverse Control Limit Start Stop Switch for Garage Door Crane Elevator by Pricio is a mid-range relay module designed for everyday users. It delivers reliable performance at an accessible price.

Customer Verdict

100% of buyers rated this product 4 stars or above.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.



Product parameters:

1. Working voltage: DC 12V (12V version) or 24V (24V version) (DC power supply power ≥ motor load x3)
2. Applicable motor: brushed DC motor
3. Maximum load current: 15A(Relay maximum load 30A);
4. Signal input: active low (NPN)
5. Working modes: 9 optional modes, including momentary, self-locking, etc.
6. Working current (excluding motor): Quiescent Current: 5MA, Forward or Reverse working current: 70MA
7. Size: 89*62*22mm
8. Weight: 86 grams

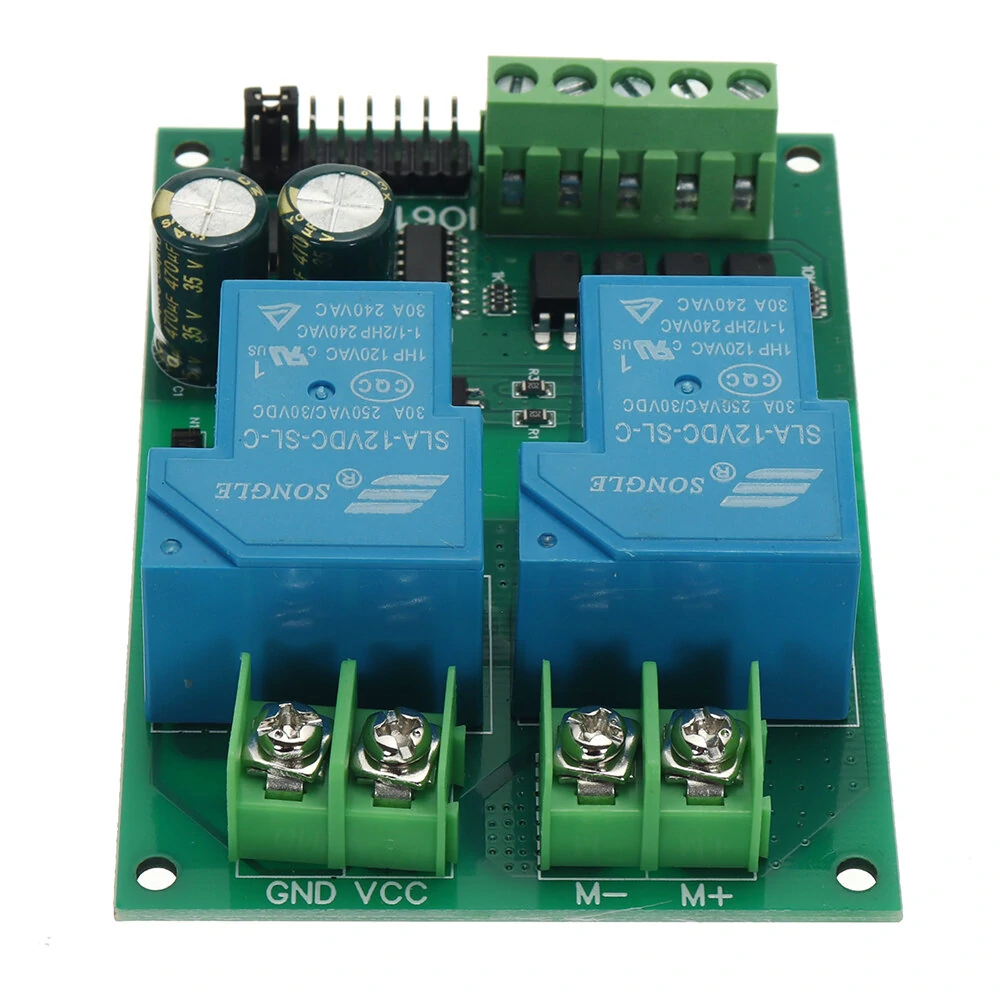

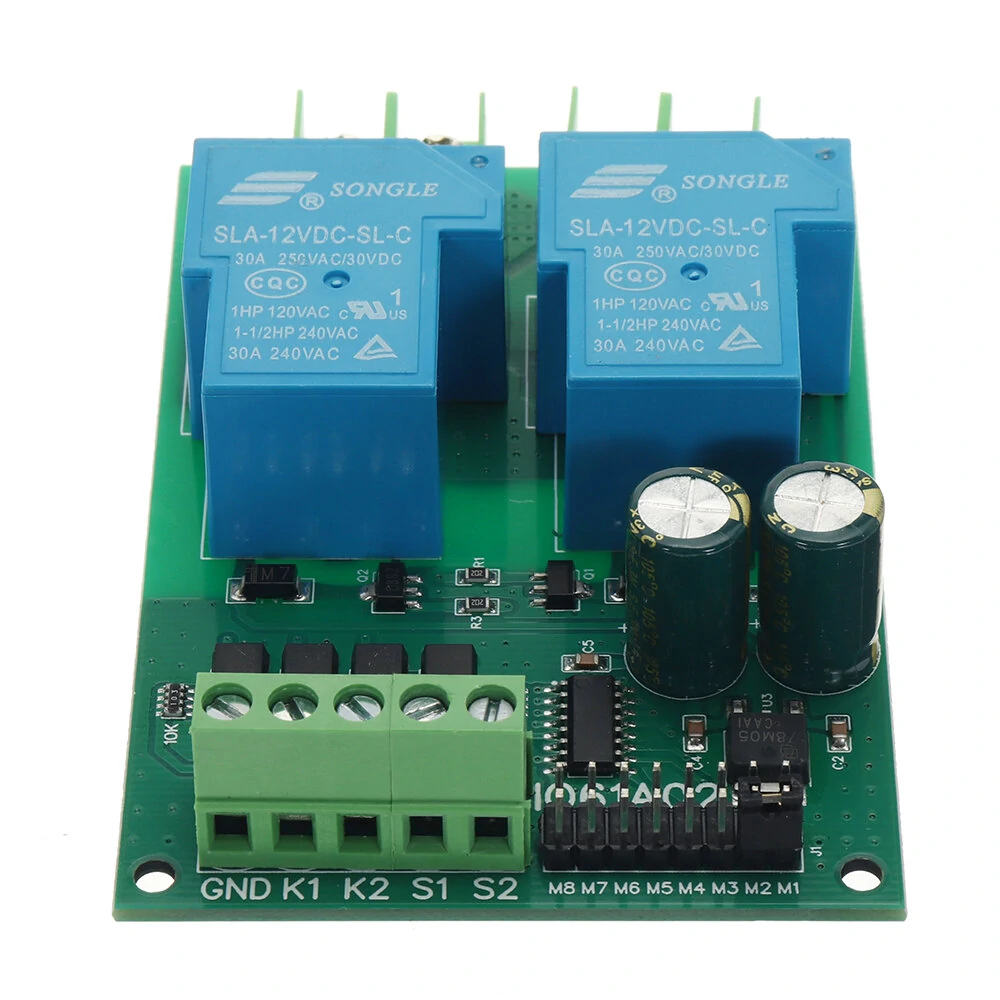

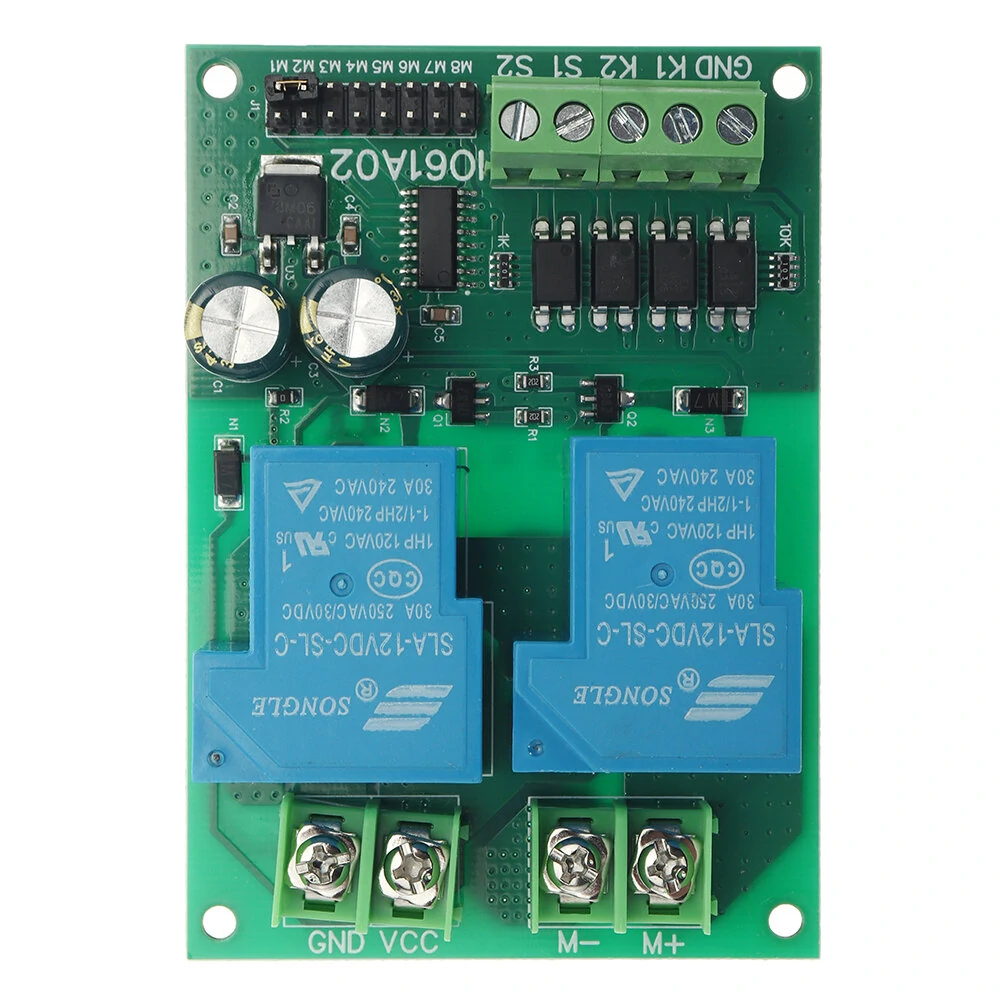

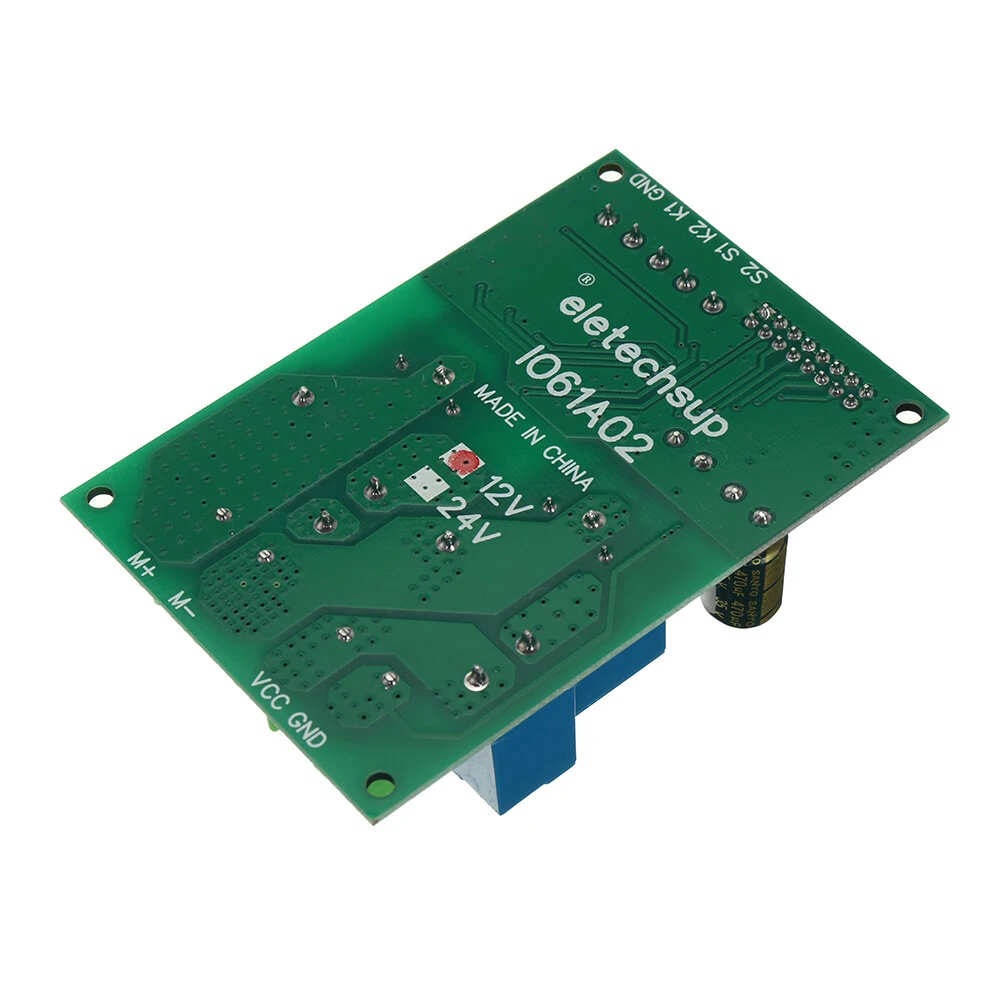

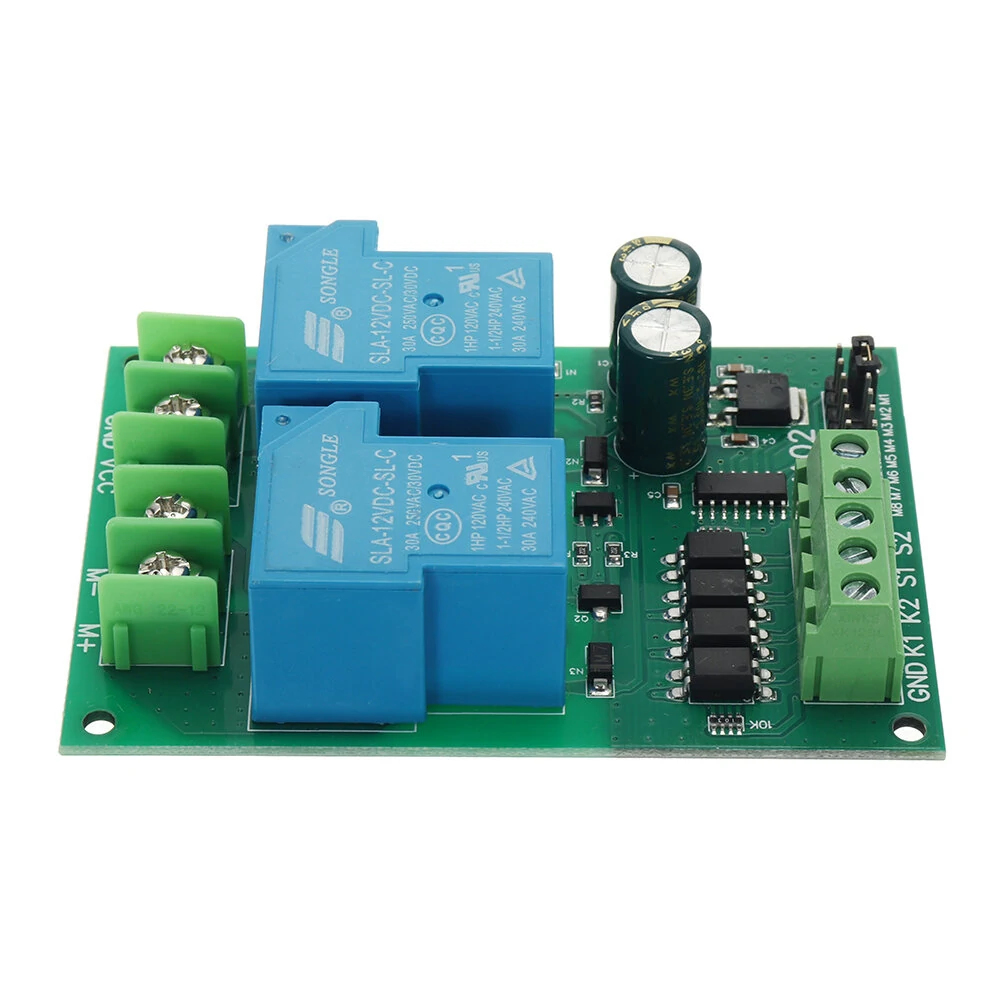

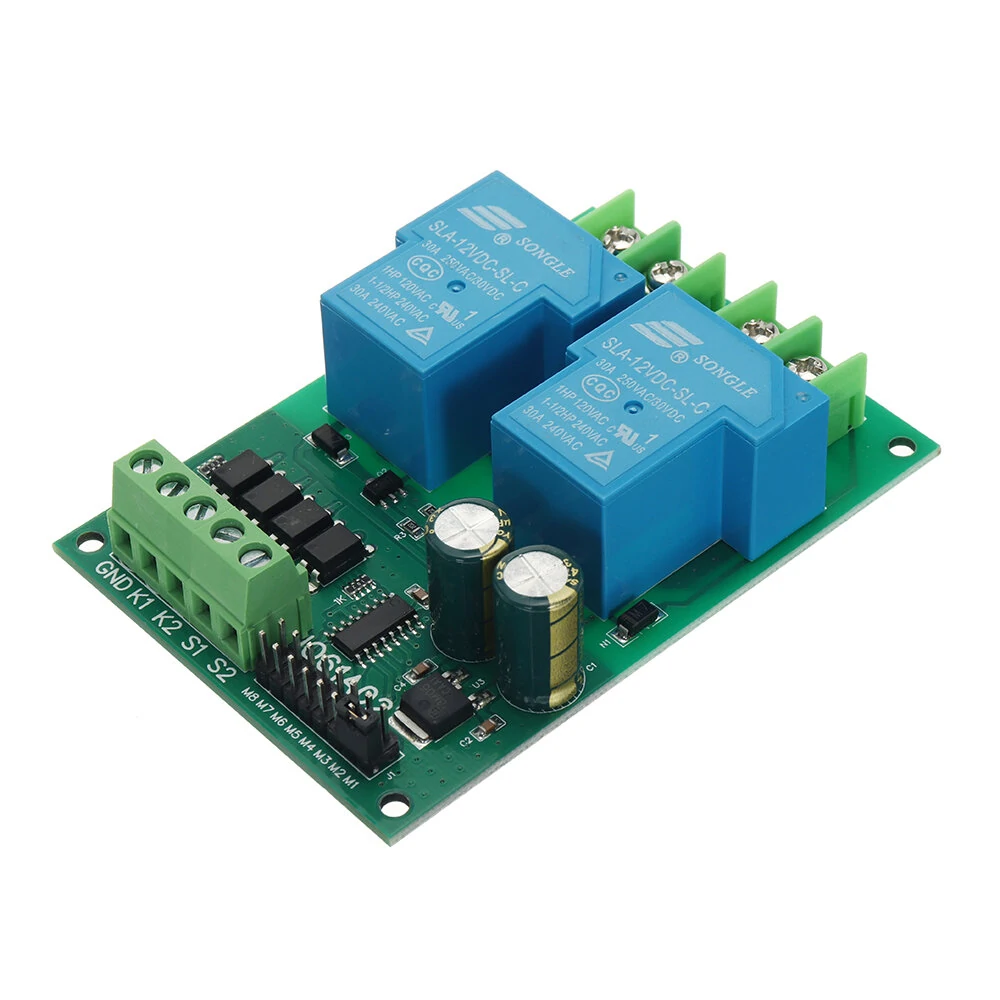

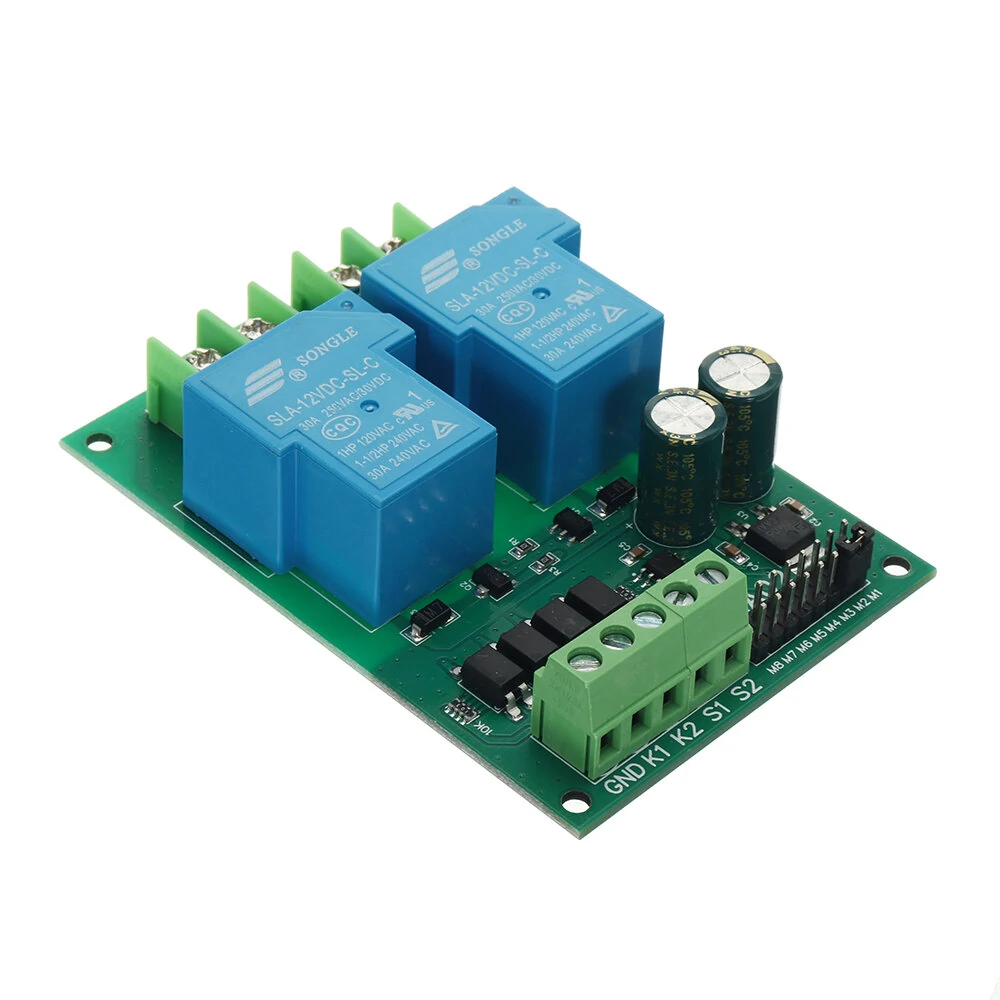

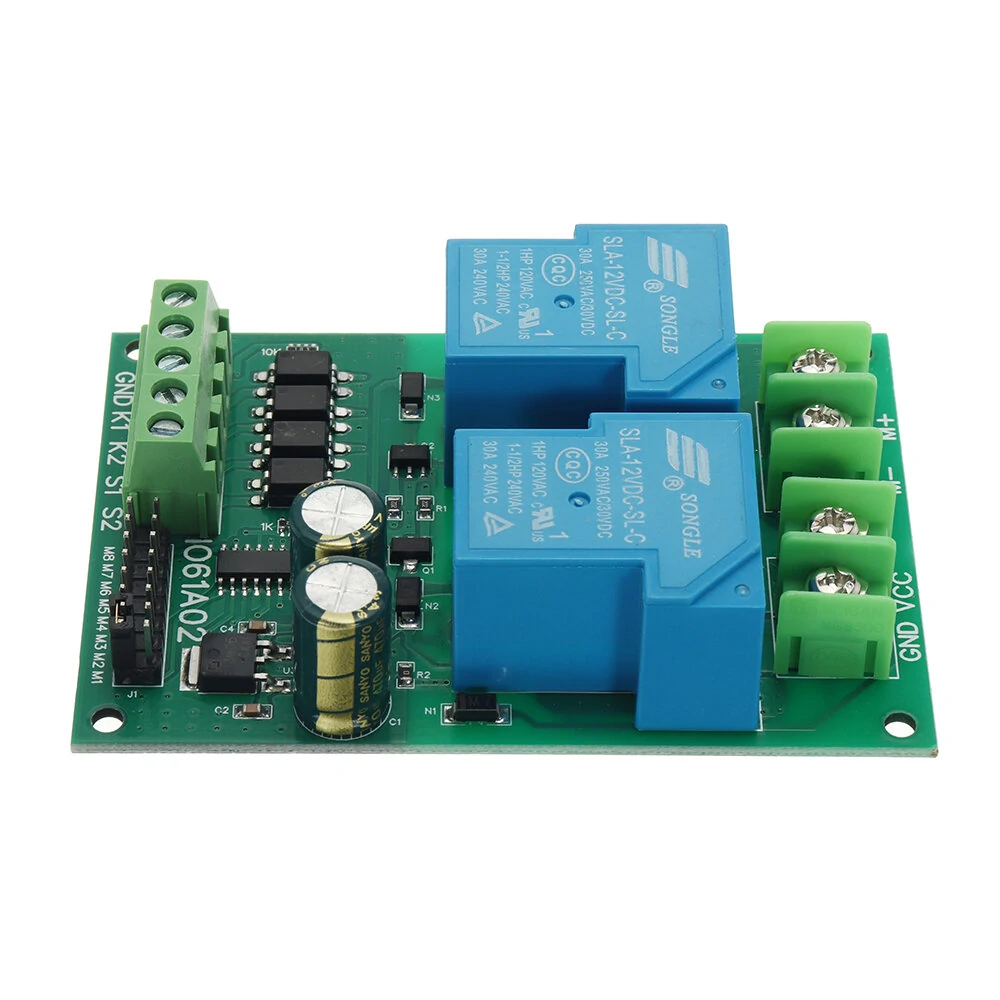

Pin Description:

VCC : Power Supply +
GND : Power Supply -
M+ : Motor +
M- : Motor -
GND : Trigger Signal -
K1 : Forward input control
K2 : Reverse input control
S1 : Forward limit signal
S2 : Reverse limit signal



Product Included:

1 x 30A Relay DC 12V 24V motor forward and reverse controller

Wiring Diagram 1: Two position (switch) reciprocating
(moving backward and forward in a straight line.)

Wiring Diagram 2: Positive and negative start independently, each time running a single pass



Wiring Diagram 3: Every time you start, run a forward and reverse rotation


This module has 4 signal input terminals, namely ''K1'', ''K2'', ''S1'', ''S2'', K1 is the forward rotation signal input terminal, K2 is the reverse rotation signal input terminal, and S2 is the forward rotation limit signal Input terminal, S2 is the reverse limit signal input terminal. The signal input source can be selected from micro switch, induction, infrared, metal, remote control and other modules, and can also be controlled by a single-chip microcomputer.
