ZOYI ZT-706S Handheld Oscilloscope Multimeter 3-In-1 Dual Channel 50MHz 280MSa/s 66000 Counts Signal Generator IPS Display — image 1
Hover to zoom

1 / 9 · Click to enlarge

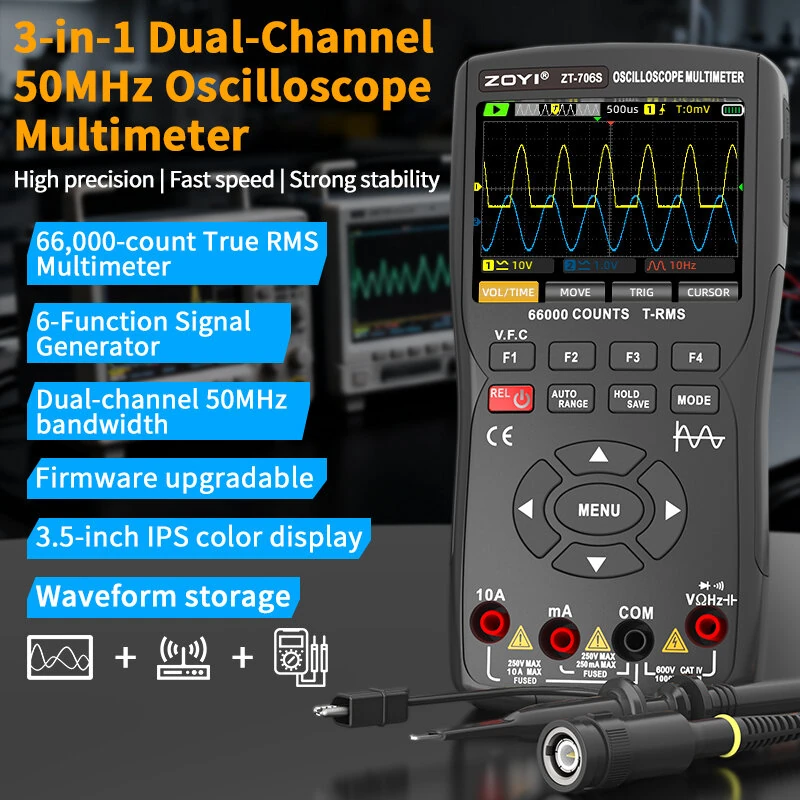

ZOYI ZT-706S Handheld Oscilloscope Multimeter 3-In-1 Dual Channel 50MHz 280MSa/s 66000 Counts Signal Generator IPS Display

5.010 ratings
563+ bought in past month
AI Summary
Digital Multimeters & Oscilloscope for premium buyers

The ZOYI ZT-706S Handheld Oscilloscope Multimeter 3-In-1 Dual Channel 50MHz 280MSa/s 66000 Counts Signal Generator IPS Display is a premium digital multimeters & oscilloscope designed for premium buyers. Customers praise its excellent build quality and fast and responsive. 100% of buyers rate it 4★ or above.

✓ excellent build quality✓ fast and responsive✓ clear and bright display✓ accurate and reliable
₹13,547
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

Price: ₹13,547

Total: ₹13,547
Buying tip: A top-tier option — the best features and quality available in this category.
Estimated delivery: 20 Aug – 3 Sept
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience
Share:
SKU: bg-2050734Category: Digital Multimeters & Oscilloscope

About This Product

The ZOYI ZT-706S Handheld Oscilloscope Multimeter 3-In-1 Dual Channel 50MHz 280MSa/s 66000 Counts Signal Generator IPS Display is a premium digital multimeters & oscilloscope designed for premium buyers. Customers highlight its excellent build quality and fast and responsive.

Customer Verdict

100% of buyers rated this product 4 stars or above. The most appreciated qualities are: excellent build quality, fast and responsive, clear and bright display, accurate and reliable.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:
Brand: ZOYI
Model: ZT-706S
Product Type: Oscilloscope Multimeter
Display: IPS, 66,000 counts
Range: Automatic/Manual
Charge: TYPE-C (5V/2A)
Battery Capacity: 3400mAh lithium battery
Support Functions: Multimeter, Oscilloscope, Signal Generator
Material: ABS+TPE

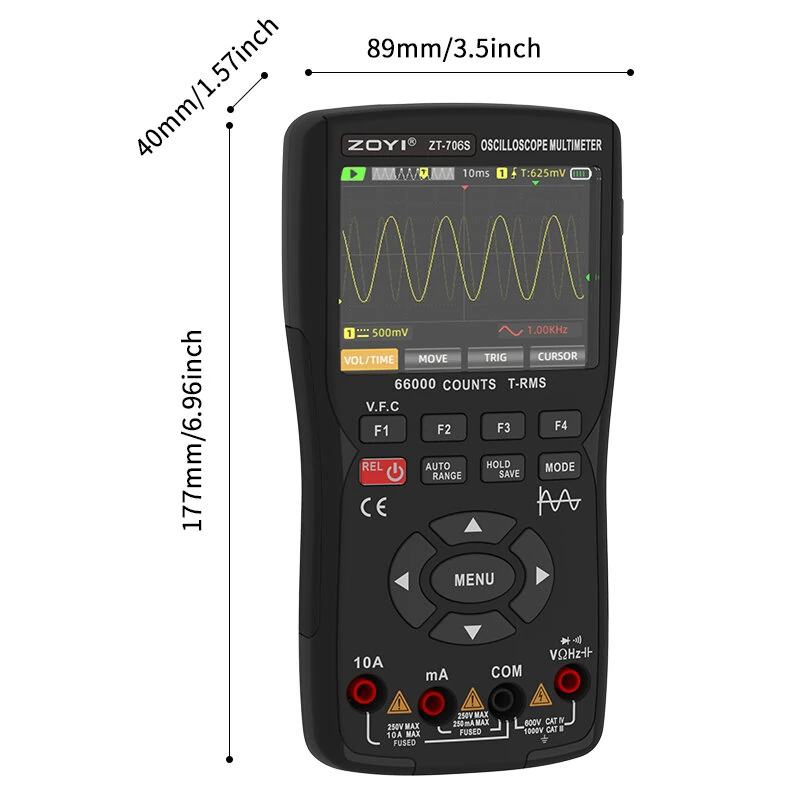

Dimensions: 177x89x40mm
Weight: 380g

Oscilloscope

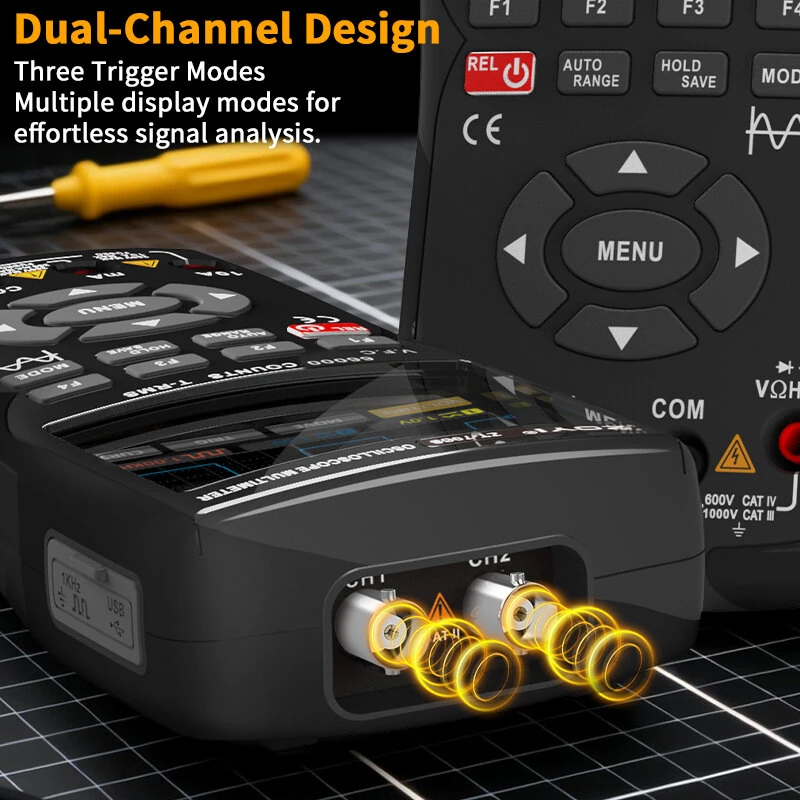

Bandwidth: 50MHz dual channel
Sampling Method: Real-time sampling
Sampling Rate: 200M/280MSa/s
Input Coupling: DC, AC
Input Impedance: 1MΩ, @16pf
Attenuation: X1, X10
Persistence Mode: Minimum, 500ms, 1S, 10S, Infinite
Rate Range: 1.5Sa/s-280MSa/s
Interpolation: (sinx)x
Sweep Range: 10ns/div - 20s/div
Time Base: Accuracy 20ppm
Record Length: Up to 128Kbyte
Sensitivity: 20mV/div - 10V/div
Range: 4 grids
Analog Bandwidth: 50MHz
Low-Frequency: More than 10Hz
Rise Time: Less than 10ns
DC Gain Accuracy: ±3%
Auto Measurement: Period, frequency, peak-to-peak value, maximum value, minimum value, RMS, duty cycle, pulse count
Trigger Modes: Auto, normal, single
Trigger Edges: Rising edge, falling edge
Signal Generator Output: Sine wave, , sawtooth wave, half wave, full wave
Operating Modes: Normal mode 200MSa/s, High-speed mode 280MSa/s
Display Modes: YT, XY, Roll

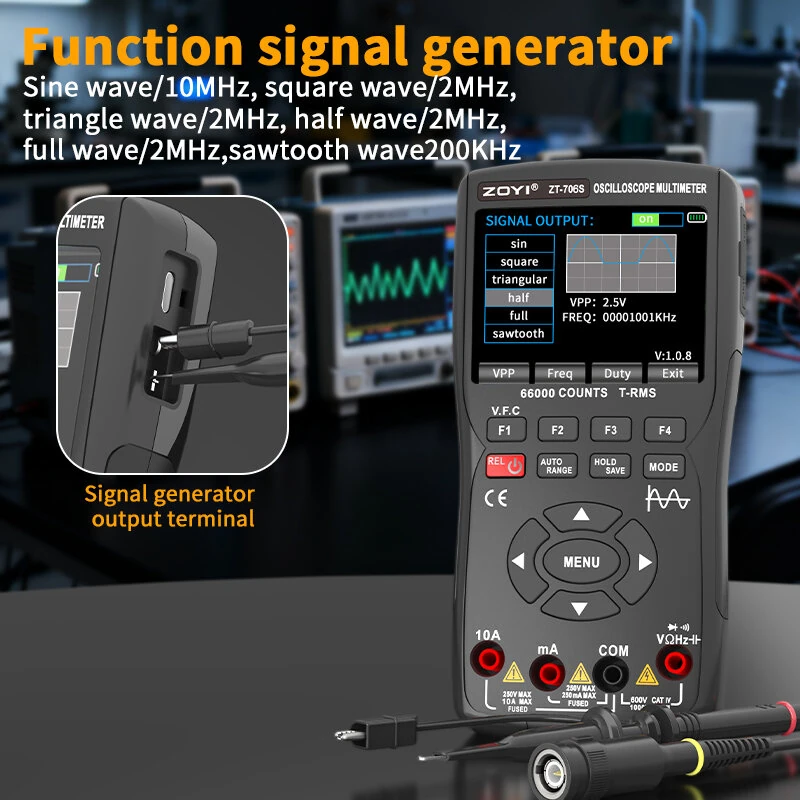

Signal Generator Frequency Output: Sine wave/10MHz, /2MHz, triangle wave/2MHz, half wave/2MHz, full wave/2MHz, sawtooth wave/200KHz

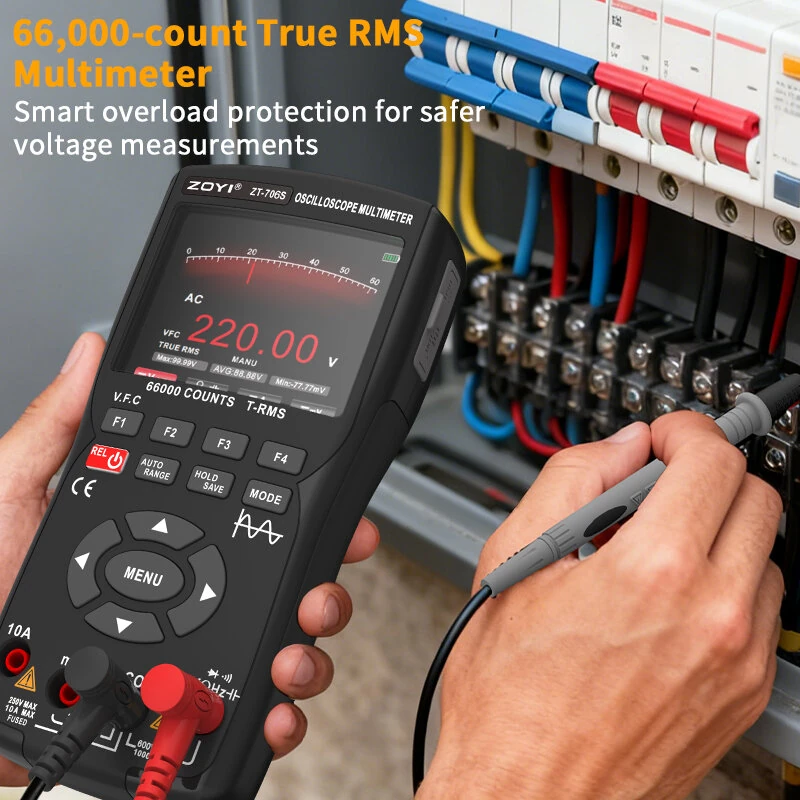

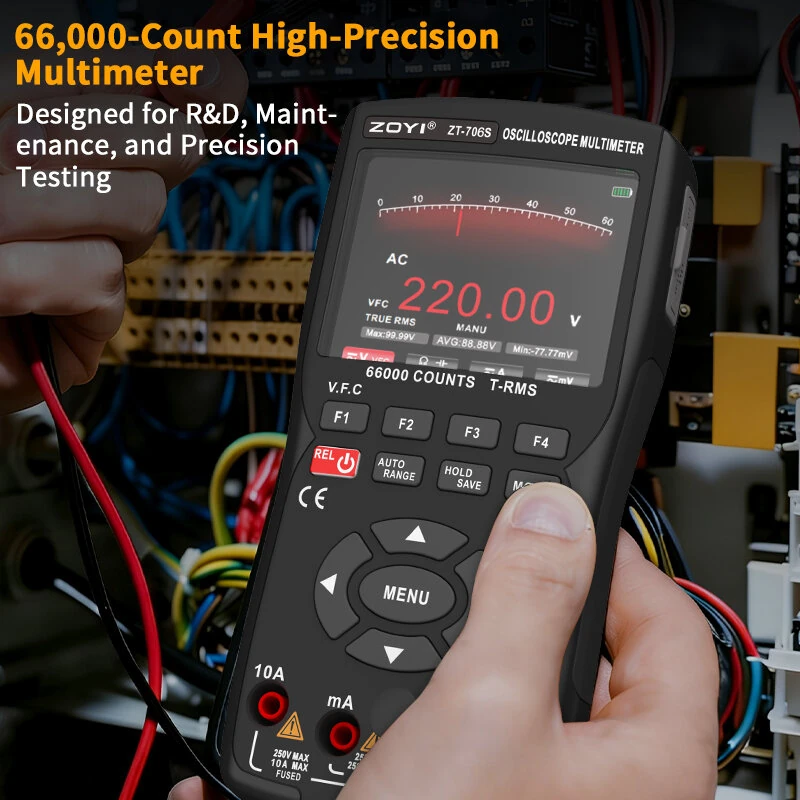

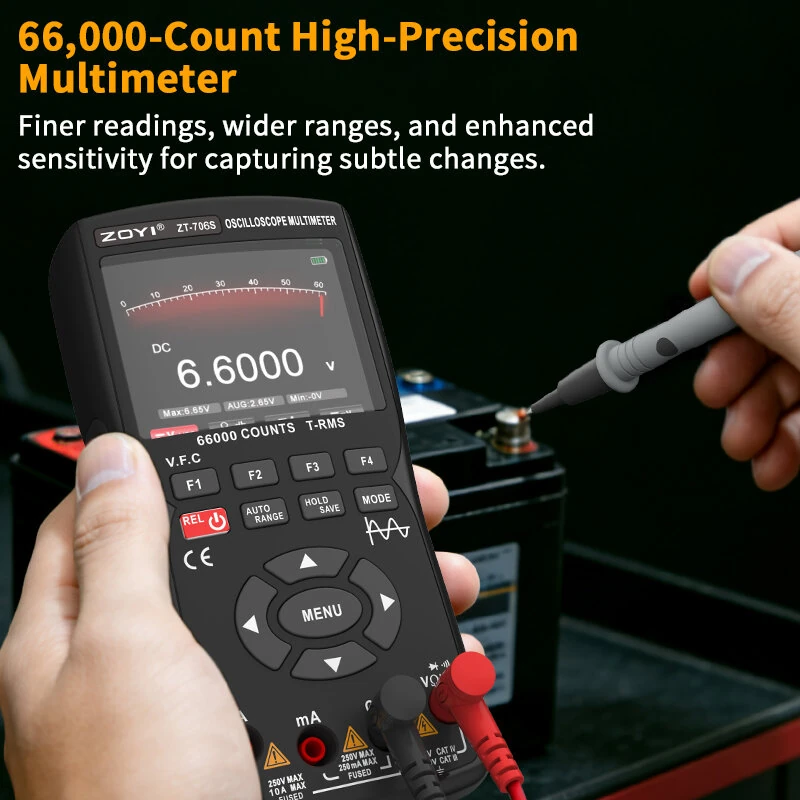

Multimeter:
DC Voltage: 1000.0V/660.00V/66.000V/6.6000V, ±(0.05%+3)
DC Voltage(mV): 660.00mV/66.000mV, ±(0.5%+3)
AC Voltage: 750.0V/660.00V/66.000V/6.6000V, ±(0.5%+3)
AC Voltage(mV): 660.00mV/66.000mV, ±(0.8%+3)
DC Current: 10.000A/6.6000A, ±(0.5%+3)
DC Current(mA): 660.00mA/66.000mA, ±(0.5%+3)
AC Current: 10.000A/6.6000A, ±(0.8%+3)
AC Current(mA): 660.00mA/66.000mA, ±(0.8%+3)
Resistance: 660.00Ω ±(0.5%+3), 660.00KΩ/66.000KΩ/6.6000KΩ ±(0.2%+3), 66.00MΩ/6.6000MΩ ±(2%+3)
Capacitance: 9.999nF ±(5.0%+20), 999.9μF/99.99μF/9.999μF/999.9nF/99.99nF ±(2.0%+5), 99.99mF/9.999mF ±(5.0%+5)
Frequency: 99.99KHz/9.99KHz/999.9Hz/99.99Hz/9.99Hz, +(0.1%+2)
Diode: Yes
Continuity: Yes

Features:
1. 3-in-1 design combines oscilloscope, multimeter, and signal generator in one handheld unit for convenient operation.
2. 50MHz dual-channel oscilloscope supports real-time sampling with up to 280MSa/s in high-speed mode.
3. IPS color screen with 66,000 counts provides clear waveform and measurement display.
4. Supports auto measurement of period, frequency, peak-to-peak value, maximum value, minimum value, RMS, duty cycle, and pulse count.
5. Built-in 3400mAh lithium battery with TYPE-C 5V/2A charging for portable use.

Package Included:
1 x ZOYI ZT-706S Oscilloscope Multimeter Kit




Product Safety Information
Product Safety Information
Manufacturer
Shenzhen Yuner Yipu Trading Co., Ltd
Address
East 1087, Building 4, SEG Science and Technology Park, No. 3012 Huaqiang North Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong, CN
European agent
VISHTEC ltd
Email
compliance@vish-tec.com
Address
3 rd floor office 5, Plovdiv 2 Liuben Karavelov bul, 4002 Bulgaria
UK agent
CET Product Service Ltd.
Email
info@cetproduct.com
Address
Beacon House Stokenchurch Business Park, Ibstone Rd, Stokenchurch, High Wycombe, Buckinghamshire, UK
