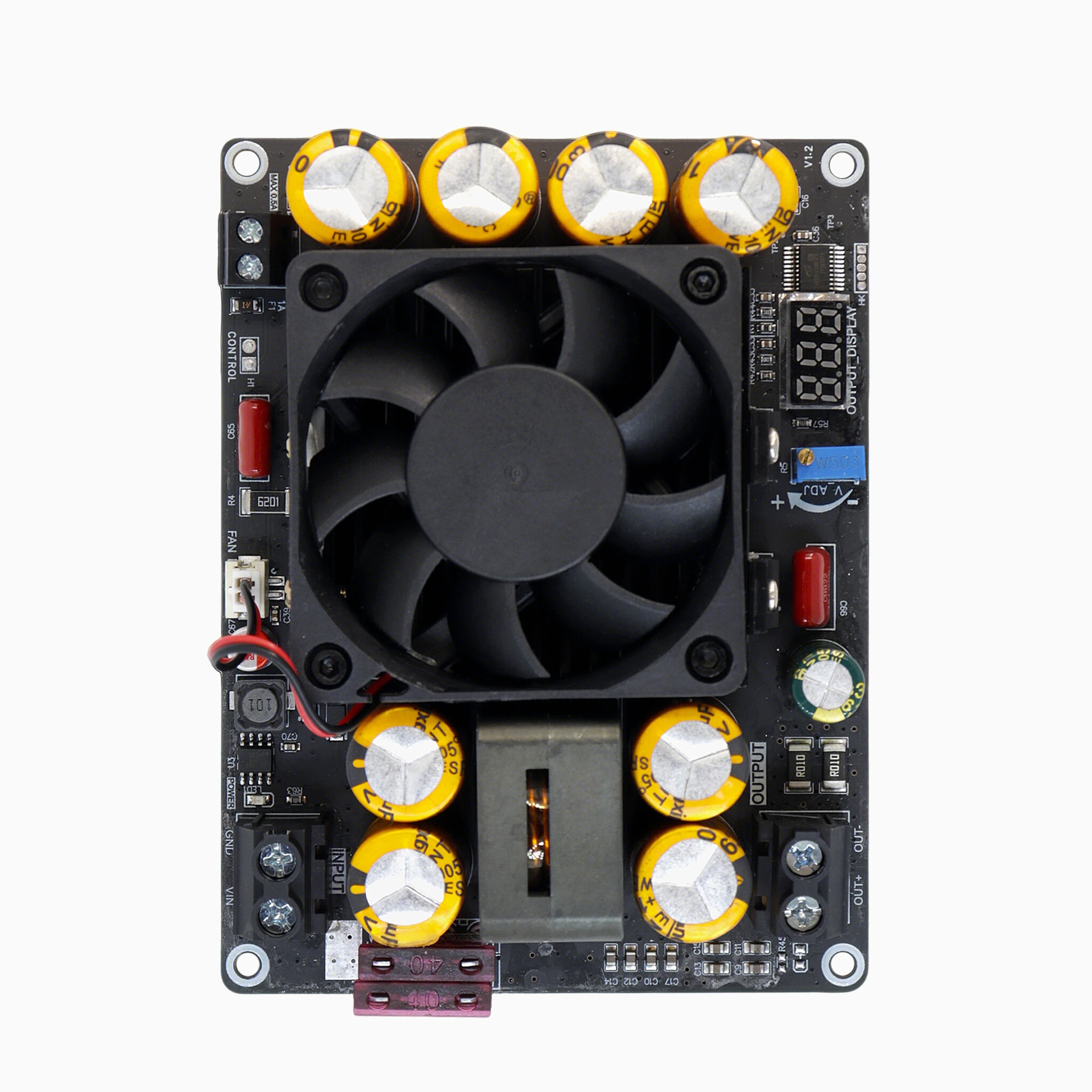

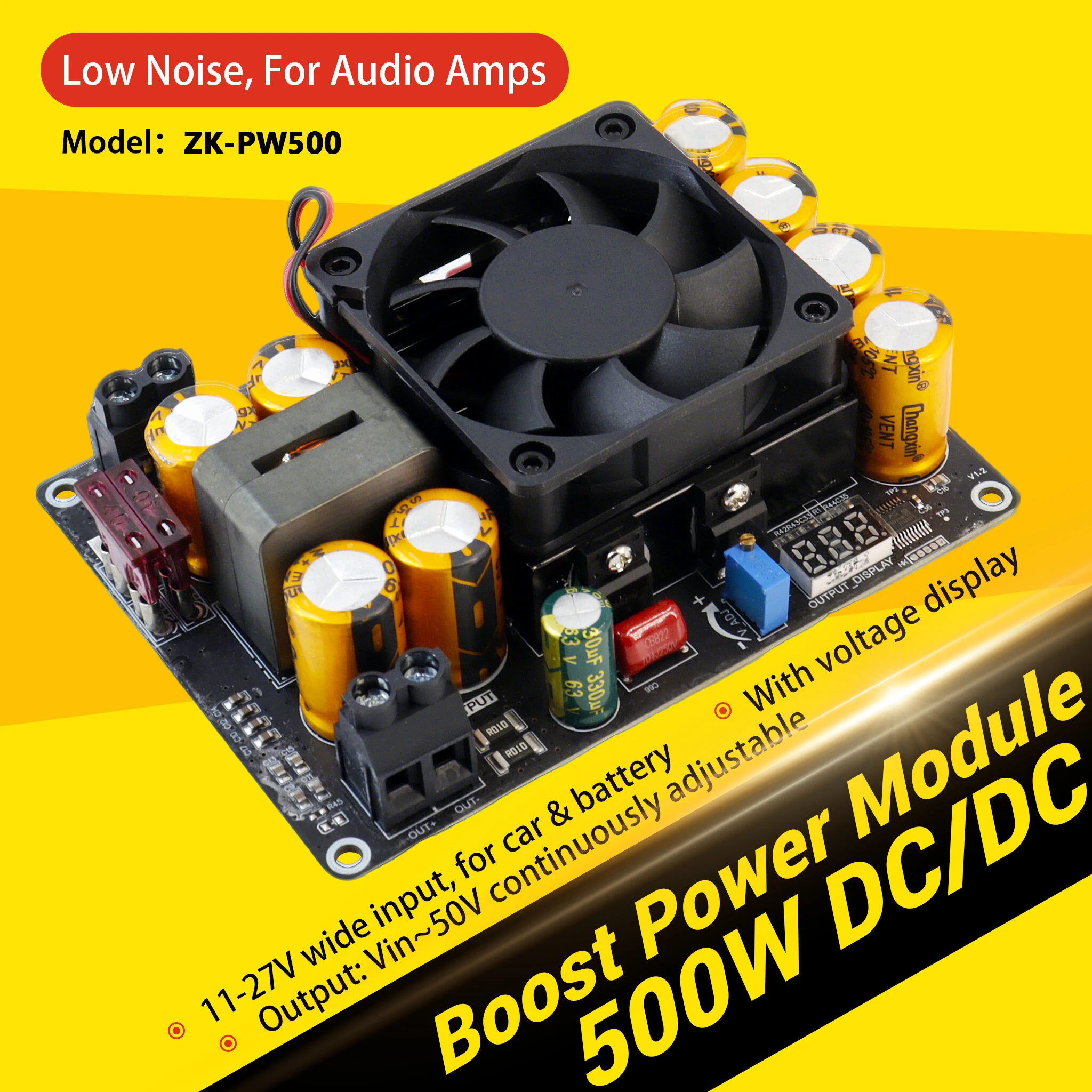

ZK-PW500 Boost Converter Module 11-27V DC Input VIN-50V Output 500W Voltage Regulator Power Supply Board

Name: ZK-PW500 Boost Converter Module 11-27V DC Input VIN-50V Output 500W Voltage Regulator Power Supply Board
Brand: Pricio
SKU: 2051133
Price: 2688 INR
Availability: InStock

25+ bought in past month

AI Summary

product for everyday users

The ZK-PW500 Boost Converter Module 11-27V DC Input VIN-50V Output 500W Voltage Regulator Power Supply Board is a mid-range product designed for everyday users.

₹2,688-5%

MRP:₹2,819Save ₹131

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

Quantity

Total: ₹2,688

Buying tip: A quality investment for dependable performance and premium build quality.

Estimated delivery: 21 Aug – 4 Sept

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience

SKU: bg-2051133

About This Product

The ZK-PW500 Boost Converter Module 11-27V DC Input VIN-50V Output 500W Voltage Regulator Power Supply Board is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:

Product Name: ZK-PW500 Boost Converter Module

Input Voltage: 11-27V DC

Output Voltage: VIN-50V

Output Power: 500W

Working Current:

67mA @ VIN=12V, VOUT=36V

80mA @ VIN=12V, VOUT=48V

42mA @ VIN=20V, VOUT=36V

50mA @ VIN=20V, VOUT=48V

Efficiency: 92%-95%

Fan Operation Temperature: Power on with 2-second self-test, then stops. Fan runs above 36 degrees C during operation, otherwise stops.

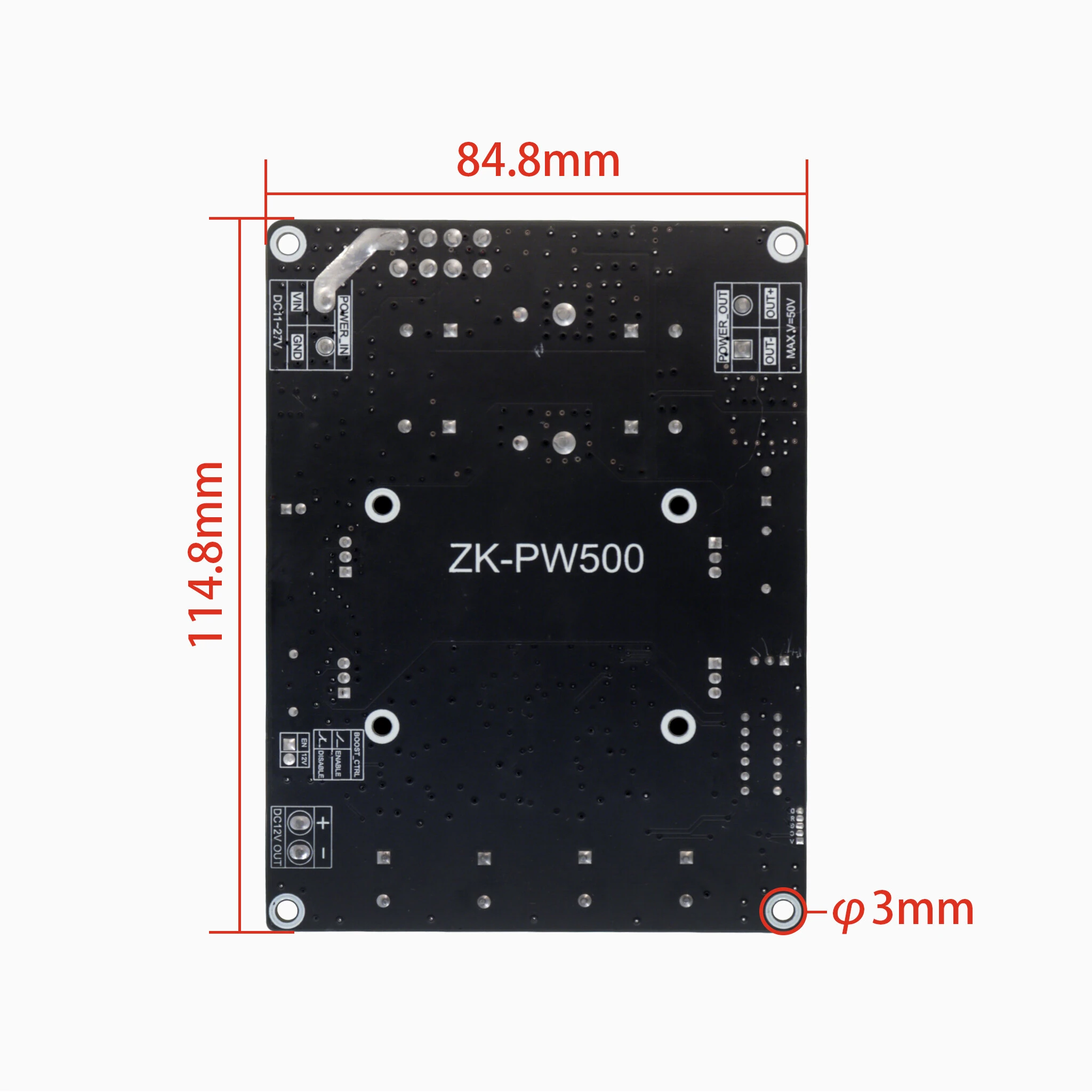

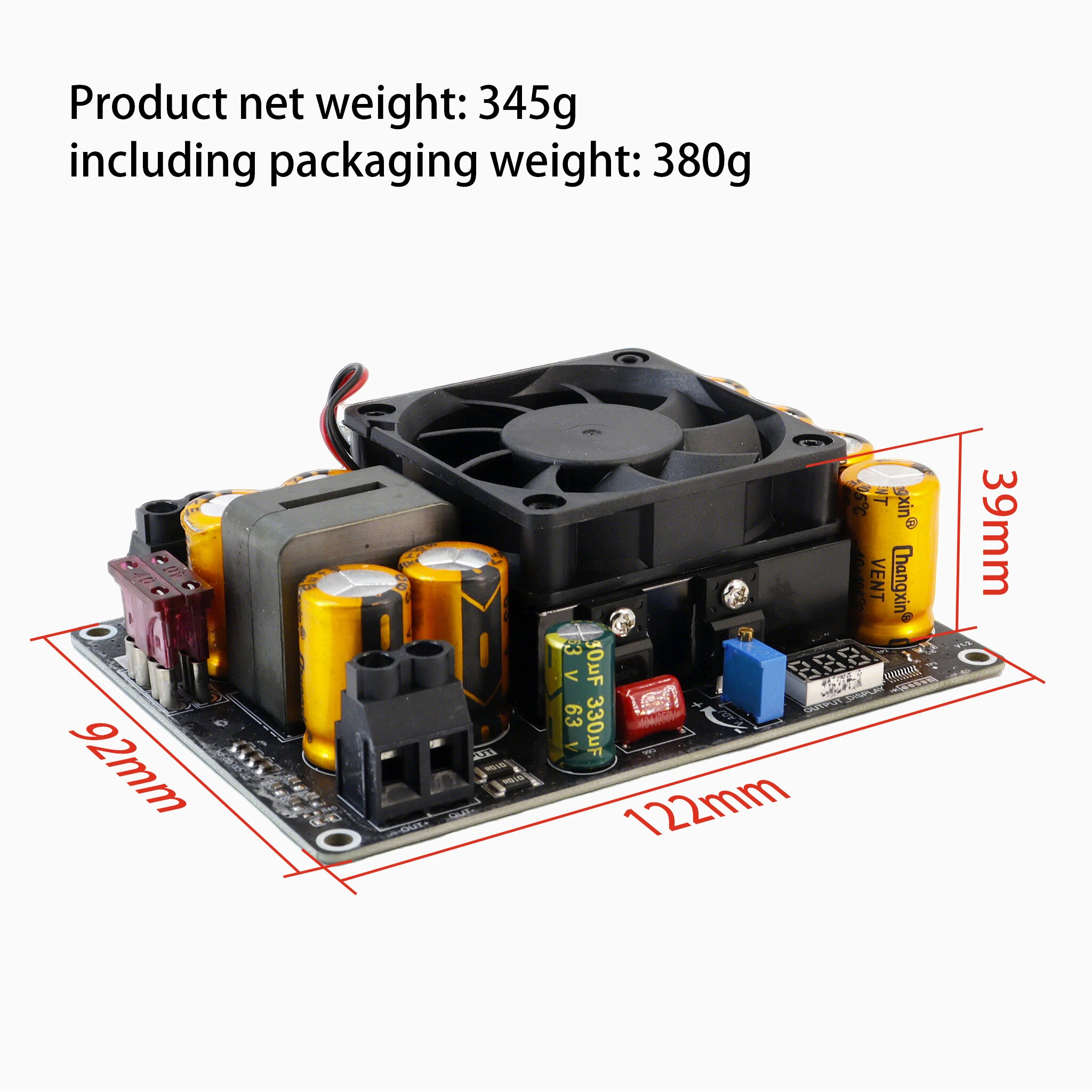

Size: 122 x 92 x 39mm

Net Weight: 345g

Gross Weight: 380g

Features:

1. Wide input voltage range of 11-27V DC and output voltage up to 50V for boost conversion use.

2. High 500W output power with 92%-95% efficiency for stable power conversion performance.

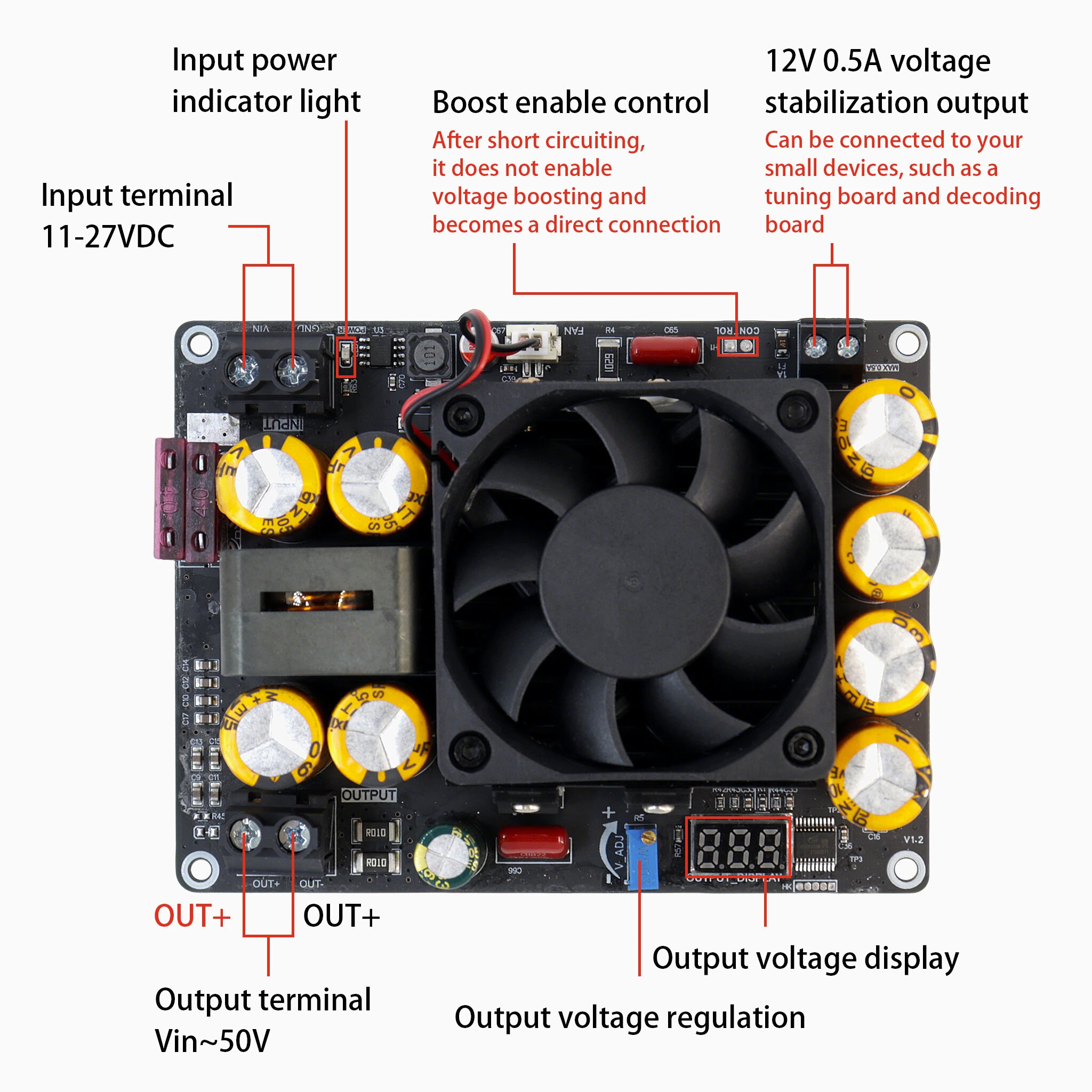

3. Built-in output voltage display and output voltage regulation for convenient adjustment and monitoring.

4. Fan starts with a 2-second self-test and runs above 36 degrees C during operation for temperature-controlled air cooling.

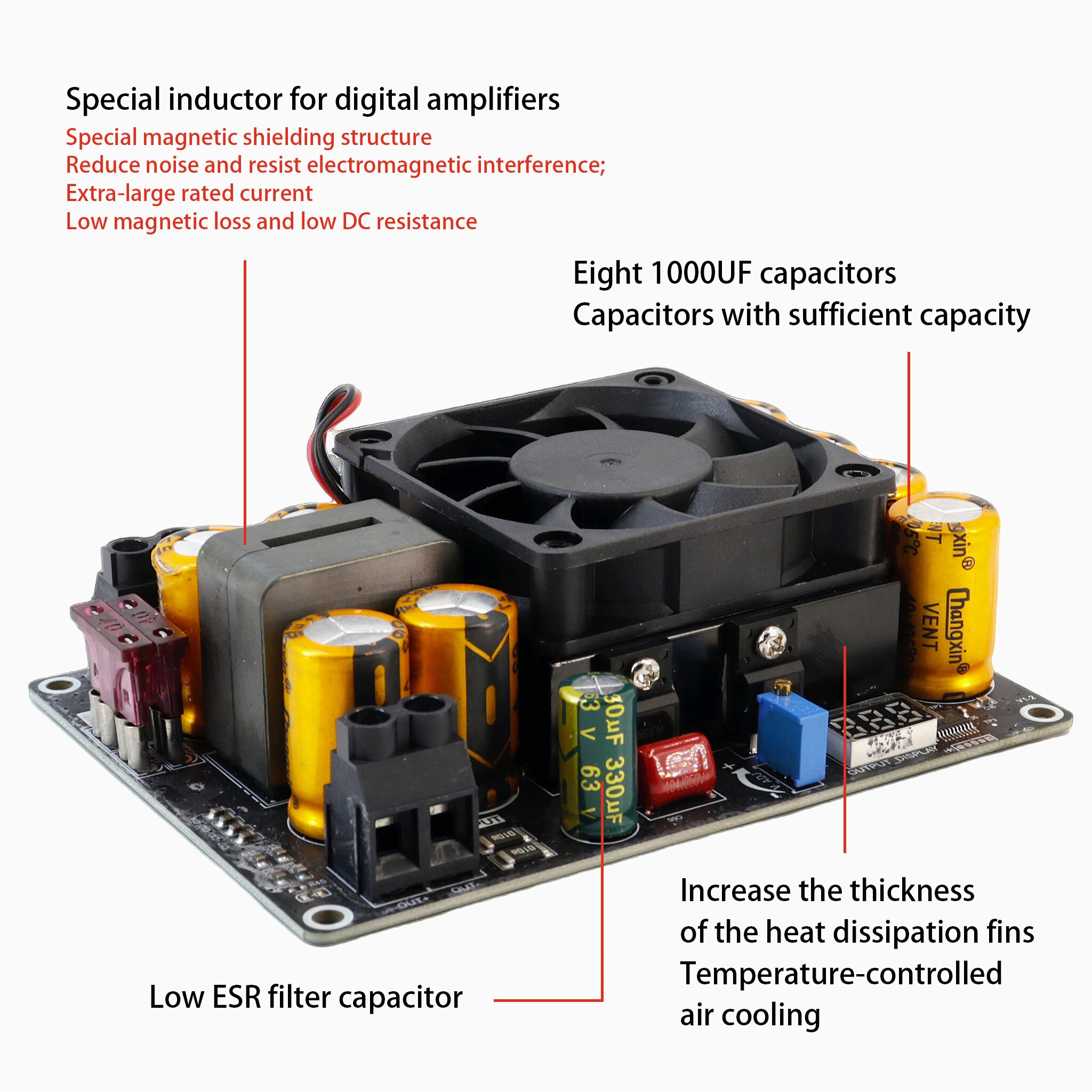

5. Equipped with special inductor, eight 1000uF capacitors, and low ESR filter capacitor to reduce noise and electromagnetic interference.

Package Included:

1 x ZK-PW500 Boost Converter Module
