ZHIYU® DC 12V 2 Way 3 Wire Fan Smart Temperature Controller With Temperature Sp
5.026 ratingsThe ZHIYU® DC 12V 2 Way 3 Wire Fan Smart Temperature Controller With Temperature Sp is a value-for-money product designed for everyday users. Customers praise its easy to set up and use and excellent build quality. 100% of buyers rate it 4★ or above.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The ZHIYU® DC 12V 2 Way 3 Wire Fan Smart Temperature Controller With Temperature Sp is a value-for-money designed for everyday users. Customers highlight its easy to set up and use and excellent build quality.
Customer Verdict
100% of buyers rated this product 4 stars or above. The most appreciated qualities are: easy to set up and use, excellent build quality, fast and responsive.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Power supply: DC 12V; the maximum range 11-14V; too low voltage displaying Lu; too high voltage displaying Hu; protection closed output
Output current: single channel maximum continuous output current 1.2A; double channels being both used at the same time current cannot exceed 2.0A; not suggesting using the fan with current being lower than 0.15A
Work efficiency: 90% (input 12V; output double way 8V 0.8A)
Reversely connected protection: short circuit reverse connection protection; power supply being connected reversely will burn out input copper foil
Over current protection: no over current protection; please note insulating installation; power up it after the wire is well connected to avoid output short circuit!! (only paid maintenance will be offered for overload and short circuit damage)
Thermal resistance parameters: NTC 10K B=3950
Measurement temperature error: 1%-0.5℃; after combining 1% probe, the maximum error 2%-1℃

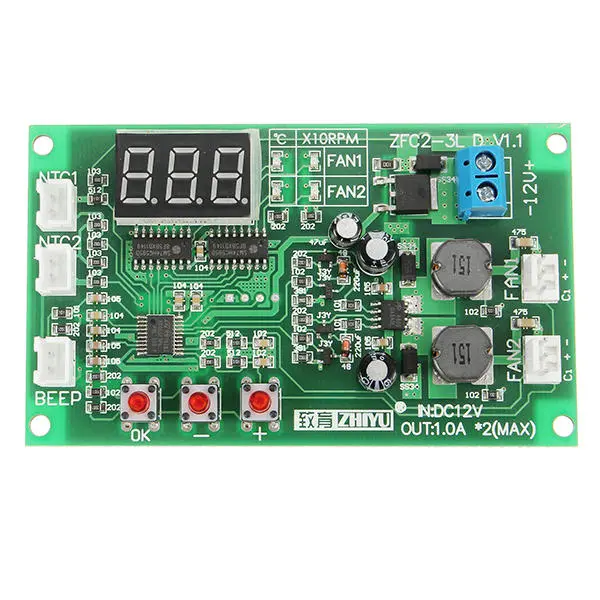

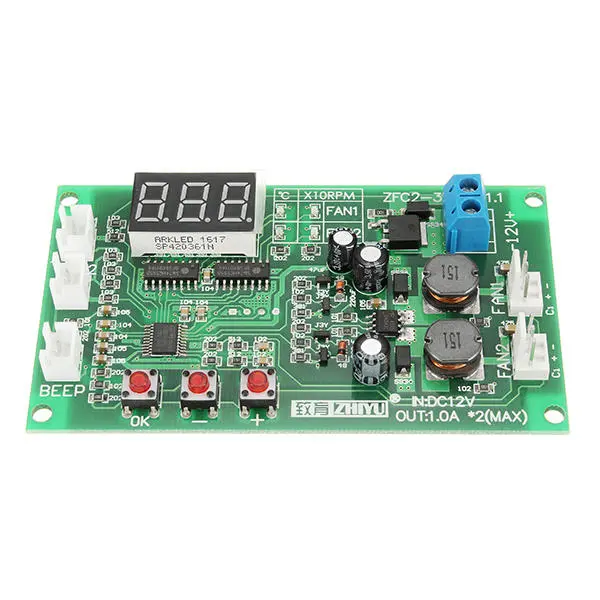

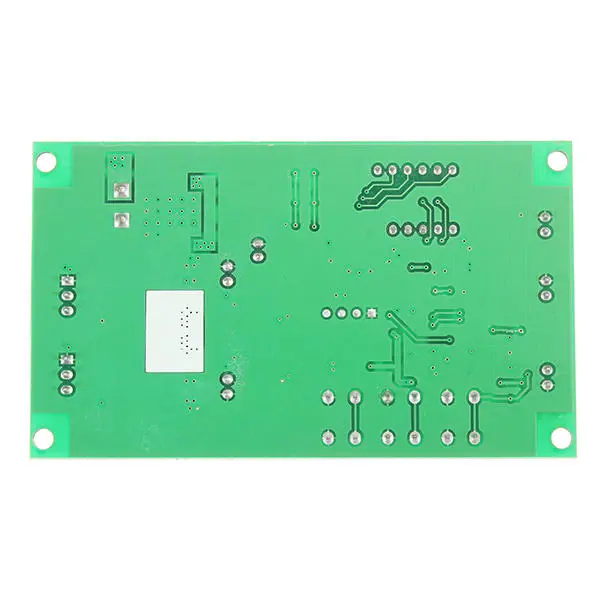

Board dimensions: 92mm*54mm (width*height); location hole place: 87mm*47mm diameter 3.4mm
It automatically take turns to display channel 1 temperature, rotation speed, and channel 2 temperature, rotation speed under normal operation; quickly switch the display by pressing the "+" "-" button.
Parameter Setting:
Manual rotating speed setting (the minimum rotating speed under temperature control):
Press “OK” button to enter into rotating speed setting function; FAN1 2 indicator lights lighting up at the same time stands for current adjustment being fan 1’s output size and by pressing the “+”&“-” button to adjust it with minimum 1 & maximum 100. After the setting, press “OK” button to enter into fan 2’s output size setting; after the setting, press “OK” button again to exit and save the parameters.
Temperature control and stop-rotating alarm settings:
Under normal operating state, long-press “OK” button to enter into temperature control and stop-rotating alarm settings; indicator light on the right indicates corresponding setting channel; corresponding setting parameter display, meanings, and range (“**” stands for digit ):
L** accelerating speed temperature setting, range 5-94℃; lower than H** at least 5℃, or adjust up H** by linkage.
H** full speed temperature setting; range 10-99℃; higher than L** at least 5℃, or adjust down L** by linkage.
F** fan being shut off temperature; minimum 1; maximum limitation is lower than L** 2℃; when F00 is set, fan is not shut off.
bON / bOF: channel stop-rotating alarm on / off.
Adjust the setting value by pressing “+”&“-” button; press “OK” button to switch setting parameters; set the channel 1 according to the above sequence first, channel 2 second; press “OK” button at last to exit and save parameters.
Supplementary Instructions: when channel temperature reaches L** after fan being shut off function is started, fan is started at minimum speed; it will accelerate with temperature increasing; when channel temperature is lower than F**, fan is shut off. Corresponding channel stop-rotating alarm will automatically block shut-off status’s rotating speed check.
Shutting off channel 2 display:
One channel is needed for some application and now channel 2 can be shut off; the setting method: keep pressing “OK” button to make it be powered up with controller not being powered up; controller entering into channel 2 displays setting status; modify the setting by pressing “+”&“-” button; 2ON / 2OF stands for channel 2 display / no display; after the setting, press “OK” button to save it, exit and enter into operating status.
Note: after channel 2 display being shut off, it will not display channel 2’s rotating speed and temperature only on LED display; it will not affect channel 2’s function.

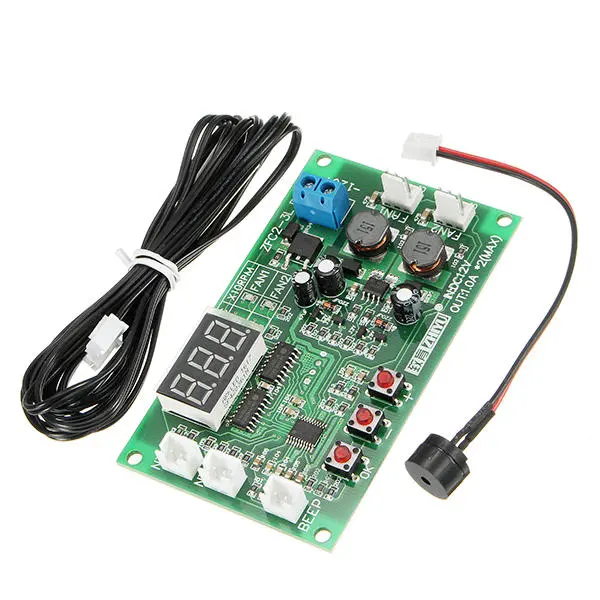

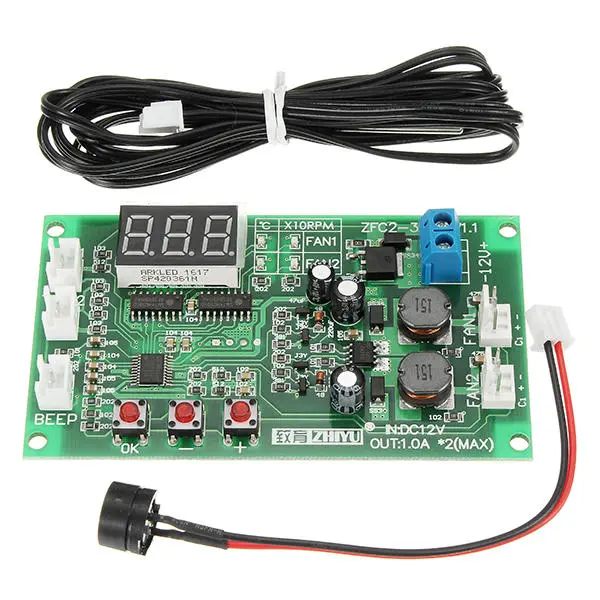

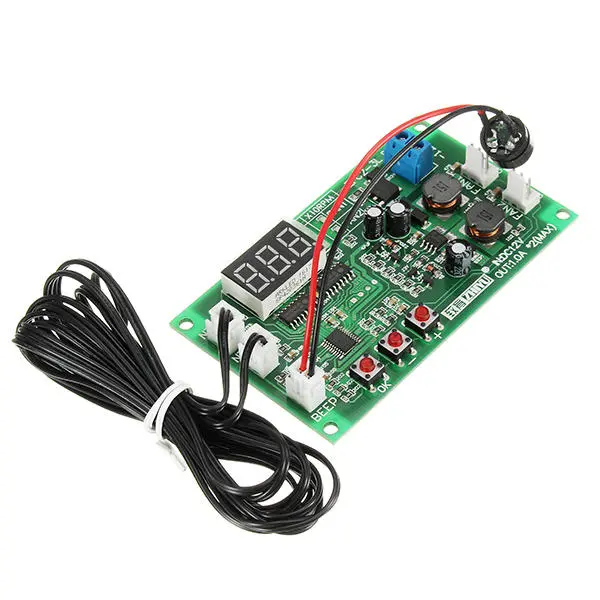

Package included:
1 x Fan temperature controller

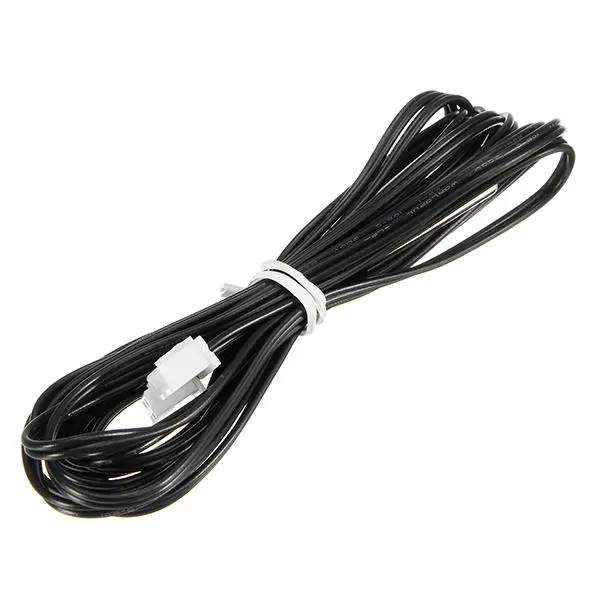

2 x Temperature probe
1 x Buzzer
