YC600 Six Channel Auto Signal Generator Crankshaft Camshaft CKP CMP Simulator ECU Computer Maintenance Tester
The YC600 Six Channel Auto Signal Generator Crankshaft Camshaft CKP CMP Simulator ECU Computer Maintenance Tester is a premium digital multimeters & oscilloscope designed for premium buyers.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Color.: Black
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The YC600 Six Channel Auto Signal Generator Crankshaft Camshaft CKP CMP Simulator ECU Computer Maintenance Tester is a premium digital multimeters & oscilloscope designed for premium buyers. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification
Product Name: Auto signal generator
Model: YC600
Power Supply: DC 12-24V
Output Signal: Hall and magnetoelectric
Frequency Range: 1-8000Hz
Hall Amplitude: 1.5-14V
Magnetic Amplitude: ±12V
Number of Channels: 6

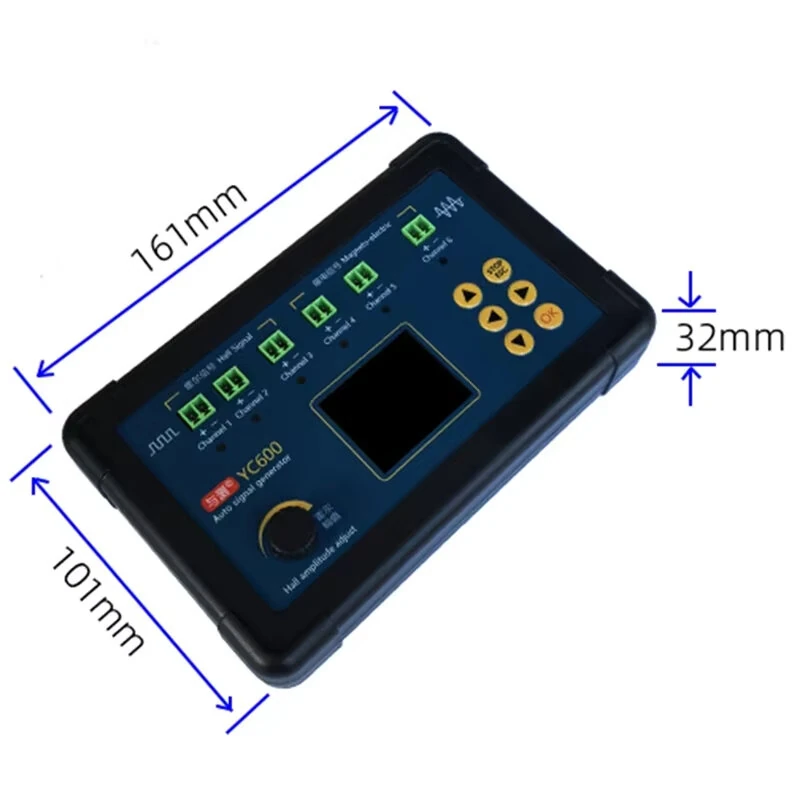

External Dimensions: 161mm x 101mm x 32mm
Features

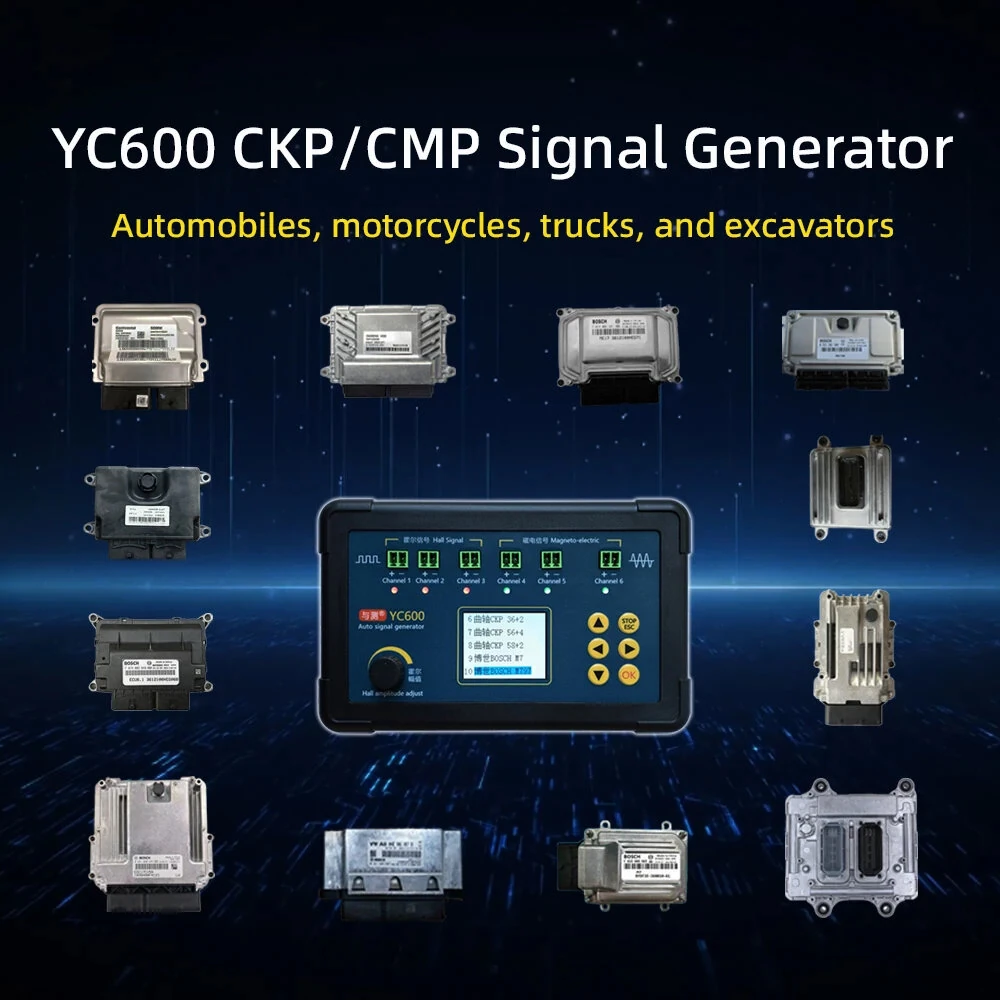

1. Wide ECU Compatibility: Designed for testing gasoline, diesel, and natural gas ECUs across cars, motorcycles, trucks, and construction machinery.
2. Synchronous 6-Channel Output: Simultaneously generates three Hall and three magneto-electric signals for comprehensive and synchronized testing.
3. CKP & CMP Simulation: Accurately simulates crankshaft and camshaft sensor signals for precise diagnostics and ECU maintenance.

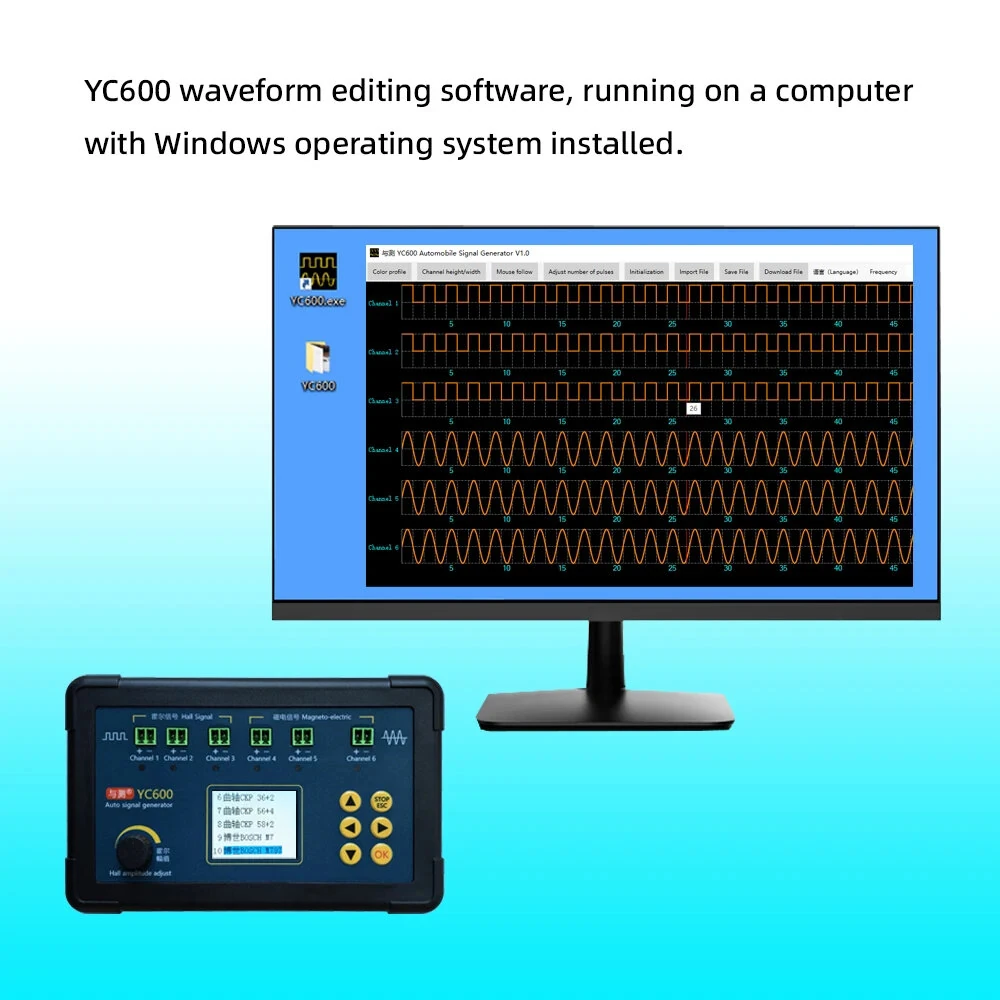

4. Customizable Waveforms: Includes PC software, allowing you to edit and customize signal waveforms to match specific vehicle requirements.
5. Onboard Waveform Storage: Saves up to 99 custom wave files and automatically loads the last used settings on startup for an efficient workflow.

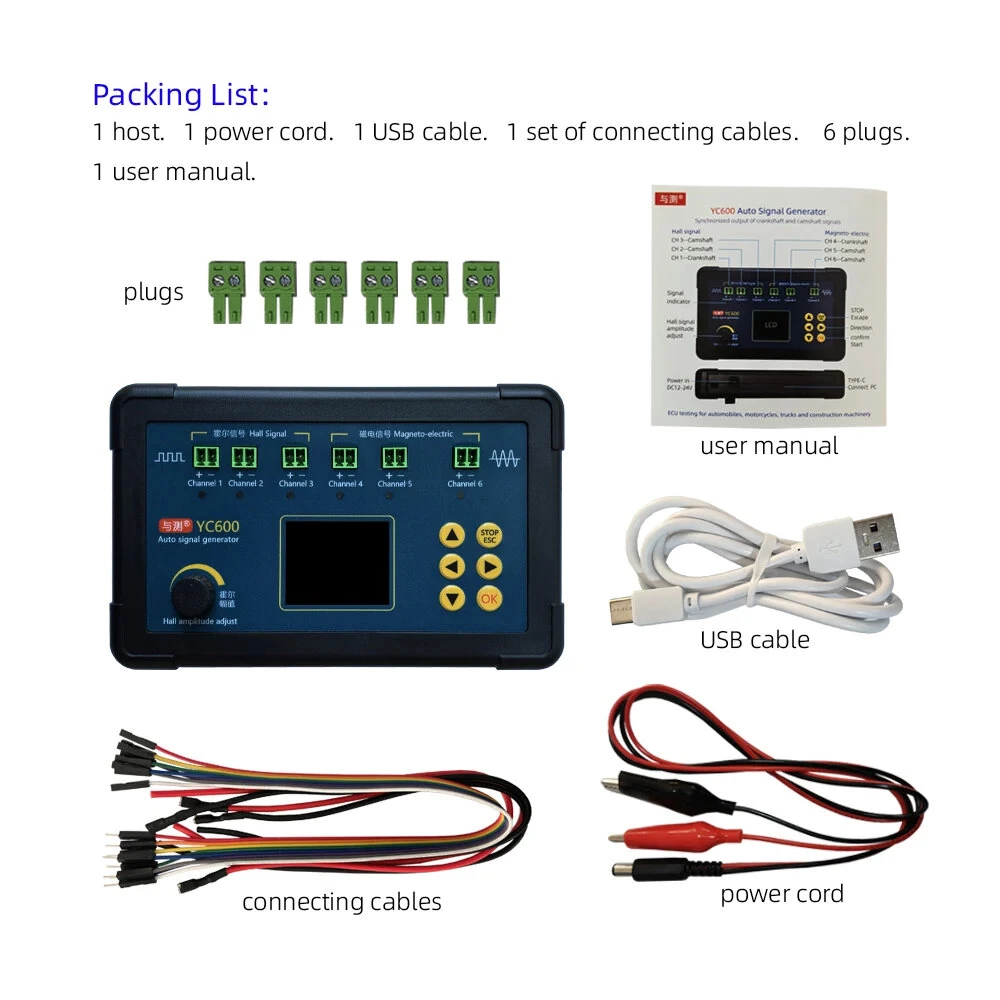

Package included
1 x YC600 Host
1 x Power Cord
1 x USB Cable
1 x Connecting Cables
6 x Plugs
1 x User Manual
