YAHBOOM Raspberry Pi 5 Case Protective Kit with Cooling Fan Chassis RGB Color Light 0.96 Screen Dispaly DIY Electronic Shell Host PCIe

Tutorials link: http://www.yahboom.net/study/CUBE_Pi

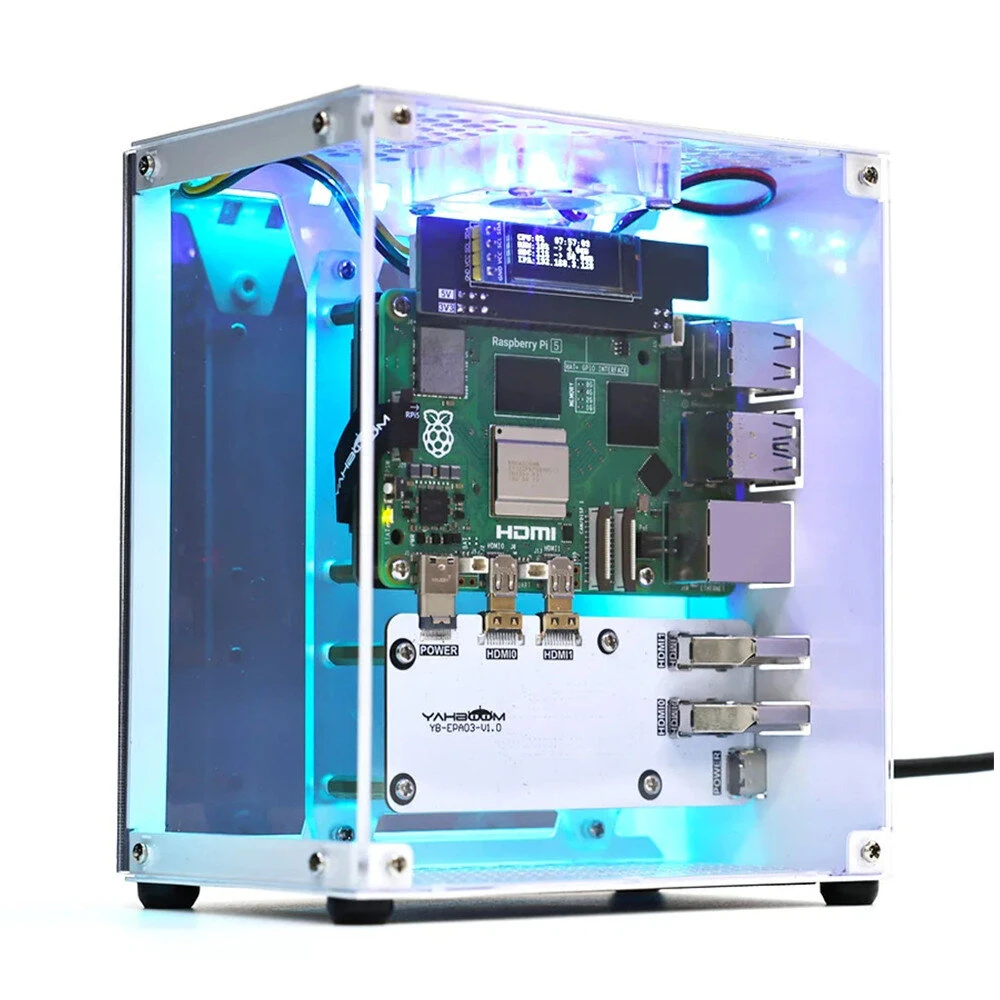

Raspberry Pi 5 CUBE Pi Case:

Material: Metal chassis box, black high-transparent acrylic, colorless high-transparent acrylic

Technology: White glossy paint

Size: 122.9x145x83.8mm

Metal Plate Thickness: 1mm

Acrylic Plate Thickness: 2mm

Supported Motherboards: Raspberry Pi 5 (Package is not includes)

Driver Board:

Chip Model: STMS003F3U6TR

Working Voltage: DC3.3V and DC5V

Communication Method: IIC communication

Size: 67x18x22.1mm

Output Interface: PH2.0-3P (RGB light bar interface), XH2.54-2P (Fan interface)*2

RGB Light Bar:

Lamp Bead Model: WS2812

Number of Lamp Beads: 14PCS

Material: Flexible FPC

LED: Each LED light can control the color and brightness individually

Interface: 3-wire PH2.0 interface (VCC, GND, signal line)

Color: Full color RGB

Working Voltage: 3.5V-7.5V

Data Transmission Speed: 800KHZ

Cascade: Not support cascade

Cooling Fan:

Fan Size: 40x40x10mm

Line Length: 13.5cm

Rated Voltage: 5V

Life: 20,000 hours at 25°C

Rated Speed: 2200rpm±10%

Rated Current: 0.08±0.02A

Starting Voltage: 4V

Working Temperature/Humidity Range: -10°C~+60°C / 35%~85%RH

OLED:

Display Color: White

Display Area: 22.384x5.584mm

Size: 0.91 inch OLED

Module Size: 12.38mm

Material: PM OLED

Pixel Pitch: 0.175x0.175mm

Resolution: 128x32

Pixel Size: 0.159x0.159mm

Interface Type: IIC interface

Number of Pins: 4

Working Voltage: 3.3V-5V

Working Temperature: -40~70°C

Control Chip: SSD1306

Viewing Angle: Full viewing angle

Features:

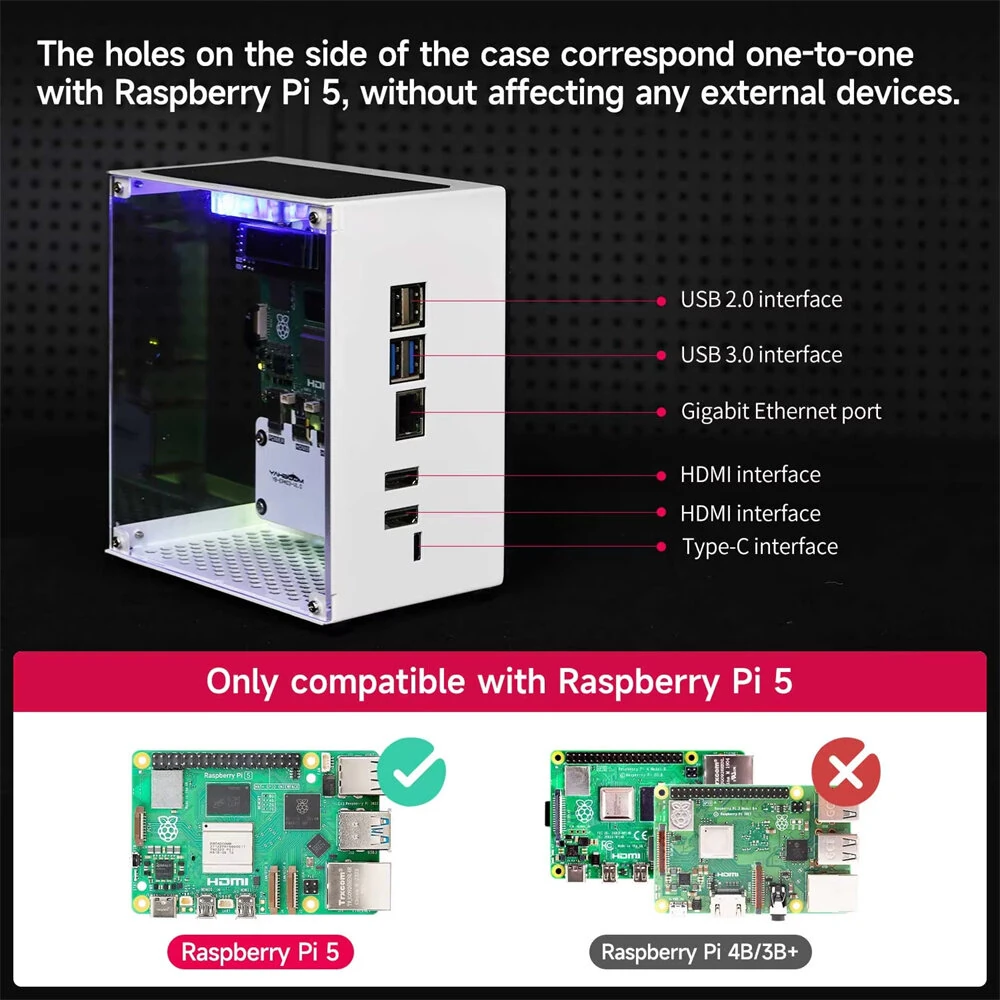

1.Tailor-Mades for Raspberry Pi 5: The CUBE Pi Case is meticulously designed for the Raspberry Pi 5, ensuring all openings and slots align perfectly with the Pi 5's board, allowing seamless integration with all external devices. This ensures there are no compatibility issues and users can optimize their setup effortlessly.

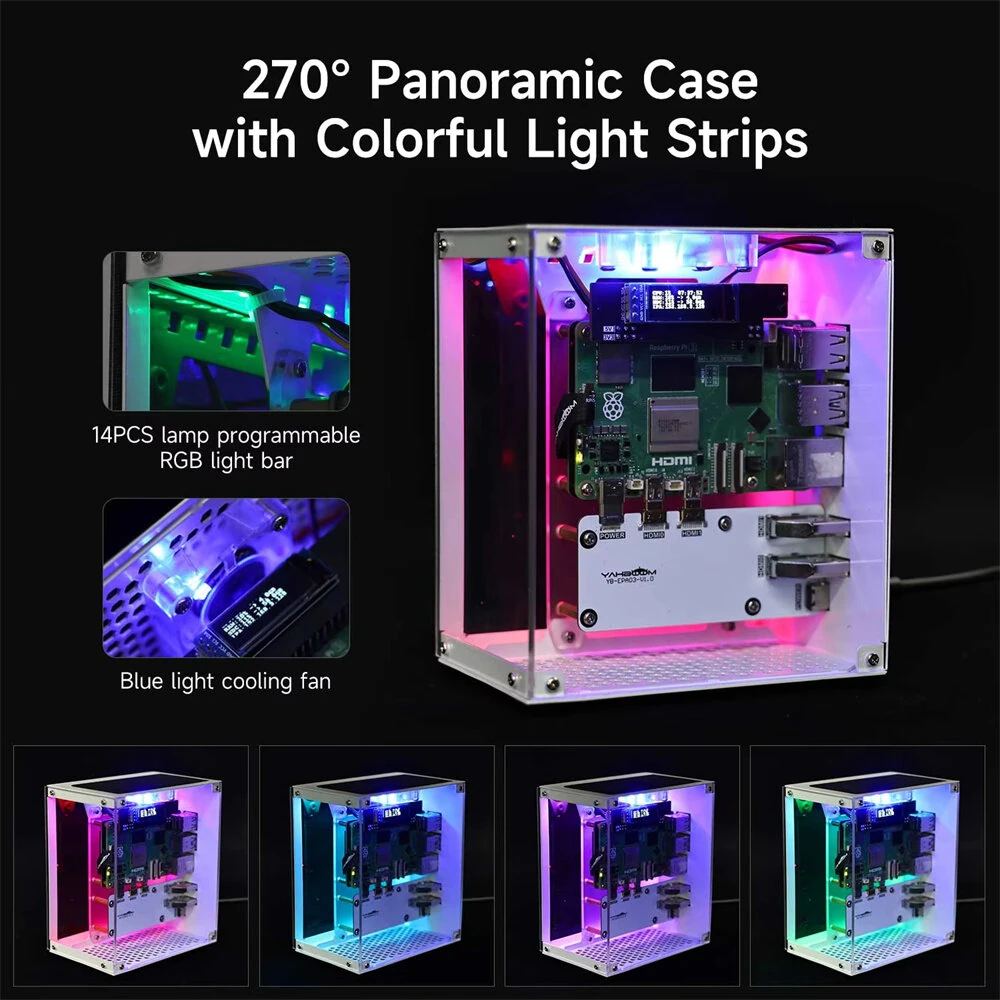

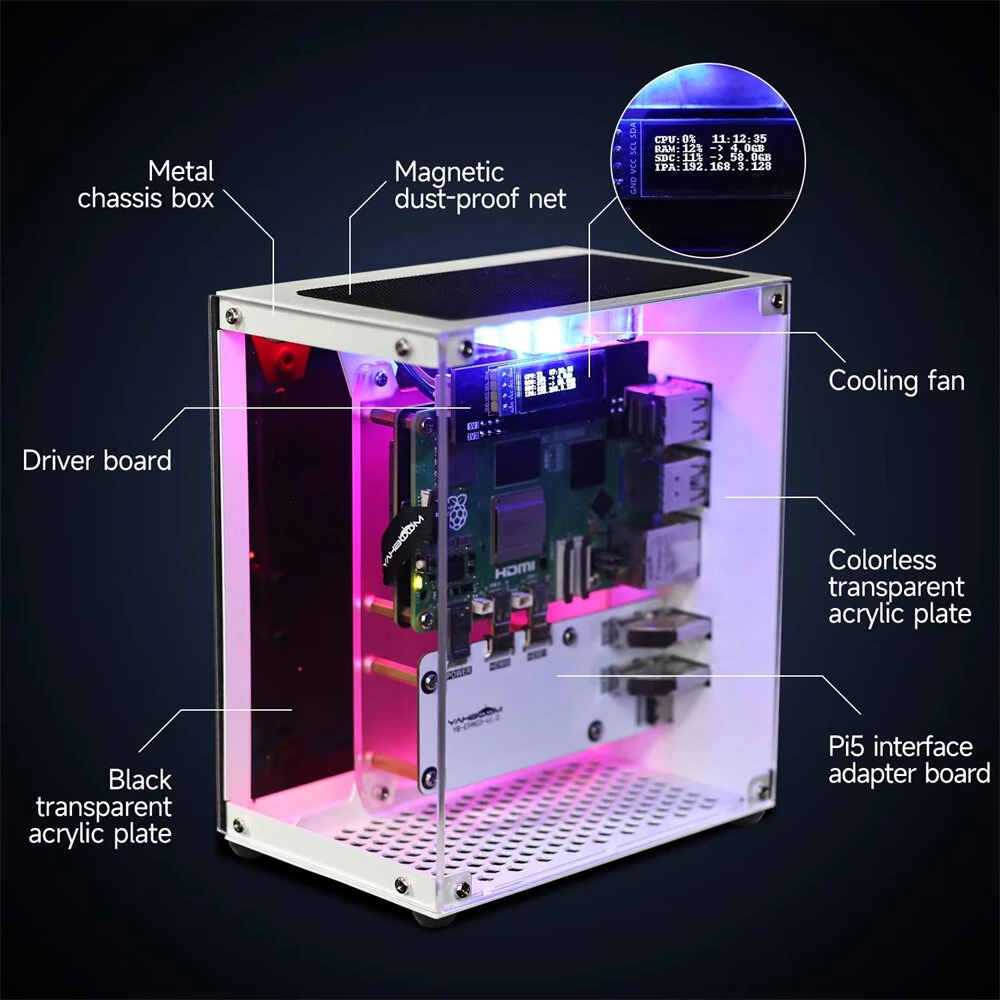

2.Sturdy and Aesthetic Design: Constructed with a robust metal chassis and complemented by three highly transparent acrylic side plates, the case offers durability while providing a 270° panoramic view. This not only makes the internal components easily viewable but also adds a sleek, modern look to your setup.

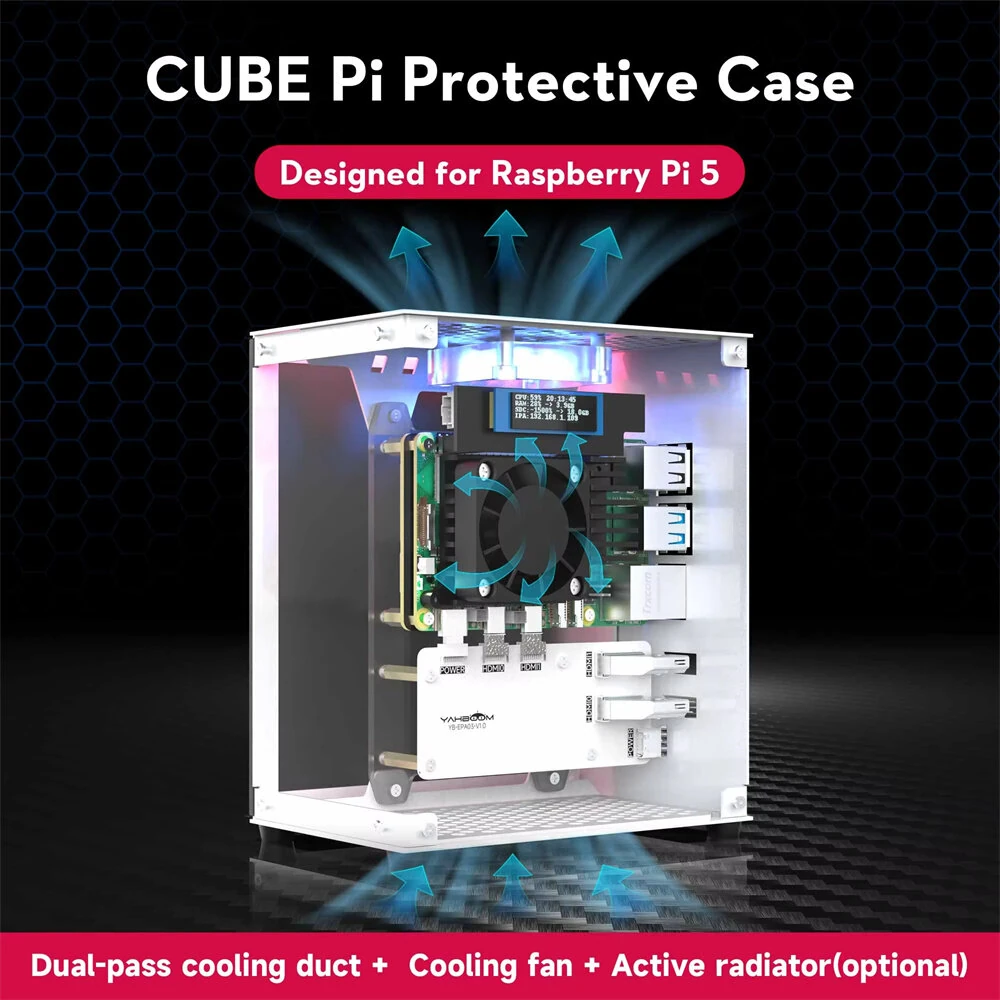

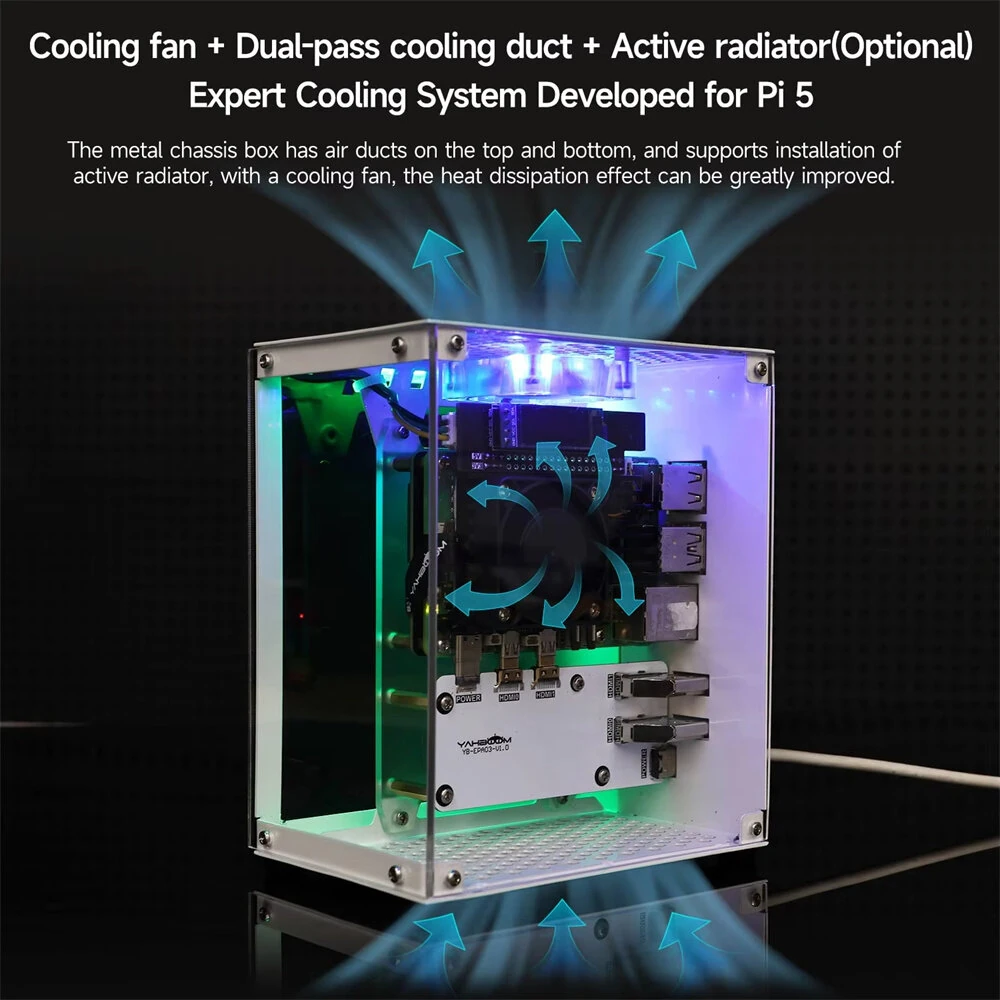

3.Efficient Cooling System: Equipped with a blue light cooling fan, dual cooling ducts, and optional active radiators, the case promotes effective heat dissipation. This superior cooling management ensures the Raspberry Pi operates smoothly even under heavy loads, maintaining an optimal temperature for performance and longevity.

4.Enhanced Storage Support: The case includes provisions for M.2 SSD installation, allowing users to expand their storage capacity significantly. This feature makes the case not just a protective shell but also an integral part of a high-performance, expandable computing setup.

5.Dust-Proof Design and OLED Display: With dual dust-proof magnetic nets positioned at the top and bottom, the case effectively blocks dust infiltration, preserving system cleanliness and stability. Additionally, an integrated 0.91 inch OLED screen displays real-time information such as CPU status, IP address, and memory usage, enhancing the overall user experience with quick, at-a-glance system monitoring.

Package Included: (Package is not includes the Raspberry Pi 5)

Basic Version:

1 x Chassis box

1 x Pi5 adapter board

1 x Driver board

2 x Dust-proof magnetic net

1 x Cooling fan

1 x Colorful RGB light bar

4 x Foot pads

4 x Acrylic plates

1 x Screwdriver/screw/copper column set

1 x OLED

OR

Cooling Version:

1 x Chassis box

1 x Pi5 adapter board

1 x Driver board

2 x Dust-proof magnetic net

1 x Cooling fan

1 x Colorful RGB light bar

4 x Foot pads

4 x Acrylic plates

1 x Screwdriver/screw/copper column set

1 x OLED

1 x Cool cooler Pi 50 active radiator

OR

M.2 Version:

1 x Chassis box

1 x Pi5 adapter board

1 x Driver board

2 x Dust-proof magnetic net

1 x Cooling fan

1 x Colorful RGB light bar

4 x Foot pads

4 x Acrylic plates

1 x Screwdriver/screw/copper column set

1 x OLED

1 x Cool cooler Pi 50 active radiator

1 x PCIe to M.2 adapter board

1 x 256GB SSD (With system image file)
