How can this unit support 24Vdc when the smart relay from Wangll is marked 14Vdc?

The relay is rated at 14V and 20A DC, so if you double the voltage then halve the current and you should be fine.

How critical is the 30 volt input limit? I want to be charging 24 volts of lithium batteries and the output voltage has to reach about 28.6 volts. This means that there is very little headroom between 30 volts and 28.6. What components in the module are critical for the 30 volt limit?

The starting charging voltage value can be set by the Start or Stop button

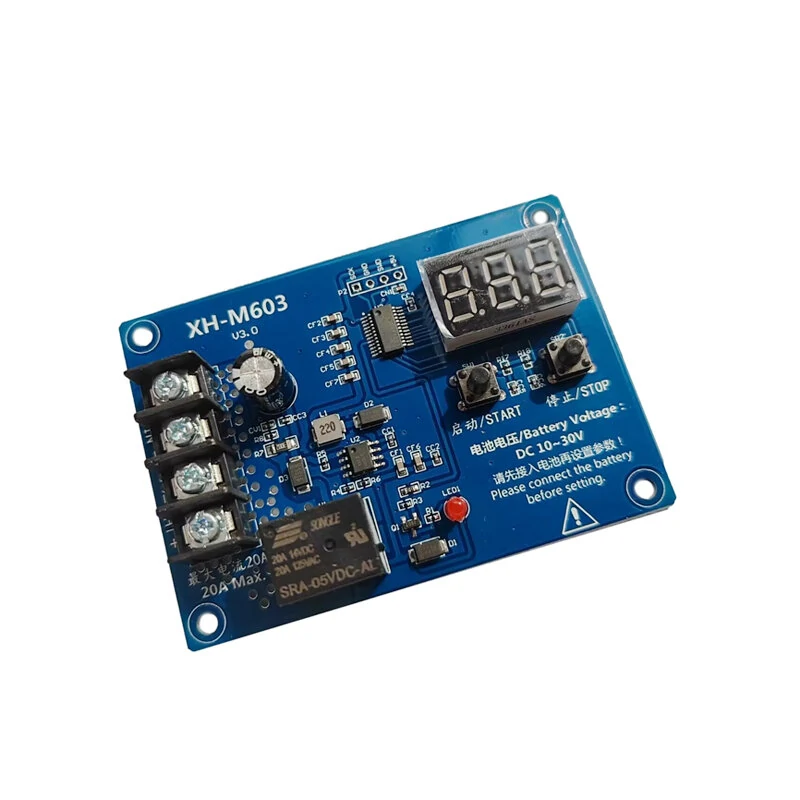

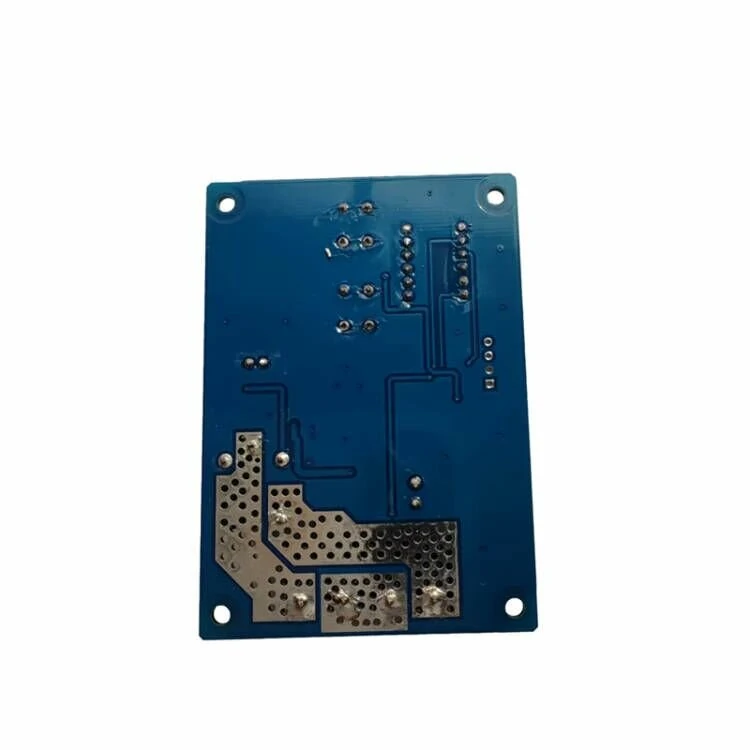

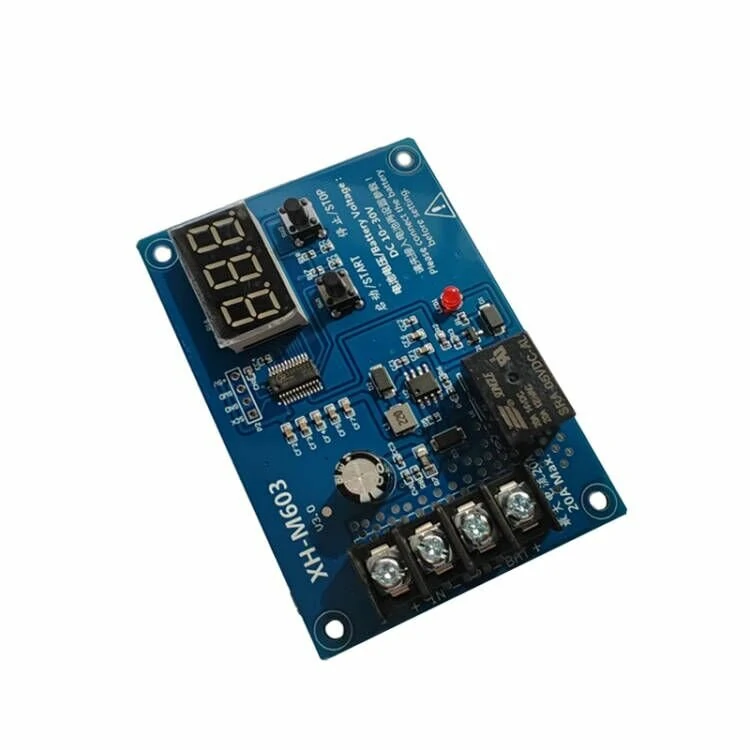

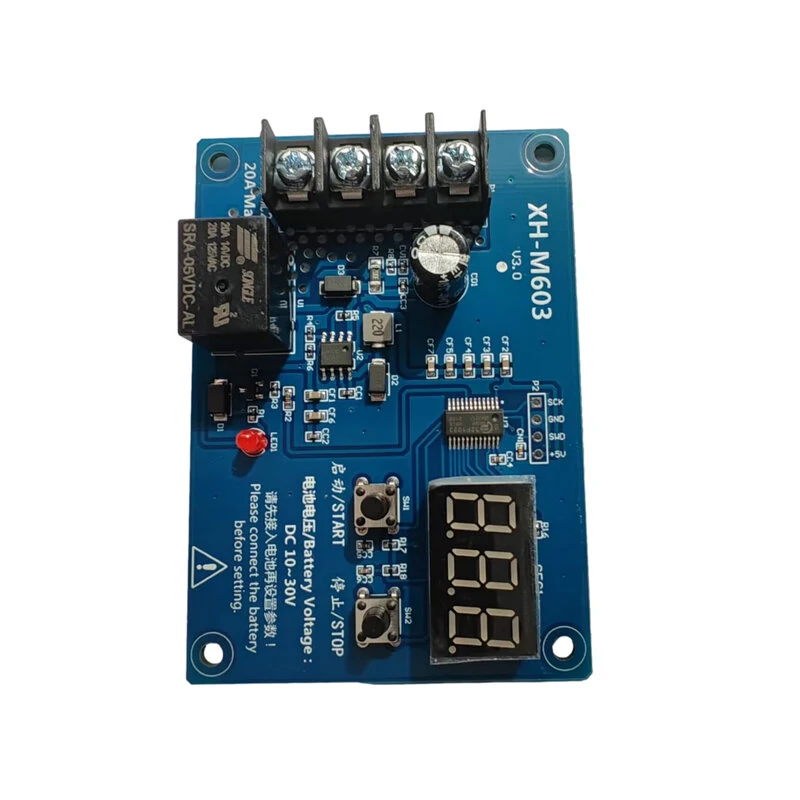

XH-M603 12-24V Charging Control Module Storage Lithium Battery Charger Control Switch Protection Board — image 1

Hover to zoom

1 / 5 · Click to enlarge

XH-M603 12-24V Charging Control Module Storage Lithium Battery Charger Control Switch Protection Board

Name: XH-M603 12-24V Charging Control Module Storage Lithium Battery Charger Control Switch Protection Board
Brand: Pricio
SKU: 1860096
Price: 930 INR
Availability: InStock
Rating: 5.0 (13 reviews)

5.013 ratings

773+ bought in past month

AI Summary

Battery Protection Module for everyday users

The XH-M603 12-24V Charging Control Module Storage Lithium Battery Charger Control Switch Protection Board is a value-for-money battery protection module designed for everyday users. Customers praise its accurate and reliable.

✓ accurate and reliable

₹930-21%

MRP:₹1,183Save ₹253

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

21% Off — you save ₹253 on this product!

Quantity

Total: ₹930

Buying tip: A well-rounded choice at a fair price. Recommended for most buyers.

Estimated delivery: 23 Aug – 6 Sept

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Electronics projectsArduino / Raspberry Pi buildsPrototyping

SKU: bg-1860096Category: Battery Protection Module

About This Product

The XH-M603 12-24V Charging Control Module Storage Lithium Battery Charger Control Switch Protection Board is a value-for-money battery protection module designed for everyday users. Customers highlight its accurate and reliable.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Description:

1. Model: XH-M603

2. Input Voltage: DC 10-30V

3. Display Precision: 0.1V

4. Control Precision: 0.1V

5. Output Type:direct output

6. Voltage Tolerance: +/-0.1V

7. Application Fields: 12-24V storage battery

8. Size: 82 x 58 x18mm

Using Method:

1. Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash;you can start or stop button to set starting up charge voltage value

2. Set Stop Voltage:in normal display voltage state,press the button will display stopping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stopping charge voltage value

3. Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings

Package Included:

1 x Charger Control Switch Protection Board
