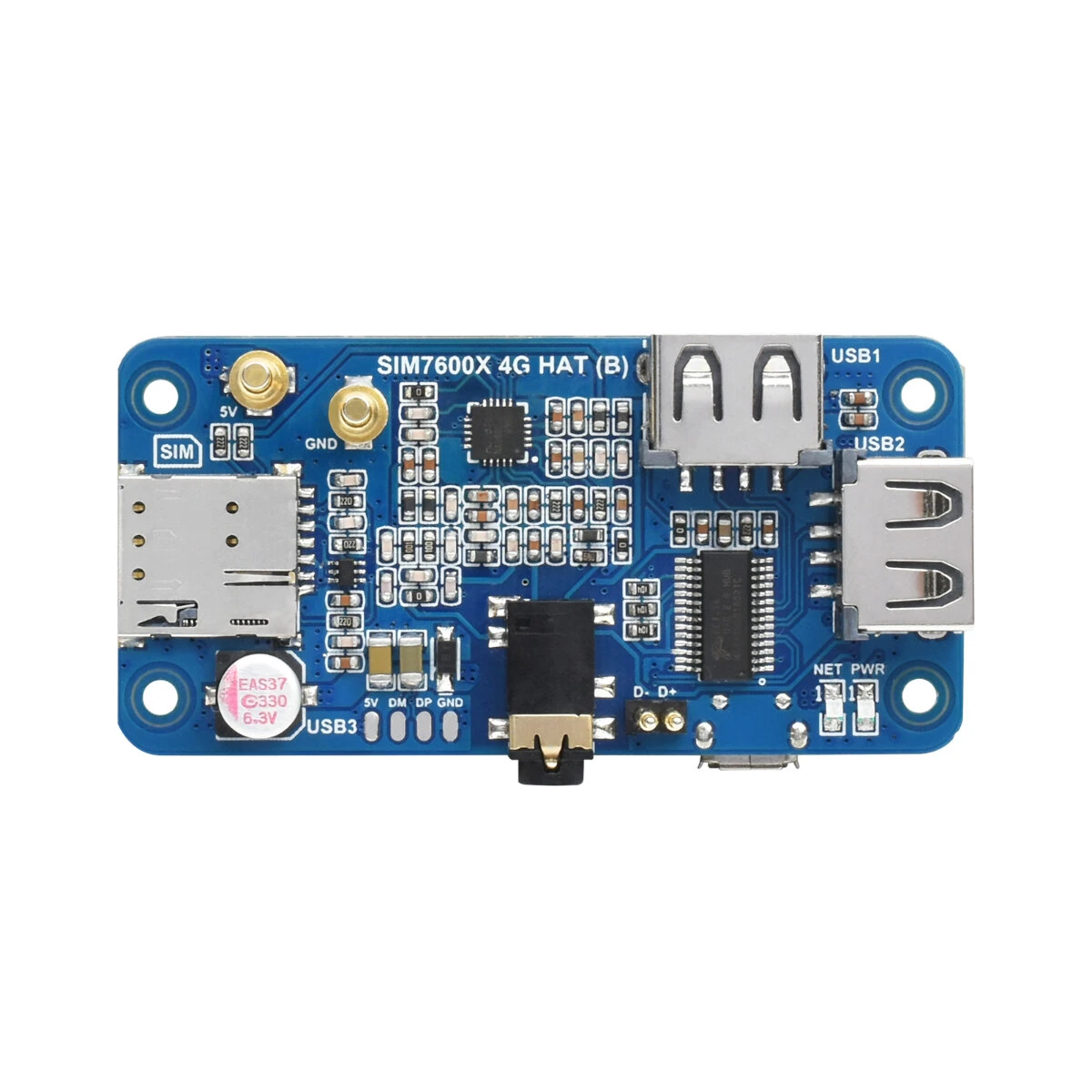

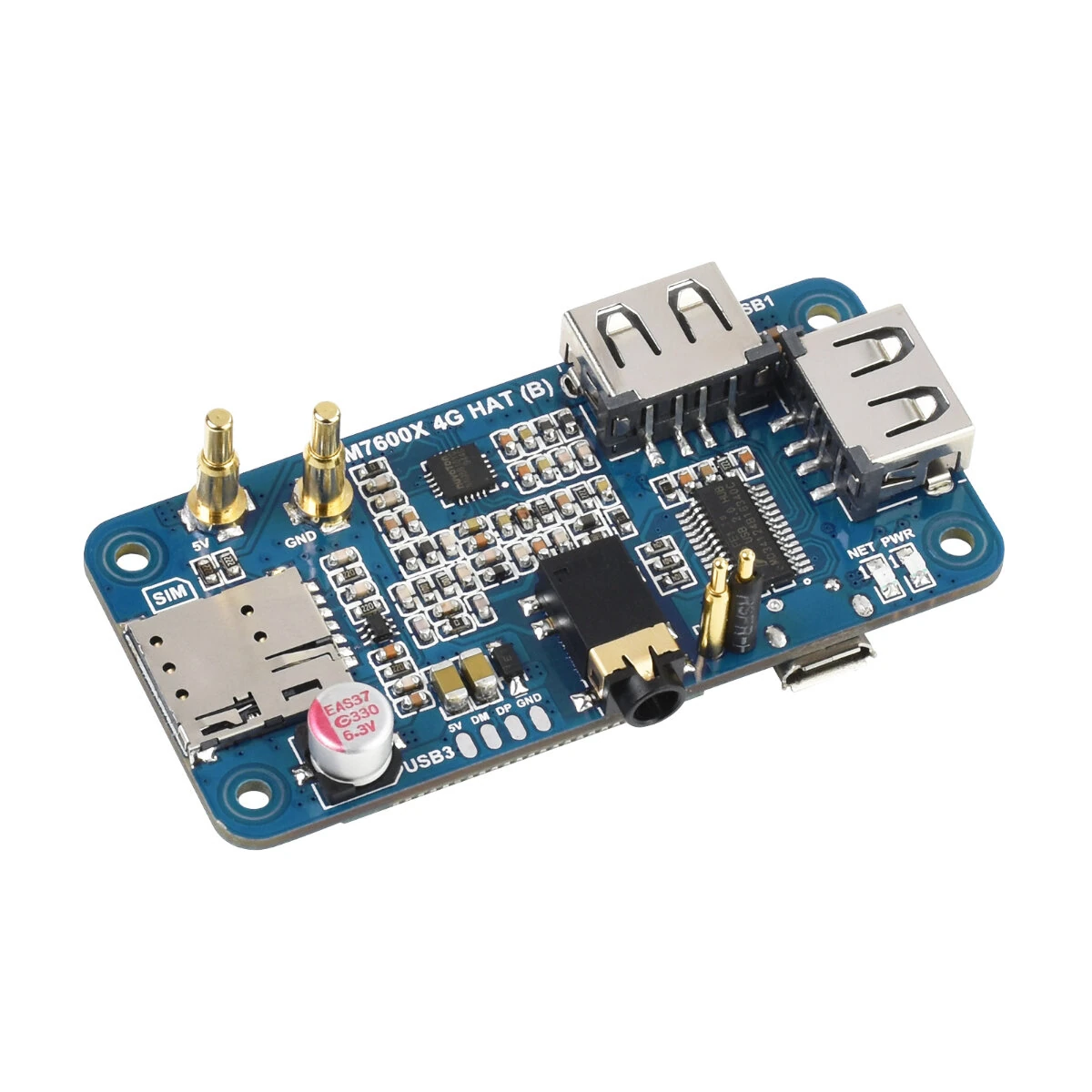

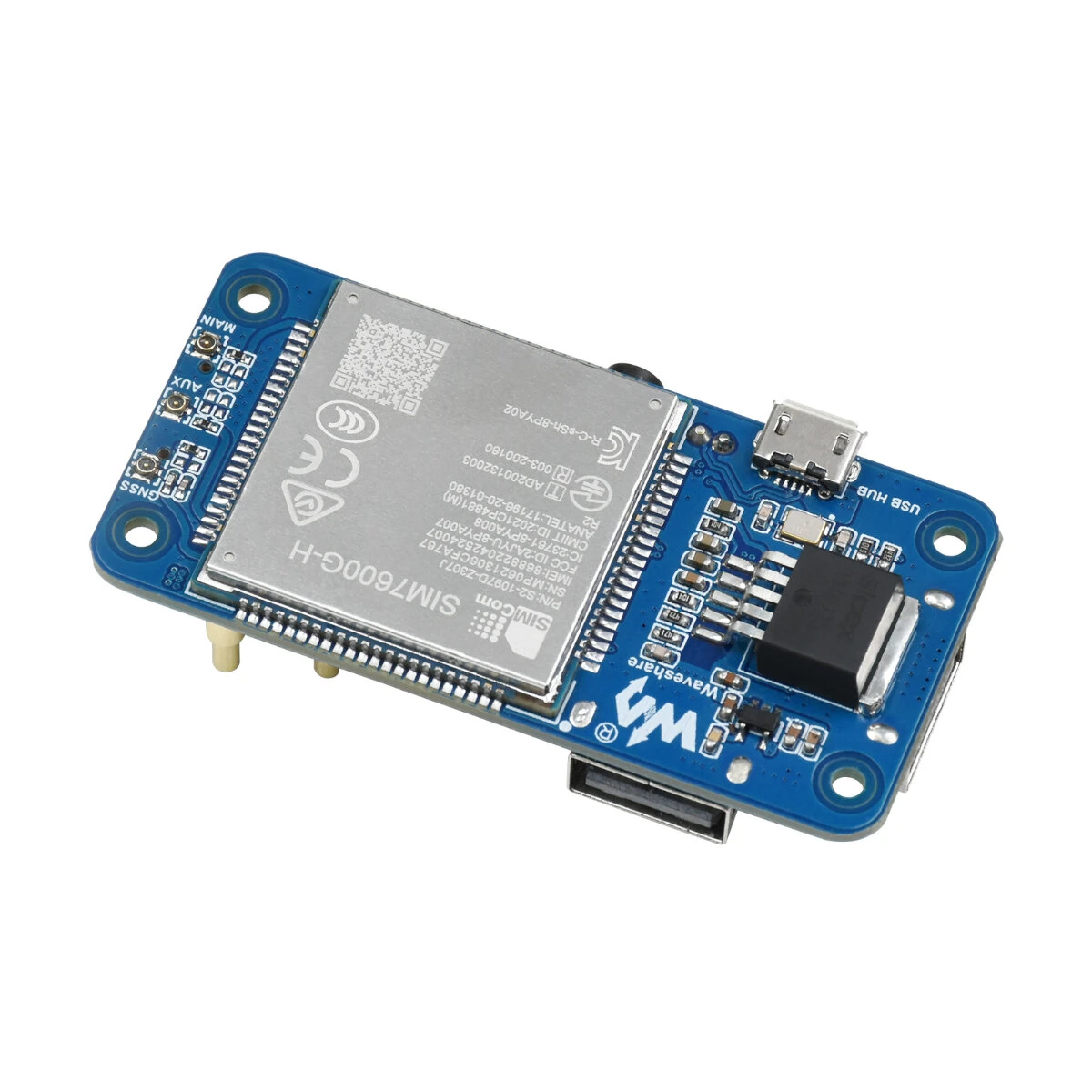

Waveshare SIM7600G-H 4G HAT (B) For Raspberry Pi Global Band LTE Cat-4 4G/3G/2G Communication Module With GNSS Positioning Support
The Waveshare SIM7600G-H 4G HAT (B) For Raspberry Pi Global Band LTE Cat-4 4G/3G/2G Communication Module With GNSS Positioning Support is a premium product designed for premium buyers. It features LTE Cat-4: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66LTE-TDD: B34/B38/B39/B40/B41 and 3G: UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
28% Off — you save ₹3,936 on this product!
Color: Blue
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Quick Specs
Ideal For
About This Product
The Waveshare SIM7600G-H 4G HAT (B) For Raspberry Pi Global Band LTE Cat-4 4G/3G/2G Communication Module With GNSS Positioning Support is a premium designed for premium buyers. It delivers reliable performance at an accessible price.
Key Specifications
- LTE Cat-4: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66LTE-TDD: B34/B38/B39/B40/B41
- 3G: UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
- 2G: GSM/GPRS/EDGE: 850/900/1800/1900 MHz — smooth, flicker-free operation
- Satellites systems: GPS/Beidou/GLONASS/GALILEO/QZSS
- Receiver type: 16-channel, C/A Code
- Sensitivity: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)Cold starts: -148 dBm
- Time-To-First-Fix: Cold starts: <35sHot starts: <1s
- SMS: Supported types: MT, MO, CB, Text, PDU — compatible with modern devices
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification:
Features:

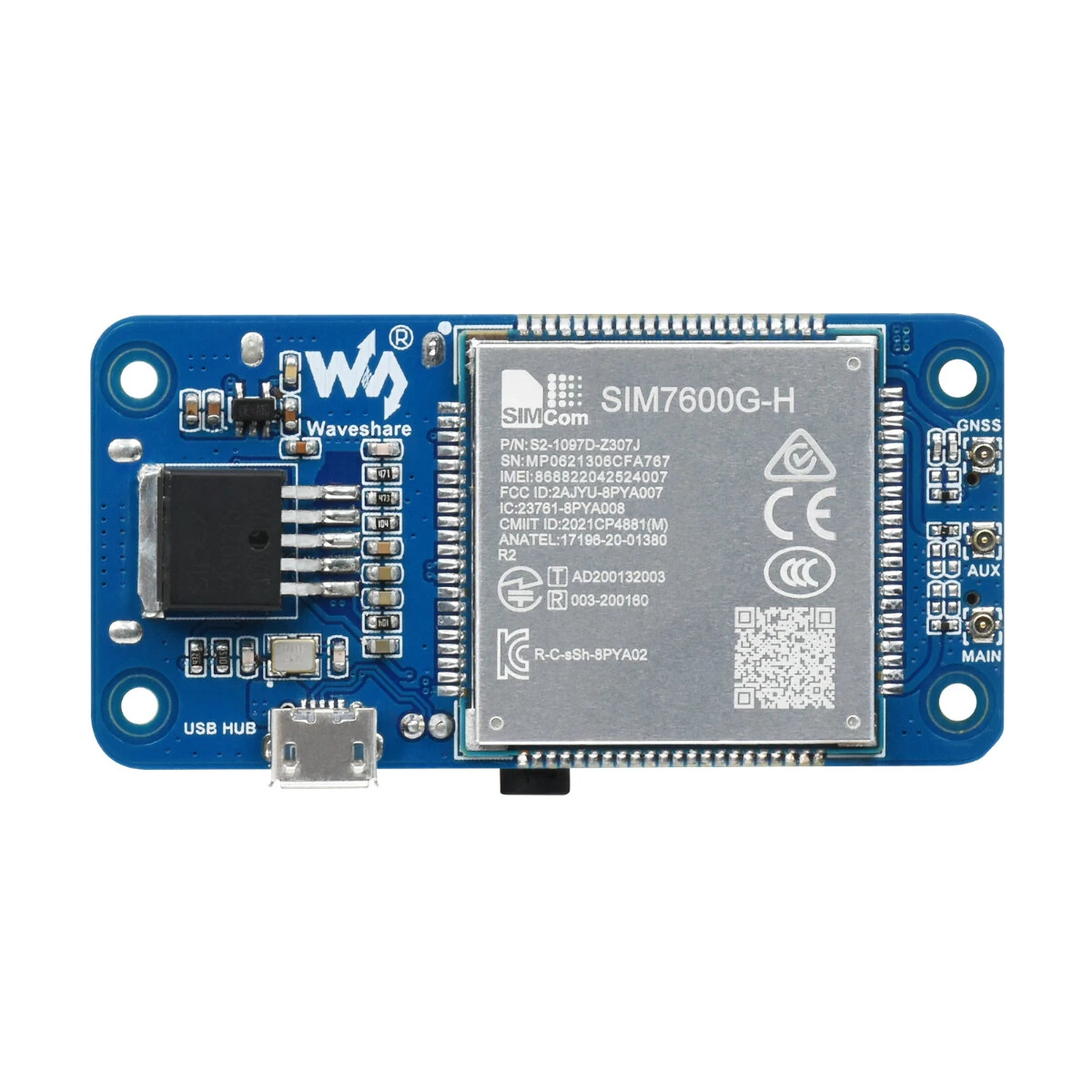

1. Features a SIM7600G-H module, offering LTE Cat-4 speeds and global 2G/3G/4G network support, ensuring worldwide connectivity for your Raspberry Pi projects.
2. Supports multi-constellation GNSS including GPS, BeiDou, GLONASS, and GALILEO. It provides accurate and fast positioning for various location-based applications.
3. Flexible connectivity for Raspberry Pi and PCs. Use the dedicated pogo pin for Pi Zero/Zero W or the MicroUSB connector for other boards.
4. Enables voice and messaging capabilities with an onboard audio jack and decoder. Perfect for making telephone calls or sending SMS directly from your device.
5. Includes a convenient USB HUB connector. This extends USB ports for other peripherals while providing 4G network access to your Raspberry Pi or PC.
Package Included:
1x SIM7600G-H 4G HAT (B)
1x LTE Antenna
1x GPS Antenna
1x USB-A to micro-B cable
1x Screws pack
