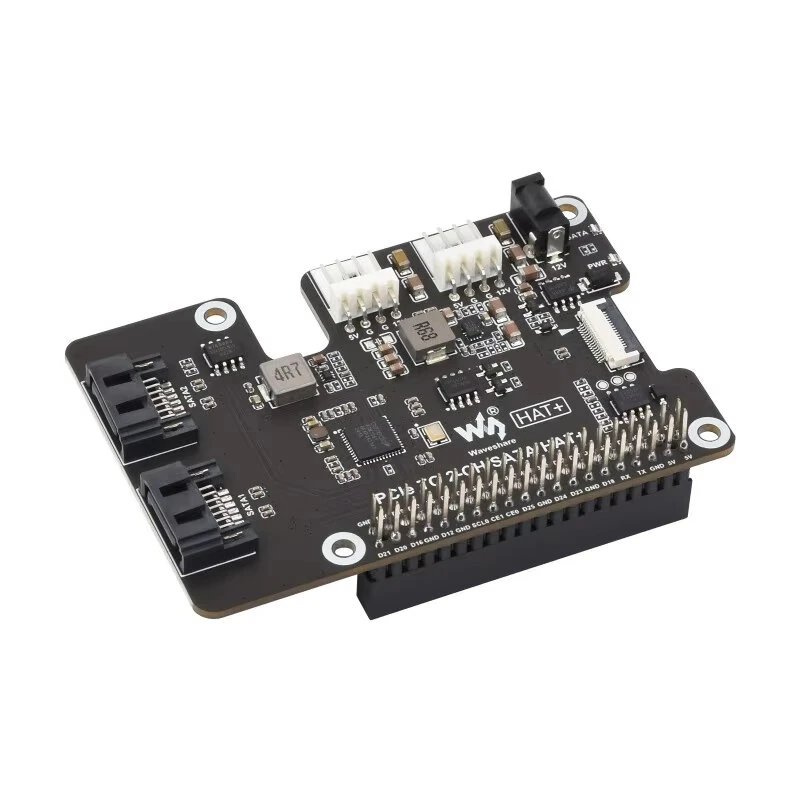

Waveshare PCIe To SATA Adapter Dual Channel SATA Gen3 Compatible For Raspberry Pi 5 Plug and Play High Speed Storage Expansion With LED Indicators EPROM

Specifications:
Model: PCIe To 2-Channel SATA Adapter for Raspberry Pi 5
Compatibility: Works with Raspberry Pi 5 via a 16-pin PCIe cable interface
SATA Protocol: Supports SATA Gen3 (SATA 3.0) standard for high-speed data transmission
Interface: Dual SATA channels compliant with PCIe Gen2 standard
Onboard Features: Dual LED indicators for operational monitoring and EEPROM for storing HAT ID/product information
Package Weight: 0.036 kg

Features:

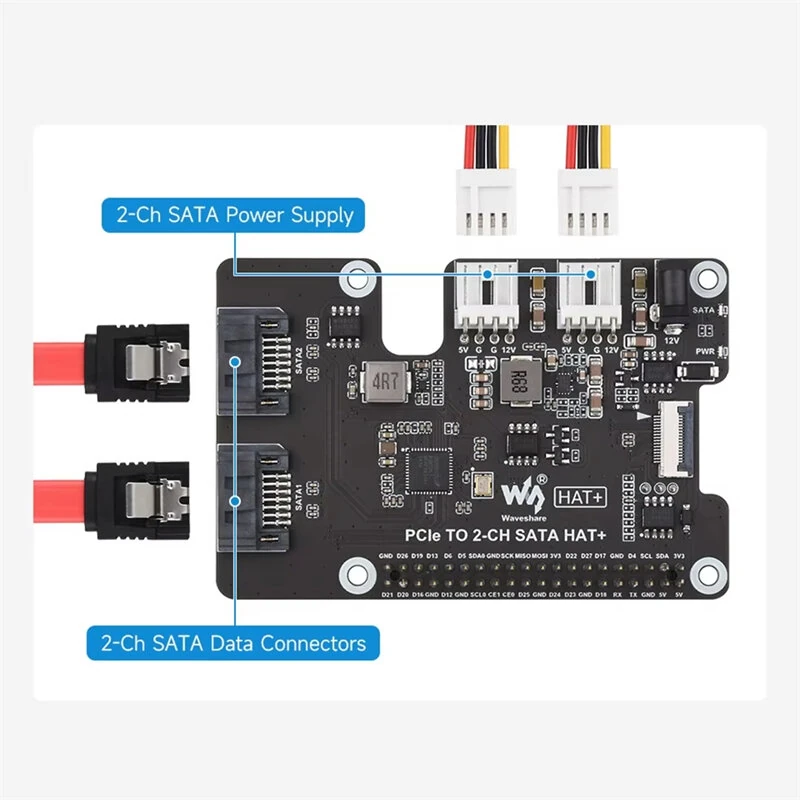

1. Dual SATA Ports for Expanded Storage
Connect up to two SATA hard drives easily, providing a convenient solution for storage expansion compliant with SATA Gen3.
2. Driver-Free Design
Enjoy seamless usage with plug-and-play functionality—no need to install complex drivers or software for setup.
3. 16-Pin PCIe Interface for Hassle-Free Integration
Specifically tailored for Raspberry Pi 5, ensuring optimal compatibility and streamlined installation using the included PCIe cable.
4. Operational Monitoring with LED Indicators
Equipped with two onboard LEDs for clear and precise activity status observation in real-time.
5. EEPROM Integration for Product Identification
The onboard EEPROM simplifies system recognition and retains essential product data for ease of identification and management.

Package Included:
1 x PCIe To 2-Channel SATA HAT
2 x SATA Adapter Cable
1 x 16-Pin PCIe Cable
1 x Screws Pack
