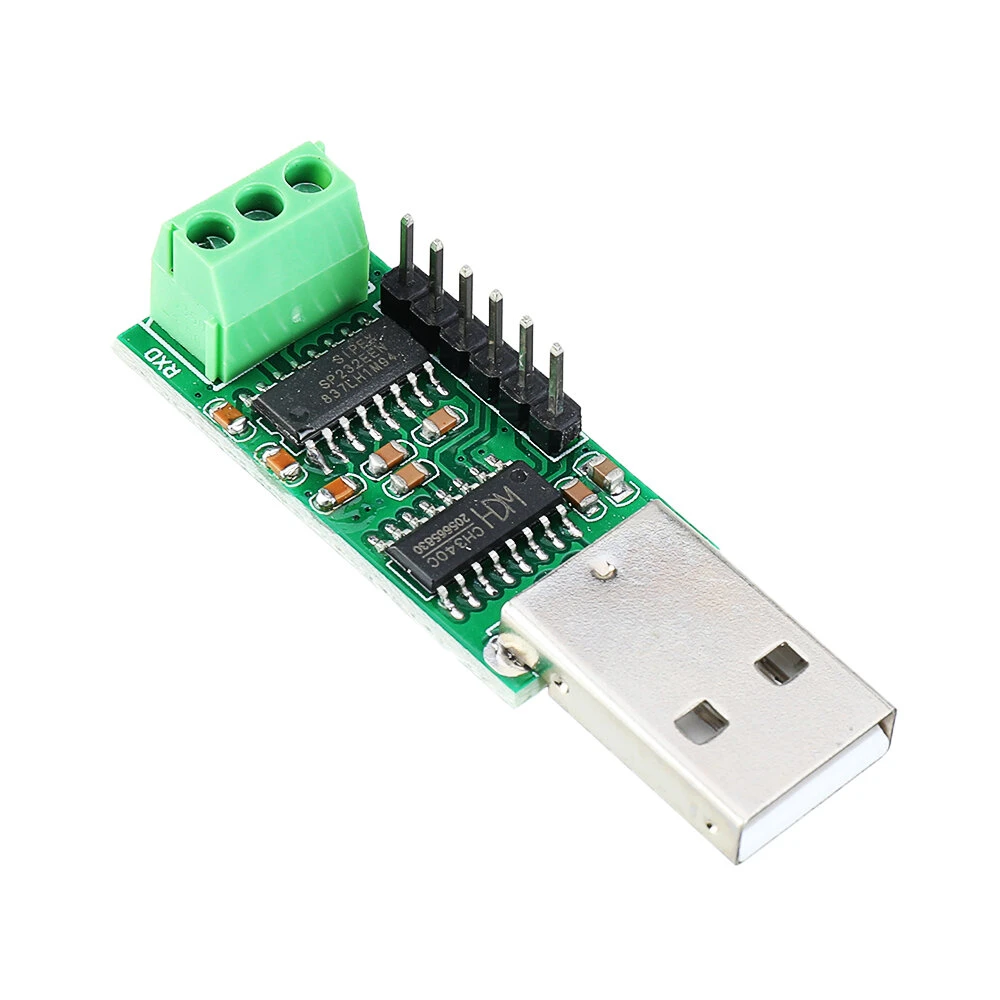

USB to Serial Port Multi-function Converter Module RS232 TTL CH340 SP232 IC Win1

5.04 ratings
AI Summary
Converter Board for everyday users

The USB to Serial Port Multi-function Converter Module RS232 TTL CH340 SP232 IC Win1 by Pricio is a mid-range converter board designed for everyday users. Customers praise its fast and responsive.

✓ fast and responsive
₹2,000
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

Total: ₹2,000
Buying tip: A well-rounded choice at a fair price. Recommended for most buyers.
Estimated delivery: 4 Aug – 18 Aug
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience
Share:
SKU: bg-1666484Category: Converter Board

About This Product

The USB to Serial Port Multi-function Converter Module RS232 TTL CH340 SP232 IC Win1 by Pricio is a mid-range converter board designed for everyday users. Customers highlight its fast and responsive.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Description:

1. The USB driver IC is CH340, stable performance, fully compatible with USB1.1,USB2.0,USB3.0 , baud rate up to 256 kbps;
2. The  RS232 bus IC is SP232,this is Industrial grade RS232 conversion IC
3. USB to RS232 serial port, 3 pin pin assignment as below :   GND TX RX
4. USB to TTL serial port, 6 pin assignment as below :  GND 5V RXD TXD  CTS DTR
5. Compatible with PRO MINI download port
6. Uses : CH340 replace FT232 CP2102 PL2303 for Arduiuo Pro Mini Download
7. Size : 36 x 14 x 12 mm(Does not include USB ports )

Supports the following Windows OSes:

Windows 98SE
Windows ME
Windows 2000 SP4
Windows XP SP2 and above (32 & 64 bit)
Windows Server 2003 (32 & 64 bit)
Windows Server 2008 / 2008 R2 (32 & 64 bit)
Windows Vista (32 & 64 bit)
Windows 7 (32 & 64 bit)
Windows 8
Windows 8.1
Windows 10

Application :

RS232 Bus device
TTL232 Communication MCU FPGA/CPLD ARM AVR PIC
Ardunuo PRO mini downloader cable
PLC Modubs device
Camera PTZ
MODEM
Computer communication terminal

Package Included:

1 x USB to Serial Port Multi-function Converter Module
