UNI-T UT673PV+ 5-1800W Solar MPPT Meter PV Module Maximum Power Meter Bluetooth Photovoltaic Panel Tester Vmp Imp Voc Isc Test

Name: UNI-T UT673PV+ 5-1800W Solar MPPT Meter PV Module Maximum Power Meter Bluetooth Photovoltaic Panel Tester Vmp Imp Voc Isc Test
Brand: UNI-T
SKU: 2050041
Price: 8991 INR
Availability: InStock

28+ bought in past month

AI Summary

product for premium buyers

The UNI-T UT673PV+ 5-1800W Solar MPPT Meter PV Module Maximum Power Meter Bluetooth Photovoltaic Panel Tester Vmp Imp Voc Isc Test by UNI-T is a premium product designed for premium buyers.

✓ wireless convenience

₹8,991

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

Model: 1

Quantity

Total: ₹8,991

Buying tip: A top-tier option — the best features and quality available in this category.

Estimated delivery: 23 Aug – 6 Sept

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience

SKU: bg-2050041

About This Product

The UNI-T UT673PV+ 5-1800W Solar MPPT Meter PV Module Maximum Power Meter Bluetooth Photovoltaic Panel Tester Vmp Imp Voc Isc Test by UNI-T is a premium designed for premium buyers. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:

Model: UT673PV+

Open-circuit voltage measurement:

10.0–99.9V; resolution 0.1V; accuracy ±(1.5%+5)

100–150V; resolution 1V; accuracy ±(1.0%+5)

Power measurement:

5–999.9W; resolution 0.1W; accuracy: 5–10W ±(1.0%+5); 11–500W ±(1.0%+10); 501–999W ±(1.5%+5)

1000–2200W; resolution 1W; accuracy ±(1.0%+5)

Short-circuit current: 0–20A; resolution 0.1A; accuracy ±(1.5%+5)

Functions: reverse connection protection; overvoltage protection; overcurrent protection; over‑temperature warning; overpower protection; HOLD/READ; manual measurement; automatic measurement; calibration mode; Bluetooth/backlight

Operating temperature: 0°C–40°C (32°F–104°F)

Storage temperature: −10°C–50°C (14°F–122°F)

Relative humidity: below 0°C–30°C <75%; between 30°C–40°C <50%

Altitude: not exceeding 2000 m

Safety regulation level: CAT 0 150V

Power supply: 2 x 1.5V AA batteries(not included)

Body color: Red + gray

Dimensions: 165 mm x 80 mm x 41 mm

Features:

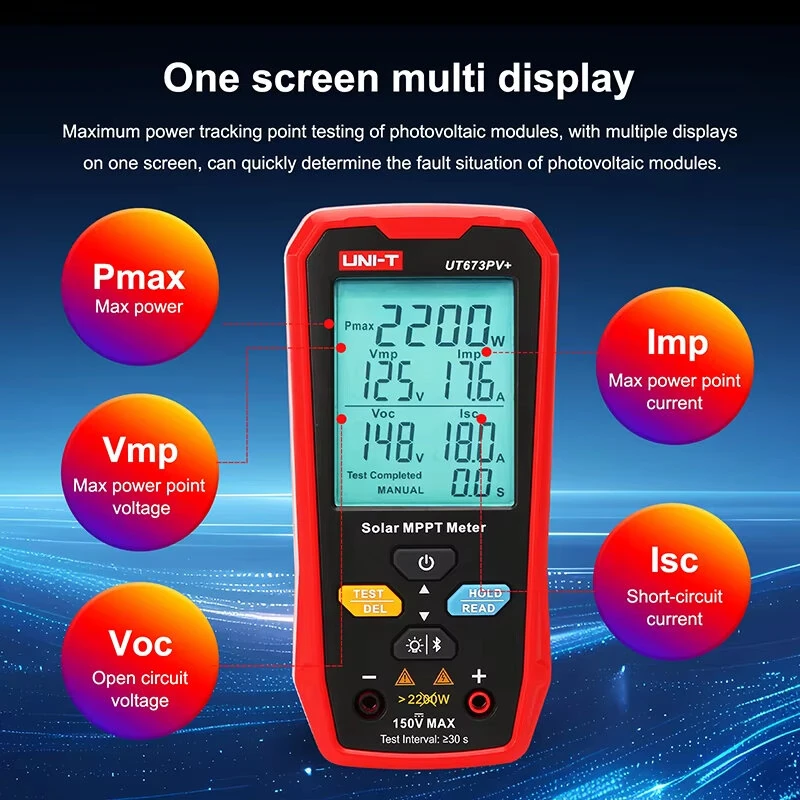

1. Measures open‑circuit voltage, short‑circuit current, and power from 5W to 2200W with fine resolution.

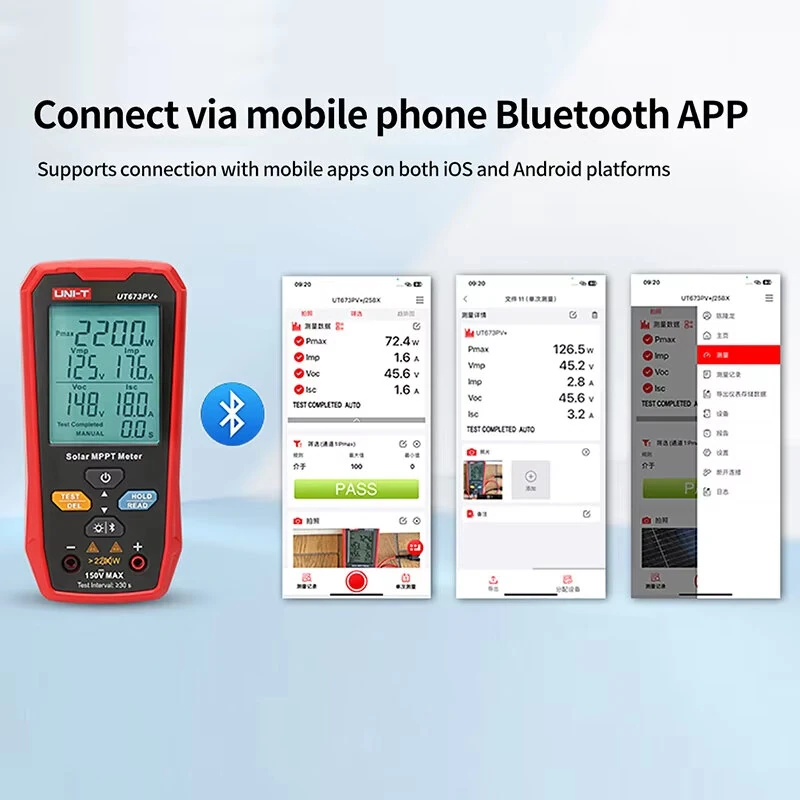

2. Bluetooth app connection for mobile phones on both iOS and Android platforms.

3. Multiple protections: reverse connection, overvoltage, overcurrent, over‑temperature, and overpower.

4. Manual or automatic measurement with HOLD/READ and screen backlight.

5. Compact body (165×80×41 mm) for easy carrying during photovoltaic tasks.

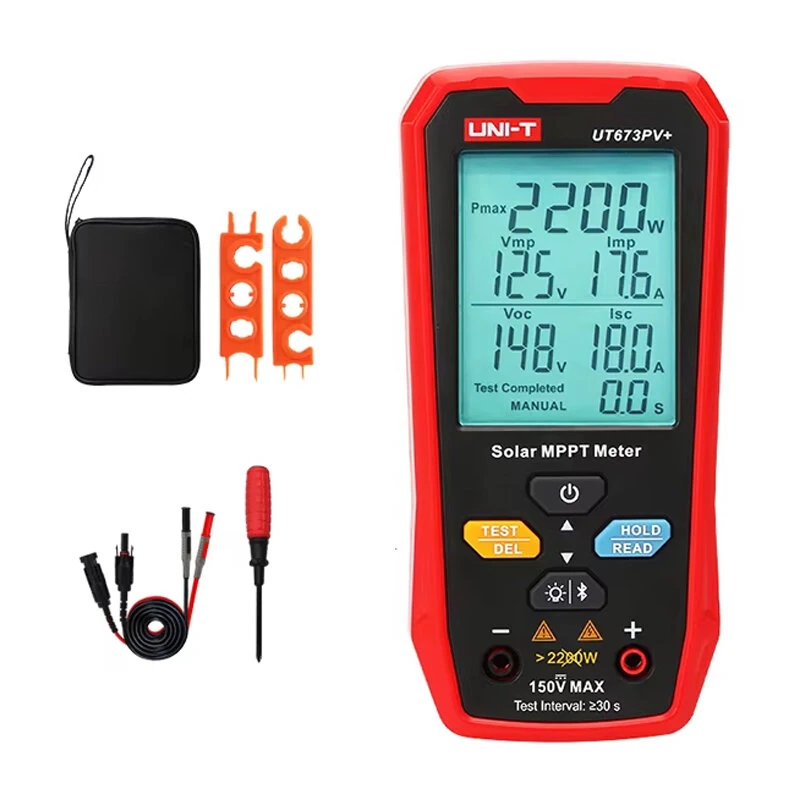

Package included:

1 x UT673PV+ Solar MPPT Meter

1 x Instruction Manual

1 x line UT-L101

1 x Special tools for photovoltaics

Product Safety Information

Setup Guide

Identify the pins

Locate VCC (power), GND (ground), and data pins (SDA/SCL for I2C, MOSI/MISO for SPI, or TX/RX for UART). Refer to the pinout diagram on the product page.

Wire to your microcontroller

Connect VCC to 3.3V or 5V (check the module spec), GND to GND, and data pins to the appropriate GPIO pins on your Arduino or Raspberry Pi.

Install libraries

In Arduino IDE, go to Sketch → Include Library → Manage Libraries and search for the sensor library. Install the recommended version.

Upload example sketch

Open File → Examples → [library name] → Basic Example. Upload to your board and open Serial Monitor to view output.

Calibrate if needed

Some sensors (temperature, humidity, distance) may need a short warm-up period or calibration. Run the calibration sketch if provided.
