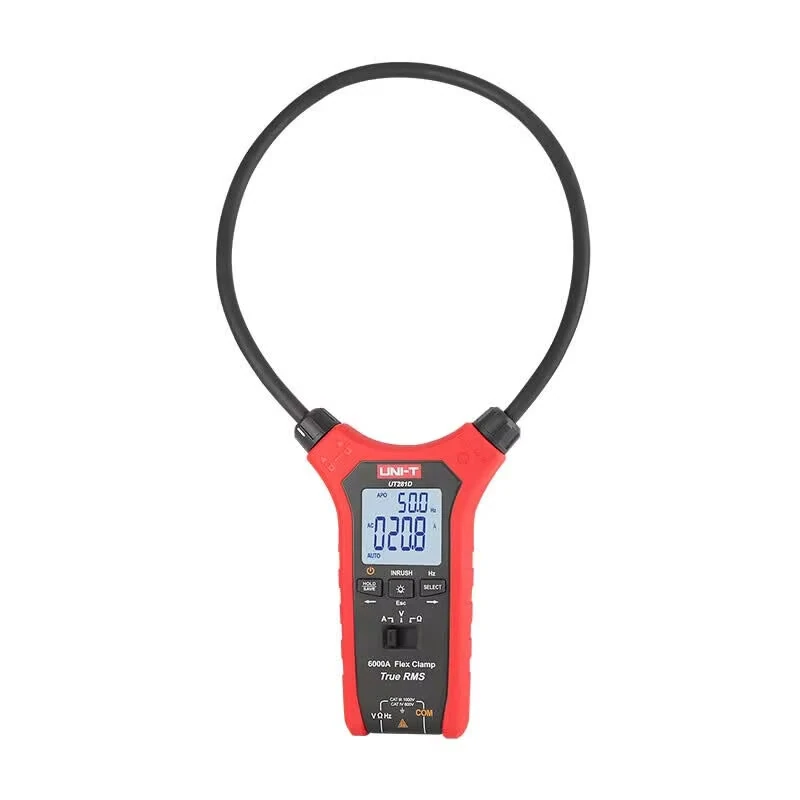

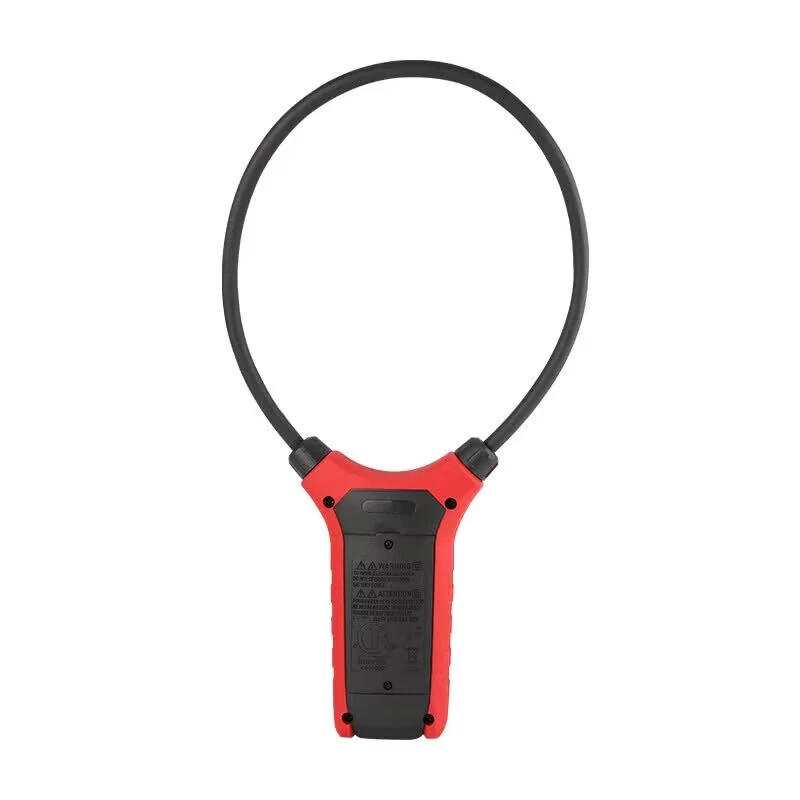

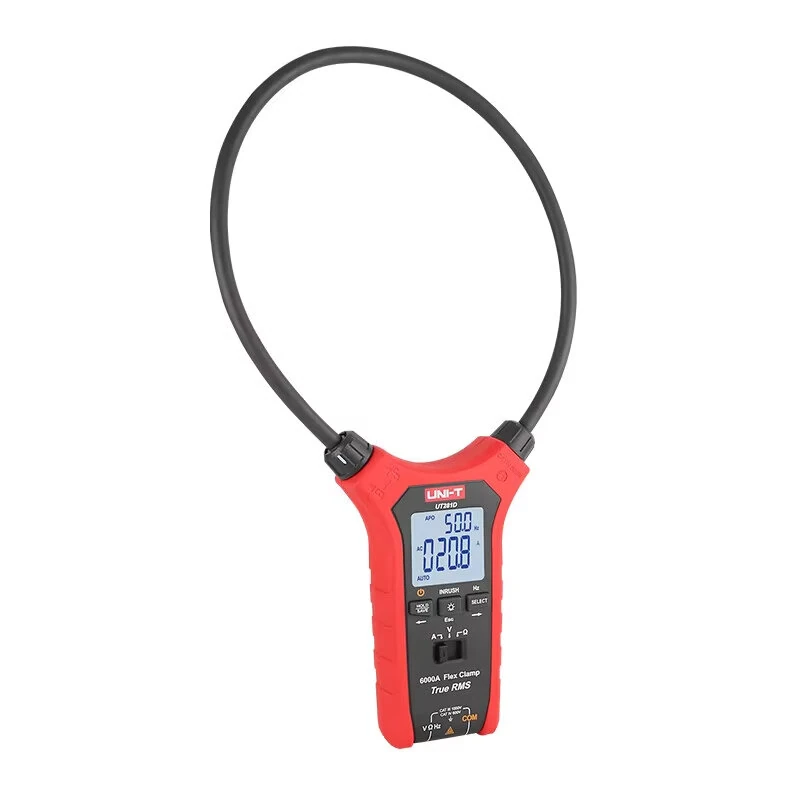

UNI-T UT281D Digital Flexible Current Clamp True RMS 6000A AC Rogowski Coil Tester 550mm Flex Coil 6000 Counts
The UNI-T UT281D Digital Flexible Current Clamp True RMS 6000A AC Rogowski Coil Tester 550mm Flex Coil 6000 Counts by UNI-T is a premium product designed for premium buyers.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Color: Black red
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The UNI-T UT281D Digital Flexible Current Clamp True RMS 6000A AC Rogowski Coil Tester 550mm Flex Coil 6000 Counts by UNI-T is a premium designed for premium buyers. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification
Model: UT281D
DC Voltage (DCV) Range: 6.000V / 60.00V / 600.0V / 1000V
DC Voltage (DCV) Resolution: 0.001V / 0.01V / 0.1V / 1V
DC Voltage (DCV) Basic Accuracy: ±(0.8%+2), 1000V: ±(1.0%+2)
AC Voltage (ACV) Range: 6.000V / 60.00V / 600.0V / 1000V
AC Voltage (ACV) Resolution: 0.001V / 0.01V / 0.1V / 1V
AC Voltage (ACV) Basic Accuracy: ±(1.0%+3), 1000V: ±(1.2%+3)
AC Current (ACA) Range: 60.00A / 600.0A / 6000A
AC Current (ACA) Resolution: 0.01A / 0.1A / 1A
AC Current (ACA) Basic Accuracy: 60.00A, 600.0A: ±(2.0%+5); 6000A: ±(2.5%+5)
Current Frequency: 10.0Hz~1000Hz
Current Frequency Resolution: 0.1Hz~0.1kHz
Current Frequency Accuracy: ±(0.5%+3)
Voltage Frequency: 10.0Hz~30.0kHz
Voltage Frequency Resolution: 0.1Hz~0.1kHz
Voltage Frequency Accuracy: ±(0.5%+3)
INRUSH Current Range: 100.0A / 6000A
INRUSH Current Resolution: 0.1A / 1A
INRUSH Current Accuracy: ±10.0%
Resistance Range: 600.0Ω / 6.000KΩ / 60.00KΩ / 600.0KΩ / 6.000MΩ / 60.00MΩ
Resistance Resolution: 0.1Ω / 0.001KΩ / 0.01KΩ / 0.1KΩ / 0.001MΩ / 0.01MΩ
Resistance Accuracy: 600.0Ω to 600.0KΩ: ±(1.0%+5); 6.000MΩ: ±(2.0%+5); 60.00MΩ: ±(2.5%+5)
Display Counts: 6000
Stored Data: 999 Groups
Flex-Coil Length: 550mm
True RMS: Yes
Continuity Test: Yes
Inrush-Current Test: Yes
Backlight: Yes
Data-Hold: Yes
Low-Battery Indication: Yes
Auto-Power-Off: Yes
High-Voltage Warning: Yes
Over-Range HV Alarm: Yes
Operating Environment: Calibration:18°C~28°C(64°F~82°F), Humidity ≤75%; Working Temp:0°C~40°C; Storage Temp:-10°C~50°C
Temperature Coefficient: 0.2×[Accuracy]/°C [<18°C or >28°C]
Safety Rating: CAT III 1000V / CAT IV 600V
Features
1) 6000-count LCD display with backlight for clear readout.
2) 550mm flexible coil design for AC current measurement up to 6000A.
3) True RMS measurement with AC/DC voltage, resistance, and frequency functions.
4) Supports INRUSH current test, continuity test, and data hold.
5) Stores up to 999 groups and includes high-voltage warning and over-range HV alarm.
Package included
1 x UNI-T UT281D Digital Flexible Current Clamp
