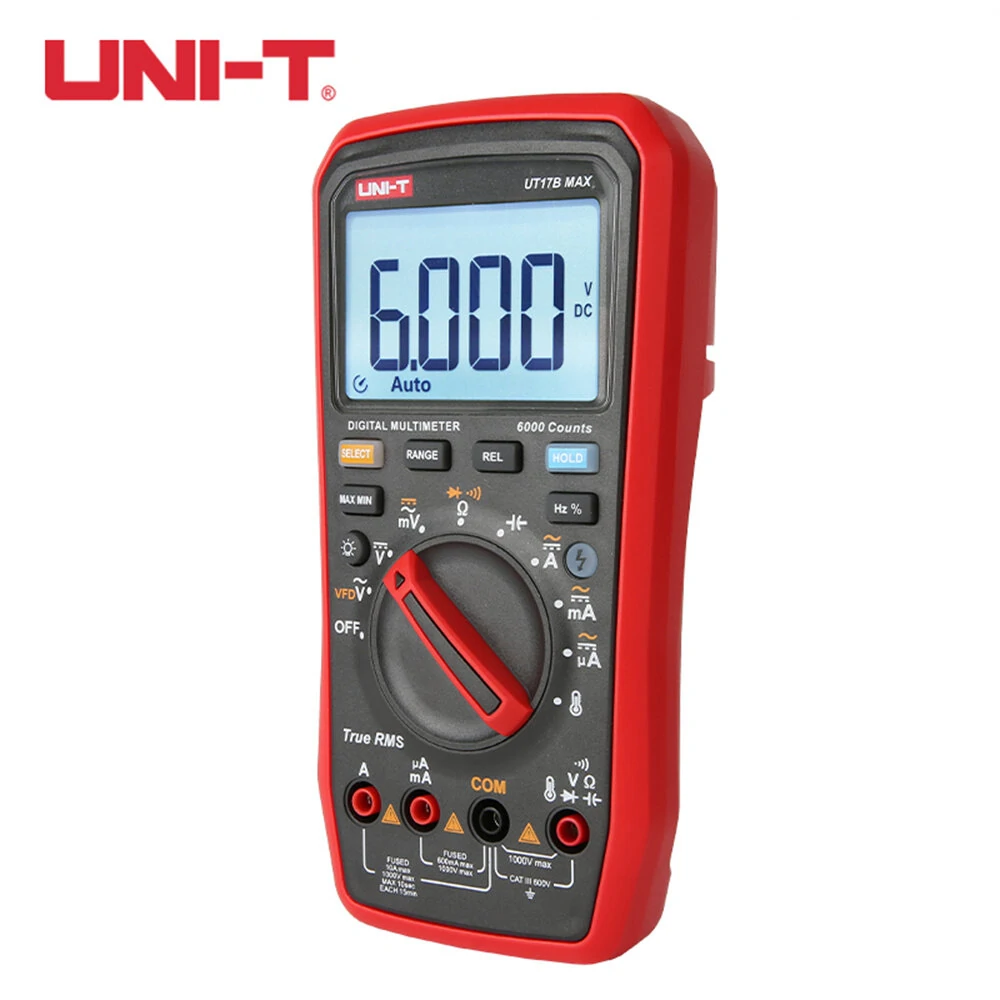

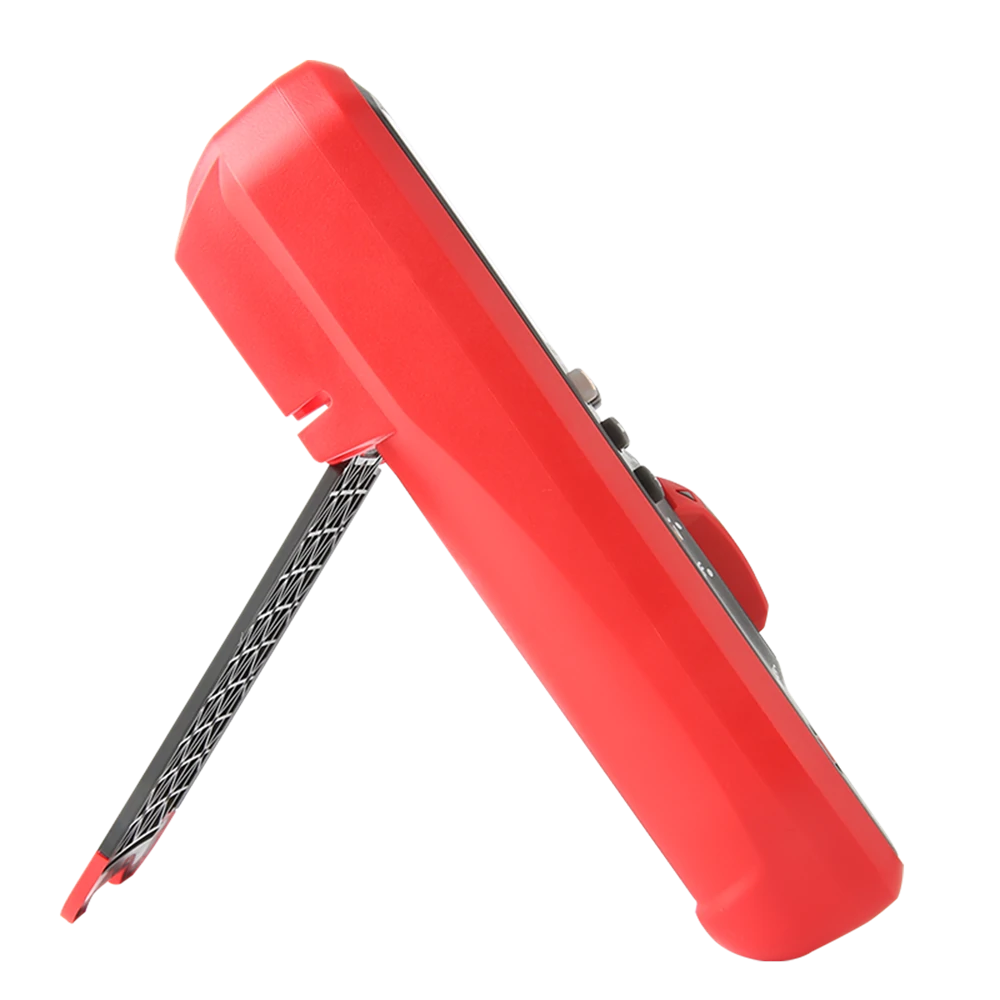

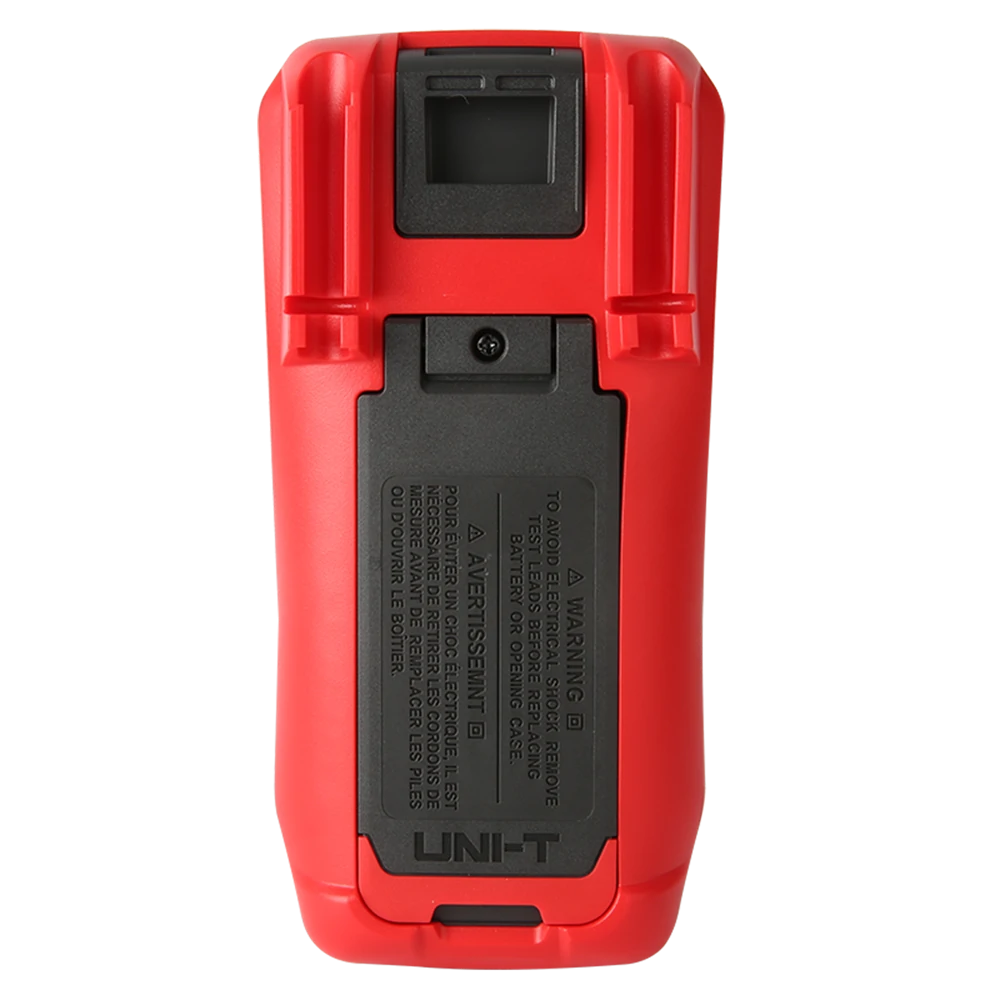

UNI-T UT17B MAX True RMS Digital Multimeters Voltmeter Auto Range Ammeter Frequency Capacitance Tester VFD

Features:

Exceptional Measurement Ranges:

The UT17B MAX offers varied measurement capabilities. With voltage ranges both in DC (600.0mV to 1000V) and AC (600.0mV to 1000V), it ensures precise readings. The VFD voltage stands at 600.0V, ensuring you have all the necessary voltage measurements within your grasp.

Accurate Current Detection:

Detect even the slightest currents with accuracy. Whether it's AC currents ranging from 600.0μA to 10.00A or DC currents within similar margins, this multimeter ensures you won't miss a beat. Such comprehensive current readings ensure safety and precise diagnostic.

In-depth Resistance & Capacitance Measurements:

Resistance measurements from 600.0Ω to 60.00MΩ and capacitance readings from 6.000nF to 6000μF provide detailed insights. These specifications are pivotal for those dealing with intricate electronics and ensure your devices function optimally.

Frequency and Duty Cycle:

Whether you are working on a basic electrical task or dealing with advanced gadgets, understanding the frequency is key. With a range from 10Hz to 10MHz and a duty cycle from 1% to 99.9%, the UT17B MAX provides a broad spectrum of frequency readings.

Temperature Readings Included:

For those tasks that require temperature diagnostics, the UT17B MAX won't let you down. It provides readings from as low as -55℃ all the way up to 500℃, ensuring no element remains unchecked in your electrical work.

Voltage (DC): Ranges from 600.0mV to 1000V

Voltage (AC): Ranges from 600.0mV to 1000V

VFD (Voltage): 600.0V

Current (AC & DC): Ranges from 600.0μA to 10.00A

Resistance: From 600.0Ω to 60.00MΩ

Capacitance: From 6.000nF to 6000μF

Frequency(Hz): From 10Hz to 10MHz

Duty cycle: Ranges from 1% to 99.9%

Temperature: From -55℃ to 500℃

Power Supply: 2*1.5V AA

Product Weight: 455g

Dimensions: 182mmx91mmx45mm

Package Included:

1 x Digital Multimeter

1 x User Manual

4 x Test Leads (normal gold plated probe & Fine-tipped probe)

1 x K-type thermocouple
