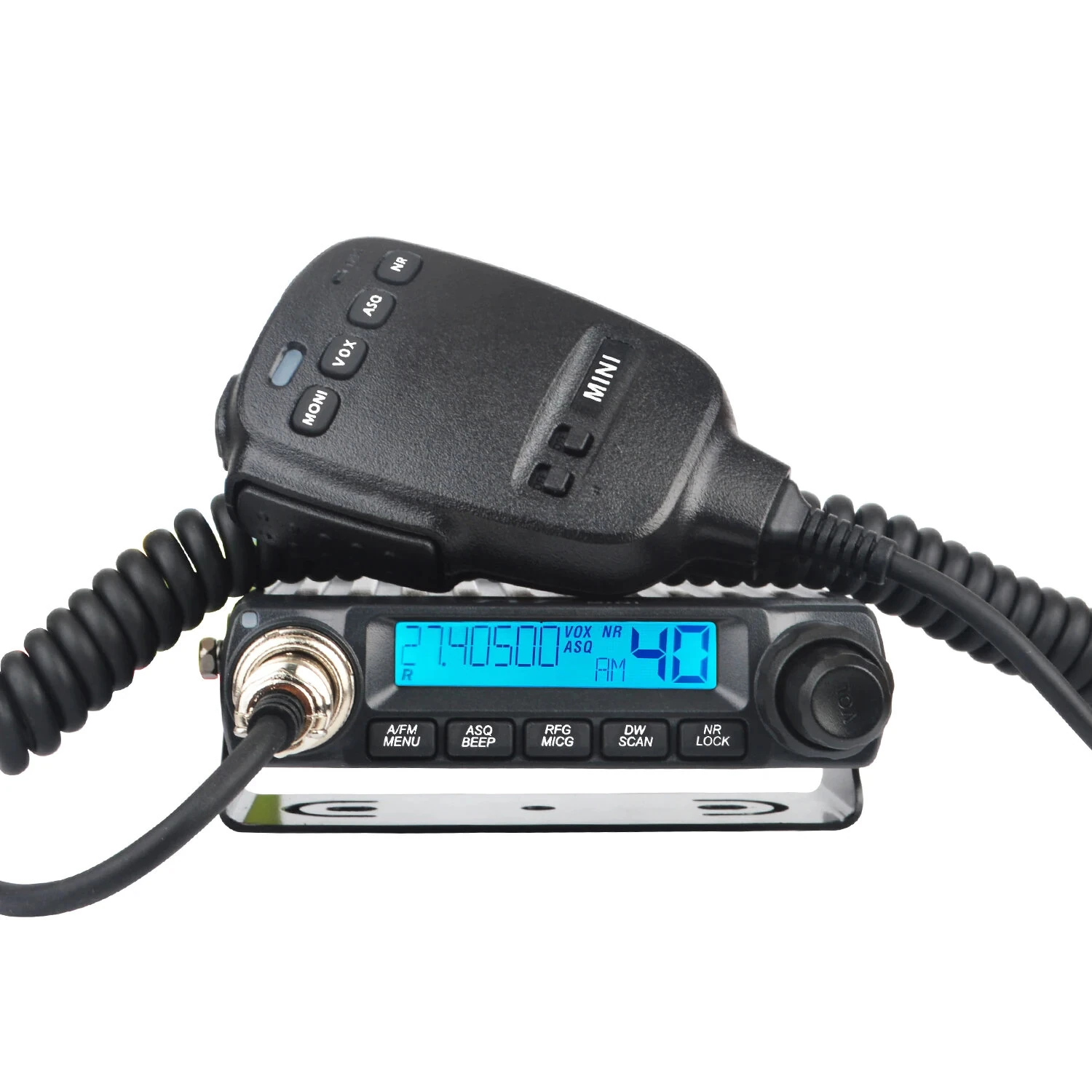

TYT CB Mini Radio 27MHz Mobile Transceiver 40 Channels FM AM Modulation 4W Compact European City Band Walkie Talkie UHF SO239 Connector
5.01 ratingThe TYT CB Mini Radio 27MHz Mobile Transceiver 40 Channels FM AM Modulation 4W Compact European City Band Walkie Talkie UHF SO239 Connector by TYT is a premium product designed for premium buyers. Customers praise its fast and responsive.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Color: Black
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The TYT CB Mini Radio 27MHz Mobile Transceiver 40 Channels FM AM Modulation 4W Compact European City Band Walkie Talkie UHF SO239 Connector by TYT is a premium designed for premium buyers. Customers highlight its fast and responsive.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specifications:
General:
Frequency Range: 26.96500-27.40500 MHz
Frequency Band: European CB Band (Citiy band)
Channels: 40 channels
Frequency Control: Phase-locked-loop Synthesizer
Frequency Tolerance: ±5.0ppm
Temperature Range: -20°C to +50°C

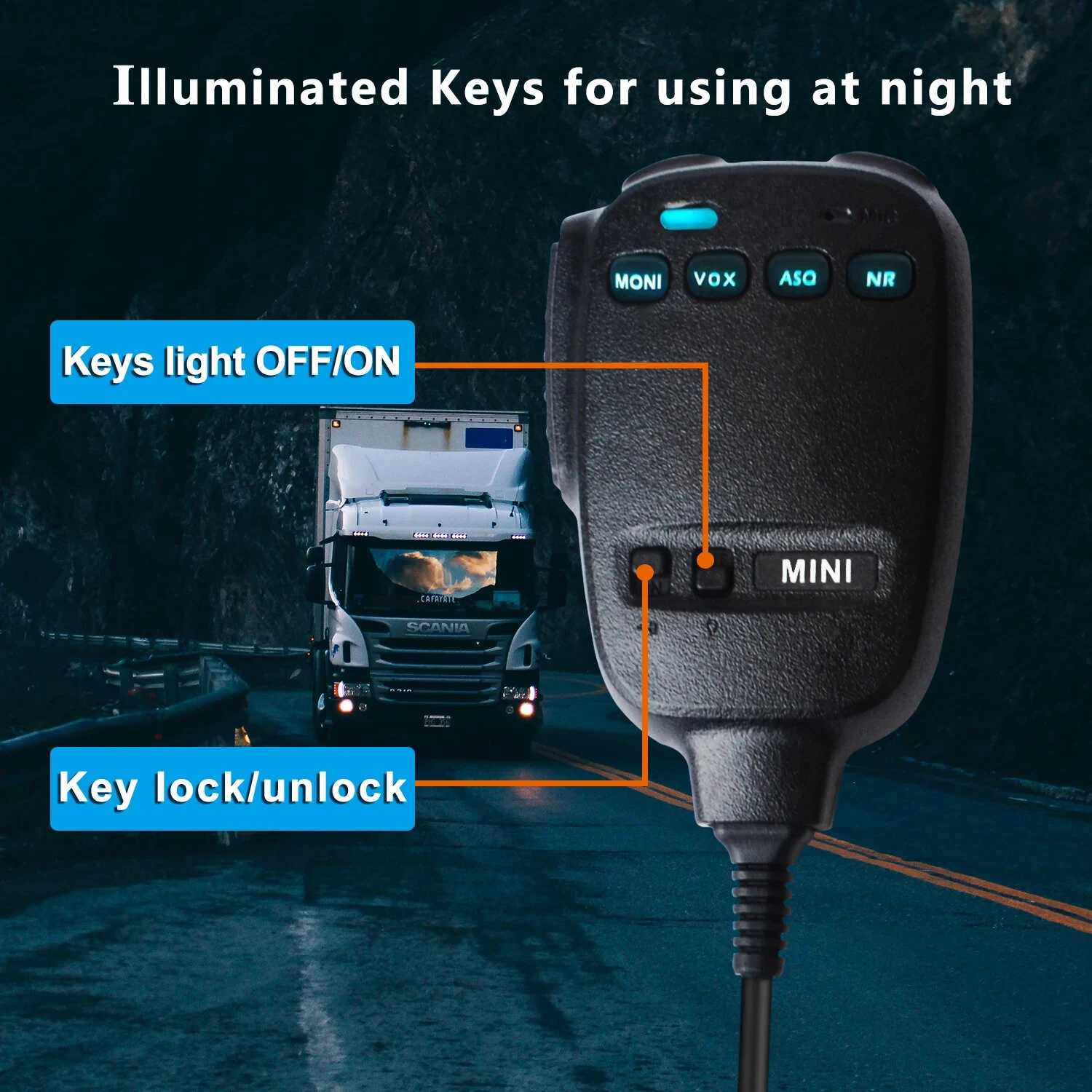

Microphone: Push-to-talk with UP/DN buttons and coiled cord
Input Voltage: 13.8V DC
Dimensions: 145 × 107 × 27 mm (radio body only)
Weight: 350 g (radio body only)
Antenna Connector: UHF, SO239
Transmitter:
Power Output: 4W
Current Drain: Max. 2A (with modulation)
Modulation: FM/AM
Unwanted Sideband: 50dB
Frequency Response: AM/FM: 450 to 2500Hz
Receiver:
Sensitivity:
AM: 1.0uV for 10dB (S+N)/N at greater than 1/2 watt of audio output
FM: 1.0uV for 20dB (S+N)/N at greater than 1/2 watt of audio output
Selectivity: AM: 6dB @3kHz, 50dB @9kHz
Adjacent-Channel Selectivity: 60dB AM/FM
Image Rejection: More than 65dB
IF Frequency: AM/FM: 10.695MHz 1st IF, 455kHz 2nd IF
RF Gain Control: 45dB adjustable
Automatic Gain Control (AGC): Less than 10dB change in audio output for inputs from 10uV to 100,000uV
Squelch: Adjustable, threshold less than 0.5uV
Audio Output Power: 2W @16 ohms
Frequency Response: AM/FM: 300 to 2800Hz
Features:
1.Precise Frequency Control with PLL Synthesizer
Operational with a Phase-Locked-Loop Synthesizer, this transceiver guarantees stable, accurate frequency performance over the 40 CB channels.
2.Compact Size for Space-Saving Installation
Measuring only 145 x 107 x 27 mm, this mini device is designed for easy installation in various vehicles without occupying much space.
3.Versatile Dual Modulation Modes
Supports both AM and FM modulation, allowing seamless compatibility for different communication needs within the European CB band.
4.Enhanced Signal Filtering and Selectivity
Features advanced selectivity (60dB) and superior image rejection (>65dB) for clear, interference-free communication.
5.Adjustable RF Gain and Squelch Control
Tailor audio settings to your environment with adjustable RF gain (45dB) and precise squelch control to reduce unwanted background noise.
Package Included:
1 × TYT CB Mini Radio Body
1 × Speaker Microphone
1 × Bracket
1 × Power Cable
1 × Screw Set
1 × Hook for Speaker Mic
2 × Fuse
1 × ENG Manual
