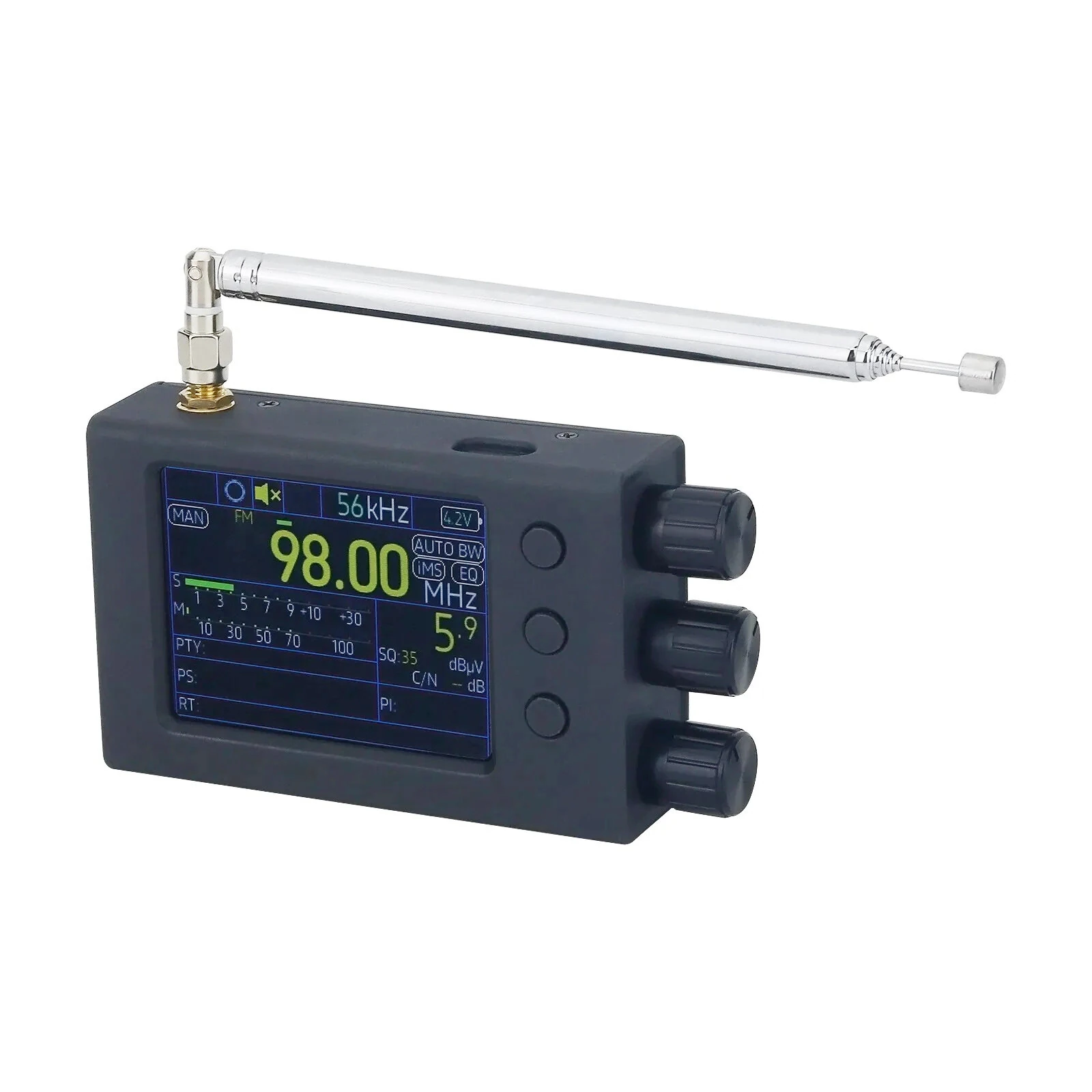

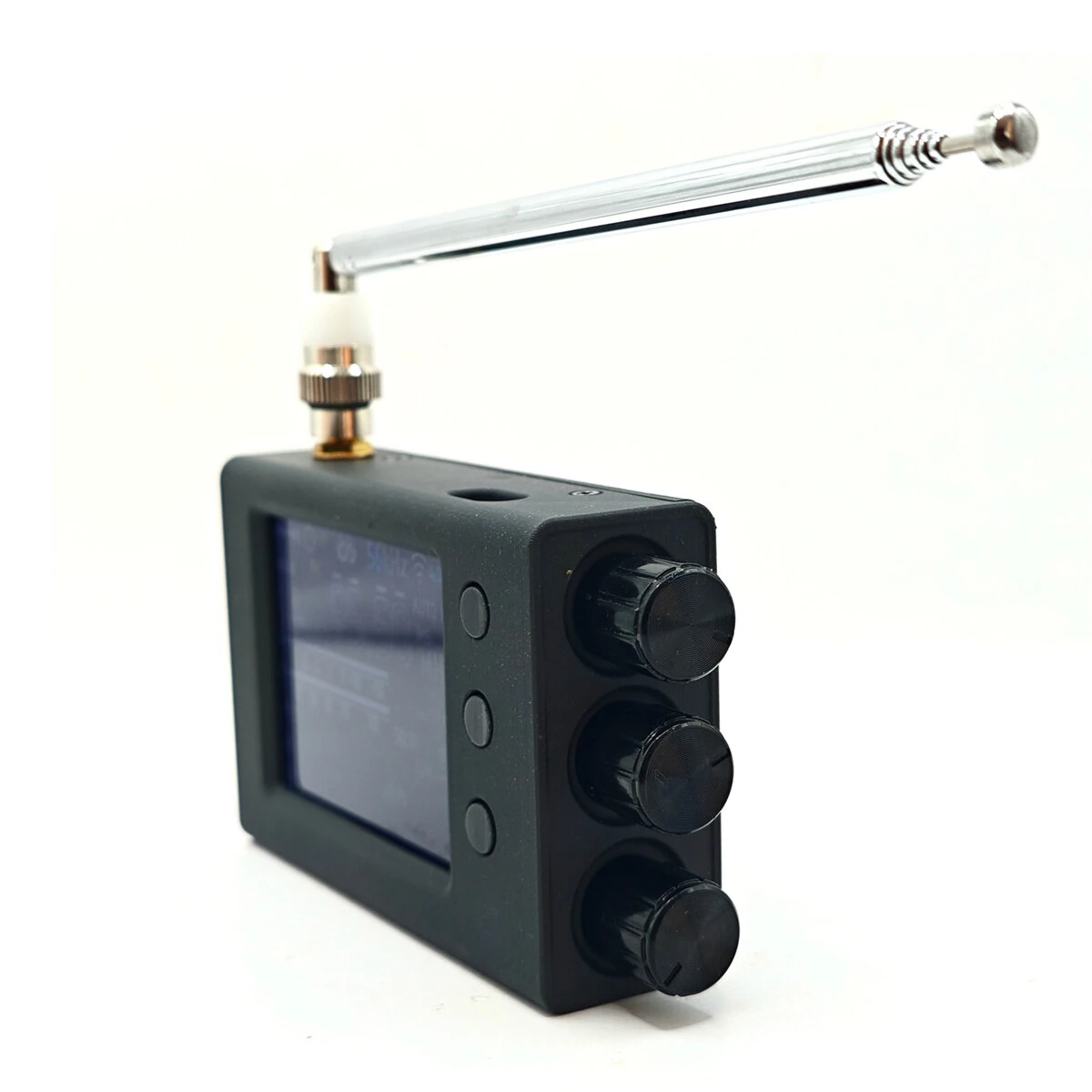

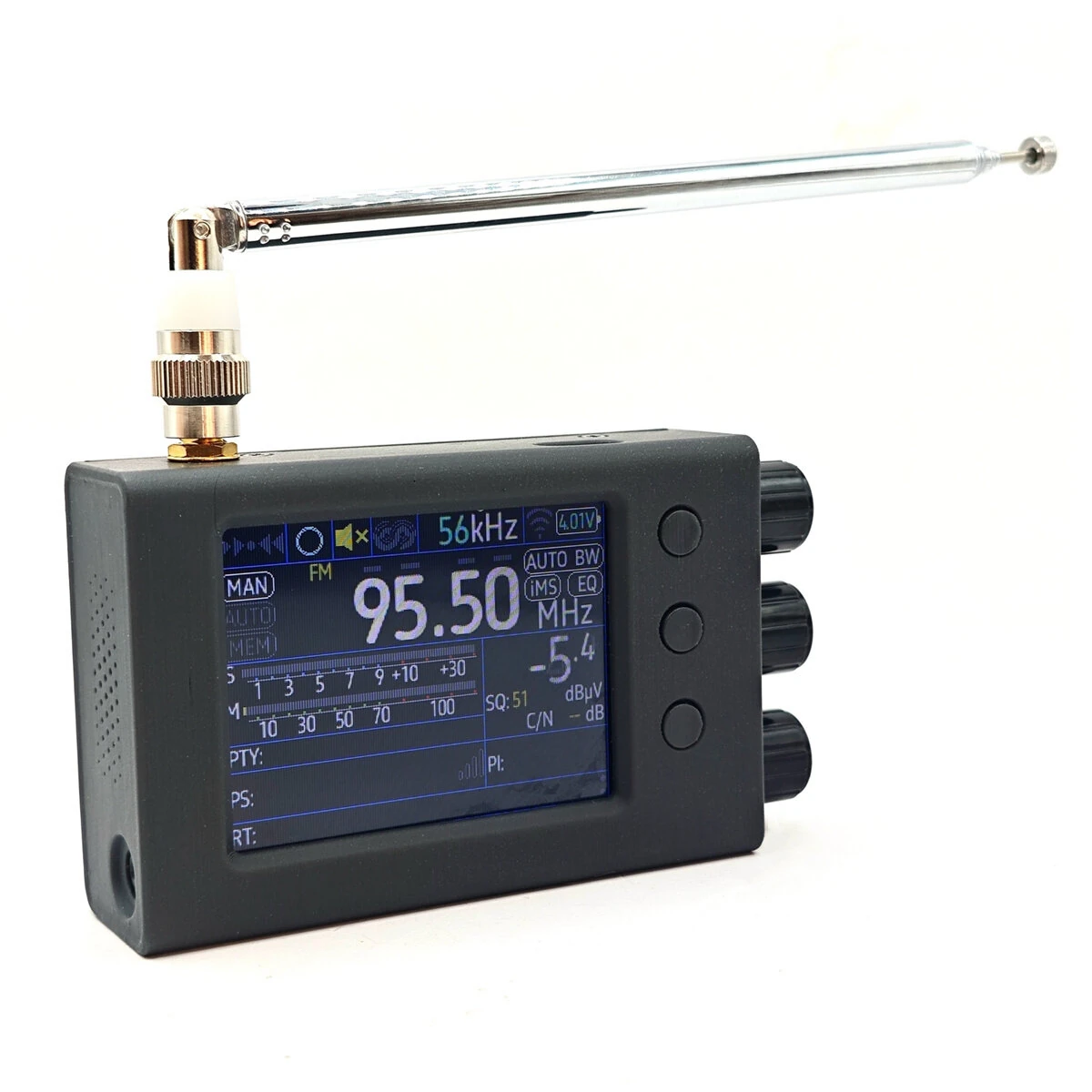

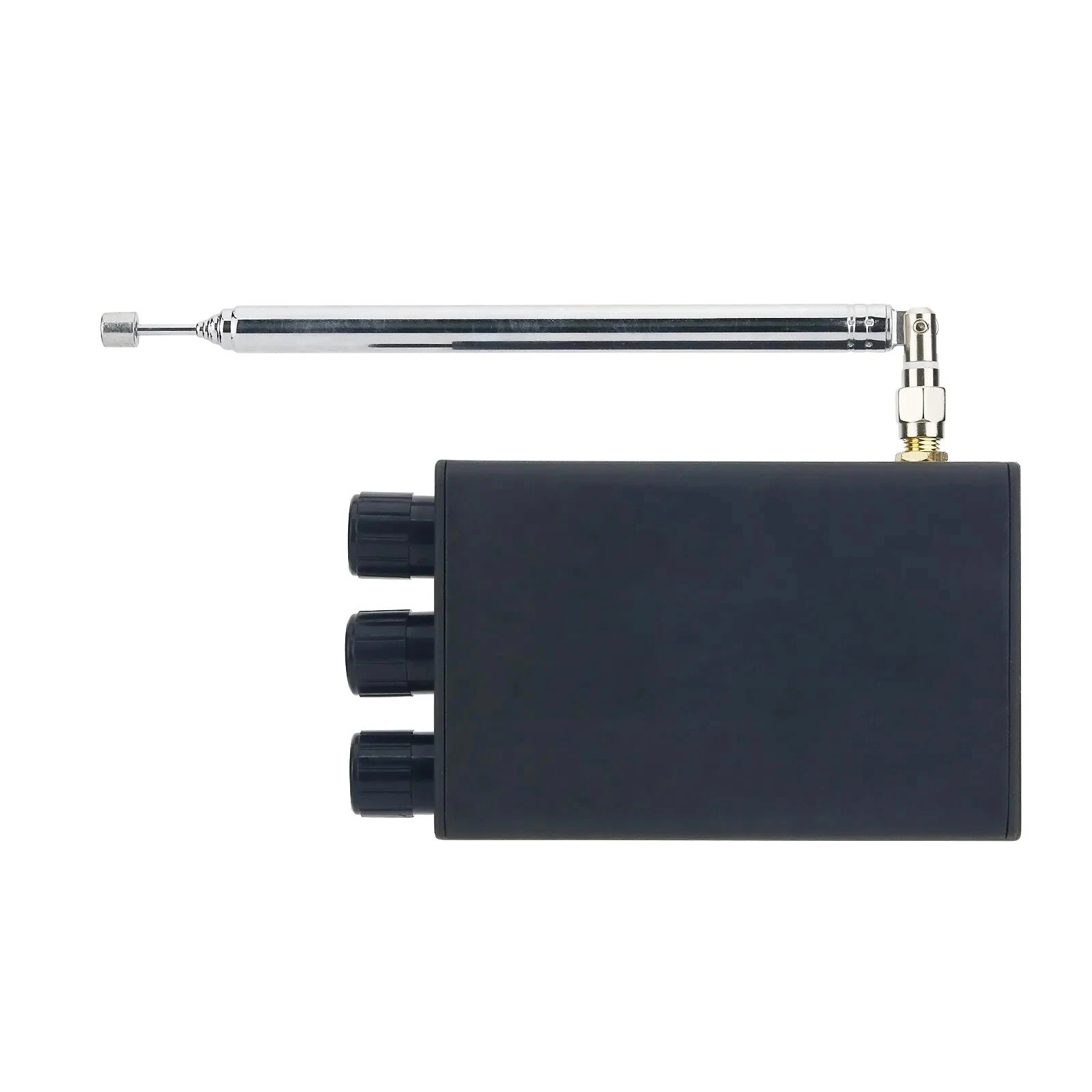

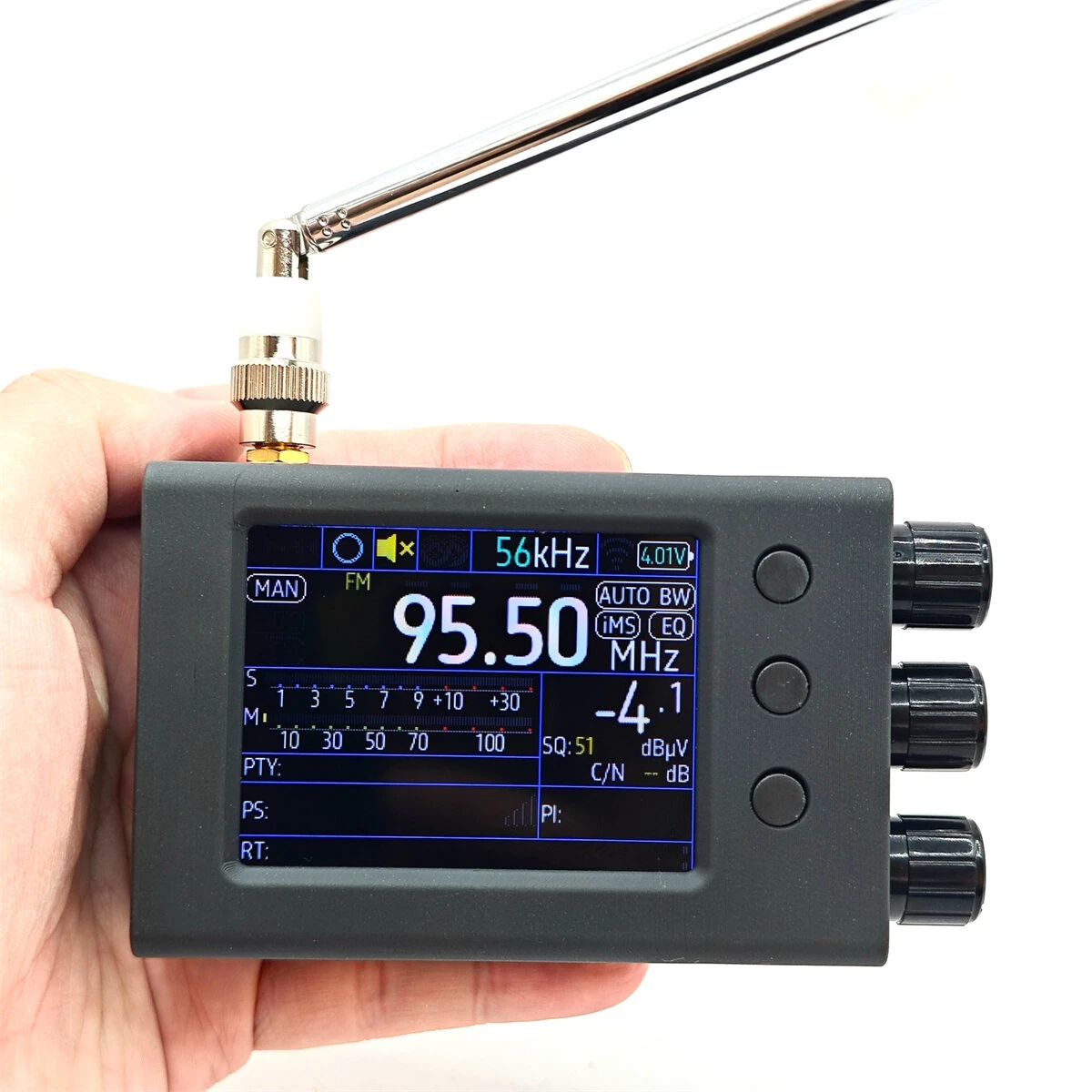

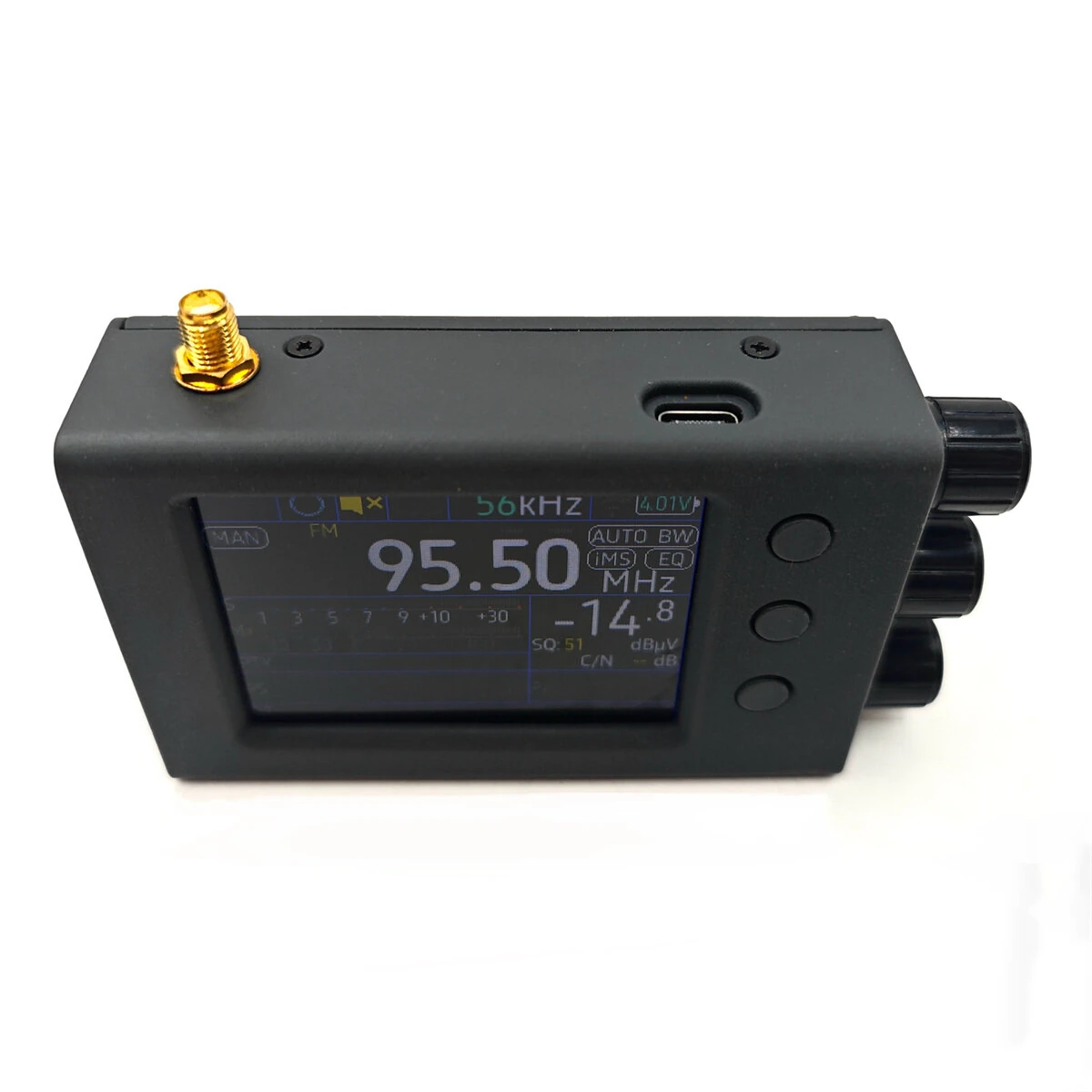

TEF6686 64-108MHZ Portable Full Band Radio Receiver AM/FM/SW/MW/LW/RDS with 2.8 inch Screen
5.03 ratingsThe TEF6686 64-108MHZ Portable Full Band Radio Receiver AM/FM/SW/MW/LW/RDS with 2.8 inch Screen is a premium test & measuring module designed for premium buyers. Customers praise its excellent build quality and compact and portable.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
27% Off — you save ₹3,549 on this product!
Color: Black
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The TEF6686 64-108MHZ Portable Full Band Radio Receiver AM/FM/SW/MW/LW/RDS with 2.8 inch Screen is a premium test & measuring module designed for premium buyers. Customers highlight its excellent build quality and compact and portable.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Description:
- With TEF6686 automotive-grade receiver chip for NXP, radio receiver has high-tech anti-interference and excellent sound quality performance. Its 2.8-inch color screen can display more station news and information.
- It boasts adjustable bandwidths, RDSreception and adjustable frequency range of 64-108MHZ. Thus, the HAMGEEK full band radio is more suitable for amateurs to carry out FMDX remote reception.
Specifications:
- Dimensions: 115 x 68 x 27mm/4.5 x 2.7 x 1.1"
- Speaker: Cavity 4Ω 2W
- Battery: 4.2V 2800MAH
- Screen: ST7789 2.8"
- Charging voltage: DC 5V
- Antenna interface: SMA-K
- Weight: 140g/0.3lb
- Firmware: 2.00.2
Functions:
- FM: 65-108MHz. Intelligent stepping 0.01MHz/0.1MHz/1MHz/10MHz. Adjustable bandwidth: 56/64/72/84/97/144/133/151/168/184/200/217/236/254/287/311KHz
- SW: 1700-27000kHz. Intelligent stepping 1kHz/10kHz/100kHz. Adjustable bandwidth 3/4/6/8khz
- MW: 522-1620kHz. Intelligent stepping 1kHz/10kHz/100kHz and adjustable bandwidth 3/4/6/8kHz
- LW: 144-519kHz. Intelligent stepping 1kHz/10kHz/100kHz and adjustable bandwidth 3/4/6/8khz
- Station selection methods: manual tuning, automatic tuning and access to the stored stations
- Multiple languages: Chinese, Norsk, Espanol, Portugues, English, Nededlands, Polski, Hrvatski, Ltaliano, etc. (English by default). (Language setting: long press Mode button to enter the menu ---display setting-language)
- Backlight brightness and screensaver time of the screen can be adjusted
- You can freely choose different theme interfaces and colors
- Radio supports squelch adjustment, optional 3.5mm stereo headphones and loudspeaker for listening
- Supports RDSand displays station name, program name, etc.
- Can be charged by a charger or a computer, with charging status indicator light
- Type-c interface makes it easy to charge and to connect with a computer
- Portable and more compact design makes it more convenient to carry
Package Include:
1x TEF6686 Radio Receiver
1x Antenna
Attention:
We would like to express our gratitude to the PE5PVB open source project. Github.com/PE5PVB/TEF6686 ESP32. Users can download the latest version on the website. However, it should be notedthat crystal oscillator for the TEF6686 chip is 12MHz, and the screen is driven by ST7789. Compile and program after changes.
