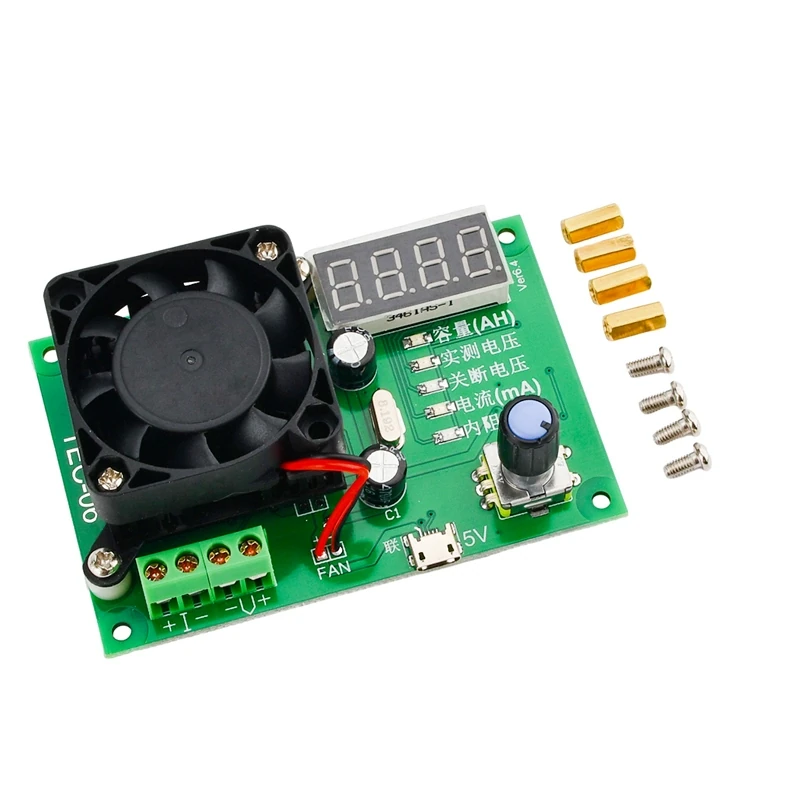

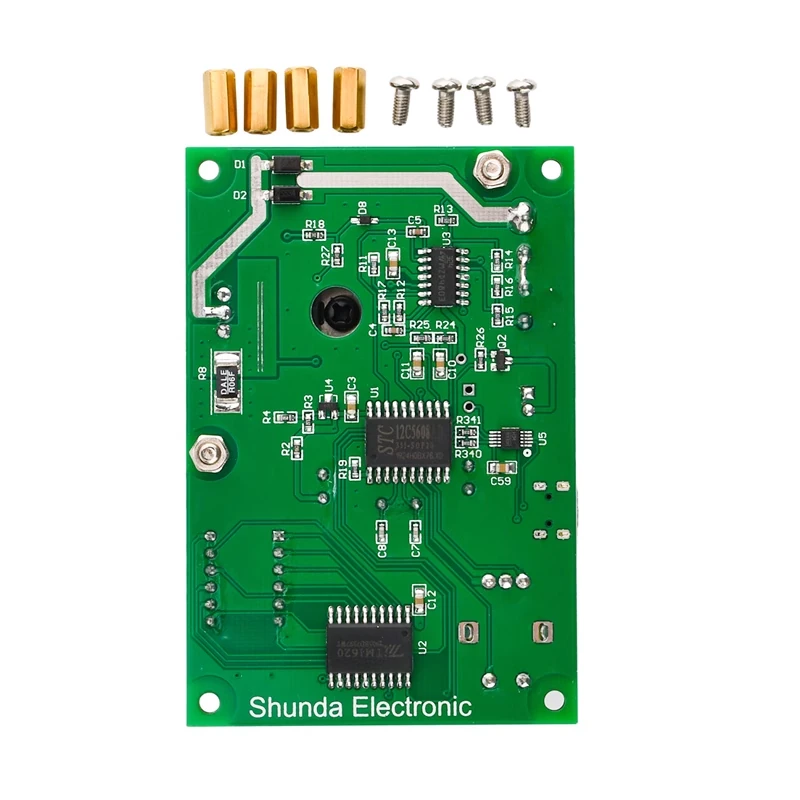

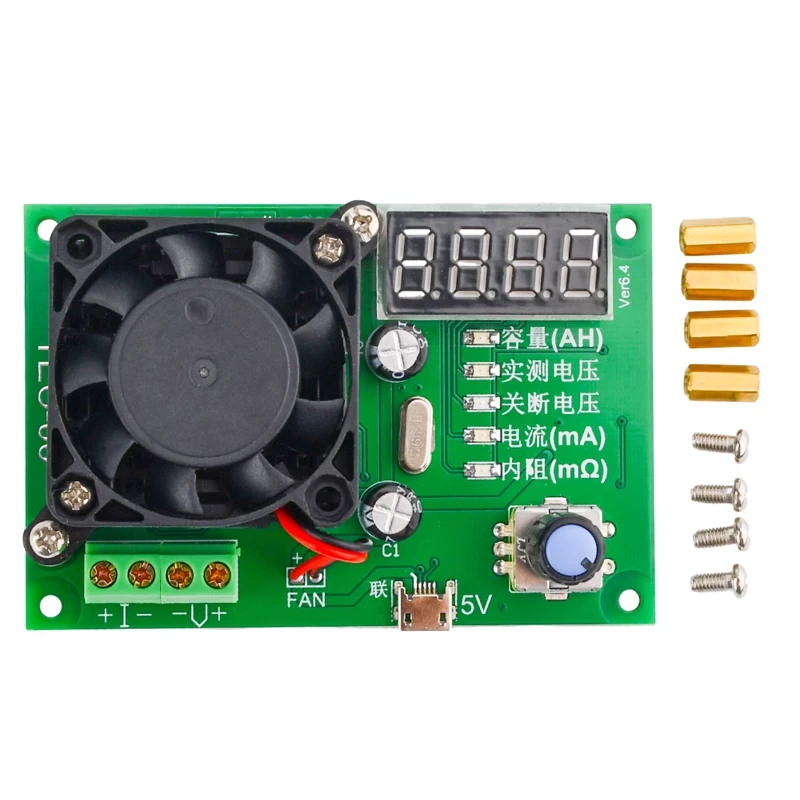

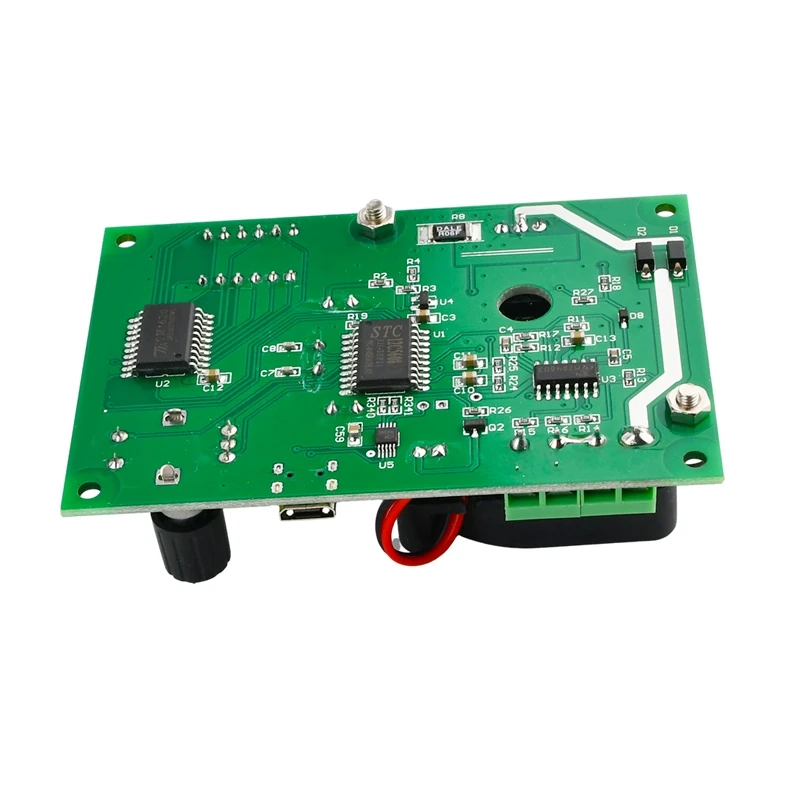

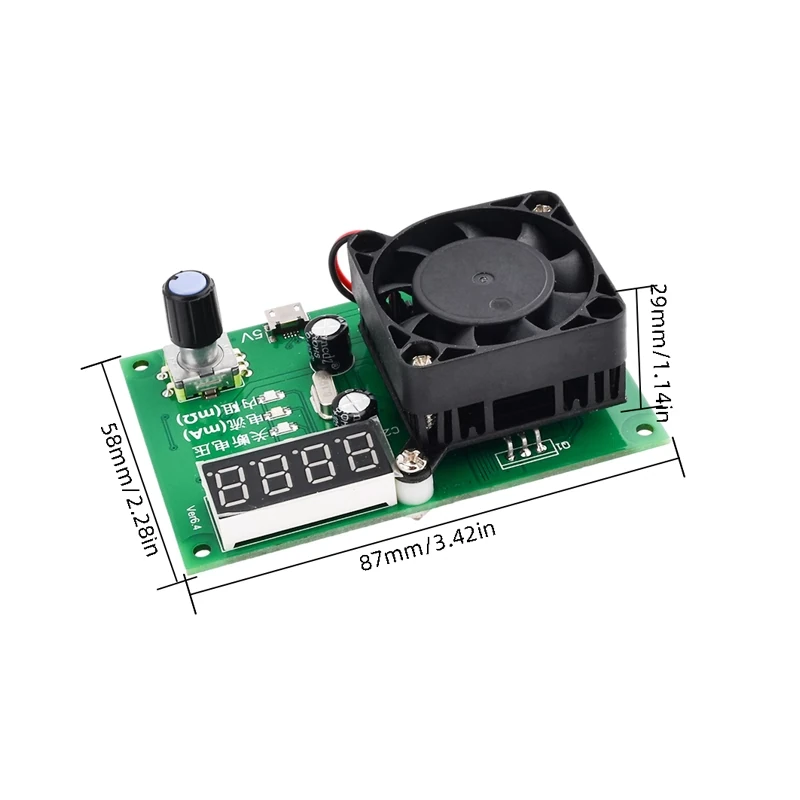

TEC-06 Battery Capacity Tester 16W Electronic Load LED Display with Fan DAC Loop Control for Power Supply Battery Single Version
5.02 ratingsThe TEC-06 Battery Capacity Tester 16W Electronic Load LED Display with Fan DAC Loop Control for Power Supply Battery Single Version is a mid-range product designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Color: Green
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The TEC-06 Battery Capacity Tester 16W Electronic Load LED Display with Fan DAC Loop Control for Power Supply Battery Single Version is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Max Connection Voltage: 15V
Power-off Voltage Range: 1.0-12V (adjustable, step length 0.05V)
Max Current: 3.5A; error: ≤0.5%
Max Power: 16W
Operating Temperature: -20~70℃
Power Supply: MINI USB interface (5V voltage), actual current consumption within 240mA
Max Testing Capacity: 500000mAh (500Ah)
Fan Specifications: 8025 12VDC
Display Type: 4-bit digital tube
LED Indicators: 5 LEDs for capacity, measured voltage, power-off voltage, current, temperature
Measurement Units:
Capacity: AH (4-bit valid number display)
Voltage: V (3-bit valid number display, last digit is U)
Temperature: Celsius (3-bit valid number display)
Features:
1. Precision Voltage and Current Control: The TEC-06 Battery Capacity Tester offers precise control over connection and power-off voltages, adjustable from 1.0V to 12V with a 0.05V step length. This allows for fine-tuning to meet specific testing requirements and ensures accurate readings.
2. Automatic Current Adjustment: When the battery's current is insufficient, the detector automatically adjusts the set current until the actual current matches the set value. If the actual current falls below 40% of the set value, the detector stops discharging, thereby protecting the battery and ensuring safety.
3. Versatile Power Supply: Powered via a MINI USB interface with a 5V voltage, the TEC-06 operates within a low power consumption range of 240mA. This makes it highly flexible and suitable for a range of power supply scenarios, including portable and bench-top setups.
4. Comprehensive Display and Indication: The display uses a 4-bit digital tube with 5 corresponding LED indicators for capacity, voltage, power-off voltage, current, and temperature. This clear and detailed display system allows easy monitoring and rotation between different display modes for efficient data observation.
5. Customizable Discharge Settings: The current setting can be customized through a simple rotation and press of a switch, allowing for precise adjustments. The system retains these settings even after power-off, facilitating convenient usage without the need for repeated calibrations.
Package Included:
1 x TEC-06 Battery Capacity Tester Single Version
