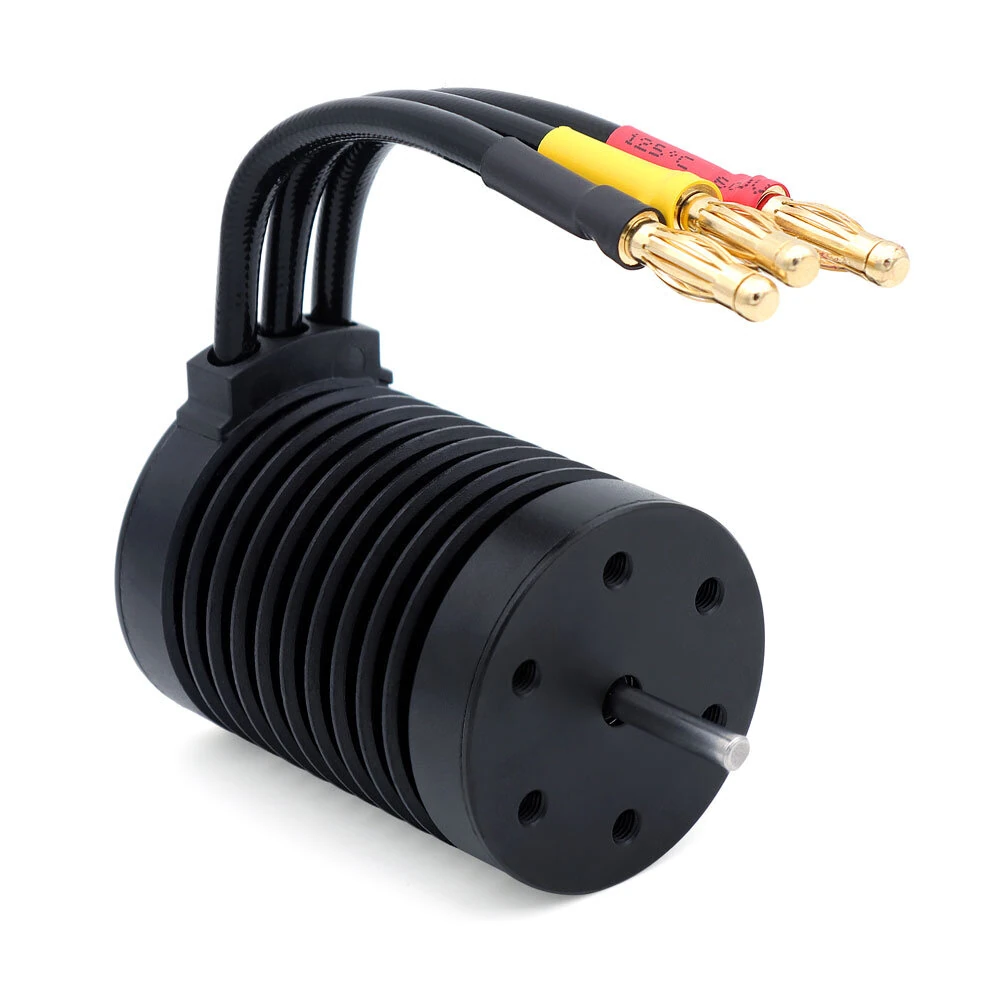

SURPASS HOBBY M2845/M540 All Black Waterproof Brushless Motor W/ M45A Waterproof ESC 4.0 Connector Suitable for 1/14 Model RC Car Parts

The Specification of the Motor:

M540 4900KV

KV:4900

Watts:820

Max Voltage:<10.2V

Max Amps:80A

Rotor Poles:4

IO:3.2A

Resistance:0.0137

Max RPM:50000

Stator Size:φ35.8*50mm

Weight:151g

Shaft:φ3.175mm

Length of extend shaft:15mm

Connector:4.0mm gold

M2845 3800KV

KV:3800

Watts:800

Max Voltage:<13.2V

Max Amps:60A

Rotor Poles:4

IO:2.8A

Resistance:0.0203

Max RPM:50000

Stator Size:φ28*47mm

Weight:115g

Shaft:φ3.175mm

Length of extend shaft:15mm

Connector:4.0mm gold

The Specification of the ESC:

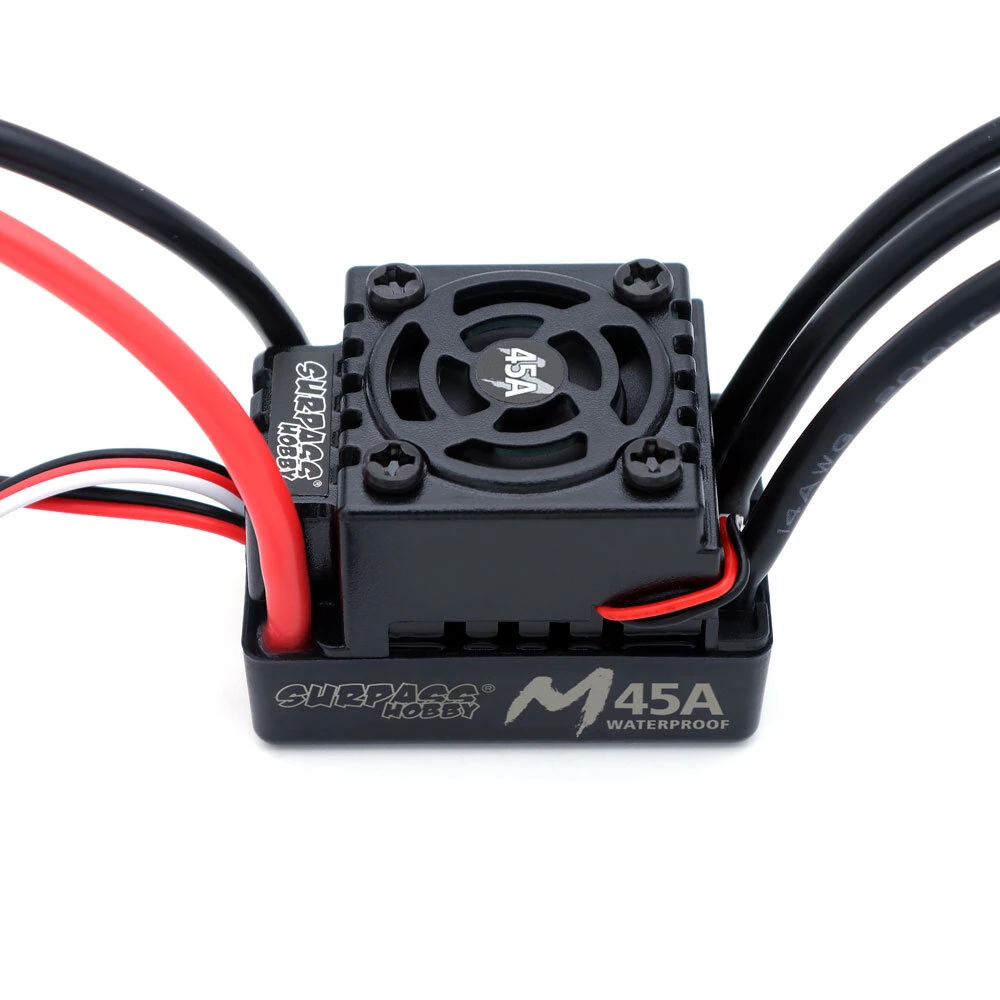

M45A:

Cont.Current/ Burst Current:45A/200A

Sensorless Brushless Motor For 2S Lipo or 6 cells NiMH:

On-road:F540 or smaller motor with the KV<6500

Off-road:F540 or smaller motor with the KV<4500

For 3S Lipo or 6 cells NiMH:

On-road:F540 or smaller motor with the KV<4000

Off-road:F540 or smaller motor with the KV<3000.

Suitable Car:1/16, 1/14 car,1/10car

Resistance:0.0014ohm

Battery:2 cells Lipo / 4~6 cells NiMH

BEC Output:5.3V/2A(Switch mode)

Dimensions/Weight:42.5×29×30mm /56g

Feature:

M2845/M540 waterproof brushless Motor:

1.4 Pole 12 Slot Hi-torque rotor design, stable output power.

2.High hardness aluminum CNC case,0.35mm stator.

3.High Purity High temperature resistance Copper Windings Maximizes Efficiency.

4.High precision and high quality ABEC5 large bearing, smooth and wear- resistant.

5.Removable/replaceable explosion-proof high-precision balancing rotor.

6.M540:Fits 1/12 1/14 scale BL cars, 6 of M3 screw mounting holes.

7.M28450:Fits all 1/12 1/14 scale  BL cars, 4 of M3 screw mounting holes.

M45A/60A waterproof brushless ESC:

1.Water-proof and dust-proof for all-weather races; (Note:please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)

2.Specially designed for RC car with excellent start-up, acceleration and linearity features.

3.Compatible with sensorless brushless motor.

4.The strong resistant current capability, excellent heat dissipation.

5.Multiple protection features: Low voltage cut-off protection for lithium or nickel battery/Throttle signal loss protection/Motor blocked protection.

6.Low voltage cut-off protection the motor emits “Beep-Beep" and the LED flashes.

7.Built-in switch-mode BEC 5.3V/2A for usage with high torque and high voltage servos.

8.Easily programmed and compatible with pocket-sized program card.

Package included:

1x M540/M2845 All Black Waterproof Brushless Motor

1X M45A  Waterproof Brushless ESC
