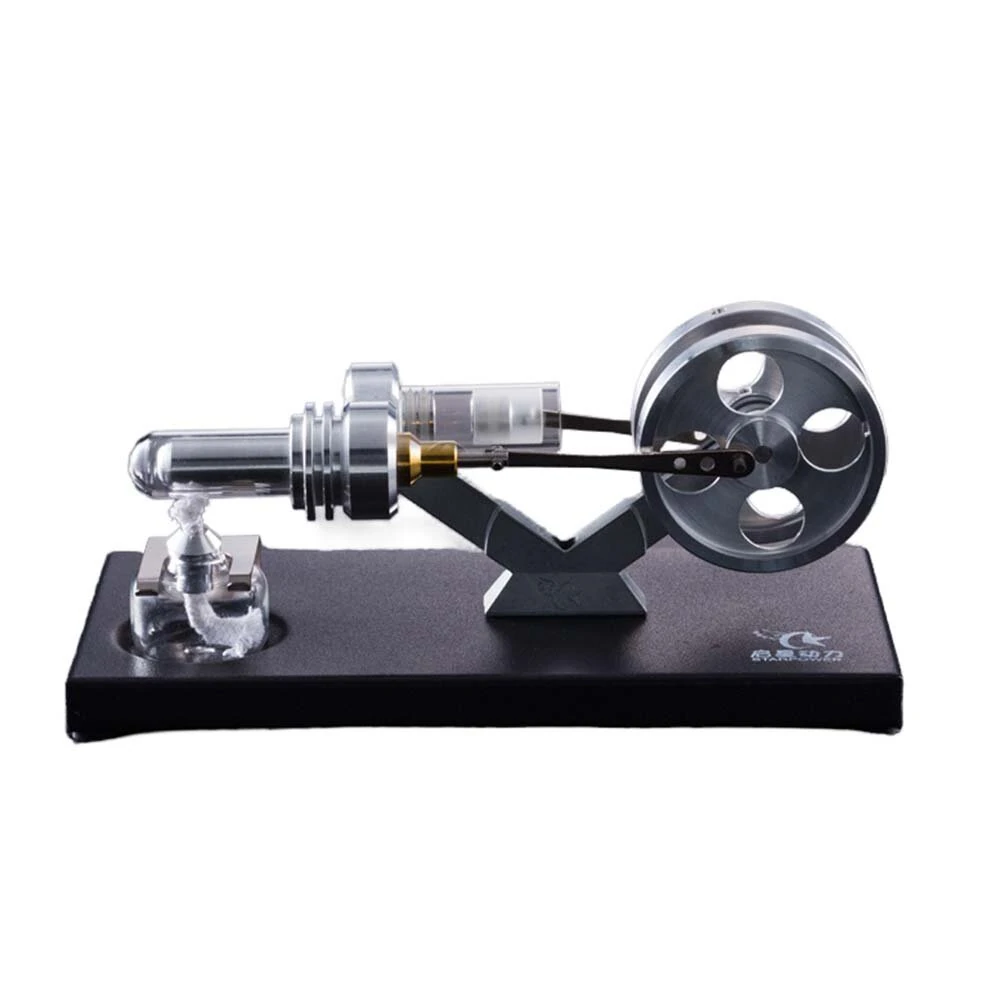

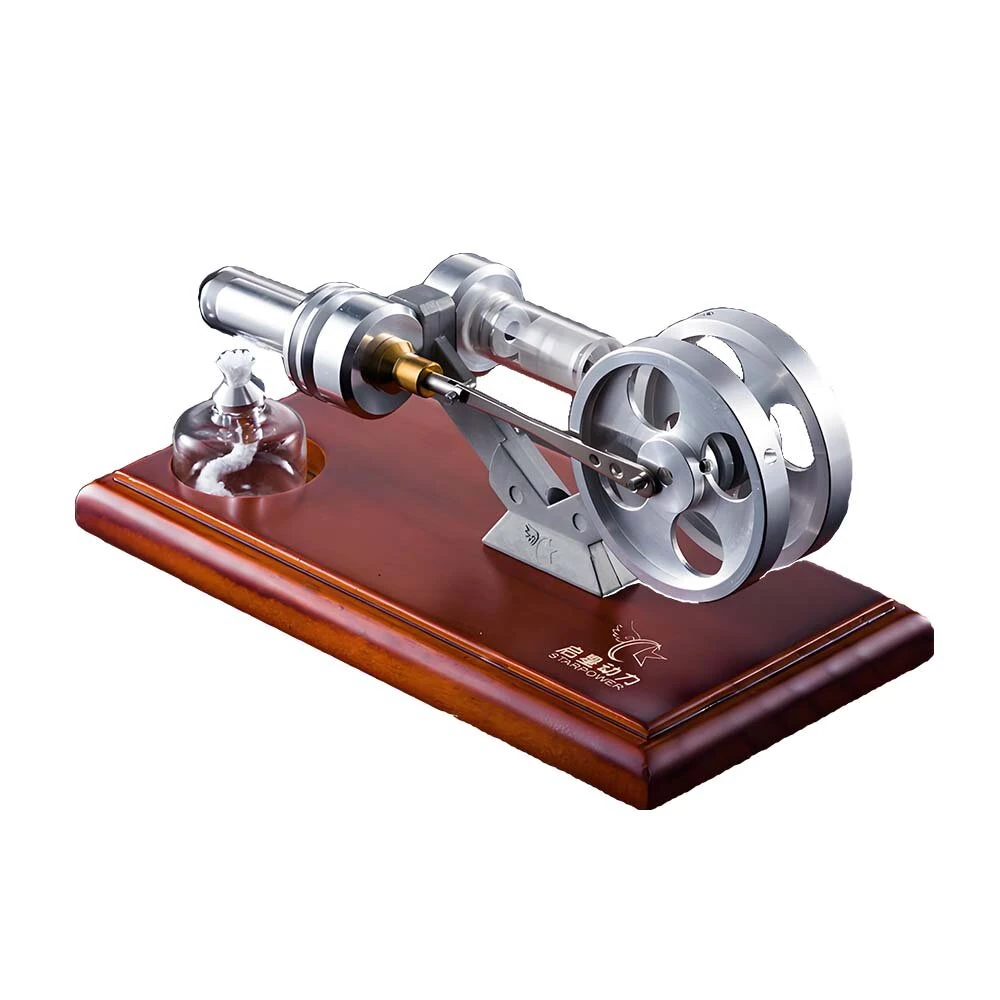

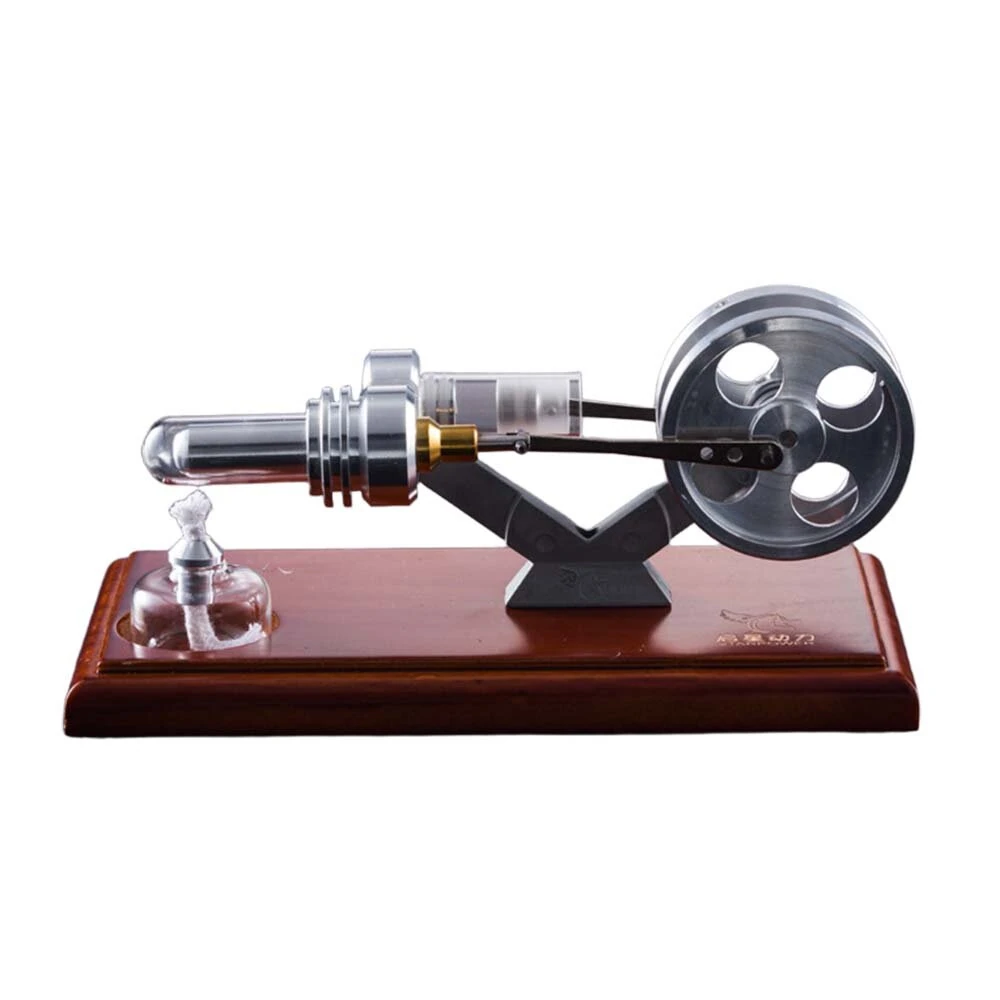

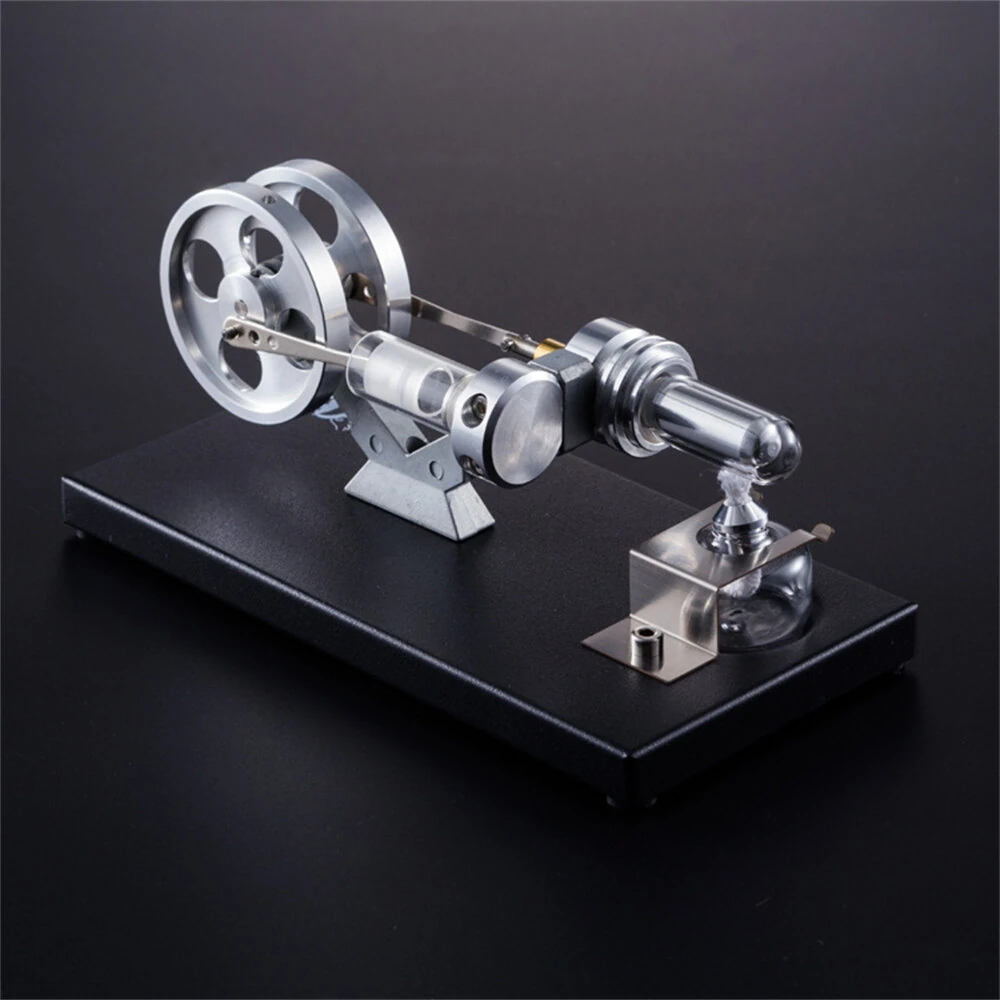

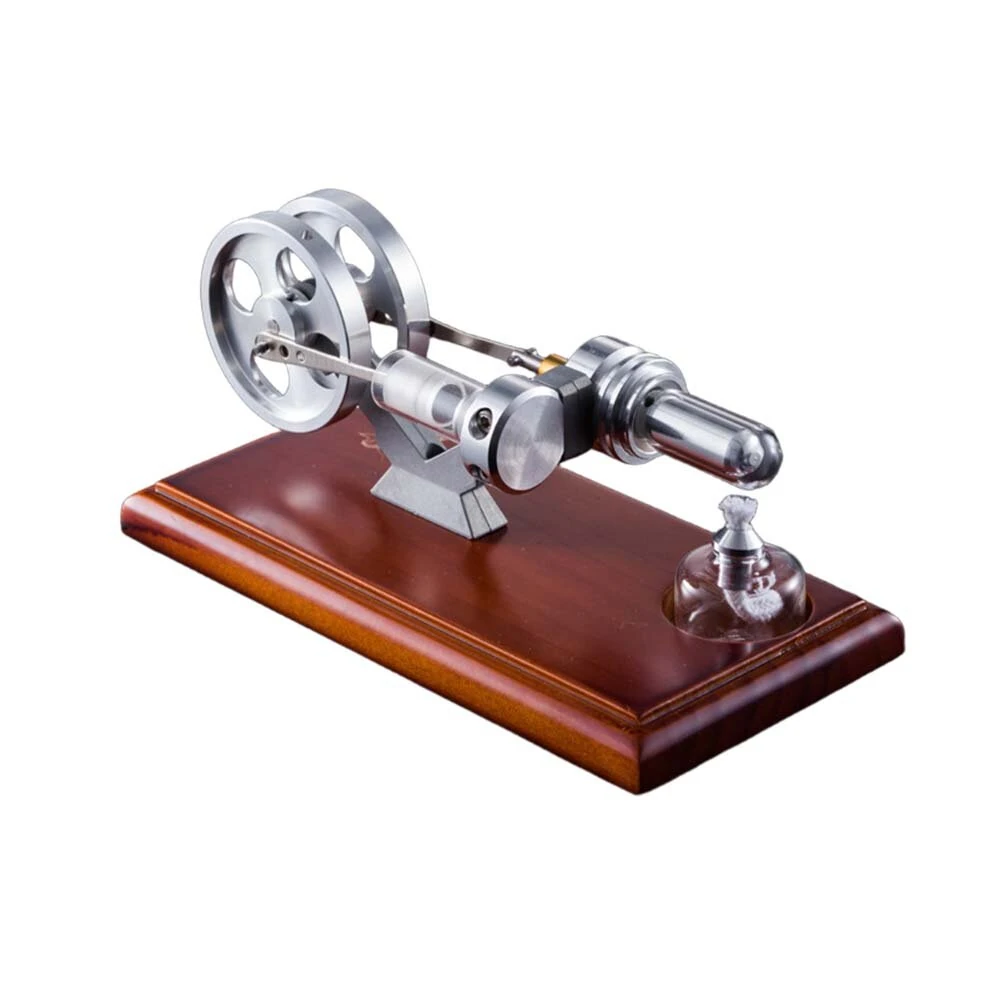

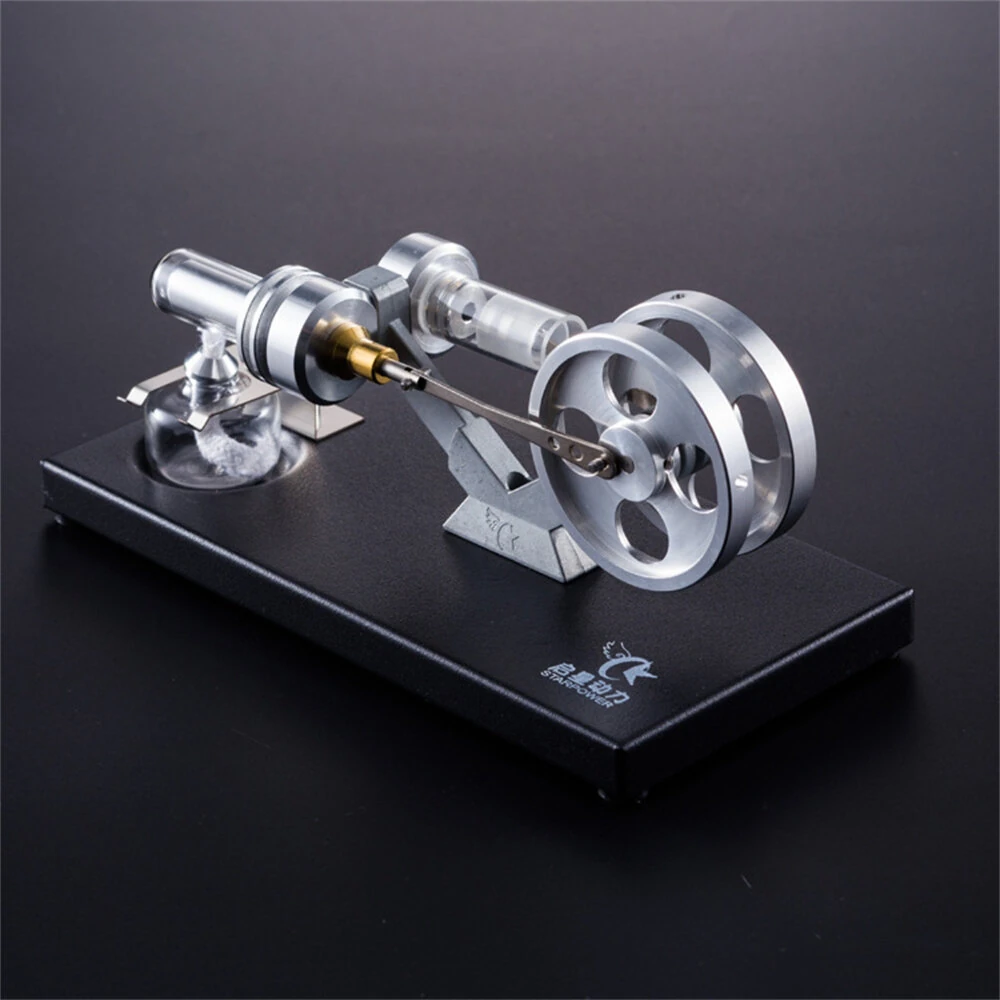

StarPower QX-SL-01 Hot Air Stirling Engine Model with Wooden / Metal Base DIY Generator Physics Experiment Science Education Toys
The StarPower QX-SL-01 Hot Air Stirling Engine Model with Wooden / Metal Base DIY Generator Physics Experiment Science Education Toys is a mid-range science & discovery toys designed for children and parents.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Price: ₹4,012
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The StarPower QX-SL-01 Hot Air Stirling Engine Model with Wooden / Metal Base DIY Generator Physics Experiment Science Education Toys is a mid-range science & discovery toys designed for children and parents. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Brand: STARPOWER
Model: QX-SL-01 / QX-SL-01-M
Product Name: Hot Air Stirling Engine Model
Version: Wooden Base / Metal Base (Optional)
Color:As Shown
Product Size:180*90*90mm
Product Weight:Wooden Base: 310g;Metal Base:380g
Package Size:200*110*115mm
Package Weight:0.35kg
Start-up steps:
1. Put the model on the horizontal surface; add some alcohol into the alcohol lamp 2. Light the alcohol lamp; turn the flywheel by hand until the flywheel can automatically rotate 3. In the process of start, move the alcohol lamp to let the model run to the best 4. The height of the alcohol lamp wick should be no less than 15 mm, and you can adjust the wick height to achieve the best operation. Matters needing attention:
1. When heating, do not touch with your hands cylinder and heating portion.
2. Avoid other liquid substances come into contact with cylinders in case of cylinder rustiness; extinguish alcohol lamp after finishing the demonstration.
Maintenance plans (if the model is not running very well)
1. Check if there is enough alcohol in the alcohol lamp.
2. Check if the small and big wheel jackscrews loose or not.
3. Too high temperature in the air cylinder because of the continuous heating for a period of time will affect the performance of the product.
4. Check the valve position: the highest position of the flapper valve (2) is to cover one fourth of the valve port.
5. Check if the angle is correct or not: when the piston (7) lies in the innermost of the air cylinder, the small jackscrew (3) hole should be just facing the positioning port (6). If the position is wrong, please loosen the jackscrew; then tightly fix the jackscrew in the correct position.

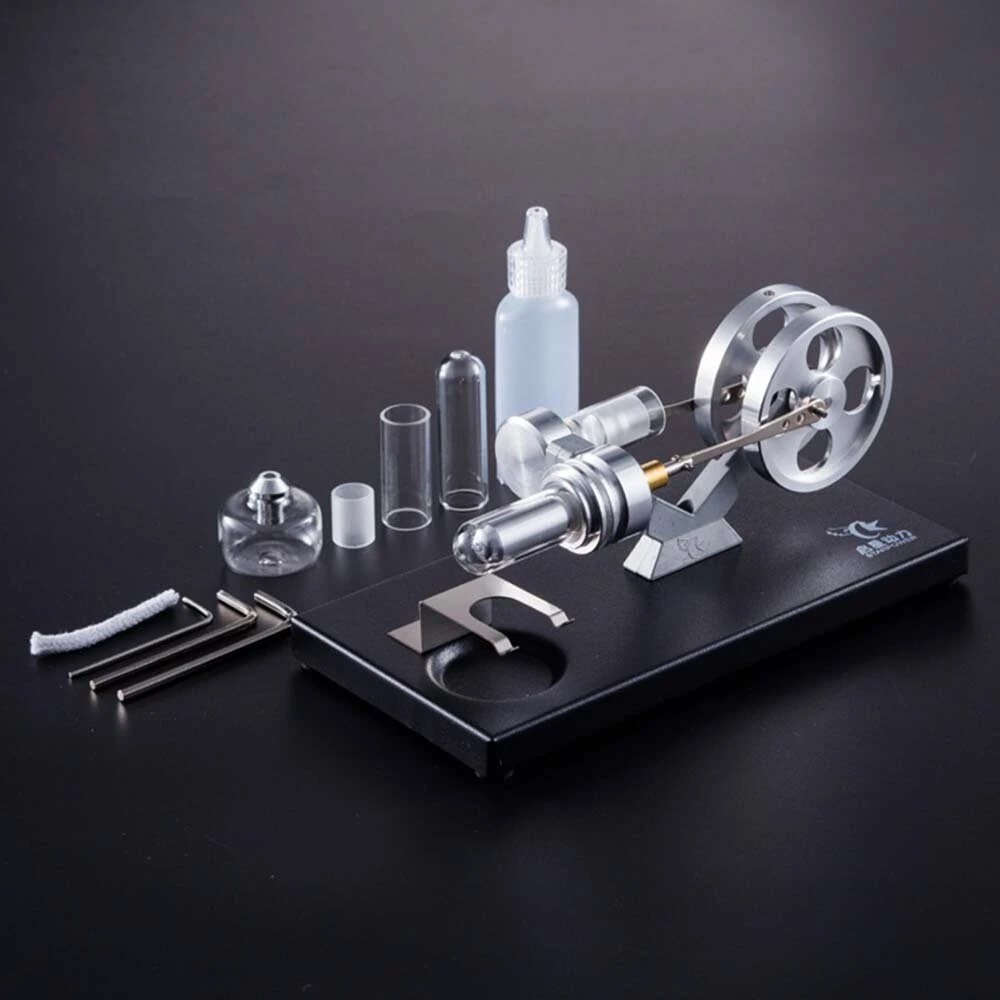

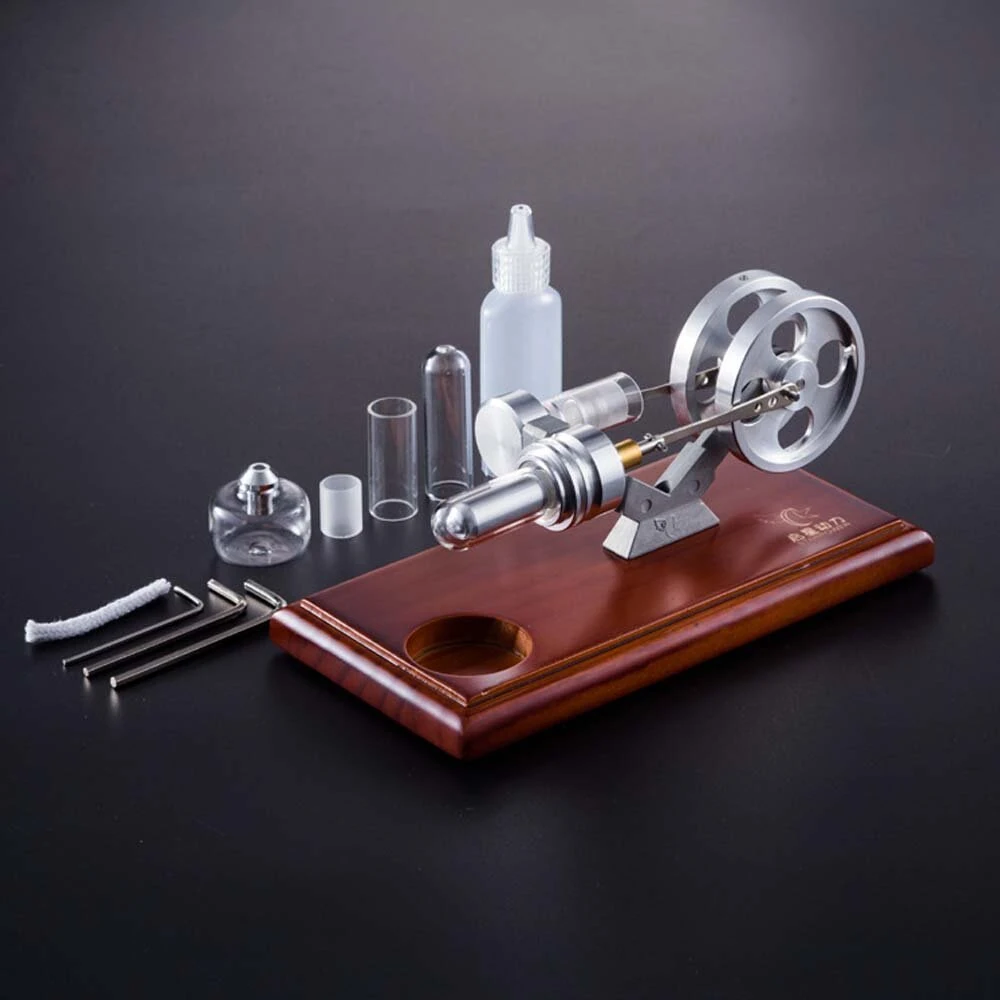

Package included:
1 x Stirling Engine Model
