Spot Welder Kit Digital Control Board 2400A Peak Current 99 Adjustable Gears 8-24V High Precision Welding for 18650 Battery Nickel Sheets

Specifications:
Name: Spot Welder Control Board Kit
Material: Printed Circuit Board
Working Voltage: 8-24V
Standby Current: <0.5mAh
Peaks Welding Current: Max 2400A
Welding Thickness: 0.1-0.2mm nickel sheets
Limit Temperature: 175°C
Item Size: 89 x 54mm (3.50 x 2.13 inches)
Item Weight: 100g (3.53 ounces)


Features:
1) 99 Adjustable Power Gears: High-precision power output with 99 adjustable levels ensures controlled and accurate welding for seamless results.
2) Versatile Working Modes: Offers three power modes – general, strengthened, and super-strong – to fit various welding needs and applications.
3) Digital Display: Includes a 3-digit display that alternates between power levels and real-time voltage readings for enhanced operational clarity.
4) High Welding Current Design: Powered by 6 MOS transistors, delivering up to 2400A peak current for reliable performance with 0.1-0.2mm nickel sheets.
5) Premium Copper Pens with Weld Needles: Features thick pure copper welding pens and alumina copper needles for stable performance and consistent operation.

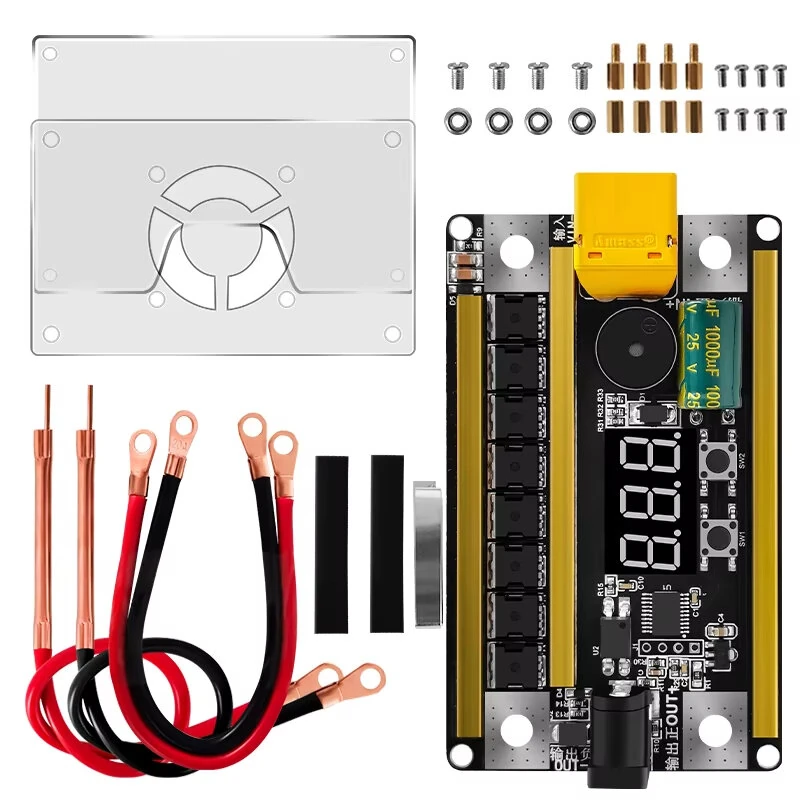

Package Included:
1 x Control Board
2 x Input Cables
1 x Pair of Welding Pens
2 x Heat Shrink Tubes
4 x Screw Kit
2 x Acrylic Protection Plates
