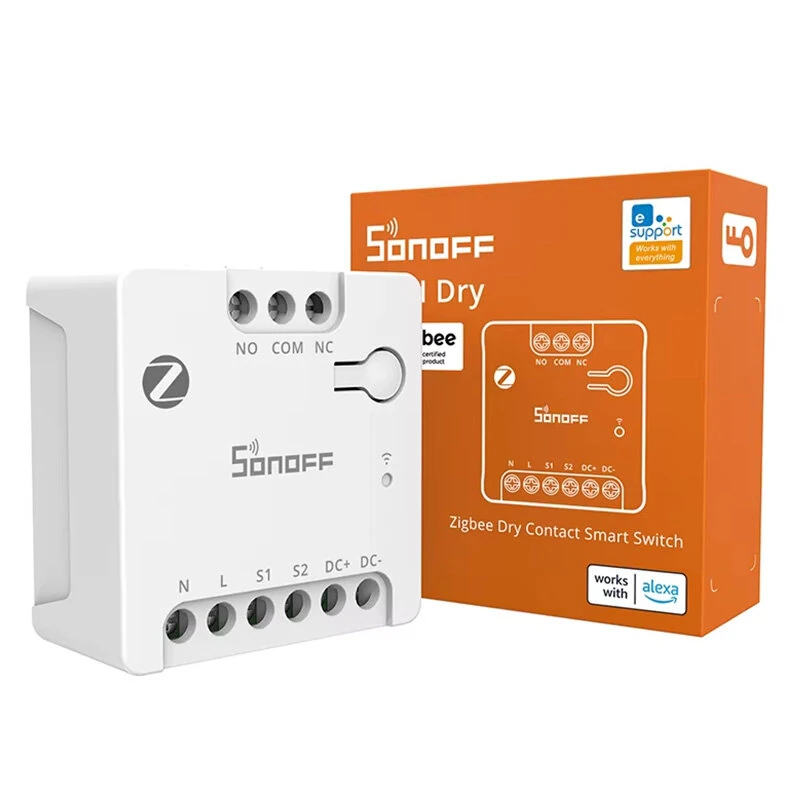

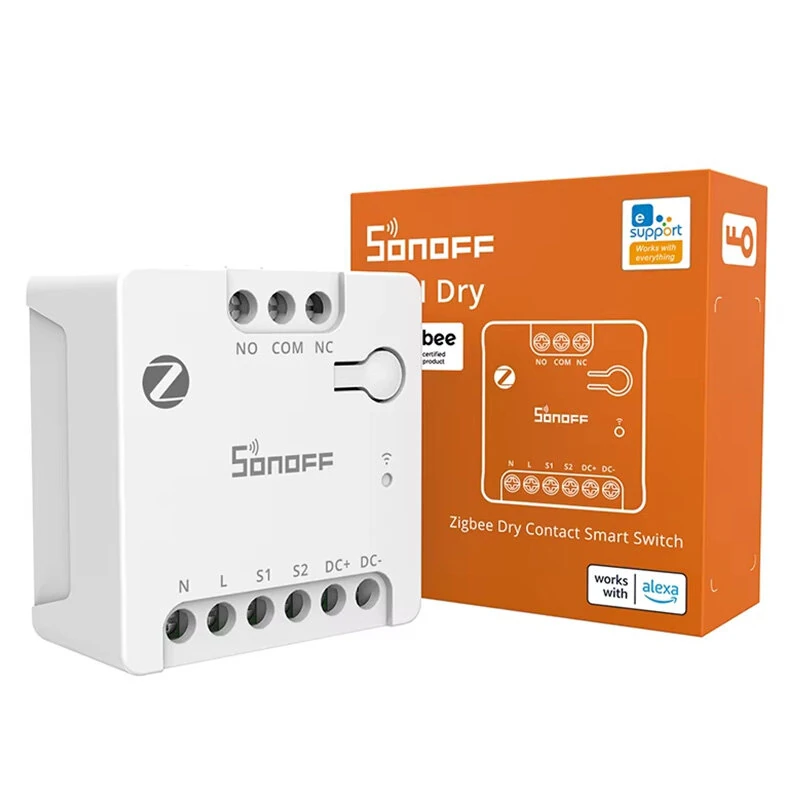

SONOFF MINI-ZBD MINI Dry Zigbee3.0 Dry Contact Smart Switch Output with NO/NC Support Flexible AC & DC Power Works with Zigbe Hub
The SONOFF MINI-ZBD MINI Dry Zigbee3.0 Dry Contact Smart Switch Output with NO/NC Support Flexible AC & DC Power Works with Zigbe Hub by SONOFF is a mid-range product designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Type: MINI-ZBD ZigBee
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The SONOFF MINI-ZBD MINI Dry Zigbee3.0 Dry Contact Smart Switch Output with NO/NC Support Flexible AC & DC Power Works with Zigbe Hub by SONOFF is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specifications:
Brand: SONOFF
Model: MINI-ZBD
Wireless Protocol: Zigbee3.0 (IEEE 802.15.4)
Input Power: 100-240V~ 50/60Hz 0.1A Max OR 12-48V⎓1A Max
Dry Contact Output (Max Load): 24V⎓2A Max (Resistive load) OR 12/24V⎓8W (Motor)
Casing Material: PC V0 (Flame-retardant)
Main Control Chip: EFR32MG21
Core Ecosystem: eWeLink App (gateway required), compatible with ZHA/Zigbee2MQTT
Dimensions: 41 x 43 x 21.5mm
Net Weight: 34.5g
Certifications: CE / RoHS
Note: SONOFF ZigBe gateway is required. Please purchase in addition.(such as the SONOFF ZBDongle series)
Brand: SONOFF
Model: MINI-D
Wireless Connection: Wi-Fi IEEE 802.11 b/g/n 2.4GHz
Input Power: 100-240V~ 50/60Hz 0.1A Max OR 12-48V---1A Max
Dry Contact Output (Max Load): 24V⎓2A Max (Resistive load) OR 12/24V⎓8W (Motor)
Casing Material: PC V0 (Flame-retardant)
Main Control Chip: ESP32-D0WDR2
Core Ecosystem: eWeLink App, supports the Matter protocol
Net Weight: 34.5g
Certifications: CE / RoHS
Features:
1. Dry Contact Output: Features a voltage-free output (NO/NC support) to control devices with different power sources, making it ideal for a wide range of DIY smart projects.

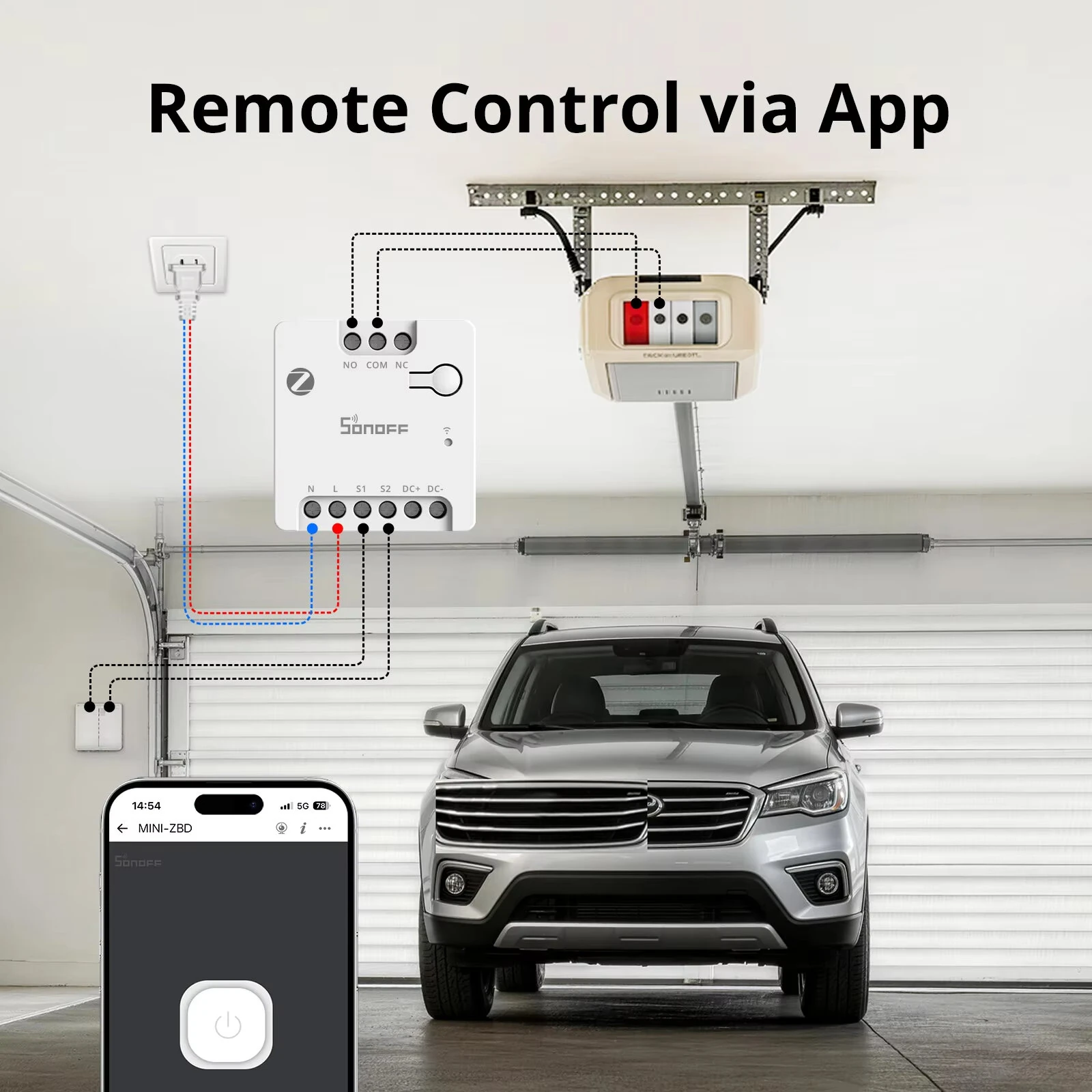

2. Extensive Application: Perfect for automating garage doors, heating systems, garden irrigation, home theater screens, and low-power DC devices like solenoid valves or pumps.
3. Zigbee3.0 Router: Utilizes the latest Zigbee3.0 protocol and acts as a network router to extend the range and improve the stability of your Zigbee3.0 mesh system.
4. APP Remote & Timer Control: Gain full control from anywhere using the app. Easily set schedules, timers, and countdowns to automate your connected appliances and save energy.
5. Create Smart Scenes: Link the switch with other smart sensors or devices. For example, have your garage door opening automatically trigger a light or a camera to turn on.
6. Wide System Compatibility: Works with a variety of Zigbee3.0 hubs and platforms, including SONOFF ZBBridge, Amazon Echo, SmartThings, and Home Assistant (via ZHA or Zigbee2MQTT).
Package Includes:
1 x SONOFF MINI Dry Smart Switch
1x User Manual
