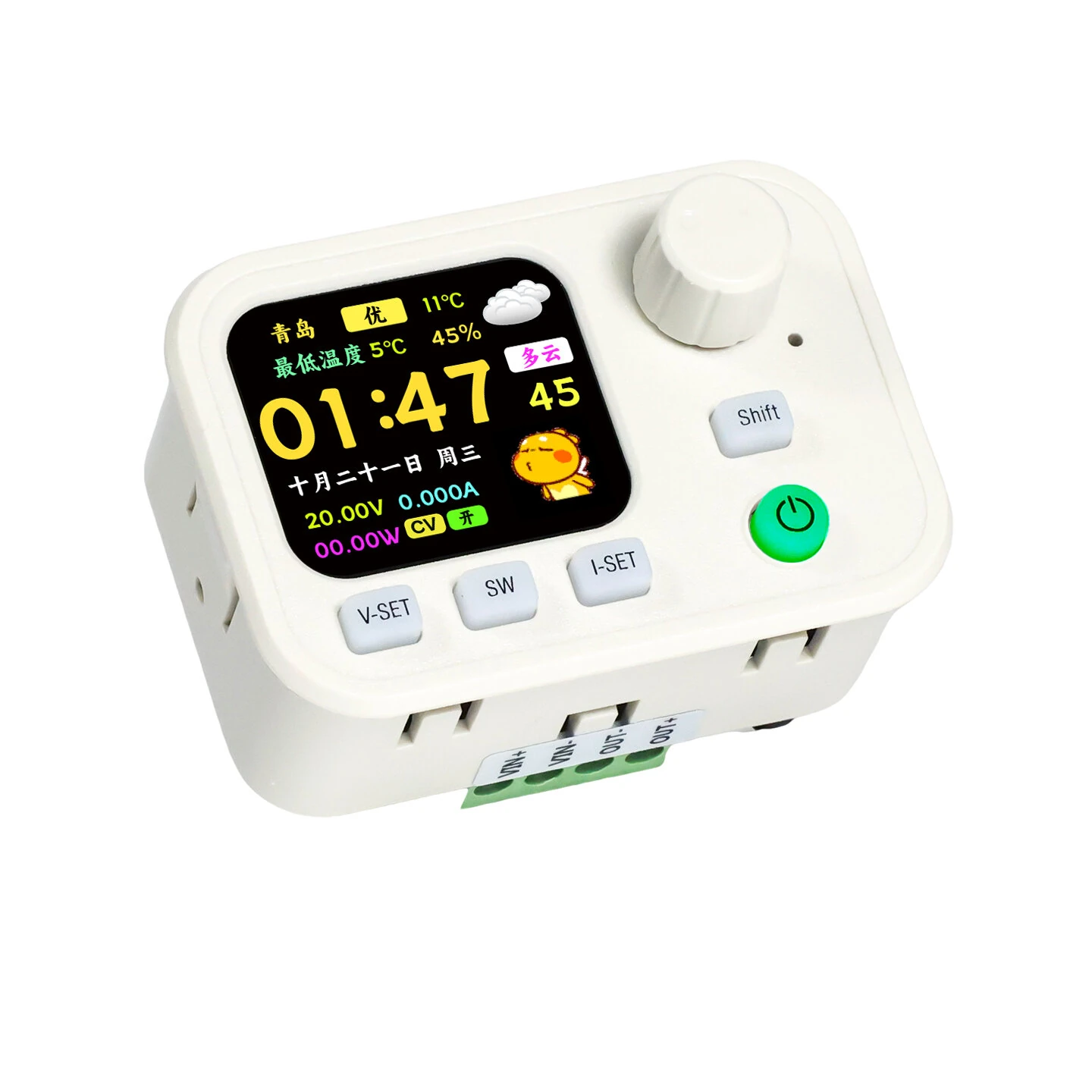

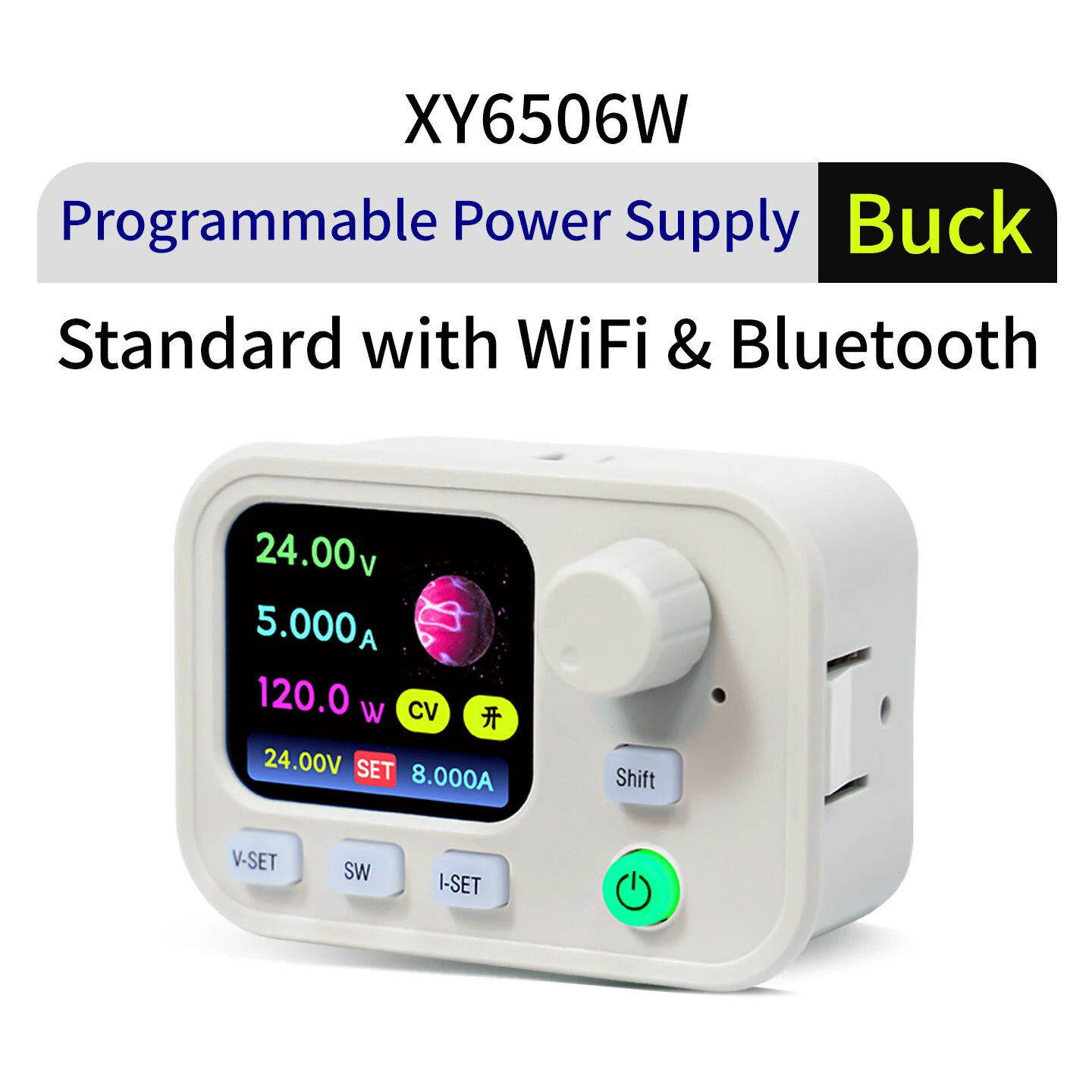

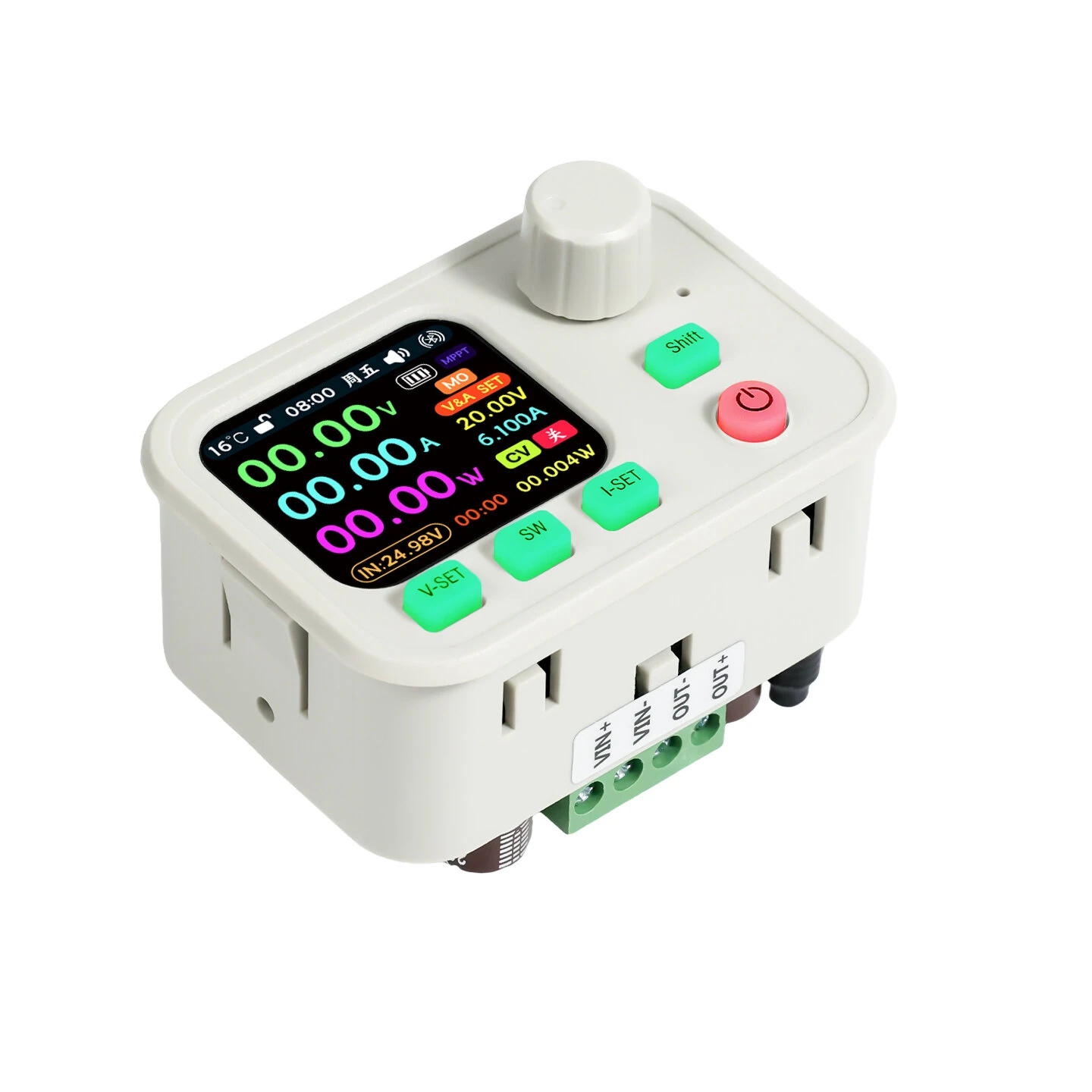

Sinilink XY6506W DC Buck Power Supply Module 12-72V Input 0-65V Output 0-6A 390W IPS LCD MPPT WiFi Bluetooth Adjustable Voltage Regulator
The Sinilink XY6506W DC Buck Power Supply Module 12-72V Input 0-65V Output 0-6A 390W IPS LCD MPPT WiFi Bluetooth Adjustable Voltage Regulator is a mid-range power supply module designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
30% Off — you save ₹1,302 on this product!
Color: White
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The Sinilink XY6506W DC Buck Power Supply Module 12-72V Input 0-65V Output 0-6A 390W IPS LCD MPPT WiFi Bluetooth Adjustable Voltage Regulator is a mid-range power supply module designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification
Product name: DC Buck-power supply
Model: XY6506W
Input voltage: 12.00~72.00V
Output voltage: 0~65.00V
Output current: 0~6.000A
Power output: 390W
Accuracy of voltage: ±0.5%+1 word
Accuracy of current: ±0.5%+3 word
Resolution of voltage: 0.01V
Resolution of current: 0.001A
Storage data group: 10 groups
Soft start: YES
Screen size: 1.69-Inch Full-View IPS True-Color LCD Screen
Output ripple typical value: Vpp-150mv
MPPT function: Support MPPT solar charging
Buzzer: YES
Efficiency of conversion: About 96%
Number of buttons: 6
Product size: 68x48x49mm
Product weight: 129g
Anti-reverse: YES
Output reverse current protection: YES
Input under-voltage(LVP): 10-75V, default 10V
Over-voltage(OVP): 0-67V, default 67V
Over-current(OCP): 0-6.2A, default 6.2A
Over-power(OPP): 0-420W, default 400W
Over-temp(OTP): 60-110 °C, default 110 °C
Over-time out(OHP): 1 minute - 9999 minutes, off by default
Over-capacity(OAH): 0-9999Ah, off by default
Over-energy(OWH): 0-4200KWh, off by default
EXT over-temp(ETP): 0-110 °C, off by default
Features
1) 12.00-72.00V input, 0-65.00V output, and 0-6.000A output current.
2) 390W power output with about 96% conversion efficiency.
3) 1.69-inch Full-View IPS true-color LCD screen with 280*240 high resolution.
4) Supports 10 groups storage space, soft start, and MPPT solar charging.
5) Anti-reverse and output reverse current protection with multiple protection mechanisms.
Package included
1 x XY6506W DC Buck-power supply module
