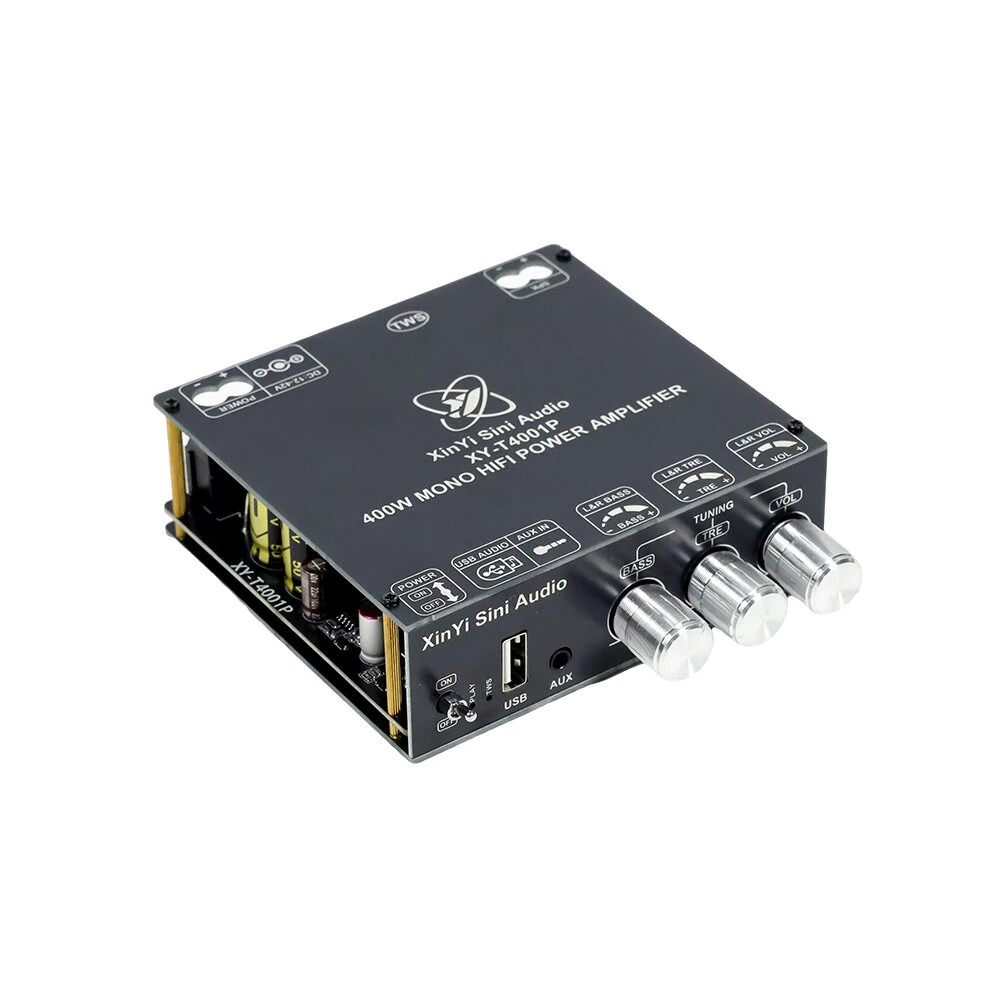

Sinilink XY-T4001P 400W Bluetooth Amplifier Board TPA3223 Chips High-Power HIFI 3 Input Modes Bluetooth AUX USB Audio TWS Wireless Speaker with APP Smart Control
5.01 ratingThe Sinilink XY-T4001P 400W Bluetooth Amplifier Board TPA3223 Chips High-Power HIFI 3 Input Modes Bluetooth AUX USB Audio TWS Wireless Speaker with APP Smart Control is a mid-range product designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
25% Off — you save ₹954 on this product!
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The Sinilink XY-T4001P 400W Bluetooth Amplifier Board TPA3223 Chips High-Power HIFI 3 Input Modes Bluetooth AUX USB Audio TWS Wireless Speaker with APP Smart Control is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification:
Brand: Sinilink
Product Name: XY‑T4001P 400W Bluetooth Amplifier Board
Amplifier chip: TPA3223
Pre‑amp op‑amp: NE5532 × 2
Output power (max): 400 W @ 2 Ω, 42 V DC
Power supply: DC 12–42 V / ≥5 A (5.5 × 2.5 mm socket)
Speaker impedance: 2–8 Ω
Audio inputs:
Bluetooth (TWS, SBC / AAC)
3.5 mm AUX in
USB Audio / USB flash drive
USB audio formats: WAV, FLAC, APE, MP3
Functions of multifunction knob:
Click: Play / Stop
Double‑click: Next track
Triple‑click: Mode switch
4× click: Pair / unpair TWS
5× click: Factory reset
Long press: Power on / off
Controls: Independent Bass, Treble, Master Volume
Supply voltage vs. typical output power:
12 V: 8 Ω @10 W, 4 Ω @20–30 W
24 V: 8 Ω @30 W, 4 Ω @70 W, 2 Ω @150 W
36 V: 8 Ω @80 W, 4 Ω @160 W, 2 Ω @350 W
42 V: 8 Ω @100 W, 4 Ω @200 W, 2 Ω @400 W
Board size (integrated pot version): approx. 104 × 94.9 mm
Shell version size: 104 × 97 × 35 mm
Weight (shell version): about 256g
Bluetooth app: Sinilink APP (rename device, set pairing password, control playback)
Antenna interface: IPEX 2.4 GHz, supports external antenna (optional)
Features:
1. High‑power mono Hi‑Fi amplifier: TPA3223 IC with up to 400 W output for powerful subwoofer or full‑range use.
2. Three input modes: Seamless switch between Bluetooth, 3.5 mm AUX and USB Audio / U‑disk playback.
3. TWS wireless pairing: Pair two XY‑T4001P boards wirelessly to form a left / right stereo system.
4. Independent tone control: Front‑panel bass, treble and master volume knobs for quick on‑device tuning.
5. Optimized audio circuit: Large heat sink, capacitor array, audio‑grade inductors and low‑loss coupling components for clean sound at high power.
6. APP smart control: Use the Sinilink APP to control playback, switch modes and modify Bluetooth name and password from your phone.
Package Includes:
1 x Amplifier Board (type as you selected)
