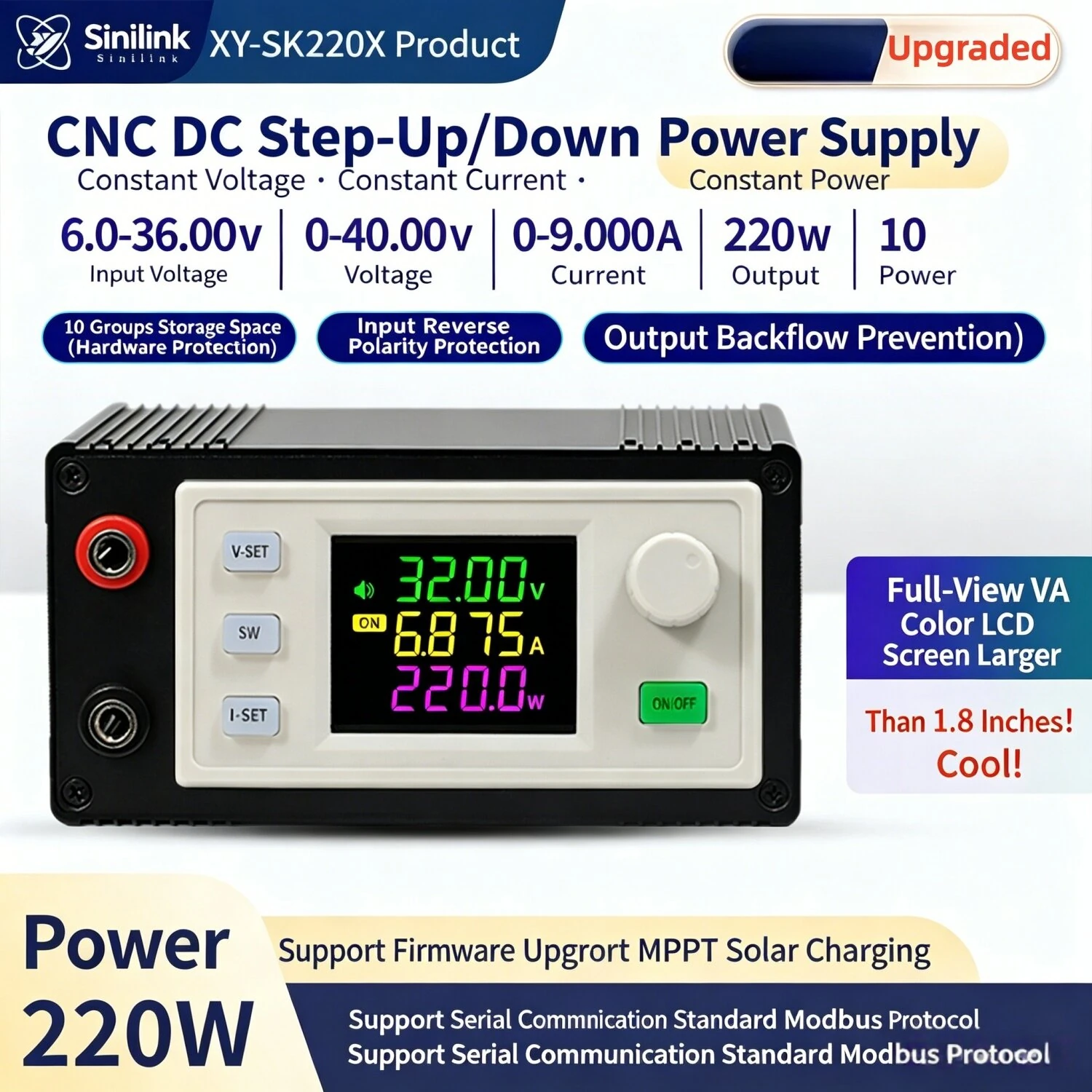

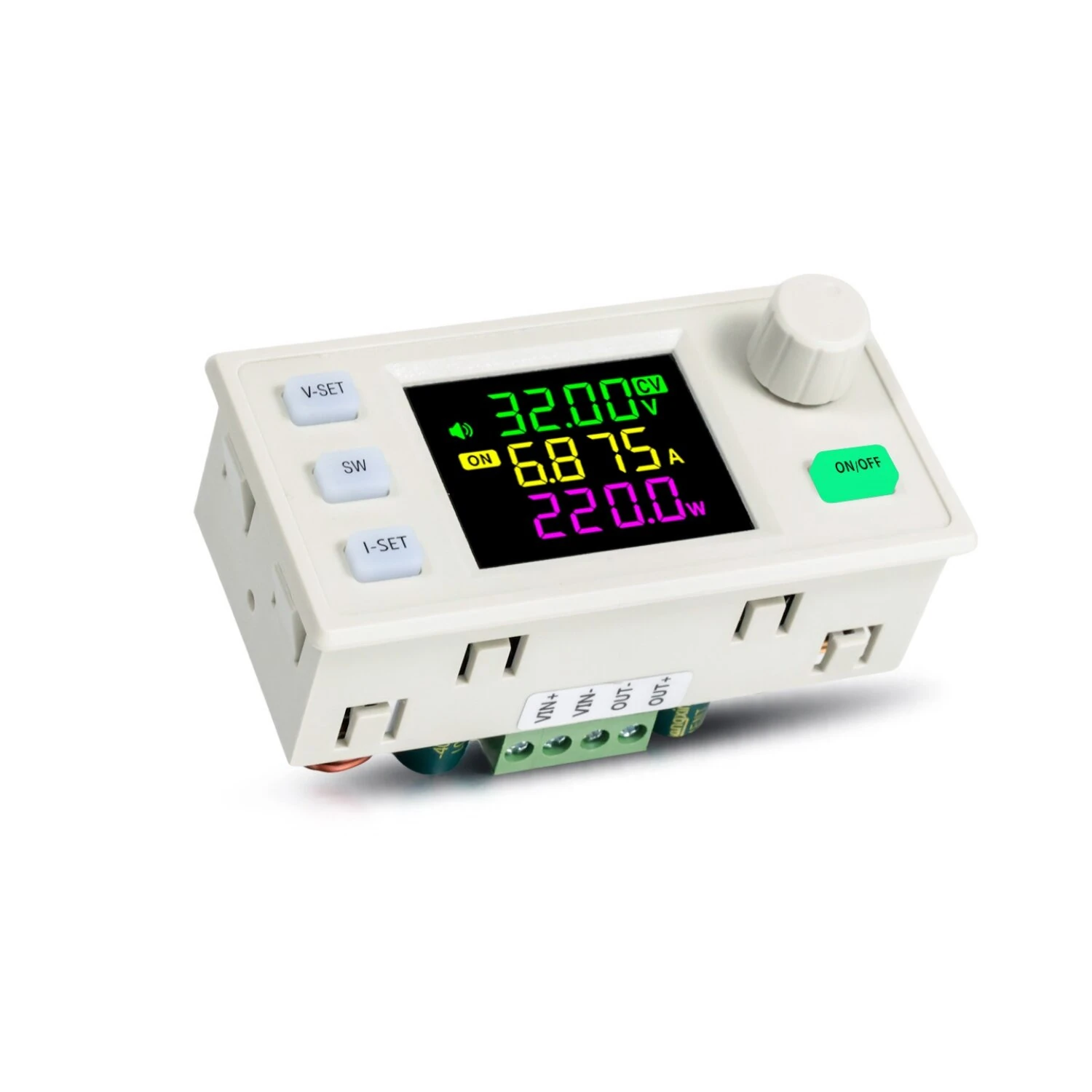

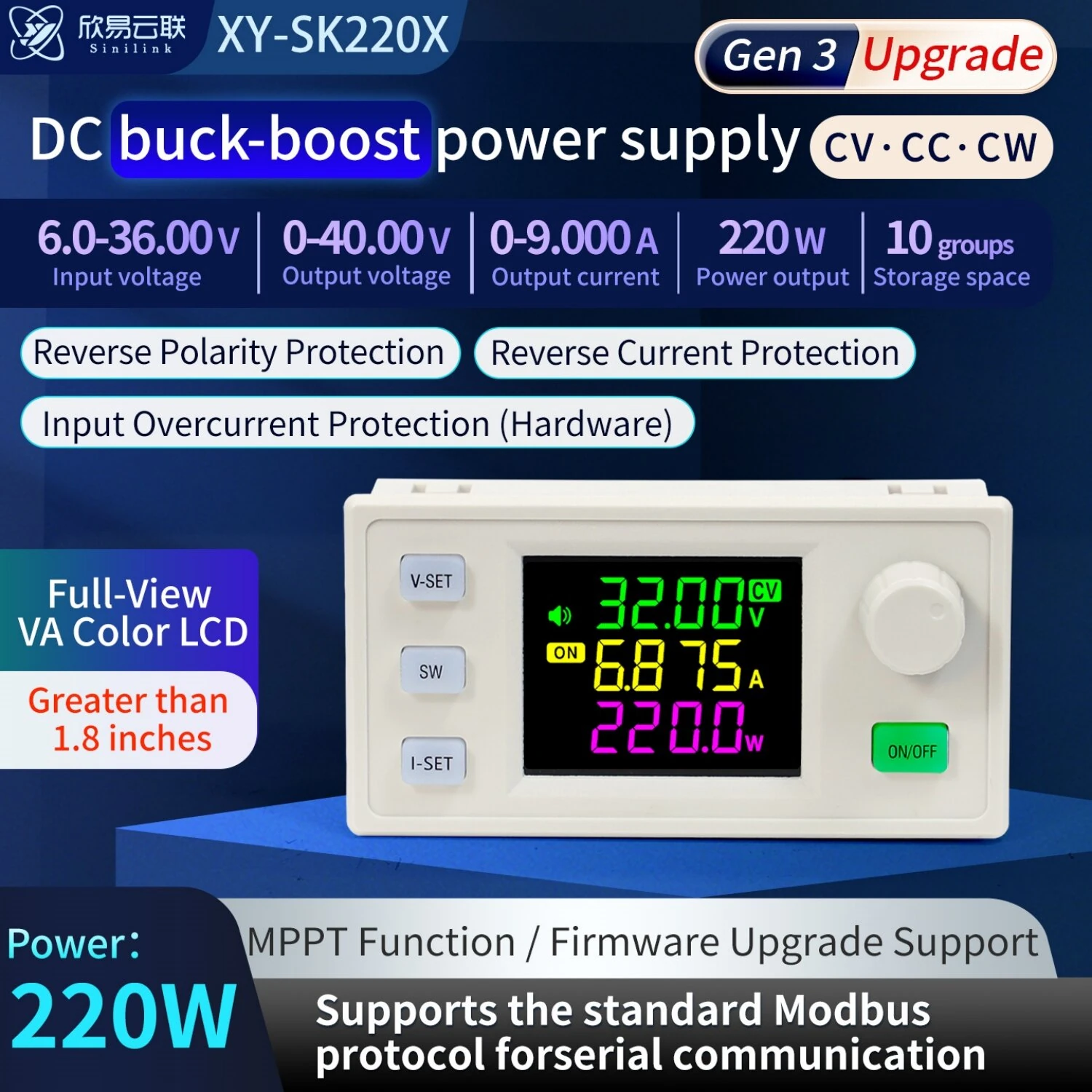

Sinilink XY-SK220X DC Buck Boost Power Supply Module 9A 220W MPPT Solar Charging CV/CC/CW Output with 1.8 Inch LCD Display
The Sinilink XY-SK220X DC Buck Boost Power Supply Module 9A 220W MPPT Solar Charging CV/CC/CW Output with 1.8 Inch LCD Display is a mid-range product designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
24% Off — you save ₹804 on this product!
Price: ₹2,579
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The Sinilink XY-SK220X DC Buck Boost Power Supply Module 9A 220W MPPT Solar Charging CV/CC/CW Output with 1.8 Inch LCD Display is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification:
Brand: Sinilink
Product Name: XY-SK220X DC Buck-Boost Programmable Power Supply Module
Input Voltage: 6.0 – 36.0V DC
Output Voltage: 0 – 40.00V DC, resolution 0.01V
Output Current: 0 – 9.000A, resolution 0.001A
Maximum Output Power: 220W
Conversion Efficiency: about 88% (typical)
Output Ripple (typical): ≤ 150 mVp-p
Operating Modes: Constant Voltage (CV), Constant Current (CC), Constant Power (CW)
Data Storage: 10 user data groups (Cd0–Cd9)

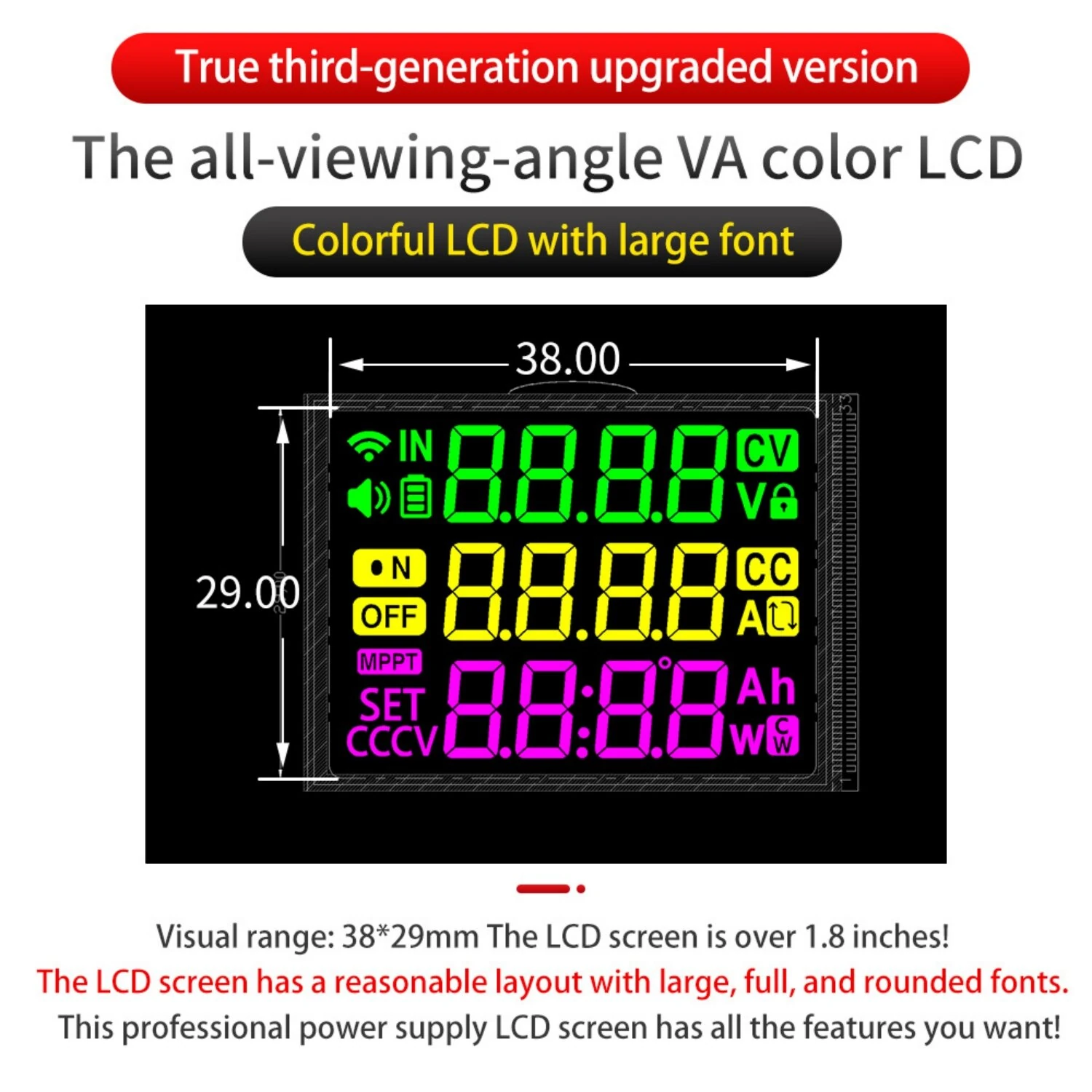

Screen: >1.8" full-view VA color LCD, view area 38 × 29 mm
Protection Functions:
Reverse polarity (input)
Reverse current / anti-backflow
Hardware input overcurrent (ICP 13 A fixed)
LVP: 5.5–36 V (default 5.5 V)
OVP: 0–42 V (default 42 V)
OCP: 0–9.2 A (default 9.2 A)
OPP: 0–240 W (default 220 W)
OTP: 60–110 °C (default 110 °C)
OHP: 1 minute – 99 hours 59 minutes (default off)
OAH: 0–9999 Ah (default off)
OWH: 0–4200 kWh (default off)
ETP: 0–110 °C (external probe, default off)
External Temperature Probe Interface: 10K NTC 3950B
Communication Interface: 4-pin XH1.25mm serial, supports standard Modbus protocol
Buzzer: Yes (key tone & alarm)
Soft Start: Yes
MCU: 48‑pin controller, 64 MHz clock, external crystal for high-precision statistics
Product Size: 86 × 50 × 45 mm
Package Size: 104 × 70 × 52 mm
Net Weight: about 124g (144g with package)

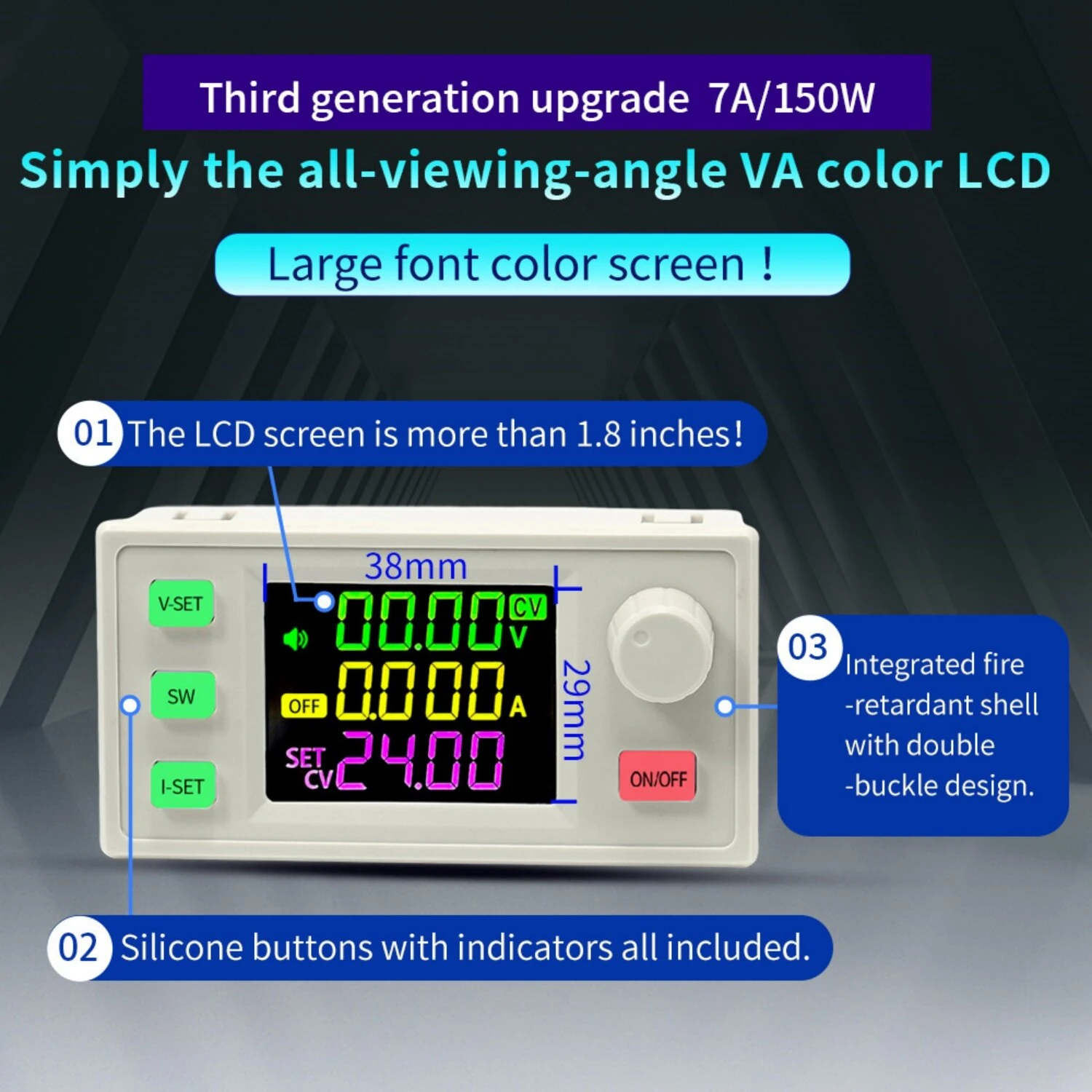

Shell Material: Flame-retardant case, double-buckle structure
Buttons / Controls: 5 keys (V-SET, Input-SET, SW, Encoder, ON/OFF) with indicator lights
Features:
1. All-in-one CV/CC/CW Output: Step-up/step-down DC power supply with precise voltage, current and power control, suitable for laboratory use, battery charging and DIY electronics.
2. Large Color LCD Interface: 1.8"+ multi-color VA screen shows voltage, current, power, capacity (Ah), energy (Wh), time and temperature in rotation for clear real-time monitoring.
3. Comprehensive Protection System: Built-in reverse polarity, reverse current, hardware input overcurrent and multiple programmable protections (LVP, OVP, OCP, OPP, OTP, OHP, OAH, OWH, ETP) to help guard connected loads.
4. MPPT Solar Charging Support: Integrated MPPT function for solar panel applications, with anti-backflow design and support for external NTC probe to stop charging automatically when over-temperature occurs.
5. Smart Control & Communication: Supports serial communication and standard Modbus protocol; can be extended with WiFi/485/IR/433 MHz modules for PC software control, mobile app control, cloud monitoring and firmware upgrade.
6. User-Friendly Operation: Silicone keys with LEDs, encoder knob for quick adjustment, 10 memory groups for fast recall, key-lock function, plug-in terminals and built-in buzzer for prompts and alarms.
Package Includes:
1 x XY-SK220X DC Buck-Boost Programmable Power Supply Module
