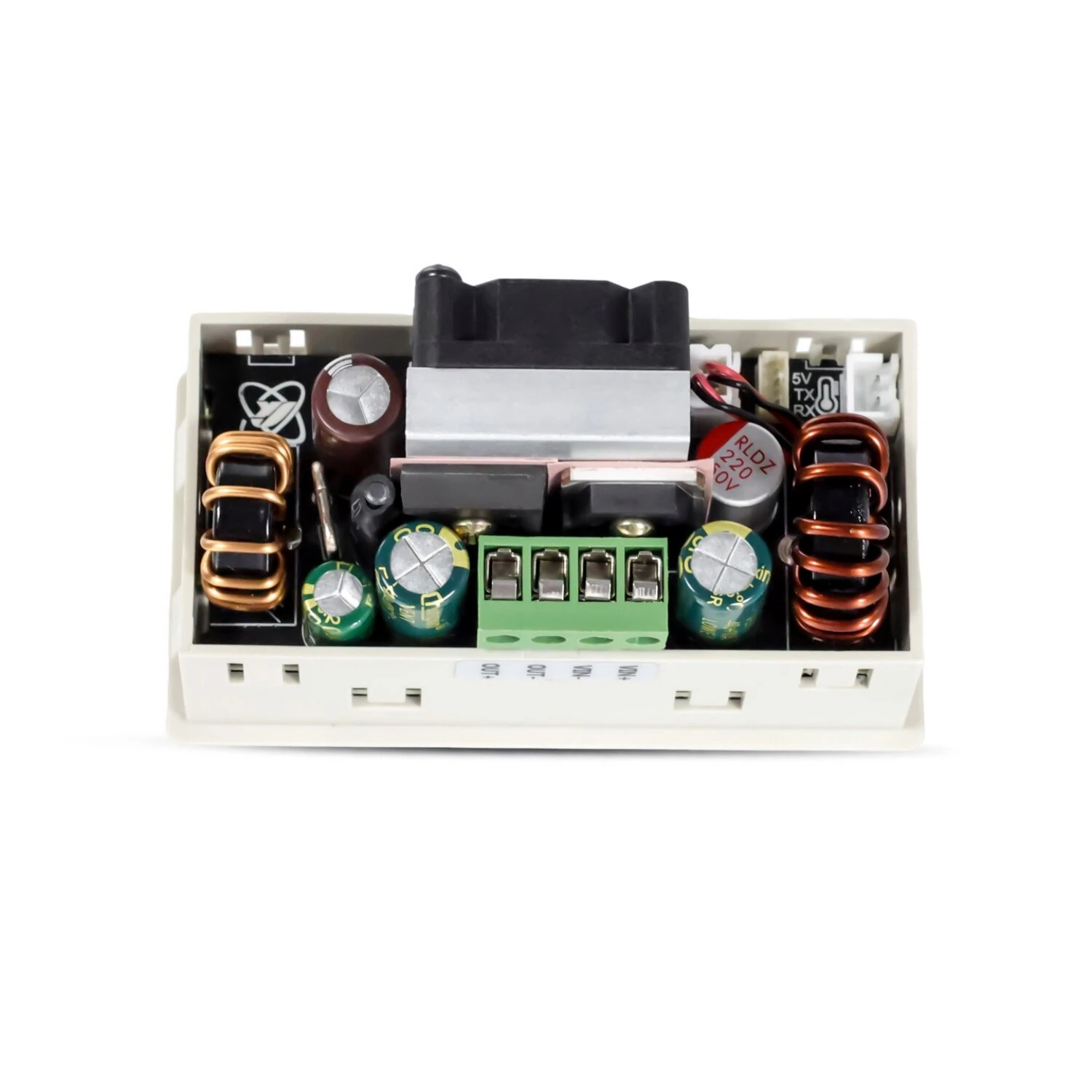

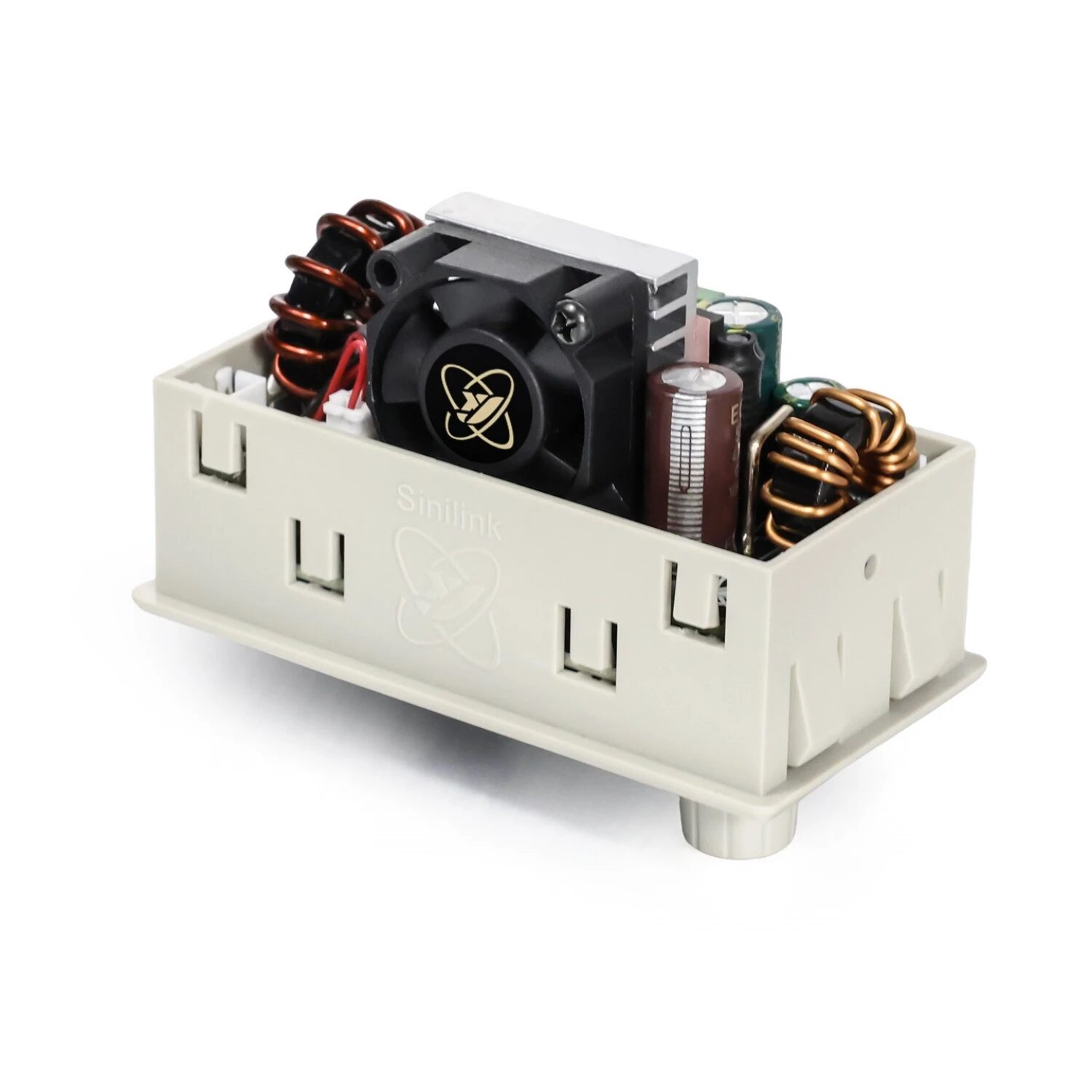

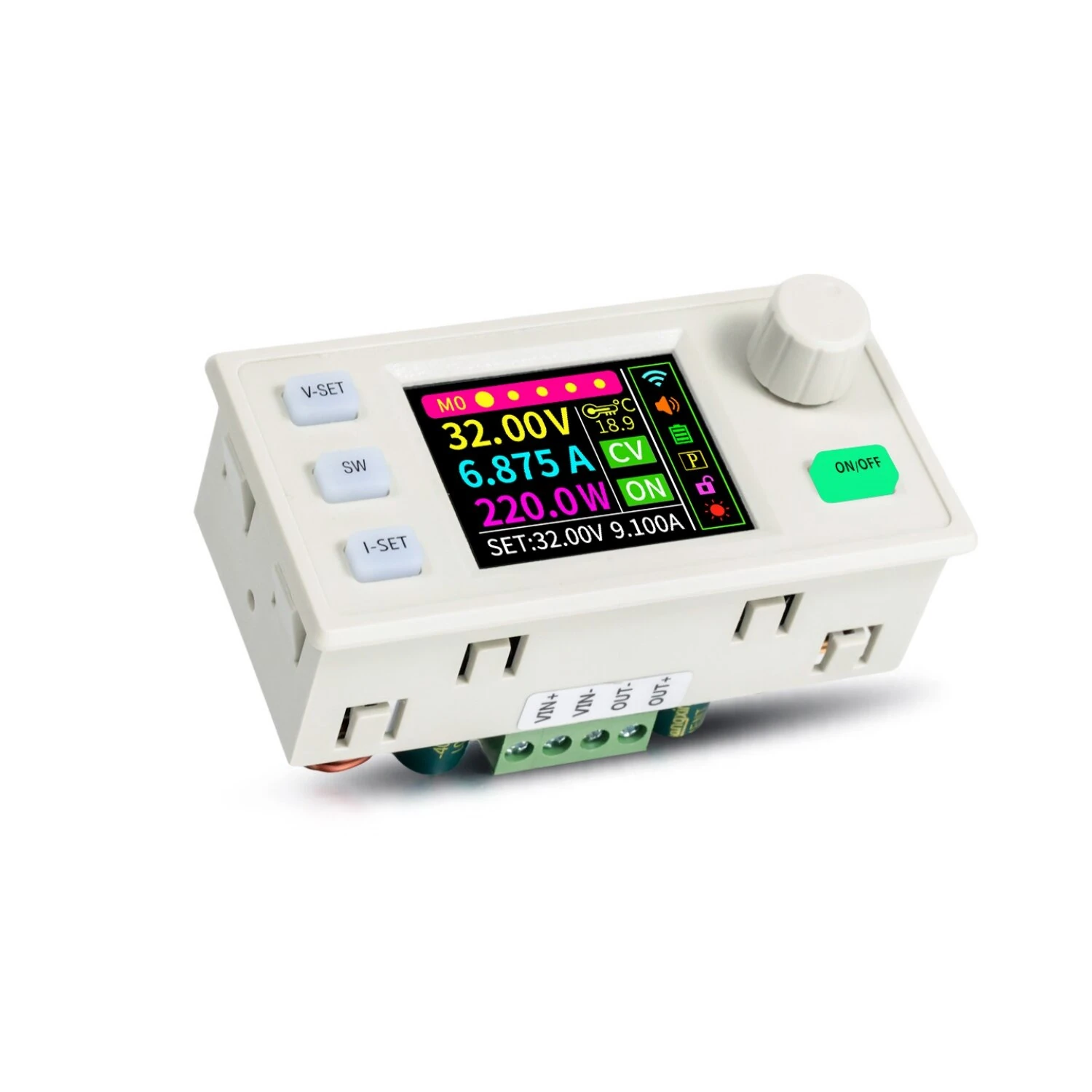

Sinilink XY-SK220S CNC DC Buck Boost Power Supply Module 9A 220W Constant Voltage Current MPPT Solar Charging High-Precision with 1.8 Inch LCD Display
The Sinilink XY-SK220S CNC DC Buck Boost Power Supply Module 9A 220W Constant Voltage Current MPPT Solar Charging High-Precision with 1.8 Inch LCD Display is a mid-range power supply module designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
29% Off — you save ₹1,093 on this product!
Price: ₹2,666
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The Sinilink XY-SK220S CNC DC Buck Boost Power Supply Module 9A 220W Constant Voltage Current MPPT Solar Charging High-Precision with 1.8 Inch LCD Display is a mid-range power supply module designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification:
Brand: Sinilink
Product Name: XY-SK220S CNC DC Buck-Boost Programmable Power Supply Module
Input Voltage: 6.0 – 36.0 V DC
Output Voltage: 0 – 40.0 V DC, resolution 0.01 V
Output Current: 0 – 9.000 A, resolution 0.001 A
Maximum Output Power: 220 W
Working Modes: Constant Voltage (CV), Constant Current (CC), Constant Power (CW)
Conversion Efficiency: about 88% (typical)
Output Ripple (typical): ≤150 mVpp
Data Storage: 10 groups of preset parameters
Display: 1.8" full-view high-brightness color LCD, 4‑way screen rotation
Protection Functions:
Input reverse connection
Output reverse current
Hardware + software input over‑current (13 A)
LVP: 5.5–36 V input under‑voltage
OVP: 0–42 V over‑voltage
OCP: 0–9.2 A over‑current
OPP: 0–240 W over‑power (default 220 W)
OTP / ETP: 60–110 °C internal & external over‑temperature
OHP: 1 min – 999 h 59 min over‑time
OAH / OWH: 0–99999 Ah / 0–99999 kWh over‑capacity & over‑energy
MPPT Function: supports MPPT solar charging
Cooling: intelligent temperature‑controlled fan + large-area heat sink
Communication Interface: 4‑pin XH1.25 serial port, Modbus protocol, supports WiFi/433M/485 optional modules
Buzzer: built-in, key tone & alarm
Buttons/Controls: 5 keys (V‑SET, I‑SET, SW, Power, Encoder)
Product Size: 86 × 50 × 45 mm (panel size about 81.6 × 40.6 mm)
Net Weight: about 108g
Package Size: 104 × 70 × 52 mm
Gross Weight: about 128g
Features:
1. Wide-range buck‑boost output: Covers 0–40 V / 0–9 A with 220 W power, suitable for lab use, battery charging, LED tests and various DC loads.
2. High-precision programmable control: Fine 0.01 V / 0.001 A adjustment, CV/CC/CW modes, 10 groups of memory, quick recall for frequently used setups.
3. Clear color LCD interface: 1.8" true-color screen displays voltage, current, power, capacity, energy and curves; supports 8 customizable color themes and 360° rotation.
4. Comprehensive electronic protection: Built‑in reverse connection, reverse current, over‑voltage, over‑current, over‑power, under‑voltage, over‑temperature, over‑time and over‑capacity protections with audible alarm.
5. Smart charging & MPPT support: MPPT solar charging, automatic stop on full charge, automatic recharge at low battery, external NTC temperature probe interface for advanced battery management.
6. Rich expansion & remote control: Standard serial communication with Modbus, optional WiFi / 433M / IR / RS‑485 modules, PC software and mobile APP for multi-device monitoring, control and firmware upgrade.
Package Includes:
1 x XY-SK220S DC Buck‑Boost Power Supply Module
