Shortwave MOXON Antenna Kit base Plate + Fixed Construction Units Device Equipment

Name: Shortwave MOXON Antenna Kit base Plate + Fixed Construction Units Device Equipment
Brand: Pricio
SKU: 2038341
Price: 5084 INR
Availability: InStock

23+ bought in past month

AI Summary

product for everyday users

The Shortwave MOXON Antenna Kit base Plate + Fixed Construction Units Device Equipment is a premium product designed for everyday users.

₹5,084-29%

MRP:₹7,120Save ₹2,036

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

29% Off — you save ₹2,036 on this product!

Quantity

Total: ₹5,084

Buying tip: A quality investment for dependable performance and premium build quality.

Estimated delivery: 18 Aug – 1 Sept

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience

SKU: bg-2038341

About This Product

The Shortwave MOXON Antenna Kit base Plate + Fixed Construction Units Device Equipment is a premium designed for everyday users. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

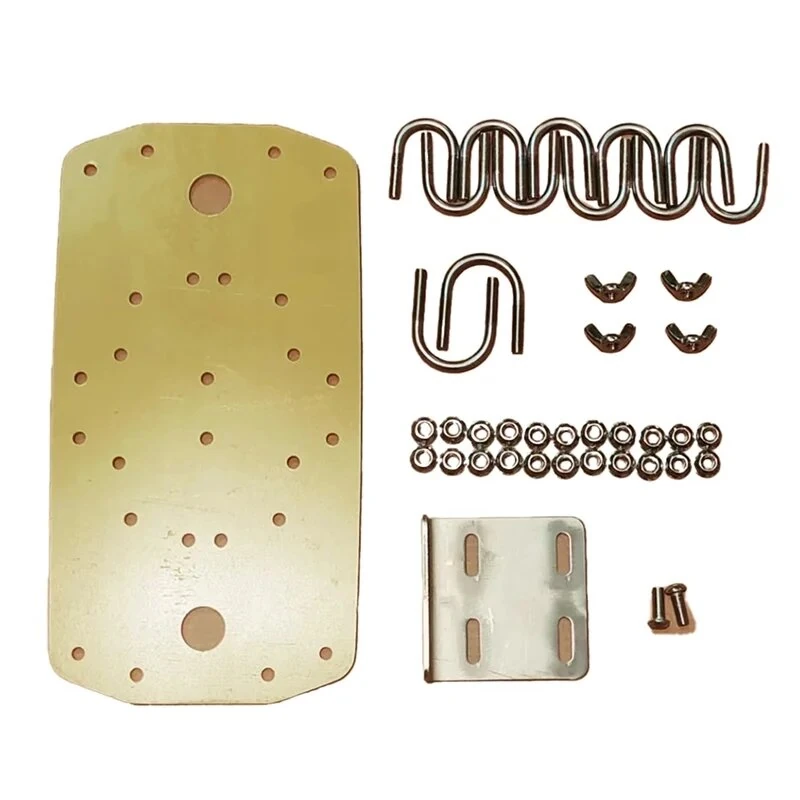

Feature: This product is a short wave Moxo antenna making kit, including base plate and fixed structure, suitable for the use of 20mm diameter support rod or tube and wire vibrator convenient to build a MOXO antenna (insulation tube and vibrator need to be prepared) The kit includes a 5 mm epoxy base plate, Size 270mm x 140mm, CNC machining holes for accurate positioning, 2.5 mm stainless steel fixation mechanism, 12 sets of U-cards and matching screws and nuts (see picture), all made of stainless steel MOX0N antenna can be seen as a deformed 2-unit Yagi, feed point impedance 50 ohms, can be fed directly or add 1: 1 barron is better, the maximum gain is about 6dBi, but the front to back ratio (F/B) is amazing and can reach more than 25dB, the bandwidth is excellent, and the radiation Angle is more than 70 degrees, which is very suitable for radio racing. It is also a convenient wild frame antenna. If used in the high wave segment (12m,10m,6m), and the pursuit of lightweight and cheap can use 20mm PVC pipe construction, such as PVC pipe soft need to consider the sagging problem and compensation in advance, if used for 15 meters or lower band, you need to carefully select high hardness insulation material as support pipe. Package includes: 1 x Shortwave MOXON Antenna Kit Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
