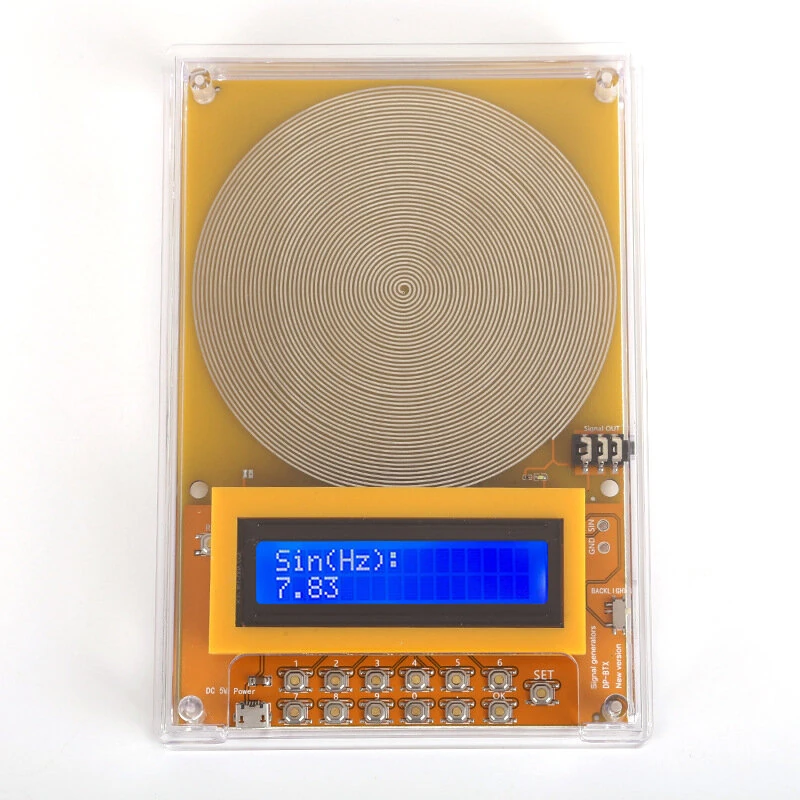

Schumann Wave Signal Generator 0.01Hz-100kHz Adjustable Pure Sine Wave Oscillator 7.83Hz Resonance Frequency Programmable Frequency Generator
The Schumann Wave Signal Generator 0.01Hz-100kHz Adjustable Pure Sine Wave Oscillator 7.83Hz Resonance Frequency Programmable Frequency Generator is a mid-range rf amplifier designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
24% Off — you save ₹588 on this product!
Type: With Shell
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The Schumann Wave Signal Generator 0.01Hz-100kHz Adjustable Pure Sine Wave Oscillator 7.83Hz Resonance Frequency Programmable Frequency Generator is a mid-range rf amplifier designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification
Product Name: High Precision Programmable Schumann Wave Generator
Antenna Waveform: Sine Wave
Interface Waveform: Sine Wave
Power Interface: Micro USB + DC 5.5 x 2.1
Power Supply Voltage: 5V DC
Rated Power Consumption: Less Than 1W
Default Frequency: 7.83Hz
Frequency Adjustment Range: 0.01Hz to 100,000Hz
Hardware Stable Range: 0.1Hz to 30kHz
Frequency Reference: Digital Crystal Oscillator
Board Size: Approx. 15 x 10 cm
Size With Case: Approx. 15.5 x 10.5 x 2.8 cm
Color: Yellow Silver-Plated
Features
1) Digital crystal oscillator reference provides accurate and stable frequency output with less drift than ordinary RC oscillator circuits.
2) Default 7.83Hz Schumann resonance output supports space environment optimization and relaxation applications.
3) Programmable frequency range from 0.01Hz to 100,000Hz, with stable hardware output from 0.1Hz to 30kHz.
4) Pure sine wave output on both antenna and interface sides for smooth and clean signal transmission.
5) Dual power input design with Micro USB and DC 5.5 x 2.1 supports easy standalone use with 5V power sources.
Package Included

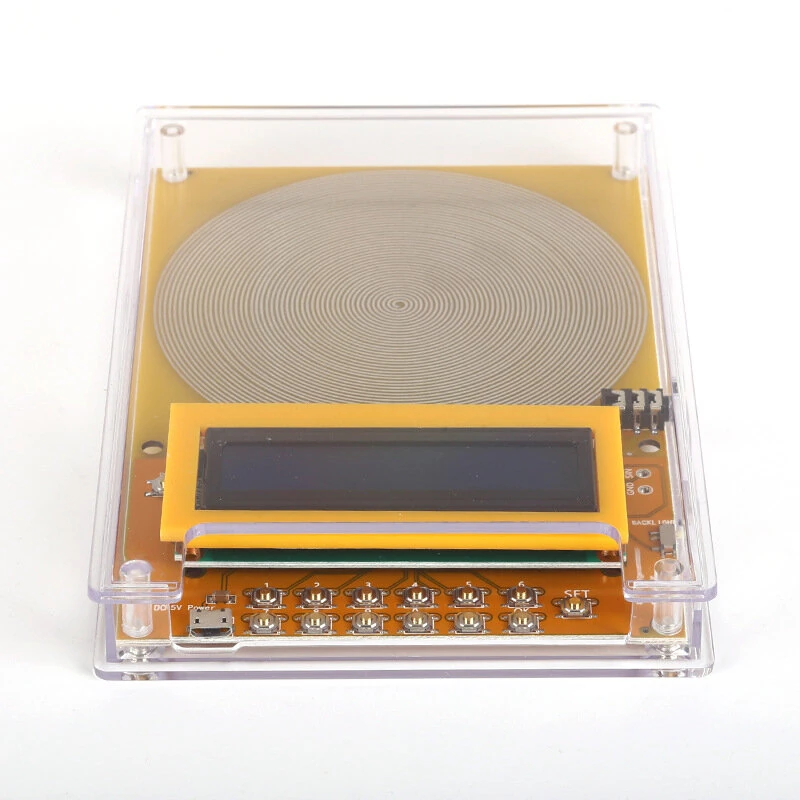

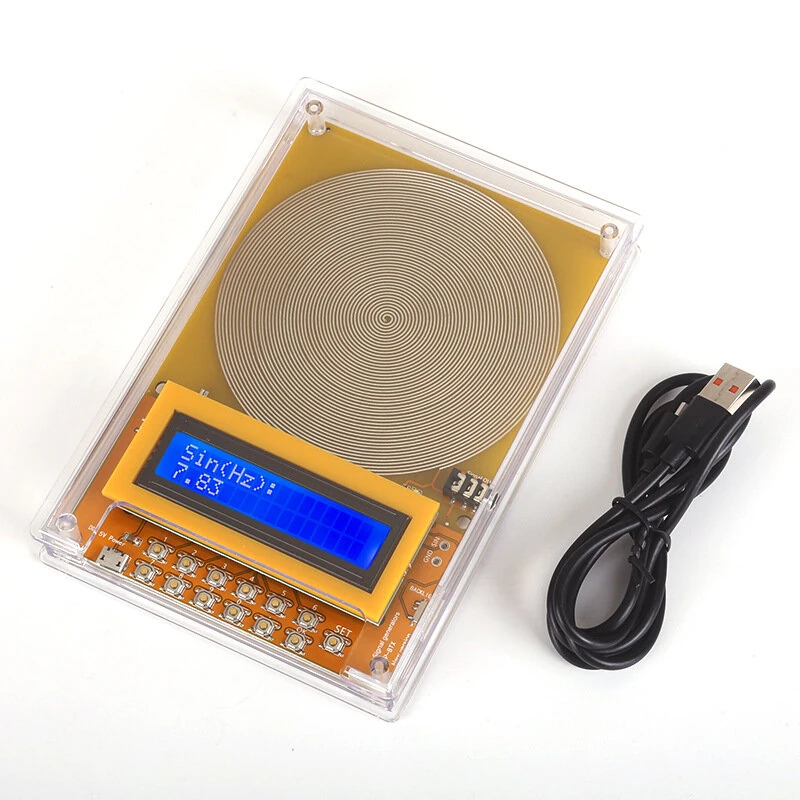

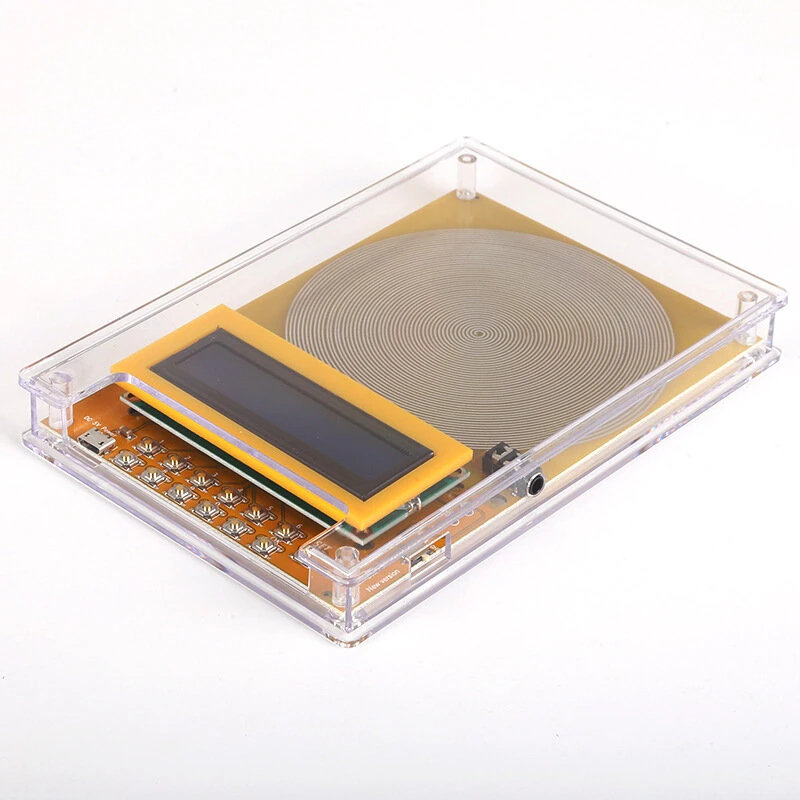

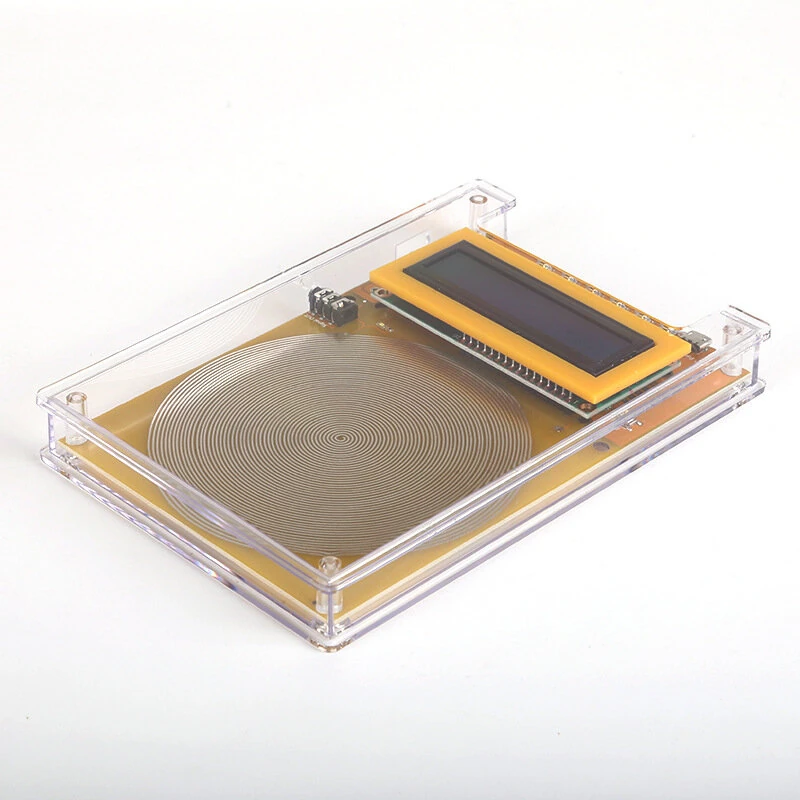

1 x Schumann Wave Generator Main Unit With Acrylic Transparent Case
1 x USB Power Cable
Frequency Change Method (One-Click Setting)
Enter the desired frequency value directly using the number keys.
Press the [OK] key in the lower left corner to complete the frequency setting.
Example: Set to 7.83Hz → Press [7] → [.] → [8] → [3] in → Press [OK].
The default output is 7.83Hz upon power-on, requiring no setting each time.
Settable range: 0.01～100,000Hz (Key operation supports a stable range of 0.1～30kHz).
No computer connection required; can be used independently offline; extremely simple operation.
