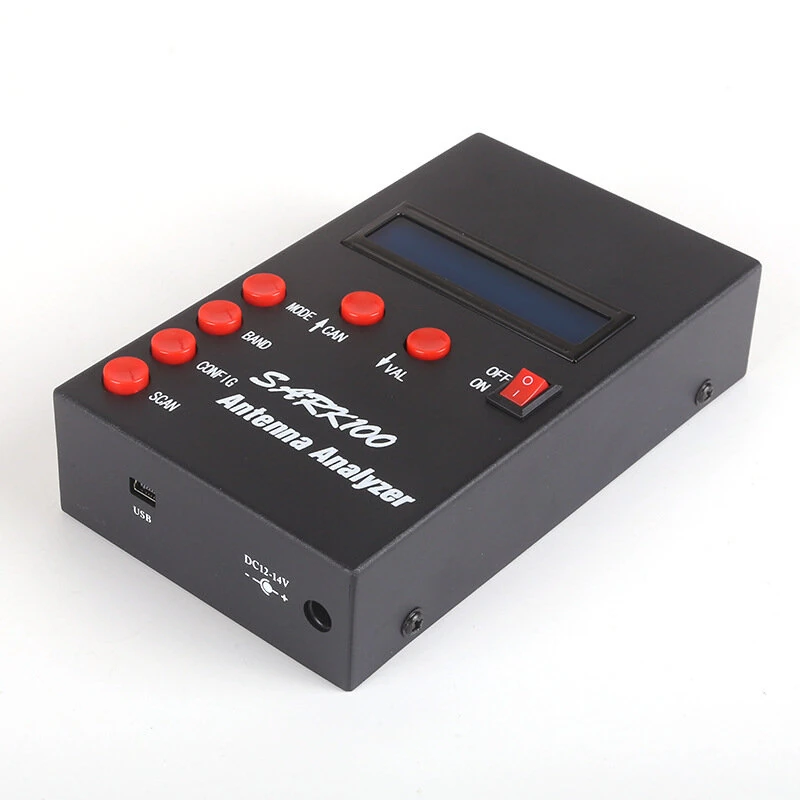

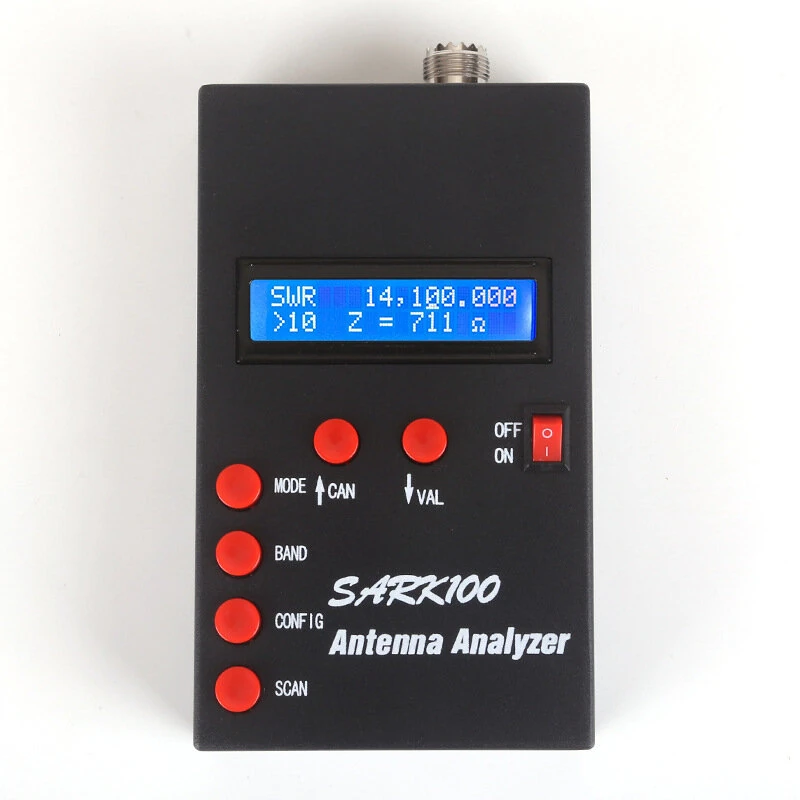

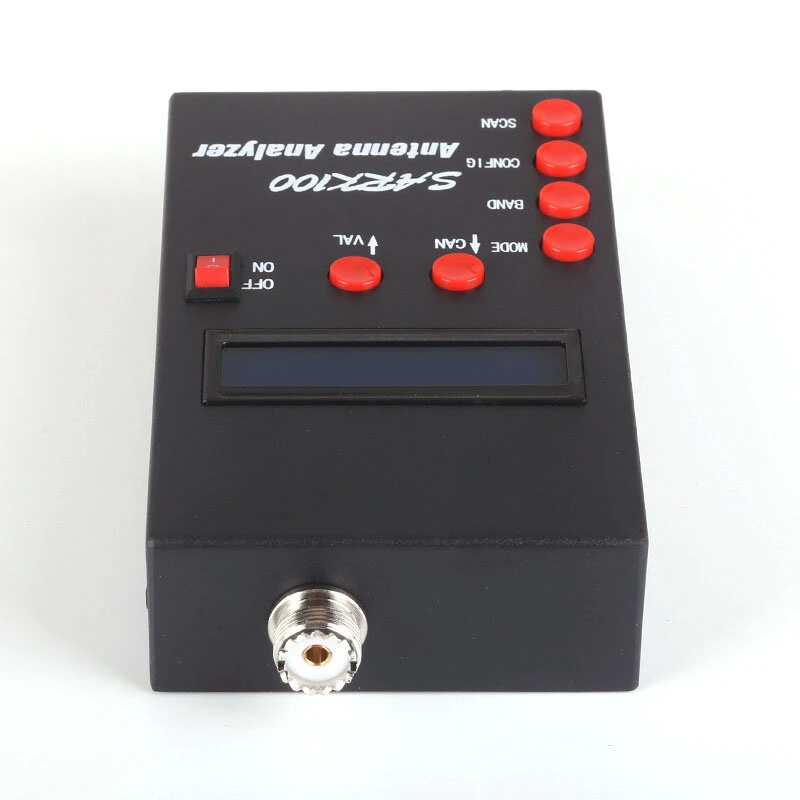

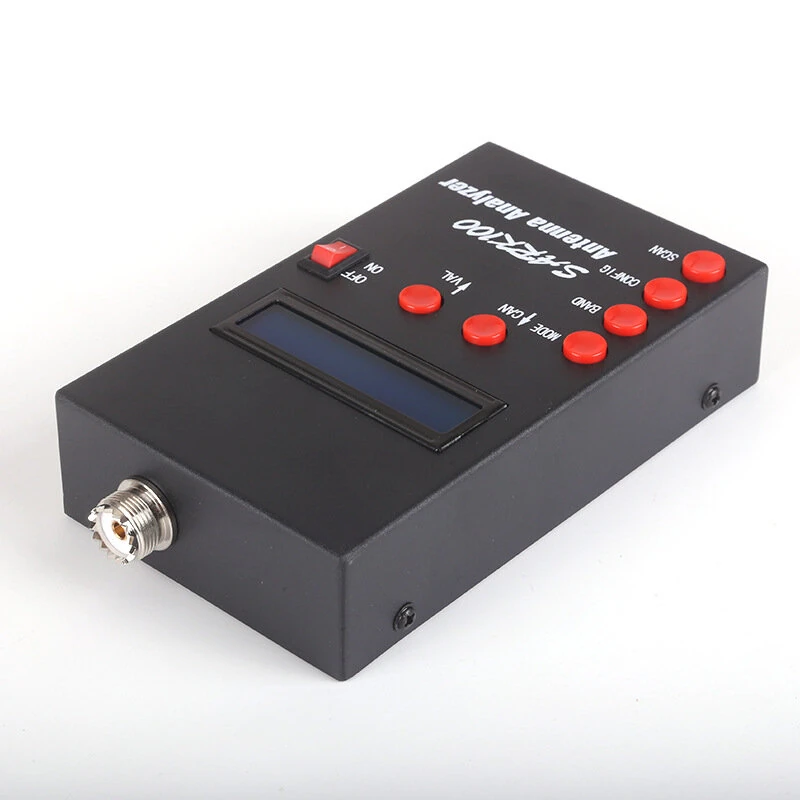

SARK100 Practical Antenna Analyzer 1-60MHz LCD SWR Impedance Meter USB Support SL-16 M Female Socket HF Shortwave Antenna Tester
The SARK100 Practical Antenna Analyzer 1-60MHz LCD SWR Impedance Meter USB Support SL-16 M Female Socket HF Shortwave Antenna Tester is a premium product designed for premium buyers.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
30% Off — you save ₹2,827 on this product!
Color: Black
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The SARK100 Practical Antenna Analyzer 1-60MHz LCD SWR Impedance Meter USB Support SL-16 M Female Socket HF Shortwave Antenna Tester is a premium designed for premium buyers. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification
Product Name: SARK100 Practical Antenna Analyzer
Application: HF shortwave radio station antenna tuning, antenna SWR testing, impedance measurement
Frequency Range: 1-60 MHz
50 Ohm Resistor Test Error: +/-1 Ohm
SWR Test Error: +/-0.1
Display: LCD screen
Display Parameters: Frequency, SWR, impedance
USB Connection: Supports connection to computer via USB cable for test data waveform analysis
USB Cable: Not included
Test Port Connector: SL-16 (M female socket)
Button Type: Round buttons
External Power Supply: 13.5 V 1 A
Battery: Not included
Internal Power Lead: Red and black power wires reserved inside
Enclosure Size: 150 x 90 x 40 mm
Unit Weight: 0.6 kg
Circuit Board Size: 91 x 53 x 25 mm
Working Current: 500-700 mA
Ready to Use: Main board fully soldered and tested, enclosure fully assembled
Features
1) 1-60 MHz frequency range covers commonly used HF shortwave bands.
2) High test accuracy with +/-1 Ohm resistor error and +/-0.1 SWR error.
3) Fully assembled unit with tested main board and completed enclosure.
4) LCD screen displays frequency, SWR, impedance, and other key parameters.
5) Supports USB connection to a computer for test data waveform analysis.

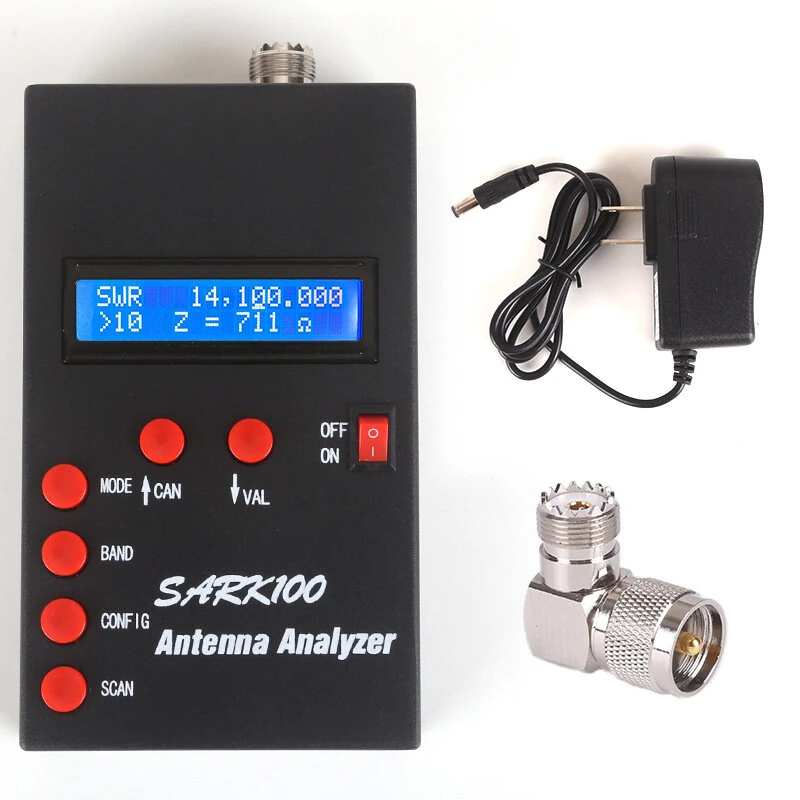

Package Included
1x SARK100 antenna analyzer finished unit (main board soldered + enclosure assembled)
1x Power adapter
1x SL-16 antenna socket (M socket)
