SA6 Mini Portable Spectrum Analyzer Wi-Fi CDMA Lab 35-4400Mhz Signal Test Signal Generator

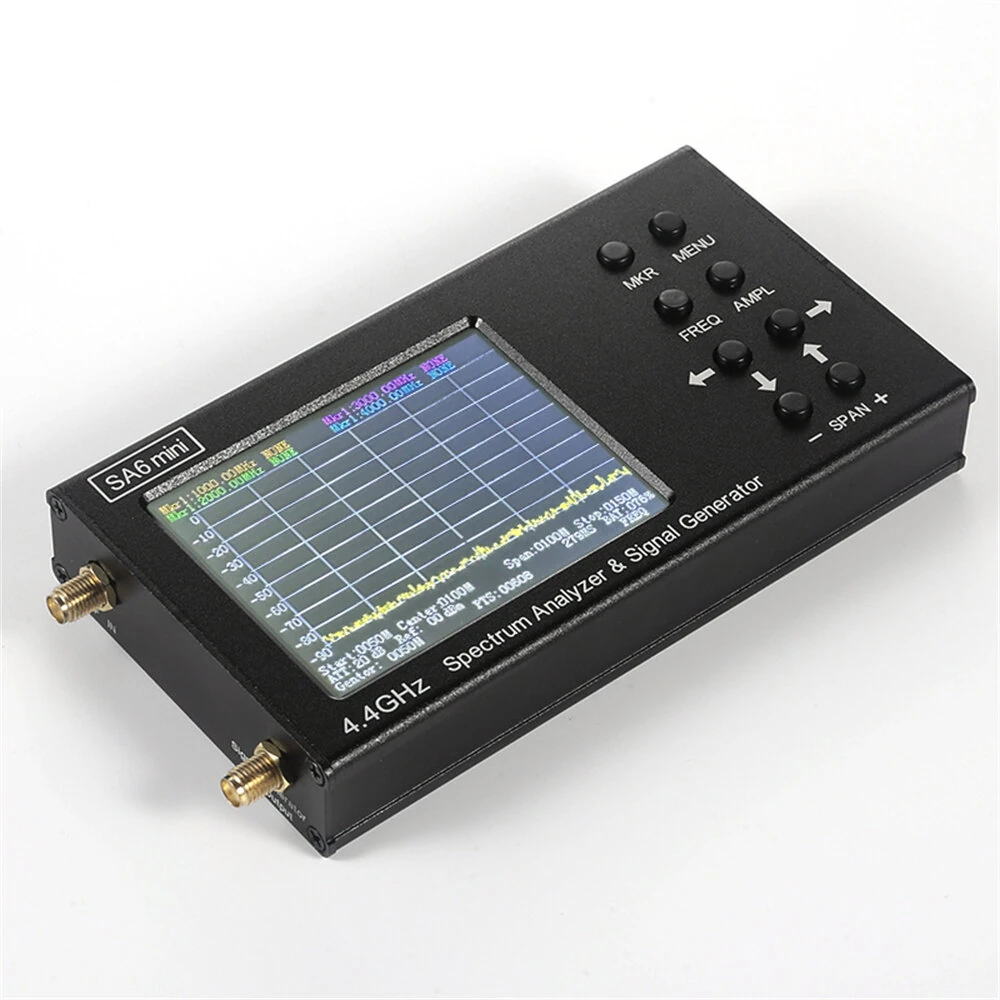

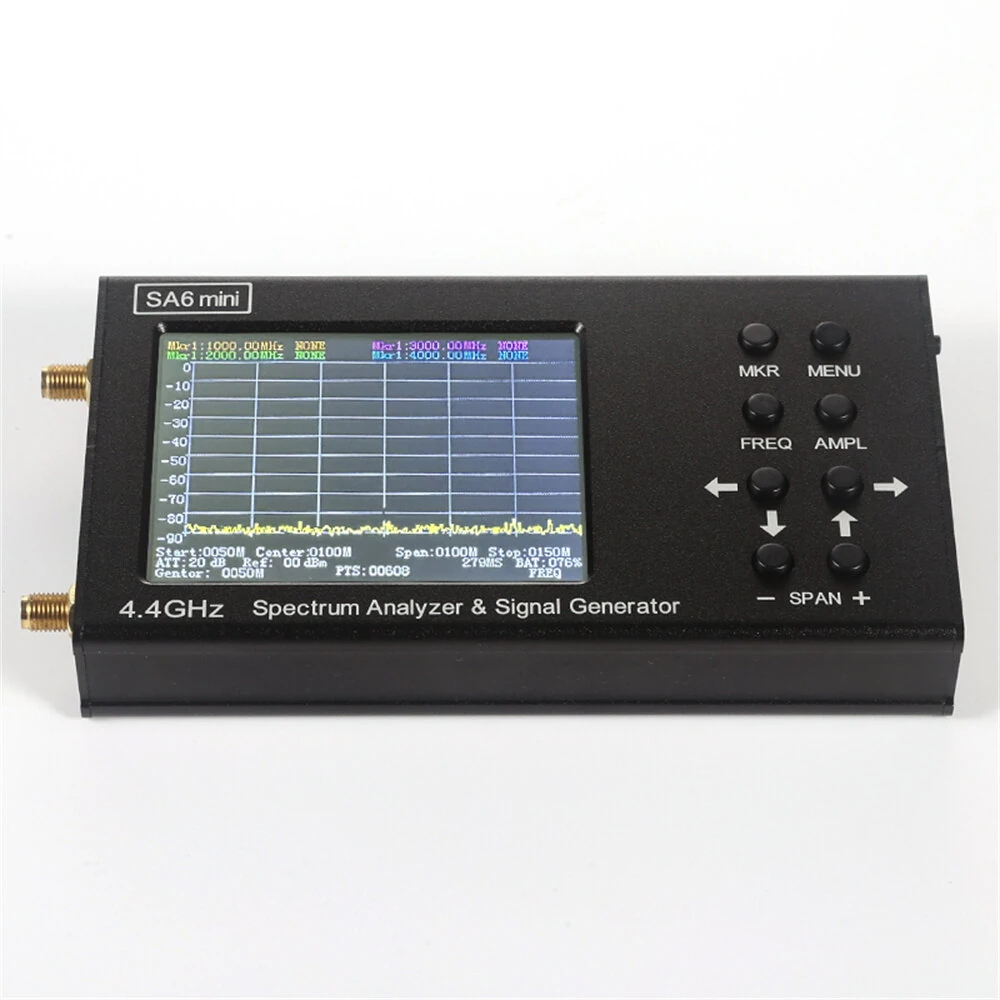

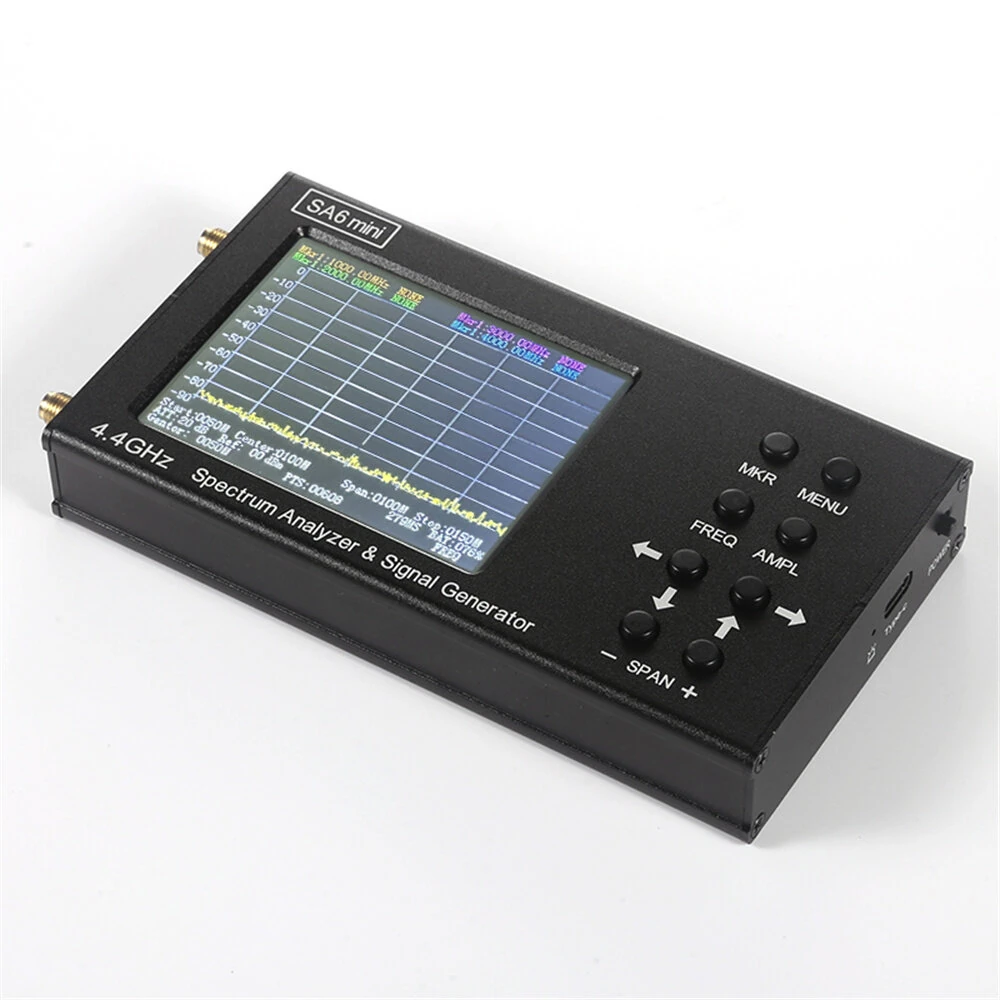

Product Name: Mini Portable Spectrum Analyzer SA6

Frequency Range:

Displayed: 35-4400 MHz

Measurement: 45-4400 MHz

Dynamic Range:

75 dB (45-3000 MHz band)

70 dB (3000-4400 MHz band)

Maximum Bandwidth: 4355 MHz

IF Bandwidth (Fixed): 200 kHz

Speed over 100 MHz: 600 MHz/s

Measurement Time: Less than 0.25 seconds for 100 MHz span

Detectable Signal Duration: 20 ms at 10 MHz span

Noise Floor:

Less than -100 dBm (up to 3000 MHz)

Less than -95 dBm (3000-4500 MHz)

Less than -90 dBm (4500-6200 MHz)

Input Impedance: 50 ohms

SWR: Less than 1.5 in the operating frequency range

Internal Attenuator: 0-30 dB

Attenuation Error:

Up to 10 dB: 2 dB

10 to 20 dB: 5 dB

20 to 30 dB: 8 dB

Built-in Tracking Generator Frequency Range: 35-6200 MHz

Tracking Generator Output Power: -15 to 25 dBm

Accuracy of Signal Display within Dynamic Range: 2 dB

Maximum Input Power:

0 dB Attenuator: +10 dBm

Greater than 20 dB Attenuator: +20 dBm

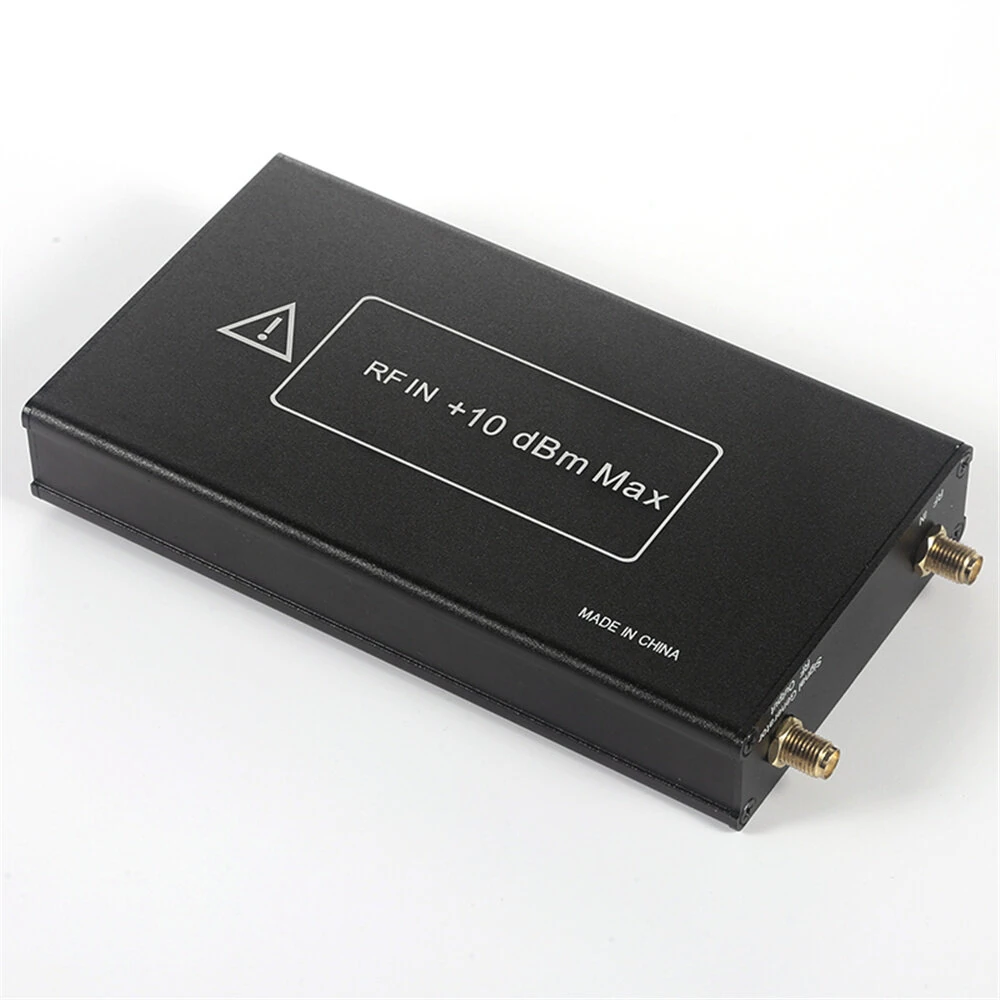

Measured Maximum Input Signal: +10 dBm

Maximum RF Input DC Voltage: 5V

Maximum Supply Current:

450 mA (on battery)

500 mA (USB charging mode)

Battery Capacity: 3000 mAh

Battery Continuous Operating Time: 3 hours

Battery Charging Time: About 4 hours

Dimensions: 155 x 81 x 27 mm

Weight: 0.49 kg

Color: Black

Material: ABS

Features:

1.Wide Frequency Range:

The SA6 Mini Portable Spectrum Analyzer covers a substantial frequency range from 35 to 4400 MHz (displayed), making it suitable for analyzing a broad spectrum of signals, including Wi-Fi and CDMA.

2.High Dynamic Range and Sensitivity:

Boasting a dynamic range of 75 dB up to 3000 MHz and 70 dB from 3000 to 4400 MHz, this device ensures accurate signal analysis even in environments with varying signal strengths.

3.Built-in Tracking Generator:

The built-in tracking generator operates within a 35-6200 MHz range, enabling users to generate and test signals over a wide frequency span, thus enhancing its utility in lab environments and field applications.

4.Portable and Efficient Design:

With compact dimensions of 155 x 81 x 27 mm and a weight of just 0.49 kg, the SA6 is highly portable. Its 3000 mAh battery provides up to 3 hours of continuous operation, while a quick 4-hour charging time keeps downtime to a minimum.

5.User-Friendly Operation:

Features such as a fixed IF bandwidth of 200 kHz, rapid speed over 100 MHz at 600 MHz/s, and a quick 0.25-second measurement time for 100 MHz spans make this spectrum analyzer not only efficient but also easy to use for rapid signal analysis and troubleshooting.

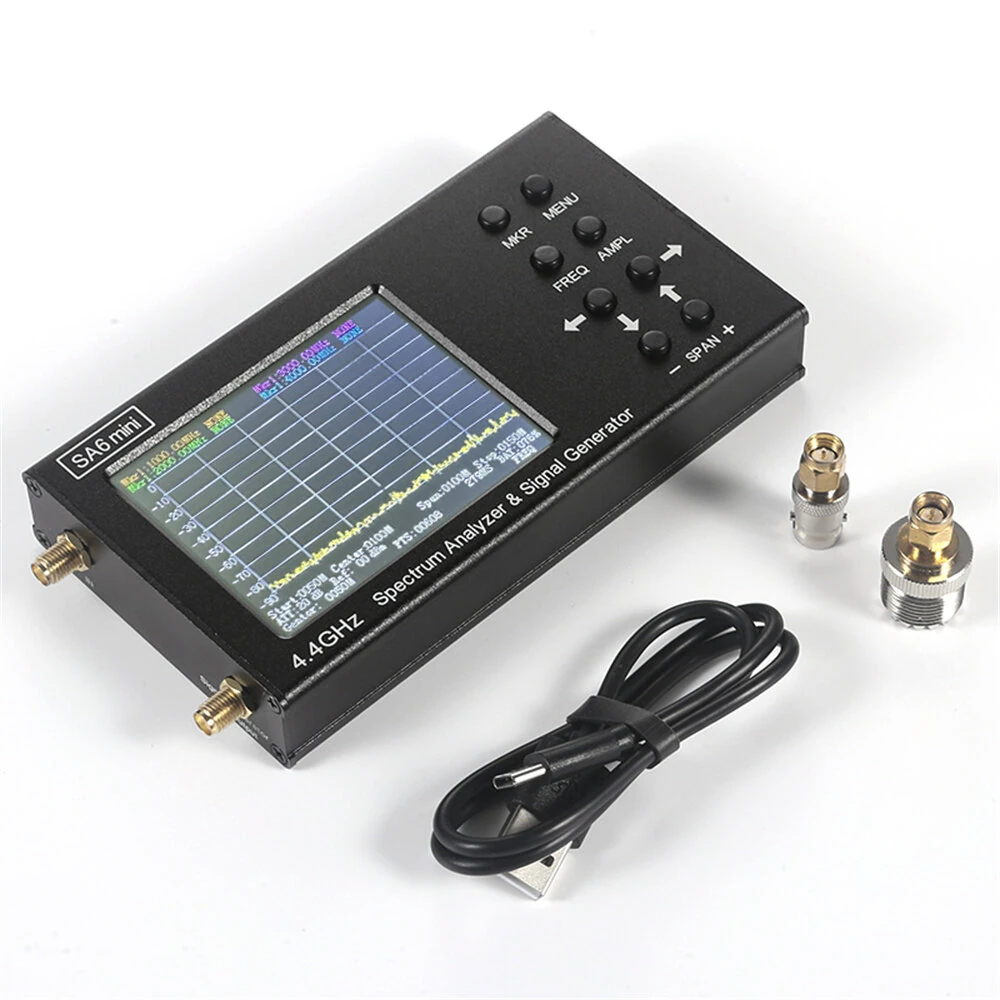

Package Included:

1 x Portable Spectrum Analyzer (SA6)
