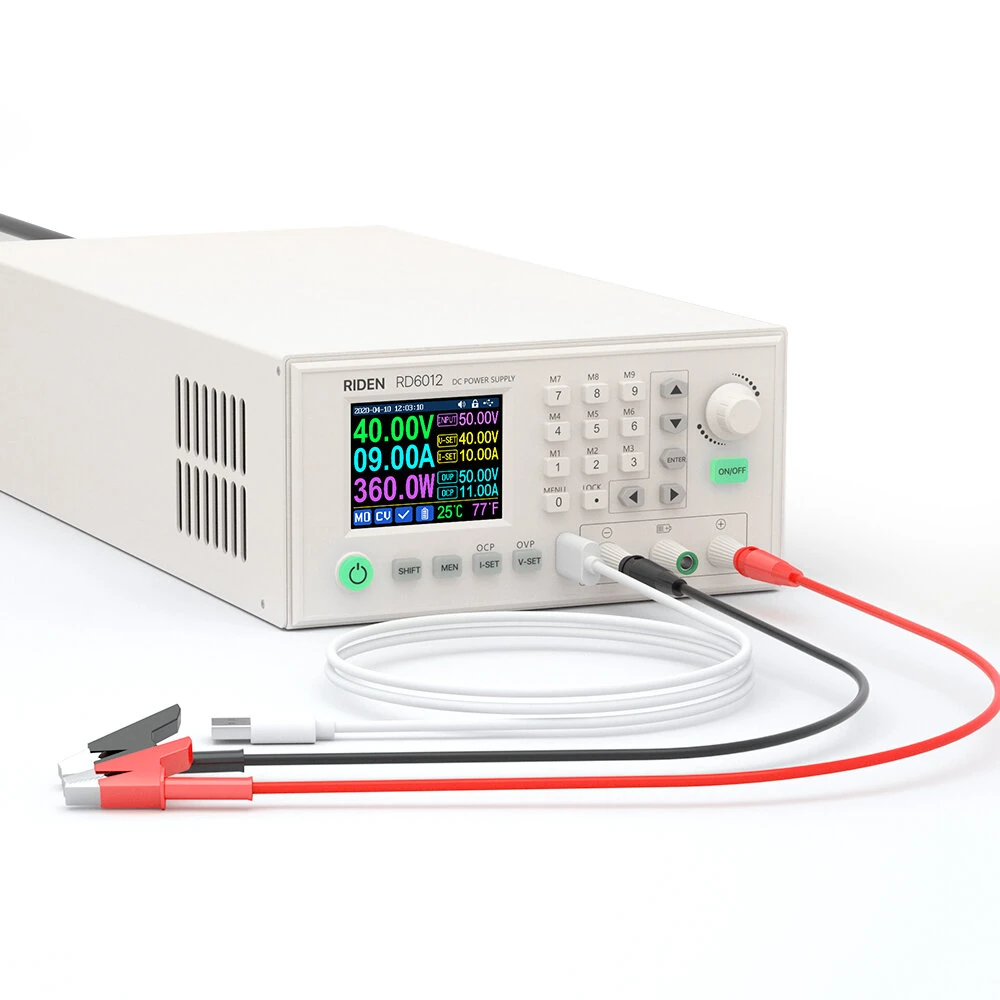

RIDEN RD6012 720W Completed Set USB Digital Control AC to DC Adjustable Bench Variable Power Supply 60V 12A Battery Charging

Note about the noise about 800W PSU: 1. There is a high-frequency noise when the switching power supply is unloaded, Due to the large output power range of the product, in order to reduce the power consumption of the switching power supply when no-load, the PWM control chip will jump some control cycles. Assume that the original working frequency is 60KHZ. If there are more skipping cycles, the working frequency will be reduced to less than 20KHZ. This Sometimes a noise audible to human ears is produced. The size of this noise is also related to the production process of the transformer. Since the winding and paint impregnation of each transformer coil are slightly different, the noise of each product's operation is slightly different. 2. There is a loud sound when the fan is running; when the ambient temperature is high, the fan may work even if it is unloaded. These are normal phenomena. It is recommended to turn off the AC switch when the product is not in use! If you mind it, please do not buy it. NOTE: 1. This Set is already assembled, you can connect AC power directly! Now there are 4 choices(US/EU/UK/AU Plug) , the only difference is the AC cable and input AC voltage request. others are same. 2. This set does not have the WiFi card for APP connection, and does not have battery(CR1220) for date/time display 3. If you want to install the WiFi card, you need to know that you must install the battery first, if you instll the WiFi card, you cannot remove it and install the battery again.

Specification:

Model: RD6012 Completed Set

Input voltage range: 100-120V/200-240V AC

Output voltage range: 0-60.00V

Output current range: 0-12.00A

Output power range: 720W@AC220V, 660W@AC110V

Input voltage measurement resolution: 0.01V

Output voltagesetting measurement resolution: 0.01V

Output current setting measurement resolution: 0.01A

Battery voltage measurement resolution: 0.01V

Input voltage measurement accuracy: ±(1%+5 digits)

Output voltage accuracybetween setting and measurement: ±(0.3%+3 digits)

Output currentaccuracybetween setting and measurement:±(0.5%+5 digits)

Battery voltage measurement accuracy: ±(0.5%+3 digits)

Automatic cut off current valuewhen charging: 100mA

Output ripple typical: 250mV VPP@6A

Working temperature range: -10℃~40℃

External sensor Temperature detection range: -10℃~100℃/0℉~200℉

External sensor Temperature detection accuracy: ±3℃/±6℉

Constant voltage moderesponse time: 2ms（0.1A-5A Load）

Constant voltage mode load regulation: ±(0.1%+2 digits)

Constant current mode load regulation: ±(0.1%+3 digits)

Capacity measurement range: 0-9999.99Ah

Energy measurement range: 0-9999.99Wh

Capacity and energy statistical error: ±2％

Buck working mode: Voltage drop >1V and >10%

Over temperature protection: System temperature>80℃

Screen brightness setting: 0-5(6 level in total)

Screen: 2.4inch color HD display

Product dimension: 173*92*336mm

Cooling fan start condition：Output current>8AorSystem temperature>45℃

Cooling fan shut down condition：Output current<7.9Aand System temperature<45℃

package weight: about 3.3kg

Package includes:

1 x RD6012 Completed Set
