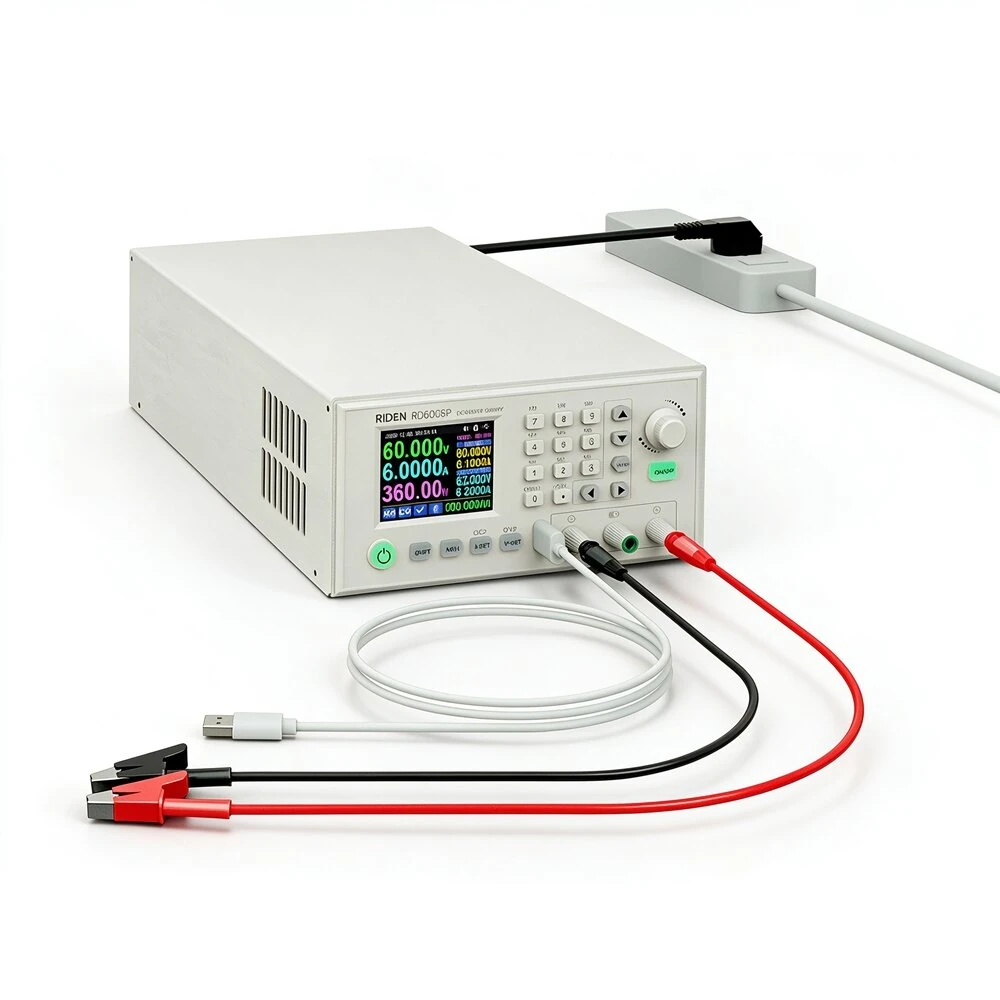

RIDEN RD6006P 360W 60V 6A USB Completed Set Digital Control AC to DC Adjustable Voltage Current Lab Bench Power Supply Module

Note about the noise about 400W PSU: 1. There is a high-frequency noise when the switching power supply is unloaded, Due to the large output power range of the product, in order to reduce the power consumption of the switching power supply when no-load, the PWM control chip will jump some control cycles. Assume that the original working frequency is 60KHZ. If there are more skipping cycles, the working frequency will be reduced to less than 20KHZ. This Sometimes a noise audible to human ears is produced. The size of this noise is also related to the production process of the transformer. Since the winding and paint impregnation of each transformer coil are slightly different, the noise of each product's operation is slightly different. 2. There is a loud sound when the fan is running; when the ambient temperature is high, the fan may work even if it is unloaded. These are normal phenomena. It is recommended to turn off the AC switch when the product is not in use! If you mind it, please do not buy it. NOTE: 1. This Set is already assembled, you can connect AC power directly! Now there are 4 choices(US/EU/UK/AU Plug) , the only difference is the AC cable and input AC voltage request. others are same. 2. This set does not have the WiFi card for APP connection, and does not have battery(CR1220) for date/time display. 3. If you want to install the WiFi card, you need to know that you must install the battery first, if you instll the WiFi card, you cannot remove it and install the battery again.

Specification:

Model: RD6006P Completed Set

Input voltage range: 100-120/200-240V AC

Output voltage range: 0-60.000V

Output current range: 0-6.0000A

Output power range: 0-360W

Input voltage measurement resolution: 0.01V

Output voltagesetting measurement resolution: 0.001V

Output current setting measurement resolution: 0.0001A

Battery voltage measurement resolution: 0.01V

Input voltage measurement accuracy: ±(1%+5 digits)

Output voltage accuracybetween setting and measurement: ±(0.5‰+4 digits)

Output currentaccuracybetween setting and measurement: ±(1‰+6 digits)

Battery voltage measurement accuracy: ±(0.5%+3 digits)

Automatic cut off current valuewhen charging: Set by yourself

Output ripple typical: 20mV VPP

Working temperature range: -10℃~40℃

External sensor Temperature detection range: -10℃~100℃/0℉~200℉

External sensor Temperature detection accuracy: ±3℃/±6℉

Constant voltage moderesponse time: 2ms（0.1A-5A Load）

Constant voltage mode load regulation: ±(0.1%+2 digits)

Constant current mode load regulation: ±(0.1%+3 digits)

Capacity measurement range: 0-9999.99Ah

Energy measurement range: 0-9999.99Wh

Capacity and energy statistical error: ±2％

Buck working mode: (input voltage÷1.1)-2

Over temperature protection: System temperature>80℃

Screen brightness setting: 0-5(6 level in total)

Screen: 2.4inch color HD display

Product dimension: 173*92*336mm

Cooling fan start condition: Output current >4A or System temperature>45℃

Cooling fan shut down condition: Output current <3.9A and System temperature <45℃

Package size: 41x24x17cm

Package weight: about 3kg

Package includes:

1 x Power supply
