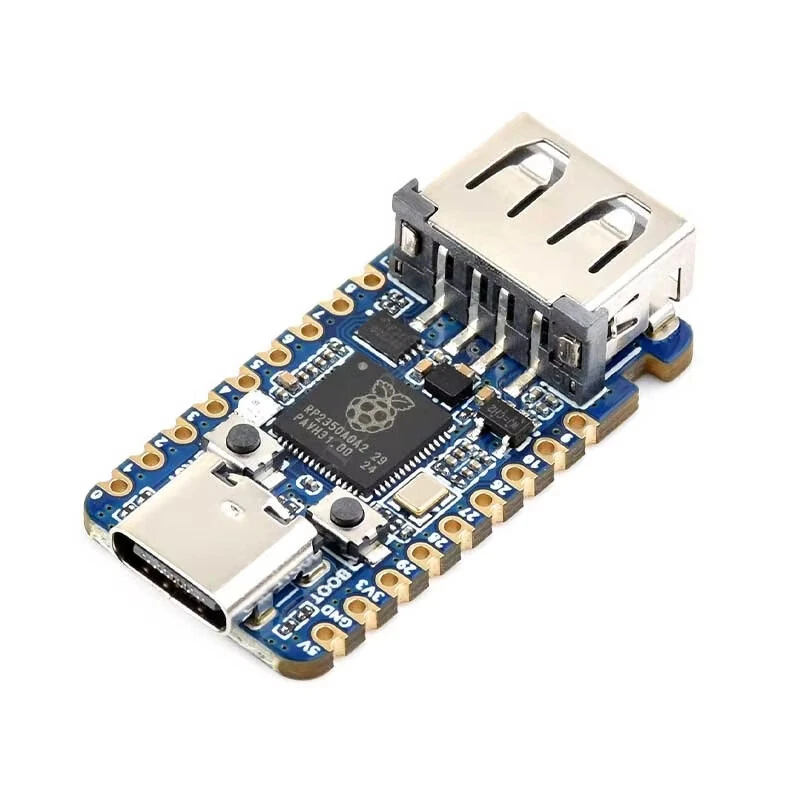

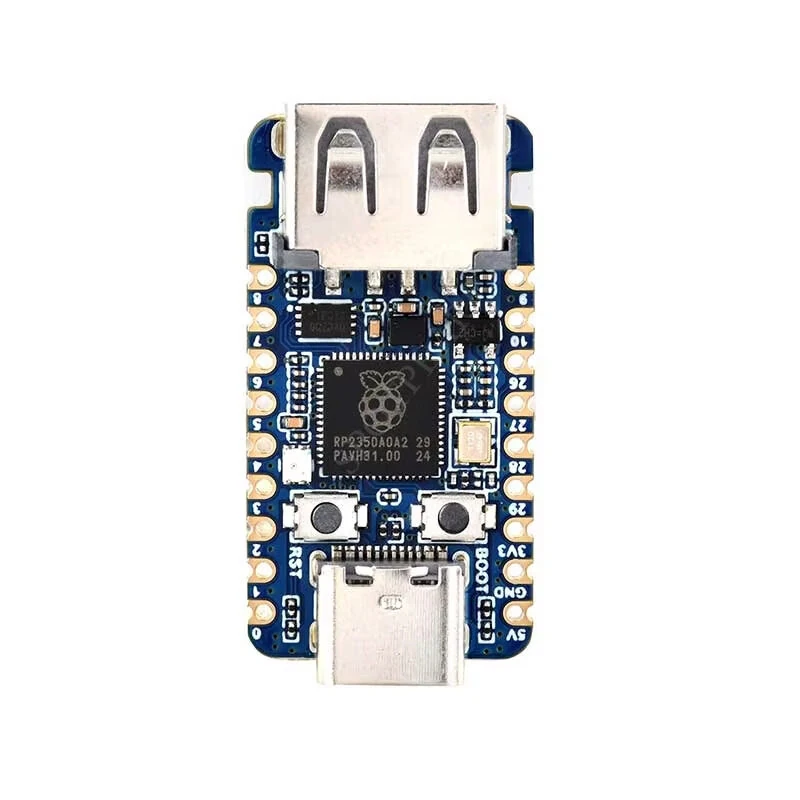

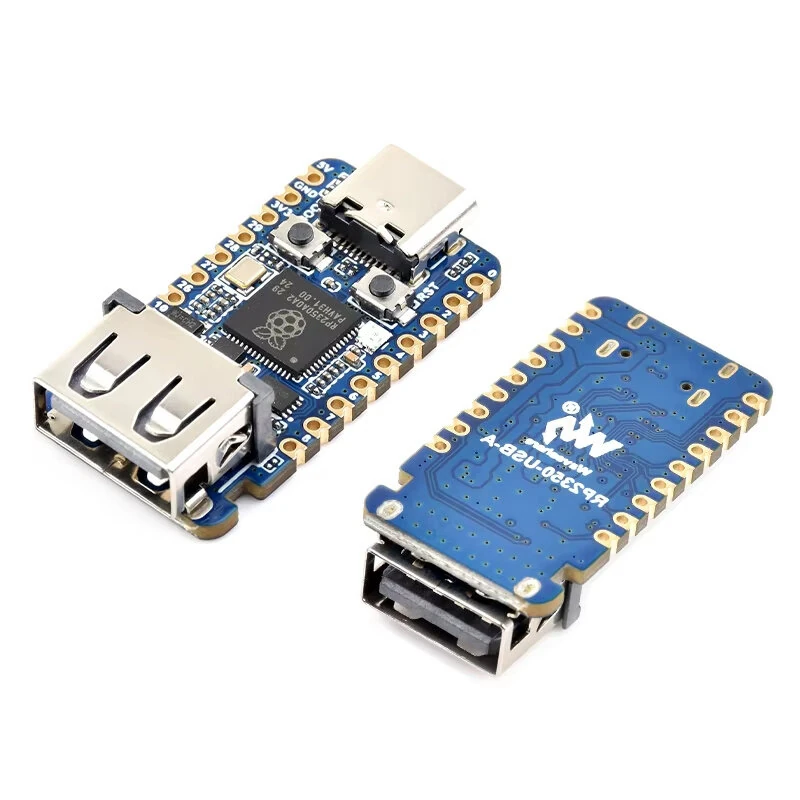

Raspberry Pi Pico 2 RP2350 USB A Development Board RP2350A RP2350-USB-A RP2350-USB-A-H

Specification:

1. It uses the RP2350A microcontroller chip designed by Raspberry Pi.

2. The unique dual-core and dual-architecture is equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard 3 RISC-V processor, with a clock running frequency of up to 150MHz.

3. Built-in 520KB SRAM and 2MB on-chip Flash.

4. Using the Type-C interface, it keeps up with the trend of the times and does not need to worry about whether to insert it in the right or wrong direction.

5. The stamp hole design can be directly welded and integrated into the baseboard designed by the user.

6. USB1.1 host and device support.

7. Onboard 1 USB expansion port, compatible with USB2.0/1.1 transmission.

8. Support low-power sleep and hibernation modes.

9. Can be identified as a large-capacity storage device through USB for drag-and-drop downloading.

10. RP2350A's 15 GPIO pins are brought out.

11. 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC and 14 controllable PWM channels.

12. Accurate on-chip clocks and timers.

13. Built-in temperature sensor.

14. On-chip accelerated floating-point library.

15. 12 programmable I/O (PIO) state machines for custom peripheral support.

Package Included:

1 x Raspberry Pi Pico 2 RP2350 USB A Development Board
